Set air pressure for the average of your hunting weather encountered ie 28 inhgQuote:
Originally Posted by longrange308
Altitude is irrelevant as an inputted value compared to actual/absolute air pressure.
Printable View
Set air pressure for the average of your hunting weather encountered ie 28 inhgQuote:
Originally Posted by longrange308
Altitude is irrelevant as an inputted value compared to actual/absolute air pressure.
Yep, either average your air pressure for your usual hunting areas, a different label for specific conditions or have MOA printed on the label also so that you can input data into a ballistics programme and dial accordingly.
How about some tapered turrets???? No problem, once I sorted the maths.

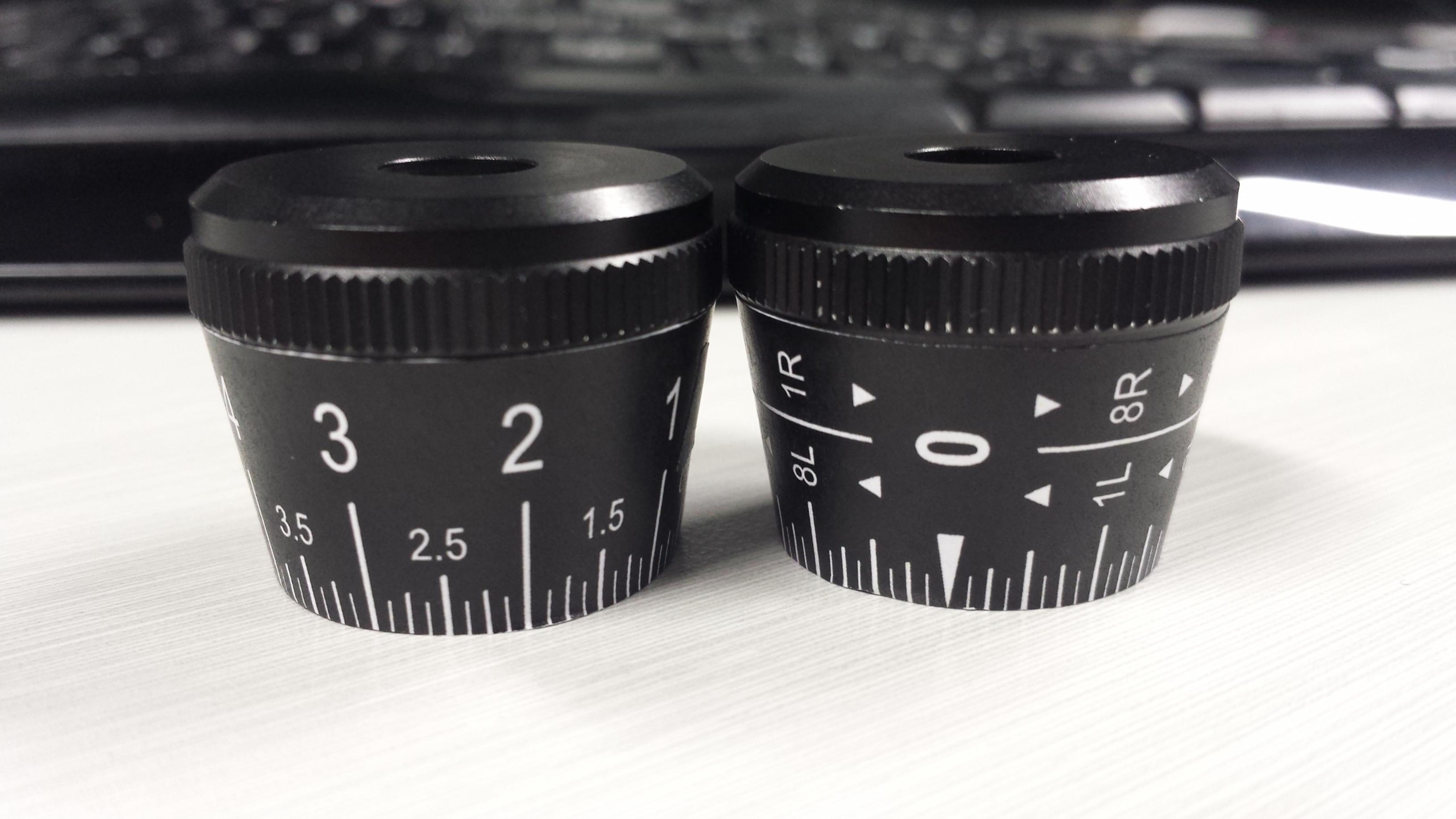

Attachment 48827

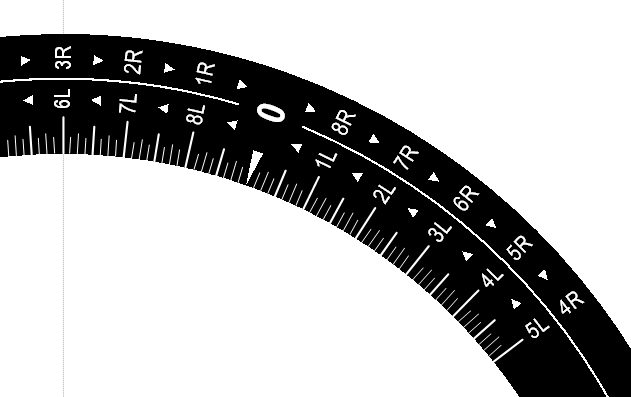

Attachment 48828
Awesome work, can't wait to play with them :thumbsup:
The straight set will go on the smallbore rifle and these on the fullbore.
Spot on Matt. Ive spend time sorting what air pressure i should out for my own label. Ive also added MOA to it so i can run from a ballistics app if i need to at some stageQuote:
Originally Posted by Matt2308
http://uploads.tapatalk-cdn.com/2016...95c3d186b8.jpg
Looks good.Quote:
Originally Posted by Uplandstalker
BDC plus cheat-sheet eliminates the need for ballistic apps in changing conditions.
Just pre-calculate the DEVIATION from your BDC.
Then you can look at the weather and say "ok, today I dial range + 2 clicks..." and you'll be spot on and much faster than a ballistic program
Here's how to setup your BDC to work inside your weather range.
https://www.youtube.com/watch?v=RQh9tiHBjjc
I made one with the right size socket that fitted over my turret and label maker sticker
worked for the time i needed it to
Nice! It was a real bastard working this out for my HD5:Quote:
Originally Posted by Uplandstalker

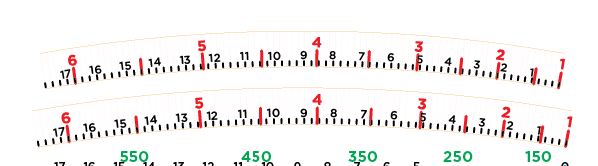

Attachment 49017
Always happy to share:Quote:
Originally Posted by chalkeye
R1 = (C1(R1-R2))/(C1-C2)
where:
C1 = D1xpie
C2 = D2xpie
R1 =Radius@D1
R2 =Radius@D2
Who said maths wasn't going to be helpful in real life?
Mmmmm pie... Coulnt resist
I "simply" made a model in 3d and unwrapped it as a 2d surface. Maths would be probably be simpler, but modeling is fast for me.Quote:
Originally Posted by Uplandstalker
I'm guessing that the different layers of the ranges are for different turret revolutions. Do you find you ever forget to turn the turret back and forget what revolution you are on?Quote:
Originally Posted by Uplandstalker
Those Burris C4s are awesome scopes, way better than they should be for the price.
OK, I'm not going to add tapered turrent to my app...uplandstalker wins!
I brought mine in the US while there for work. Worked out about NZ $420 at the time. About doible that here.Quote:
Originally Posted by Beetroot
Yes, different layers are for each revolution and also have the zero stop information printed on it. "Zero 28 minutes from the top"
