Thread: 6.5 143gr ELD-X penetration on 6mm steel plate @500m & @700m

  1. #1
    Member
    Join Date
    Apr 2020
    Location
    Wanganui
    Posts
    462

    6.5 143gr ELD-X penetration on 6mm steel plate @500m & @700m

    Hi guys,

    Thought some people might be interested in seeing some of the dents/holes that these projectiles are putting on 6mm plate steel at
    medium ranges with some 140gr NBT 7mm08 and 155gr Amax .308 also shown as a comparison.

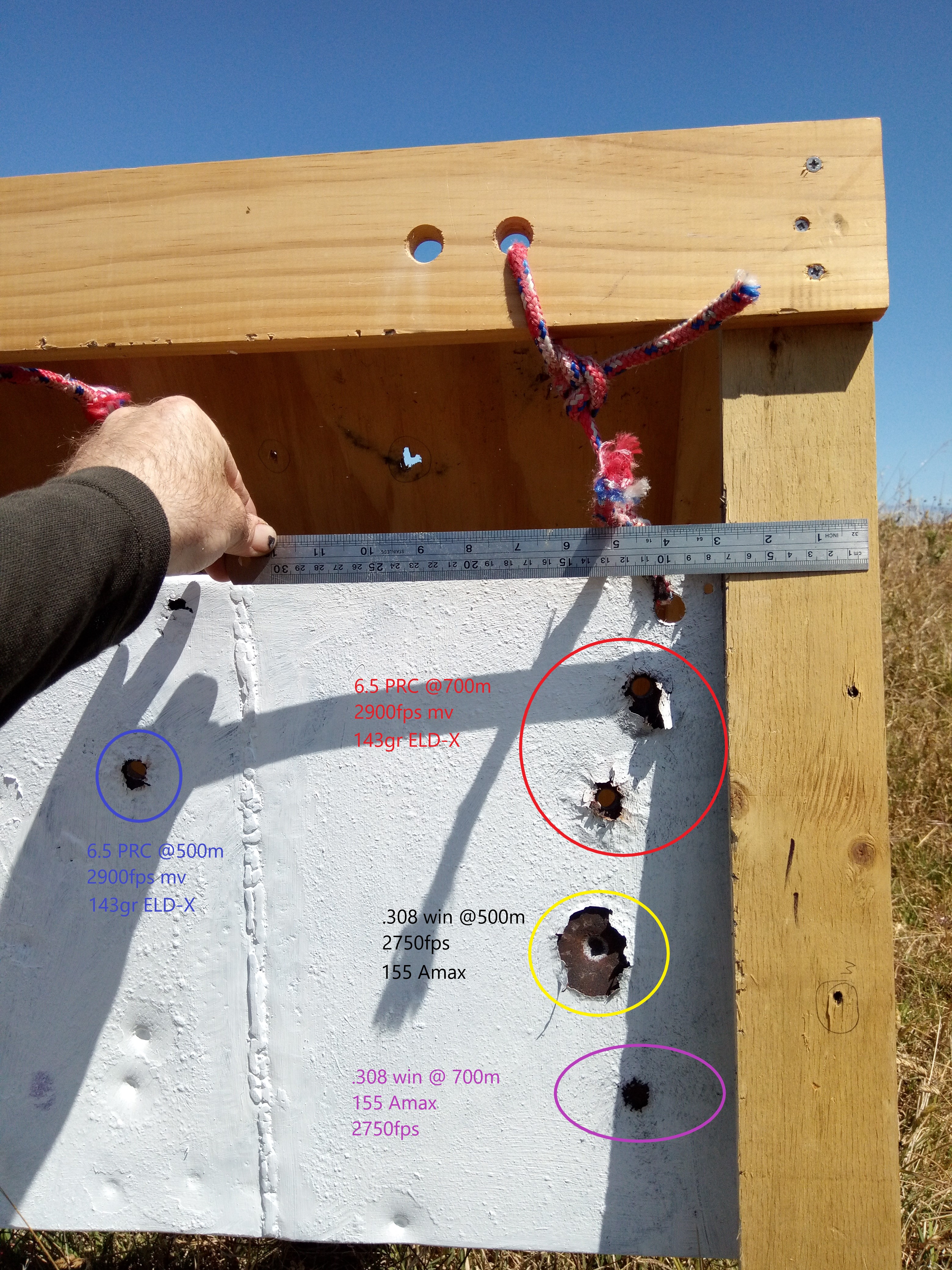

    First picture shows:

    6.5PRC 143gr ELD-X @2900fps mv cutting straight through @500m and @700m

    .308 155gr Amax @ 2750fps mv dented half through @500m and barely dented @700m



    Name:  Steel target 6.5prc and .308 labelled.jpg
Views: 897
Size:  3.43 MB

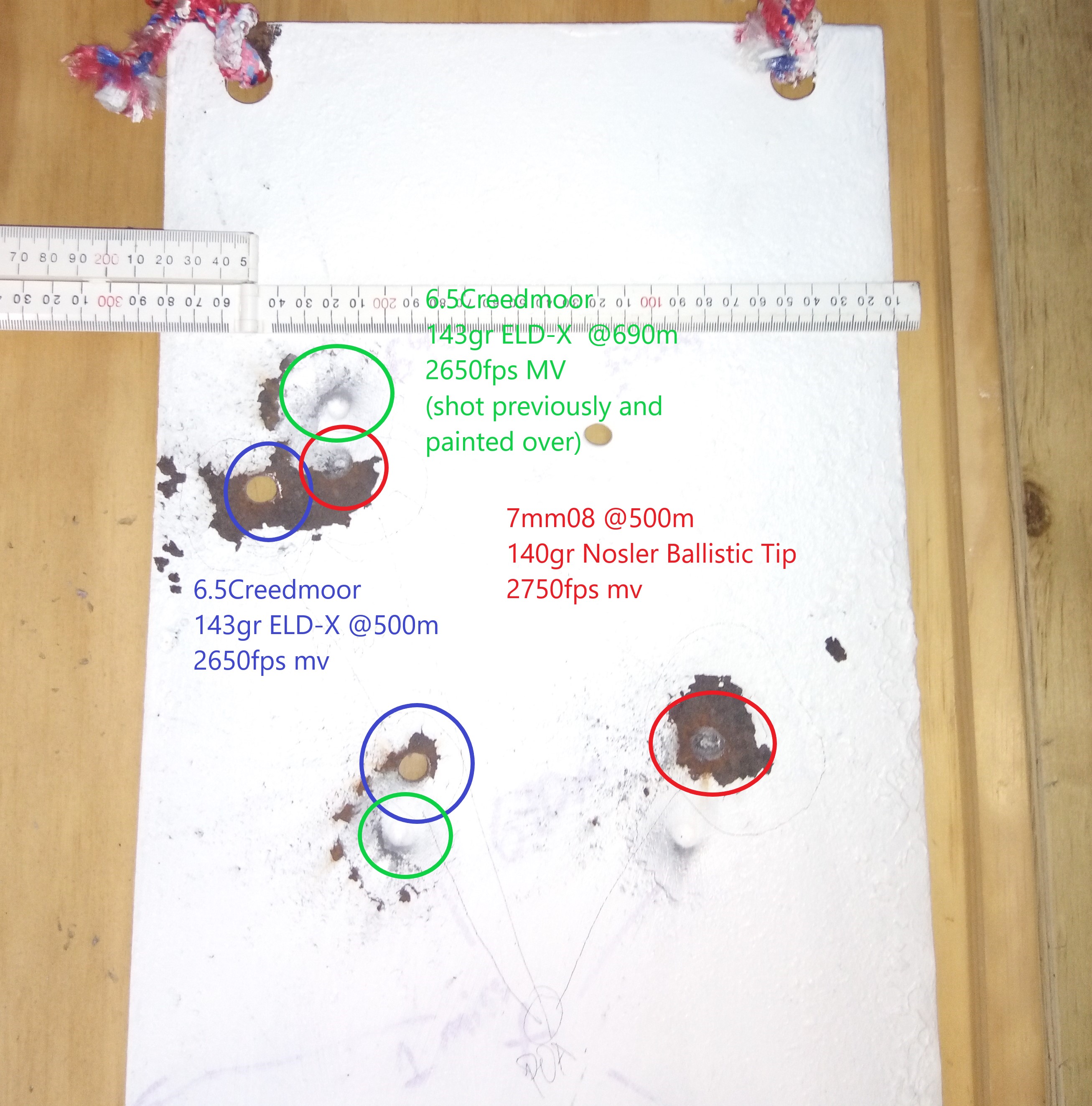

    Second Picture shows:

    6.5Creedmoor 143gr ELD-X @2650fps cutting straight through @500m and denting 3/4 through @700m

    7mm08 rem 140gr Nosler Ballistic Tip @2750fps denting half through @500m

    Name:  Steel Target  6.5CM & 7mm08 @ 500m 2.jpg
Views: 783
Size:  939.5 KB


    Take what you want from this info.
    I'm seeing that the base of the bullet is holding together awesome combining with the high Sectional density and high BC retaining velocity allowing these bullets to punch through.
    I think they are tough as projectiles with tips that expand well. I cant wait to hit some deer at 500m+ through the body to see what they will do.

    I have shot some deer from 10m to 400m with the 143gr ELD-X.
    3 sika and 1 young red stag with the Creedmoor in the bush (10m-50m), all body shots, all died quick. Exits on the sika were about 2inches. The red i shot through both shoulders and then front of chest @10-15m(1st killed it, 2nd was to make sure it didnt go anywhere in the thick steep scrub.), i dont think the 1st exited. The 2nd exited in front of the off side back leg.
    A few fallow all headshot/top of neck (meat shooting)
    -6.5CM -1@120m (top of neck), 1@200m, 2@275m, 1@ 400m(my longest shot on a deer to date.)
    -6.5PRC - 1@ 270m, 1@370m.
    The bullets exited on all of them, they didnt explode on the skull/top of spine like my .243 87gr SP bullets were doing.

  2. #2
    Member
    Join Date
    Dec 2011
    Location
    Perth
    Posts
    1,963
    Can you try the 150 eldx in the 7/08 please.

  3. #3
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,055
    Im guessing its mild steel plate a couple of mm thick and that it still rings ok even when penetrated. It's not ideal as target material but I'm a little suprised that at 700 you are still getting penetration.
    Bagheera likes this.

  4. #4
    Banned
    Join Date
    Mar 2016
    Location
    auckland
    Posts
    2,453
    Cool man. Be good to test like for like in terms of bullet construction and sectional density. Or even different bullets in same cartridge with same sectional density.
    Impressive hole punching

  5. #5
    Member andyanimal31's Avatar
    Join Date
    Dec 2011
    Location
    Makakahi road Raetihi
    Posts
    3,667
    Please dont be telling everybody how good the 143eldx are as it will mean less for me!

    Sent from my SM-G950F using Tapatalk
    Roarless20 likes this.
    My favorite sentences i like to hear are - I suppose so. and Send It!

  6. #6
    Member
    Join Date
    Mar 2016
    Location
    Waikato
    Posts
    433
    Name:  180E6ADE-F935-4D22-9807-45C1CEADB6A7.jpeg
Views: 574
Size:  68.9 KBCouldn’t resist. Had this sitting on the computer for a while
    Last edited by Plinky; 06-04-2020 at 10:14 AM.

  7. #7
    Bos
    Bos is offline
    Member
    Join Date
    May 2017
    Location
    Blenheim
    Posts
    973
    So far they seem to be effective in the 6.5. Been loading them for a mate for a while now. Also load the 145 gr in my own .270 and have been really impressed with the results ranging from 150 yds right out to 640 yds,and everything in between.
    Projectiles are a bit like calibres and girlfriends - each to their own, but these things perform extremely well and are better priced than what I had been using
    andyanimal31 and Roarless20 like this.

  8. #8
    Member
    Join Date
    Apr 2020
    Location
    Wanganui
    Posts
    462
    Quote Originally Posted by nor-west View Post
    Can you try the 150 eldx in the 7/08 please.
    When we get out of lockdown (after i go hunting) i'll be shooting my mates 7mm08 with 162gr ELD-X @2650fps mv which i have just done a load for. Just checking trajectory to at least 500m.

    Quote Originally Posted by Marty Henry View Post
    Im guessing its mild steel plate a couple of mm thick and that it still rings ok even when penetrated. It's not ideal as target material but I'm a little suprised that at 700 you are still getting penetration.
    I stated in the title that it is 6mm plate steel (mild i assume). I it grabbed from the scrap dealer for $5. i wasnt expecting anything to go through it at 500m. I just wanted it to ding if i hit it.
    I'm a bit pissed that they do penetrate as i'm going to have to fork out a fortune for some AR500 targets. Hopefully my cheap practice load 123SSTs wont penetrate it.

    Quote Originally Posted by stevodog View Post
    Cool man. Be good to test like for like in terms of bullet construction and sectional density. Or even different bullets in same cartridge with same sectional density.
    Impressive hole punching
    It would be. However i wasnt testing for effects vs steel. I was just surprised while validating ballistics with mates that this was the results on the steel for their loads.


    Quote Originally Posted by andyanimal31 View Post
    Please dont be telling everybody how good the 143eldx are as it will mean less for me!
    Everybody these ELD-X bullets are terrible, dont buy them!


    Quote Originally Posted by mimms2 View Post
    Well that should come in real handy for all those deer that hide behind steel plating.
    Yep, they'll still be in trouble!

    Or i now know that the bullet has a good chance of going through the front leg into the chest on the long shots if the bullet drifts forward a touch more than i guessed for.
    stevodog and Taupohunter like this.

  9. #9
    Member Tikka7mm08's Avatar
    Join Date
    Mar 2012
    Location
    North Loburn
    Posts
    4,430
    I shared a YT video the other day of father daughter Elk hunt with 6.5CM. 300y Elk smoked by 143gn ELD-X.
    Roarless20 likes this.

  10. #10
    Member
    Join Date
    Dec 2011
    Location
    Auckland
    Posts
    393
    Quote Originally Posted by Marty Henry View Post
    Im guessing its mild steel plate a couple of mm thick and that it still rings ok even when penetrated. It's not ideal as target material but I'm a little suprised that at 700 you are still getting penetration.
    6mm, it's in the title,
    Roarless20 likes this.

  11. #11
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,112
    very interesting. Definitely one of the projectiles to try in the future 264 win mag project. as long it works in a 1-9 twist?

  12. #12
    Member
    Join Date
    Apr 2020
    Location
    Wanganui
    Posts
    462
    Quote Originally Posted by csmiffy View Post
    very interesting. Definitely one of the projectiles to try in the future 264 win mag project. as long it works in a 1-9 twist?
    Hornady recommend a min 1in8" twist with these pills. If you push it fast enough 1-9" might work maybe? (not something i have experience in)

  13. #13
    Member
    Join Date
    May 2019
    Location
    Auckland/Taupo
    Posts
    119

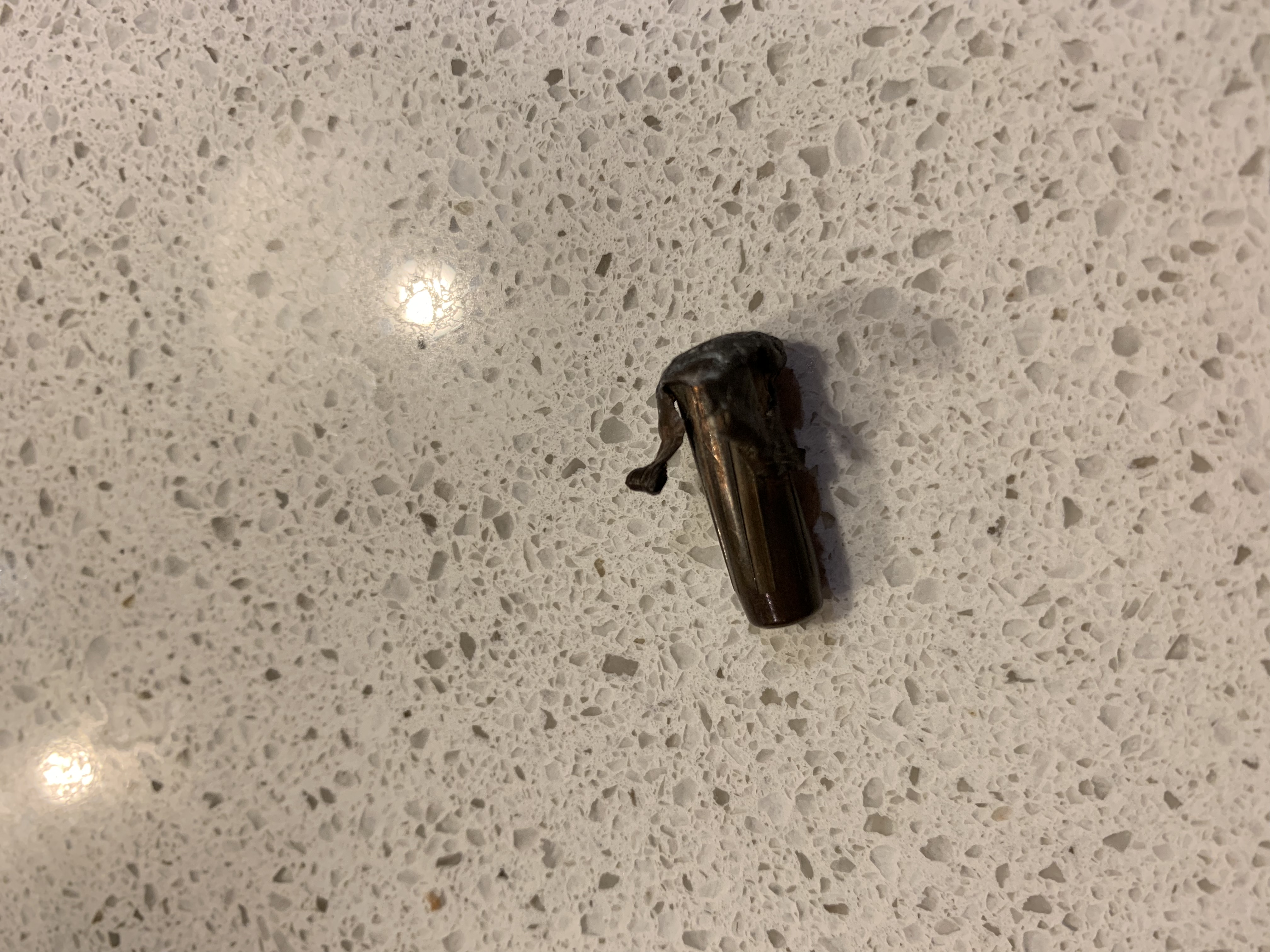

    Thought this might be interesting to someone, 6.5 143 eldx from my creedmoor at 2700 fps. Recovered at 1050 yards from soft dirt, still a bit of expansion/mushroom at the tip. Name:  613BD59C-C47F-4249-8AA5-668E60B86280.jpeg
Views: 640
Size:  3.11 MB
    Attached Images Attached Images

  14. #14
    Member
    Join Date
    Apr 2020
    Location
    Wanganui
    Posts
    462
    @ JMJW

    Good to see the tip still expanding even at that range.

    I didnt manage to dig any up from my 6.5CM (2650fps) @ 920m (1000yrds) when i was shooting steel.

  15. #15
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,055
    Quote Originally Posted by Mistral View Post
    6mm, it's in the title,
    I really should read more closely eh
