Addicted to Paper Work

Interested to hear if you've tried paper patching yourselves.

A while back I read an article in a NZ shooting mag about some guy with a "hollow" 1895 303 and he managed to seal the gas cutting with paper patching like the old cowboys used to do. Thought it was kind of cool so did some googling and lurking on forums. Some of those yanks (and Kiwis) are quite clever buggers.

Anyhoo this is some of my 45/70 experiments:

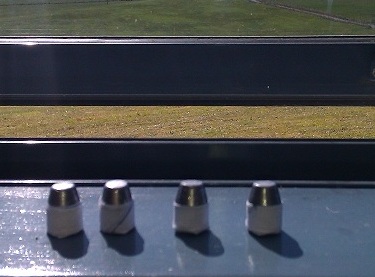

Attachment 10509
Started with some TL452-230TC's, wrapped "cut to size" wet paper parallelograms and let dry for day or so.
I've already had the sermon read to me that 230gn 45 colt projectiles will never stabilize in a 45/70 so I was wasting my time and had to get some > 300gn.


I've got an unemployed 6 banger mold from when I had a 45LC and was dreaming of a 1911. The lead is from soft old leadheads, fine to use though as it doesn't touch the barrel.

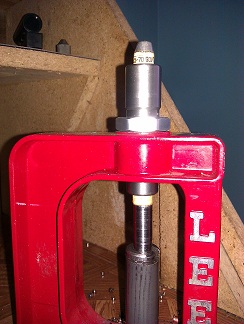

Attachment 10510
To fit easier in the case and a bit of peace of mind I like to run them through a 0.457" sizer with a bit of lube . Sizing lube works good but not catastrophic if you don't lube.
Used no crimp but rather used the 45/70 sizing die with decapper out (seated way out on the press) so that the case is gently sized around the projectile till the desired amount.

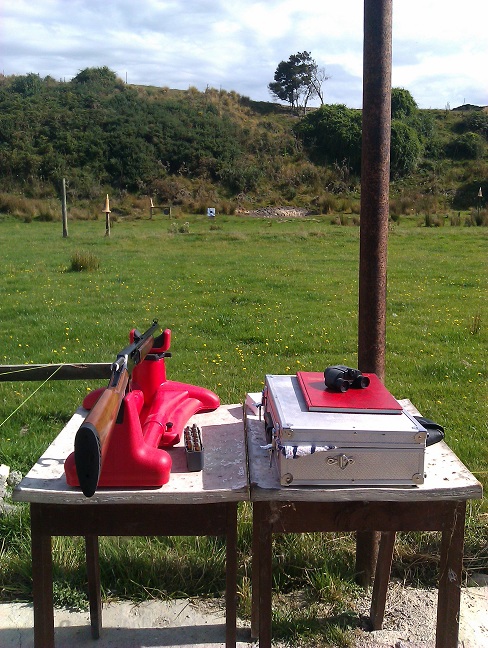

Attachment 10511
I don't trust using the mag in case of "stove piping".

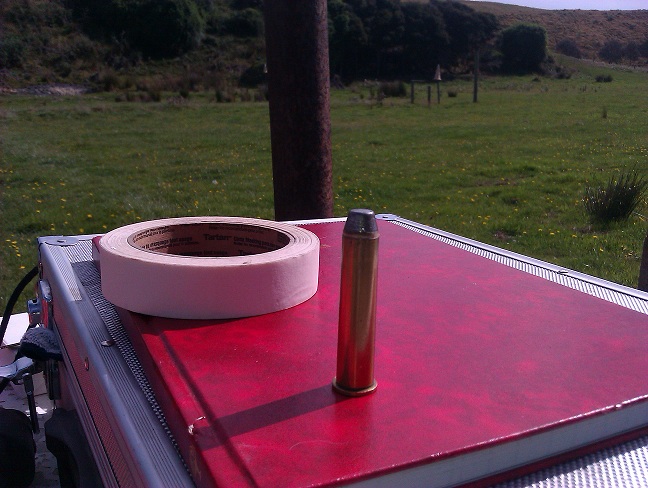

Attachment 10512
I've loaded with Trailboss as I'm only punching paper and who needs all the recoil eh. The masking tape is for patching the target here but some have used it and probably not successfully.

Attachment 10513
@50 yards it's hardly MOA but still minute of pig. I blame my eyes more than anything.
You got to love those big holes.

The paper should confetti at the muzzle and not stick on the bullet to the target.

It was quite scary trying this out at the start.

Load both 45/70 and 577/450 paper patched, for your paper use old dress patterns, it close to onion paper and comes in diff thicknesses
Max wrap 3 times round, measure the circumference of sized projectile and and multiply for # of wraps, make a pattern out of plastic and cut the paper shape out with a sharp knife/razor, wet and wrap. The girls wrapping for the 577/450 could do about 1200 per day, something to work on. No leaded barrel in theory, I do still size and lube my projectile. Very satisfying.:cool:

For the uninitiated why do you do this?

Sent from my GT-S5360T using Tapatalk 2

Because we dont own 308s, but mainly to size it to the bore on BP guns and not have the soft lead touch the bore. Also lubing is not a problem and I wipe the bore every shot. And I can fit it into my brass and don't crimp, load by hand with a hammer

So the advantage is you can use soft lead presumably to get decent expansion on animals instead of harder alloys and those gas check things with out lead fouling your bore ?

Sent from my GT-S5360T using Tapatalk 2

You can use gas checks on BP to stop erosion of the rear of the projectile,BP burnts slowly with lots of heat. I also use wads between the powder and the projectile, one milk carton cardboard and then a lube biscuit. Lube is very important to stop hard crusting of burnt BPIn the bore. The projectile will bump up on ignition into the rifling and form a seal,and grip, round ball does the same. 500 gr of lead doing 1300 fps is pretty devastating.

Quote:

---

Originally Posted by Maca49

Load both 45/70 and 577/450 paper patched, for your paper use old dress patterns, it close to onion paper and comes in diff thicknesses
Max wrap 3 times round, measure the circumference of sized projectile and and multiply for # of wraps, make a pattern out of plastic and cut the paper shape out with a sharp knife/razor, wet and wrap. The girls wrapping for the 577/450 could do about 1200 per day, something to work on. No leaded barrel in theory, I do still size and lube my projectile. Very satisfying.:cool:

---

Good idea on the old pattern.:thumbsup: You start looking at paper in a whole new way and find yourself firing everything from baking paper to notepads down your barrel.:)
I hear some paper can have clay in it so lubing is a good idea.

For my patches (2 wraps) pattern I converted every thing to metric, PIxD+PI(D+2(paper thickness))-0.25mm to allow for the paper bending up onto the 2nd wrap. About this time I was thinking I was a fancypants mathmagician when I got slapped down with the big ol variable that paper stretches when it gets wet. Doh! Got there in the end by rolling a ribbon of paper twice and measuring the required length.

With the 45/70 printer paper works ok so made up a pattern and print out a sheet of them at a time :thumbsup:

Quote:

---

Originally Posted by veitnamcam

For the uninitiated why do you do this?

Sent from my GT-S5360T using Tapatalk 2

---

Bloody good question I ask myself sometimes ;)

For me two main reasons; You know the sense of satisfaction you get from reloading, it's a whole next level. It's way cheap so you get to make a lot more booms for your buck.

Like Maca said, little fouling and I think it might even help clean your barrel.

Quote:

---

Originally Posted by Maca49

Because we dont own 308s, but mainly to size it to the bore on BP guns and not have the soft lead touch the bore. Also lubing is not a problem and I wipe the bore every shot. And I can fit it into my brass and don't crimp, load by hand with a hammer

---

You BP chaps are hardcore:thumbsup: but err umm yeah nah I PP 308win with smokeless too...

My C312-185-1R mold knocks them out with a .301 nose (you would think if they were meant to work in a 303B they would have .303-.304 nose). Stick em in the lathe and cut the bands down to match .301.

Got excellent groups with Trailboss. Had high hopes that the leadhead lead would work like a Vmax so I could take the 308 out bunny busting but was disappointed to find a starting load of W748 will blow them straight through 2-3mm of steel.
Have a special little project in mind of tweaking the mold to hollow point and making homemade ballistic tips.

Macca you dont know were a 577/450 henry could be brought?

Quote:

---

Originally Posted by moonhunt

Macca you dont know were a 577/450 henry could be brought?

---

I know where there is one, I'll ask this week, it's a full rifle and a shooter

I have a mate that would love to buy one, cheers let me know

Quote:

---

Originally Posted by Chupacabra

You BP chaps are hardcore:thumbsup: but err umm yeah nah I PP 308win with smokeless too...

My C312-185-1R mold knocks them out with a .301 nose (you would think if they were meant to work in a 303B they would have .303-.304 nose). Stick em in the lathe and cut the bands down to match .301.

Got excellent groups with Trailboss. Had high hopes that the leadhead lead would work like a Vmax so I could take the 308 out bunny busting but was disappointed to find a starting load of W748 will blow them straight through 2-3mm of steel.
Have a special little project in mind of tweaking the mold to hollow point and making homemade ballistic tips.

---

Certainly a lot of satisfaction mucking around trying out diff things, and not blowing something up. I loaded 40 rounds of 45/70 yesterday. Got to remember to write everything down

Quote:

---

Originally Posted by Maca49

Certainly a lot of satisfaction mucking around trying out diff things, and not blowing something up. I loaded 40 rounds of 45/70 yesterday. Got to remember to write everything down

---

You're so right there. Safety is paramount.
