Thread: AMP annealer MK2 codes for a few of my cals

  1. #1
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977

    AMP annealer MK2 codes for a few of my cals

    I know this is fairly new but im putting these out there to see if anyone has had any similar results using the "Analyse mode"

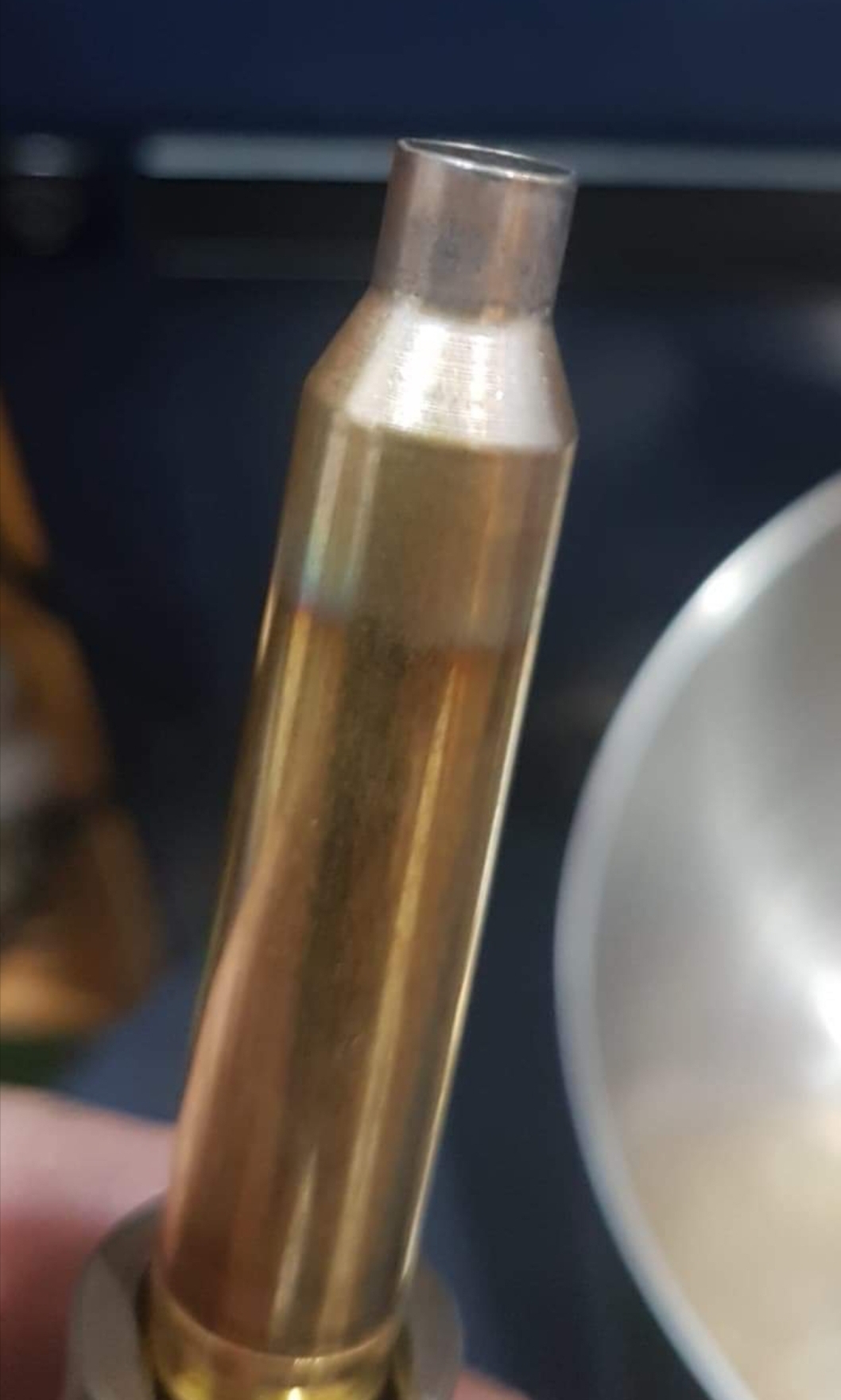

    Quite an interesting thing to do eh. If i had a single round look more annealed than the others in a batch, sure enough it would measure to be thinner in the neck wall than the others, and only by 1thou.

    Im hoping to see if anyone has done a .223 in the new mk2 program?
    Name:  Screenshot_20201105-232935_Gallery.jpg
Views: 905
Size:  207.8 KB

    Name:  Screenshot_20201105-232858_Gallery.jpg
Views: 919
Size:  441.3 KB

  2. #2
    Member
    Join Date
    Mar 2016
    Location
    Waikato
    Posts
    436
    Lapua .223 0140
    Dead is better likes this.

  3. #3
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    Lapua 0139 Lot P00706802/0210414
    Starline 0128
    OSA 0126
    Dead is better likes this.

  4. #4
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    You will also get differences fired neck/versus sized neck.
    Dead is better and res like this.

  5. #5
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Here's some early playing I did when I got my machine -
    CAC 308W. Necks 14 thou IIRC. Ran analyse on 4 cases and got 0150, 0151, 0149, 0151. Asked AMP Alex about these results and he said pretty good.
    223R Hornady range pickups. Didn't measure necks. 0128, 0129.
    223 F-C Range pickups. Didn't measure necks. 0128.
    308W F-C Range pickups. 0160. (Different to CAC.) @Dead is better

    Have since done 7.5x55 SR, 308W Lapua Palma (0160), 6mm BR Lapua, 6.5x47L Lapua.
    The 7.5x55 SR I only have a limited number of cases and didn't want to sacrifice any. I looked up the standard settings and did 2 cases at std, then 2 cases just either side of std. Alex checked them using his Vickers tester and we settled on a std value for those.

    My values may be different to what others may get if there are slight machine to machine differences, although if there are I would have thought they would be minor.

    All brass annealed in their fired unsized state.
    The 308 Palma brass I selected a case to analyse in the middle of the weight range.
    Sacrificing brass hurts but interestingly the last 2 lots off Lapua I got had 101 cases in the box. (Maybe someone got 99..)
    Last edited by zimmer; 06-11-2020 at 08:54 AM.
    Dead is better likes this.

  6. #6
    Not just an internet expert... The Claw's Avatar
    Join Date
    Dec 2011
    Location
    Gore
    Posts
    2,066

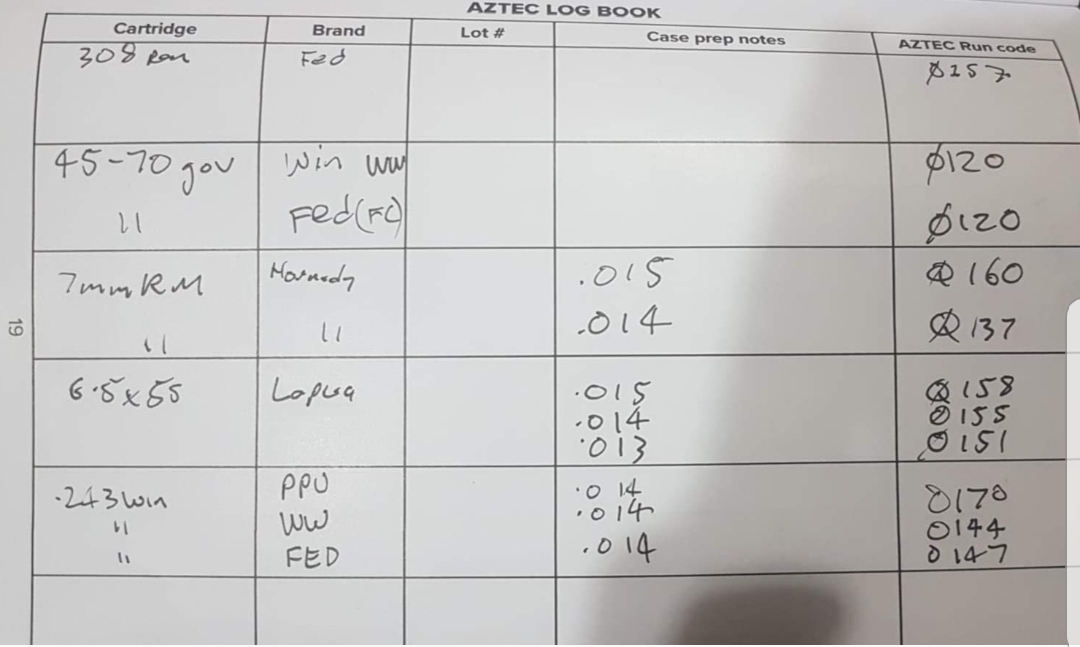

    Here's my codes so far:

    I've noticed that I'm missing a few so need to update my list. I write the code on the sacrificed case in vivid and keep it as a reference

    Sent from my SM-N975F using Tapatalk
    Dead is better likes this.
    If it's not a first round hit you need to practice more

  7. #7
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    Seriously thanks guys for sharing this stuff! This is great and im sure i will be referencing all of it at some point. Big thumbs up!

  8. #8
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    I was trying not to lose any 7mmRM Sako brass (for my good mate) so i went in with the lowest Hornady setting with that thickness. It did not seem to anneal much at all, so i went up to the higher setting and it worked noticeably better.

  9. #9
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,513
    Lapua 260 0170 which seems to be common consistency from what I've read.
    R-P 223 brass necked to 6x45 0125

  10. #10
    Not just an internet expert... The Claw's Avatar
    Join Date
    Dec 2011
    Location
    Gore
    Posts
    2,066
    Quote Originally Posted by Mathias View Post
    Lapua 260 0170 which seems to be common consistency from what I've read.
    R-P 223 brass necked to 6x45 0125
    Brother was annealing Lapua 260 using 0170 which was working perfectly. Had a couple of RP cases in with it by accident. Destroyed them as their code is 0141. Definitely precise

    Sent from my SM-N975F using Tapatalk
    Dead is better and Mathias like this.
    If it's not a first round hit you need to practice more

  11. #11
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    Gotta break a few eggs to make an omelette!
    I wonder if there is a noticeable difference if you march an intact sequence of load development brass across the annealer. If the start loads are softer than the hottest.

  12. #12
    Member
    Join Date
    Feb 2014
    Location
    Cambridge
    Posts
    684
    Here are some more to add to the list.

    300 Blackout, all made from 223 brass.
    WCC code 0130
    LC code 0129
    WC code 0127
    FC code 0132

    7.62x39
    PPU code 0138
    FC code 0122
    PMC code 0124
    Lapua code 0156

    6.5 Creedmoor
    Hornady Code 0134

    223
    FC code 0125
    RG07 code 0140
    FNB code 0134
    ADI16 code 0132

    308
    PPU code 0147

    Easily one of the best reloading tools available.


    Sent from my iPhone using Tapatalk
    Dead is better likes this.

  13. #13
    Member
    Join Date
    Jun 2020
    Location
    Auckland
    Posts
    175
    lapua 223 turned to 0.0128" aztec code 0140

  14. #14
    Member
    Join Date
    Jan 2021
    Location
    queenstown
    Posts
    14
    hi guys... I've recently got an annealer (used mainly for load development for a 6.5grendel)... I need to anneal some 308 brass (OSA ADI)... I've only got 30-35, so I don't want to waste a shell by running the test... has anyone else got an AZTEK code for 308 OSA brass? thanks

  15. #15
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    AMP have one example of 308W ADI in their standard settings. You could try that. Difficulty is knowing if you have been effective.

    I have some ADI brass but it could be different to yours enough so that it makes a difference.
    I could roast a couple for you to get an AZTEC number but again it may not be correct.
    Let me know and I'll do it. Give me your neck thickness.

    Sorry to be thick but what is OSA
