Thread: Auto Bullet Feeder - my version of a Mr Bulletfeeder

  1. #1
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794

    Auto Bullet Feeder - my version of a Mr Bulletfeeder

    All,

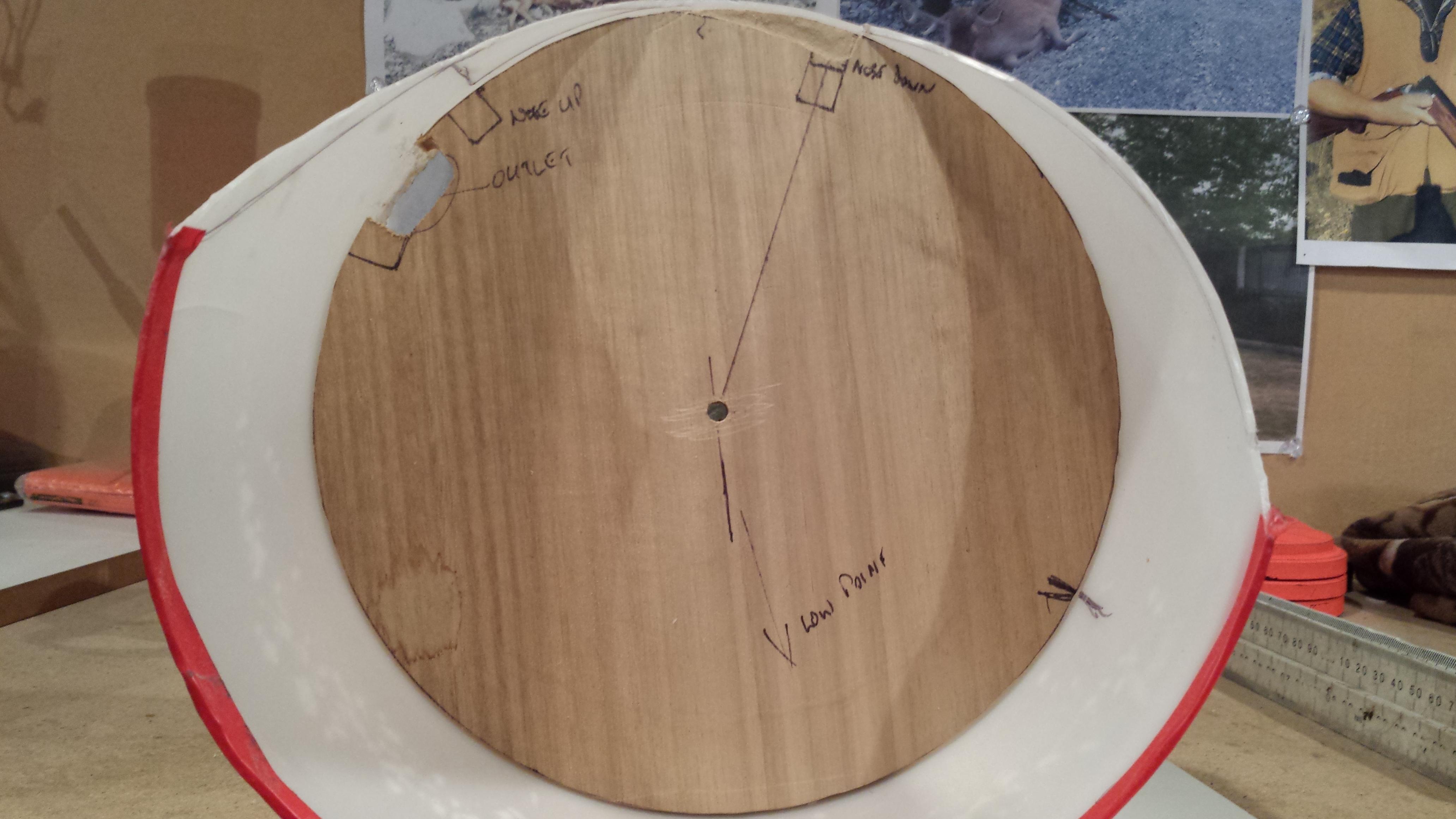

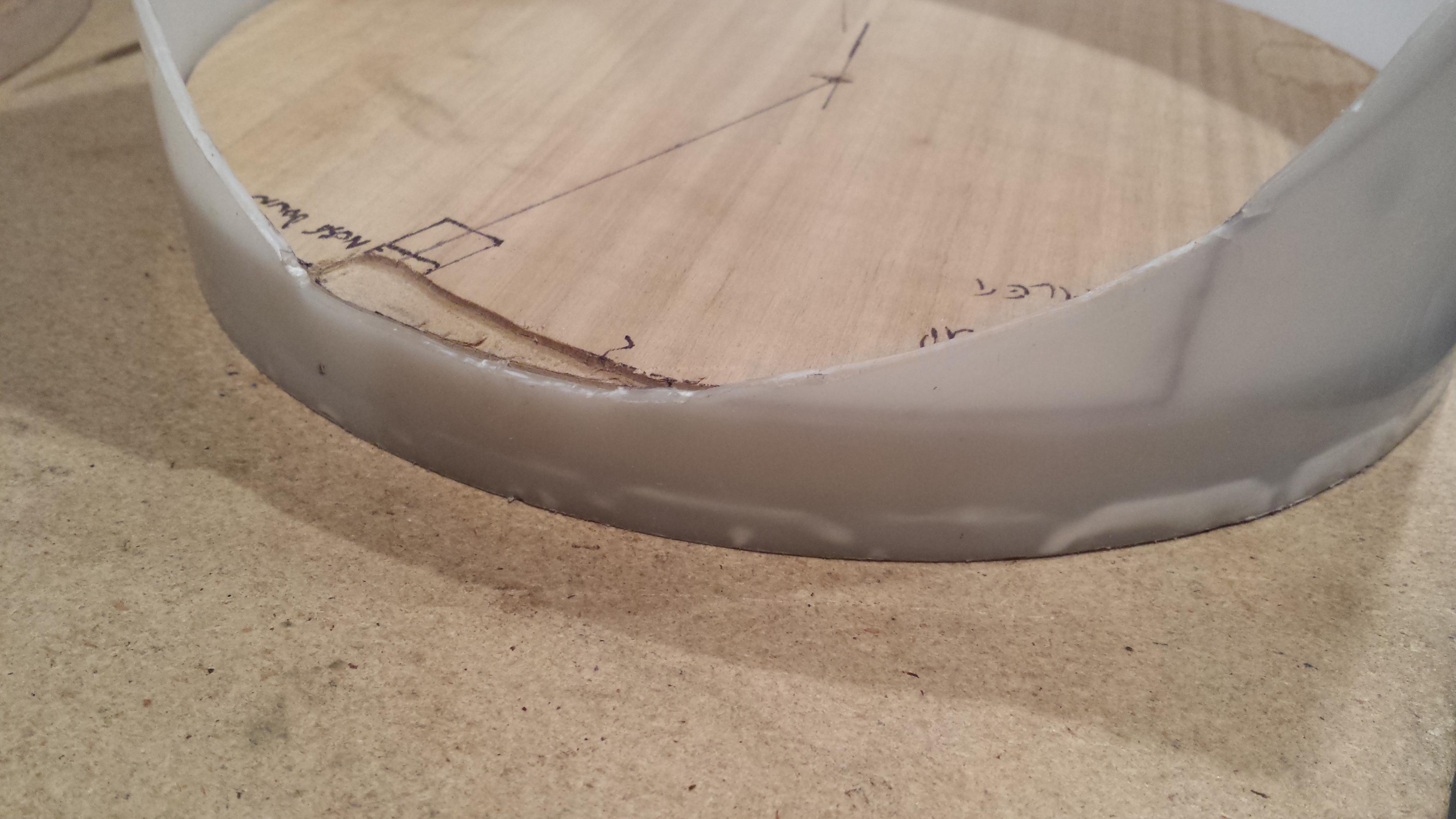

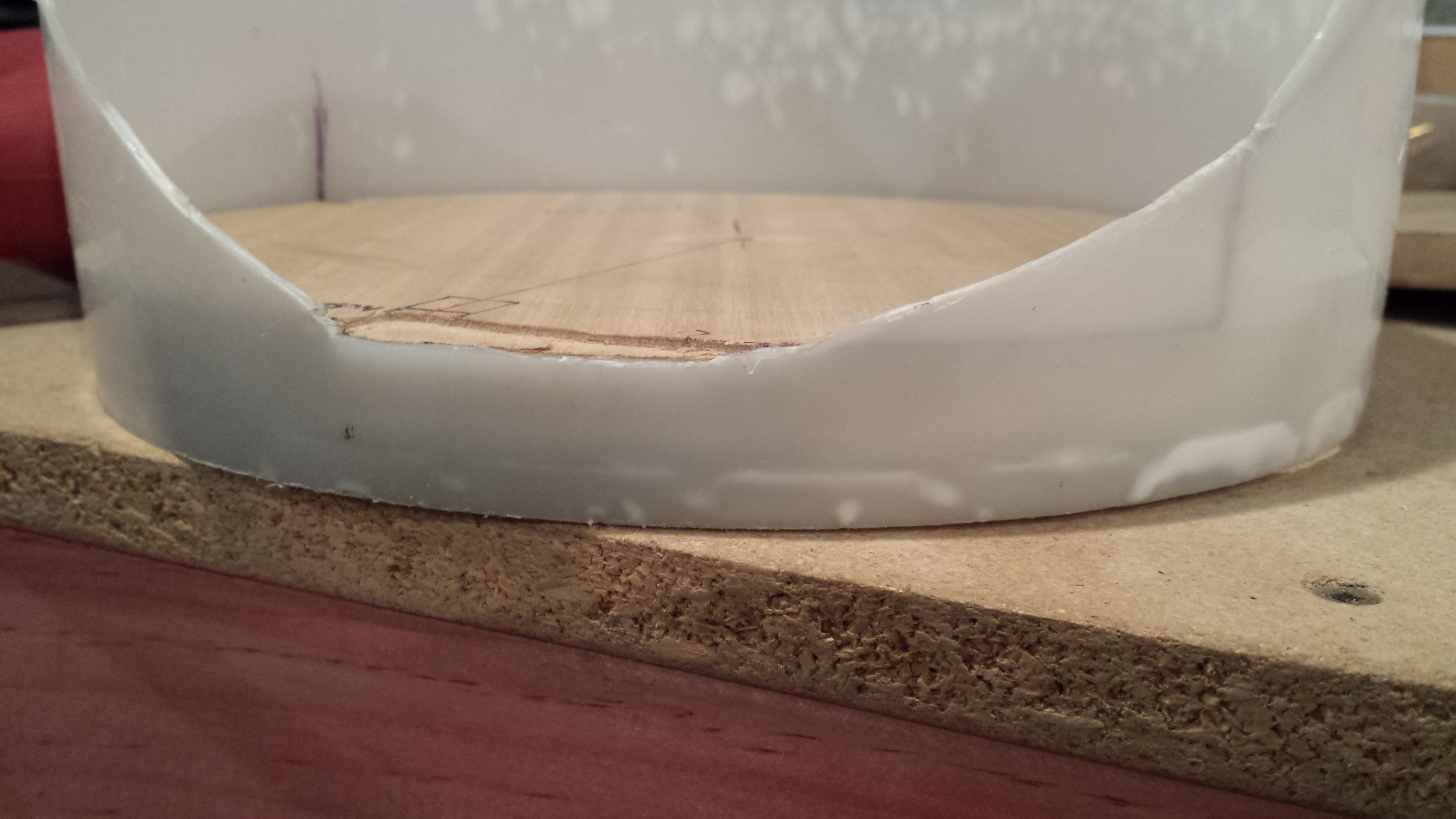

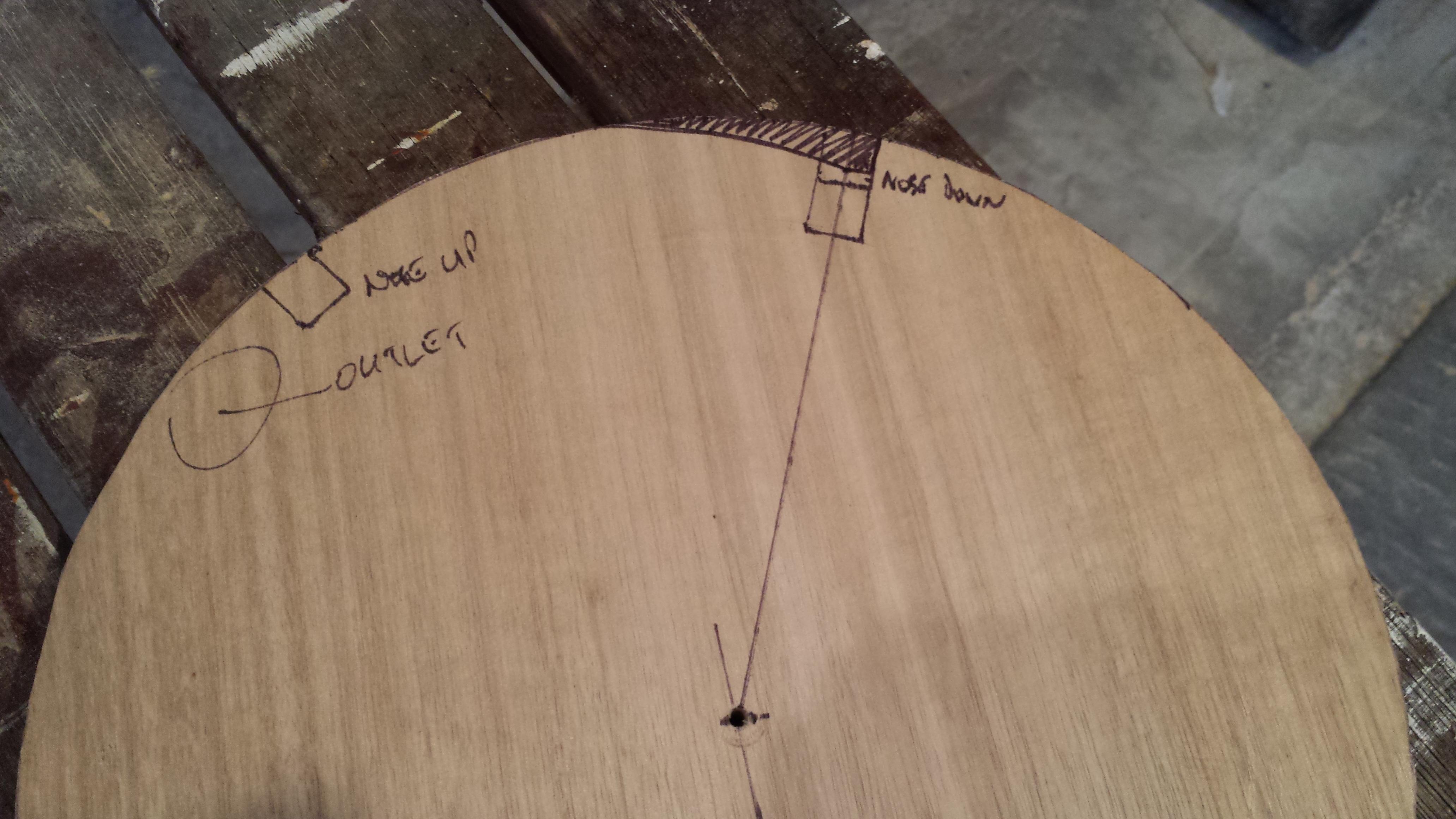

    I've started down the long and expensive road of pistol shooting. I haven't brought one, nor a progressive press, but have looked at a few online etc. The whole auto case and bullet feed setups are pretty cool. I was cleaning some stuff out of the shed yesterday and was about to through out a old bucket and thought "I could turn this old chicken feeder in to a bullet feeder".

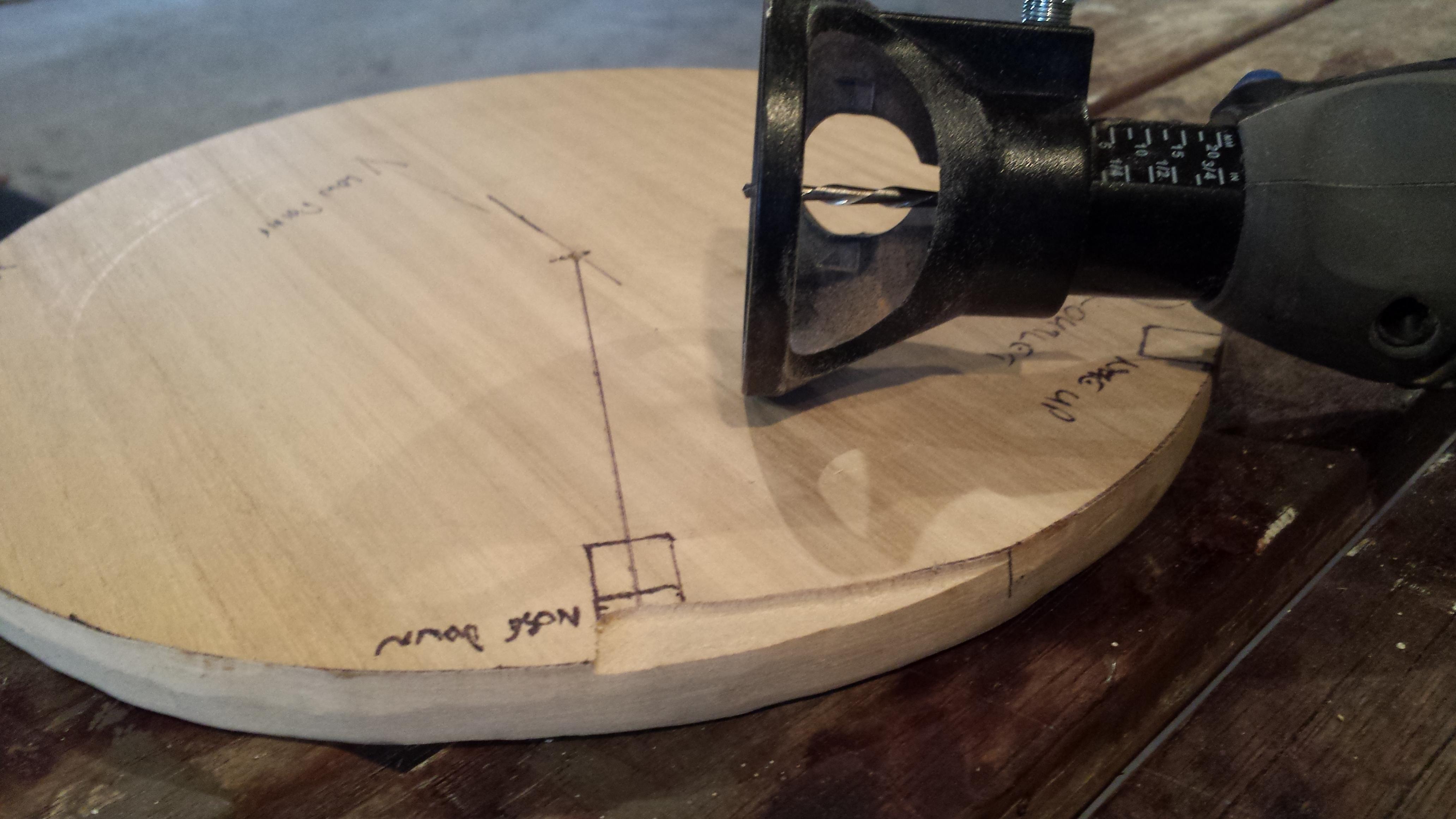

    So, grab the jigsaw, Drammel and drill. Nearly there, just need to find a motor/gearbox and a drop tube.

    Name:  1.jpg
Views: 1954
Size:  735.7 KB
    Name:  2.jpg
Views: 1770
Size:  667.6 KB
    Name:  3.jpg
Views: 1409
Size:  679.4 KB
    Name:  4.jpg
Views: 1304
Size:  607.4 KB
    Name:  5.jpg
Views: 1413
Size:  649.2 KB

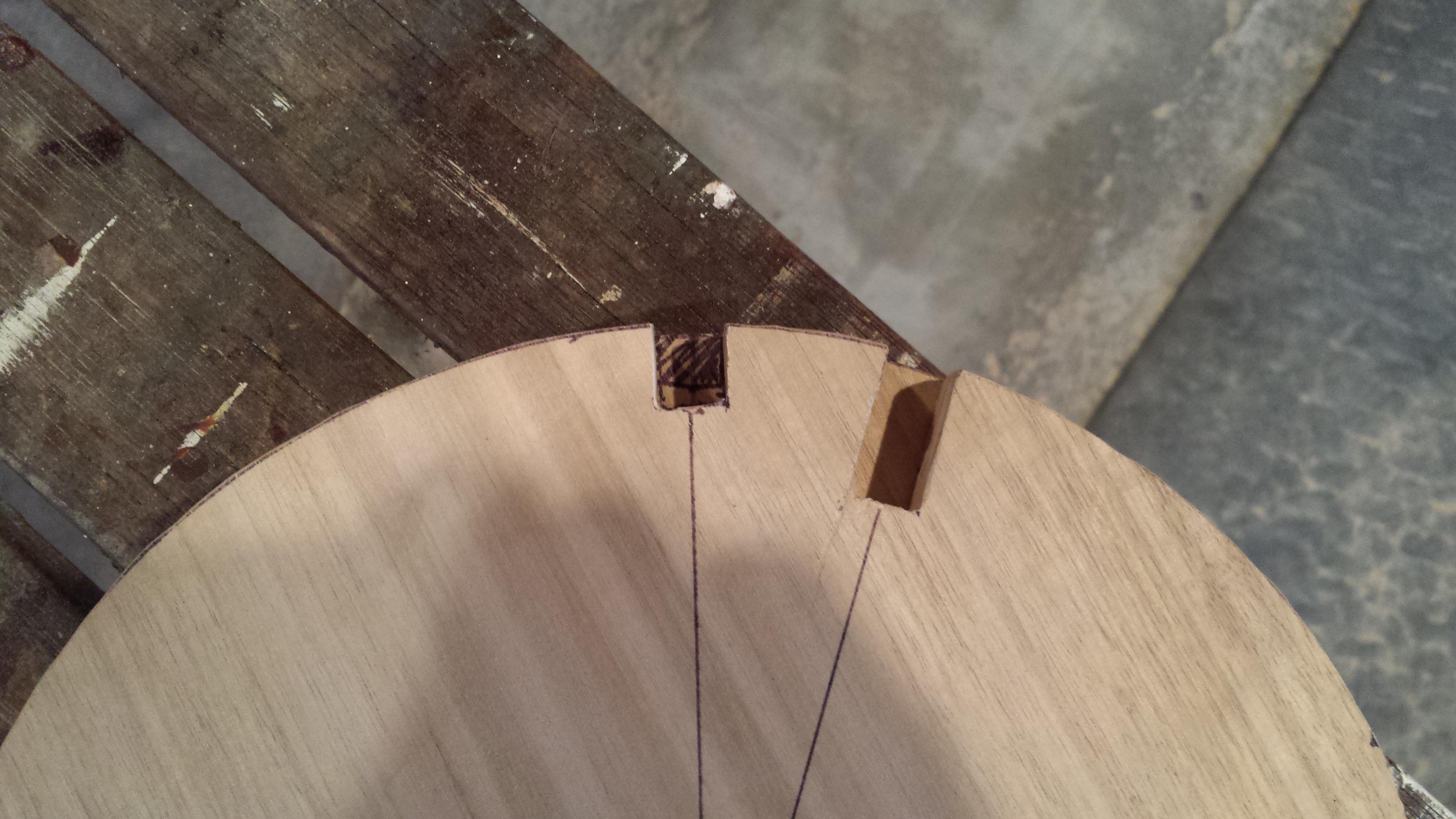

    Cut the first slot too deep!
    Name:  6.jpg
Views: 1468
Size:  864.6 KB
    Matt2308 and Beaker like this.

  2. #2
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    6,385
    I can photo Mr Bullet feeder bits if you want pics etc
    Matt2308 and Beaker like this.

  3. #3
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794
    Just got a 36RPM high torque 12v motor/gearbox from JayCar for $28 and a small micro switch for in the bullet tube.

    I'll try and mount the motor tonight and pour some bullets in. I believe I will need to do a little fine turning once running, but nothing major.
    @Spanners I'll let you know if I need any photos, but think(hope) I should be close.

  4. #4
    Member
    Join Date
    Jan 2013
    Location
    Home - mainland nz, actual - Auckland
    Posts
    5,419
    Like this! Its something to do, on my todo list.
    Please post up pics of your final product.

    What feeder die/system are you thinking of using?

  5. #5
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794
    Quote Originally Posted by Beaker View Post
    Like this! Its something to do, on my todo list.
    Please post up pics of your final product.

    What feeder die/system are you thinking of using?
    No idea yet, and don't think it matters. Details like that should never prevent a project. A Dillon 650 would be great but may settle for a Lee Loadmaster. Either way, a RCBS Bullet feel die at around US$28 should do the trick, or just get a Mr Bulletfeeder die from them.

    It could even feed a Lee Pro1000 bullet feeder, just add this at the top of the tube.

    Anyway, got the 12v motor wired to a laptop power supply(18v) and nearly got the motor mounted and just need to cut out the rest of the bullet slots.

  6. #6
    Member
    Join Date
    Jan 2013
    Location
    Home - mainland nz, actual - Auckland
    Posts
    5,419
    Couldn't agree more, just thought you might have had a idea on the feeder side.
    I was thinking the lee die, but will have a look at the rcbs. All ready got the 650( with the case feeder) and highly rate it. If you do get one, i'd recommend getting a couple of tool heads....

    Might put some thought into(or buy) a powder check when/if i make one of these as well.....

  7. #7
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    6,385
    Forget the RCBS die they are junk.
    Buy a Mr Bullet die. Flawless
    Uplandstalker likes this.

  8. #8
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794

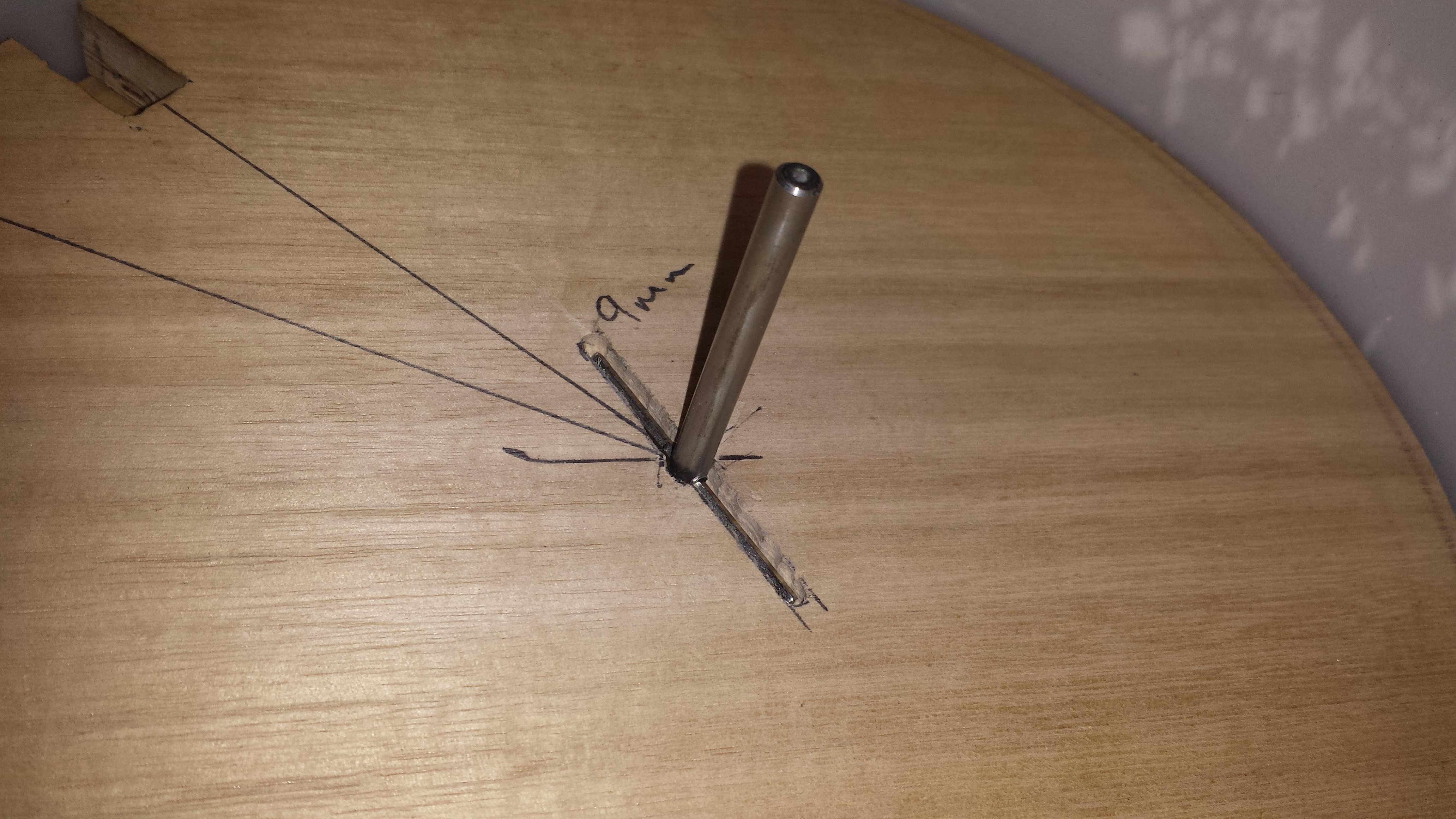

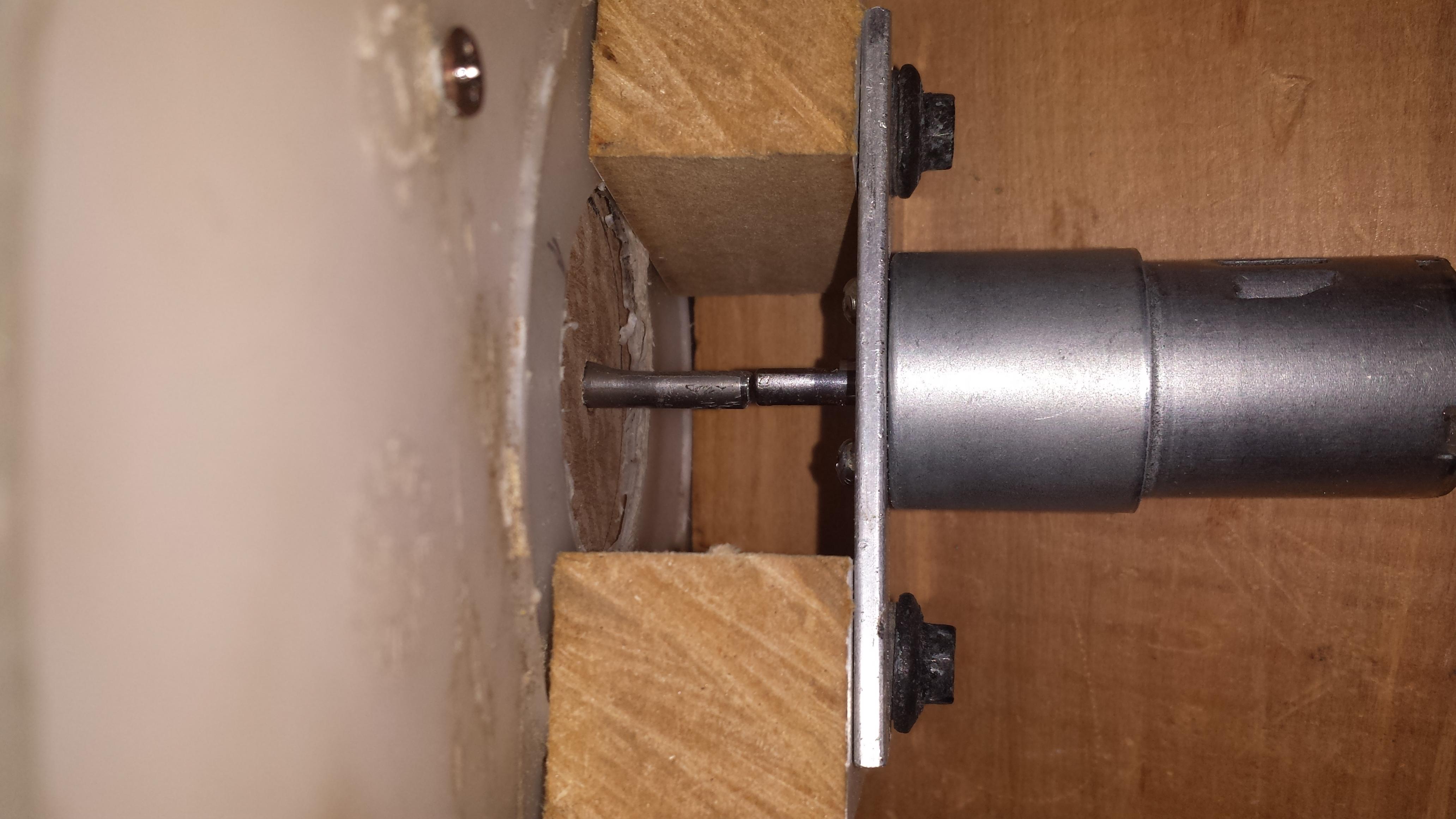

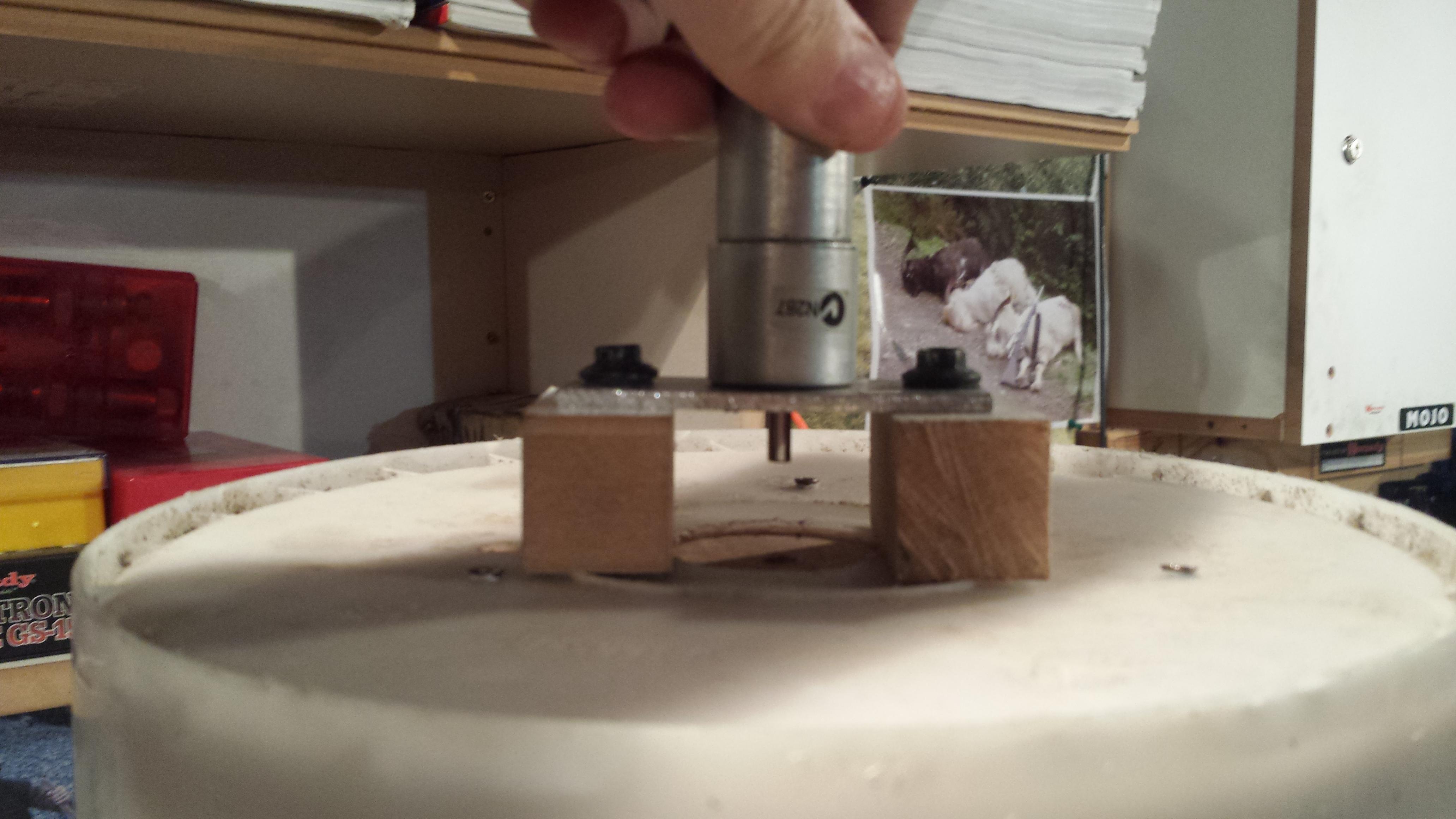

    Motor mounted and just need to connect the two shafts.

    Name:  20140617_213918.jpg
Views: 1120
Size:  638.8 KB
    Name:  20140617_224036.jpg
Views: 1137
Size:  754.9 KB
    Name:  20140617_224107.jpg
Views: 1439
Size:  597.4 KB

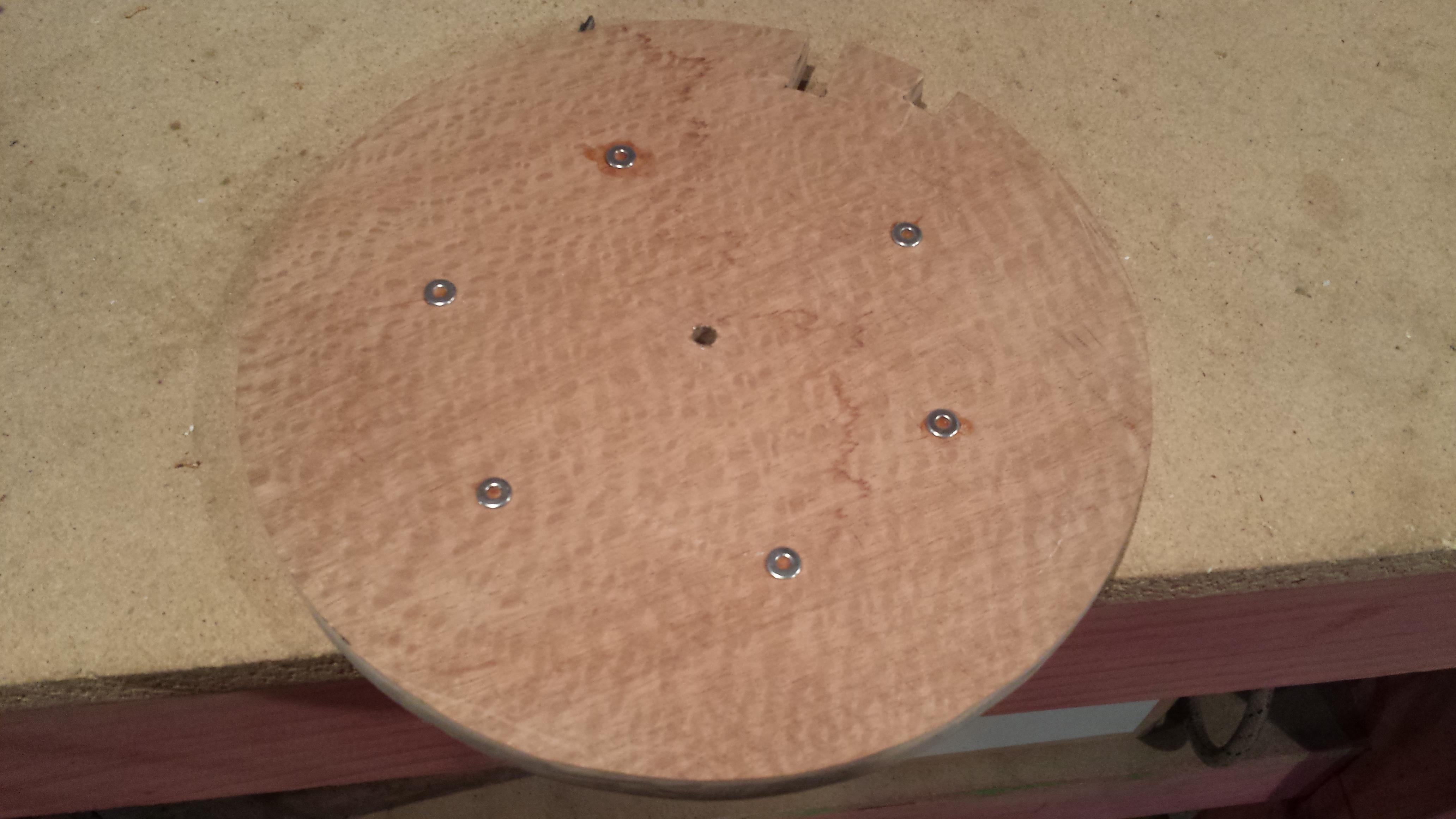

    Stuck a few thin washes under the top disk to reduce the friction.
    Name:  20140617_213905.jpg
Views: 1117
Size:  624.6 KB

  9. #9
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794
    Ok, so changed to a BBQ rotisserie from the little DC motor, mainly because I cannot be bothered trying to join the two shafts.

    Video showing it working, still some minor modifications to make and then double the number of slots to increase the rate of bullets down the tube!



    Next time I would use a bit of 250mm Sewer grade PVC pipe, this bucket is a little light weight, but it seems to work OK. I'm certainly not the woodworking craftsman that some of you are, but this seems to do the trip.

    Just need to add a drop tube and progressive press.

  10. #10
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794
    I've fixed the three slots that were cause the upside down bullets, just needed to be filed a little deeper.

    Current outout rate of 900/hr, this should be heaps for a Dillon 650!
    Matt2308 likes this.

  11. #11
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    6,385
    You'll run out at 900/hr.
    Add a few more volts to the motor to speed it up

  12. #12
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,794
    Quote Originally Posted by Spanners View Post
    You'll run out at 900/hr.
    Add a few more volts to the motor to speed it up
    The answer to all the world's problems; more power!
    veitnamcam likes this.

  13. #13
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Chch
    Posts
    6,385
    Mine has a tx with variable voltage on a screw.
    12v it's hauling ass! I load on 9v and I can't keep up with it at 1200:hr output
    Uplandstalker likes this.

  14. #14
    Member
    Join Date
    Dec 2011
    Location
    Auckland
    Posts
    1,766
    Nice work
