    Can anyone tell me why ...

    First time using my press.

    The die is a full length 223 resizing die.

    The primer punch keeps sliding up on some of the more difficult cartridges

    How tight should the collar be ?? Did I over tighten it ?

    Interestingly
    1 the thread in the die seems ok

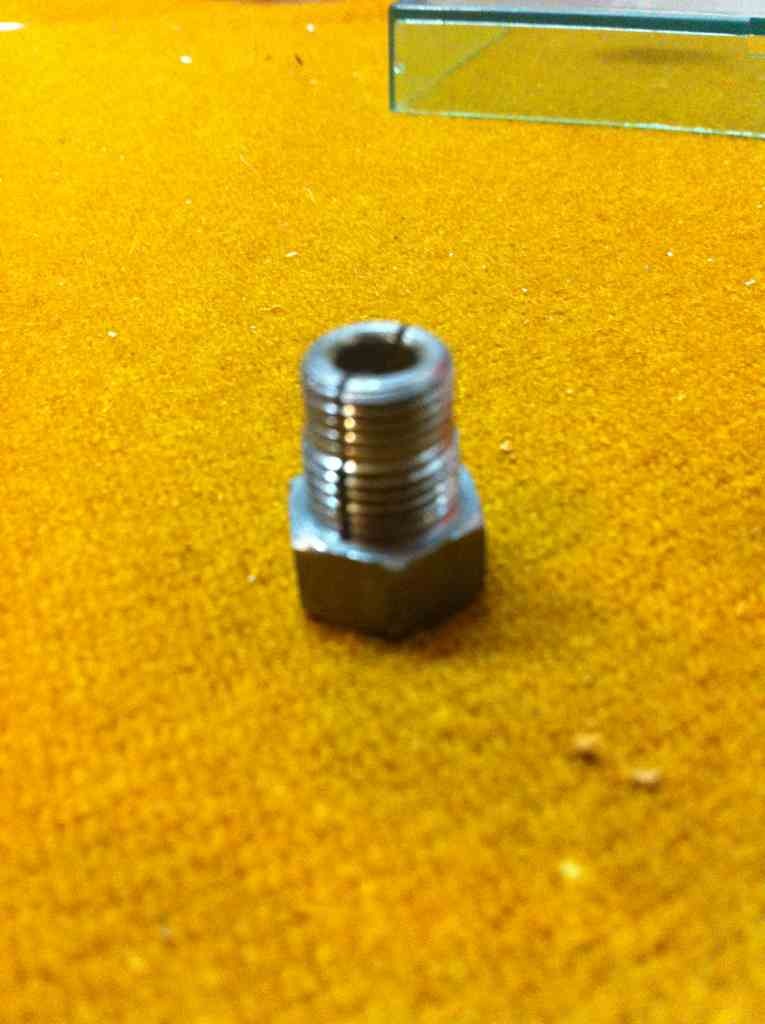

    2 the stripped portion of the collar thread was bad and getting worse.

    Any advise ??

    Name:  ImageUploadedByTapatalk1378022087.275952.jpg
Views: 357
Size:  128.7 KBName:  ImageUploadedByTapatalk1378022107.006831.jpg
Views: 322
Size:  97.0 KB

  2. #2
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,248
    Where did you get the die from??????

    That retaining collar thread is your problem for sure, it's stripped and no good, it will need replacing.
    A big fast bullet beats a little fast bullet every time

  3. #3
    Banned
    Join Date
    Feb 2013
    Location
    Taupo
    Posts
    72
    Looks like you need a new locking nut.
    I have found you do have to do them up pretty tight and I'd say that one isn't holding.
    Make sure the thread in the die body itself is not damaged.

  4. #4
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Problem is .. I don't know if it was stripped when I got it ... Or if something I did stripped it. For sure it was stripped the first time I took it out.

  5. #5
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    The thread in the die looks to be ok - aside from being full of filings from the collar

  6. #6
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,248
    I would say that collar was stripped when you got it, where did you get it?
    A big fast bullet beats a little fast bullet every time

  7. #7
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Tardme

  8. #8
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    9,536
    Quote Originally Posted by kiwi39 View Post
    Tardme
    Don't let it put of you off Tim,
    Sounds like some fucktard sold you a lemon die.

  9. #9
    Addicted puku's Avatar
    Join Date
    Dec 2011
    Location
    Maniototo
    Posts
    2,018
    I've done that before. It was resizing ex mil 223 brass with a heavy crimp. What kind of brass?

    Sent from my GT-I9300 using Tapatalk 4
    Rule 5: Check your firing zone

  10. #10
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Thanks for that brad.

  11. #11
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Off the shelf brass. Partizan prvi 55 grain sps. It's the first reload

  12. #12
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,635
    Quote Originally Posted by puku View Post
    I've done that before. It was resizing ex mil 223 brass with a heavy crimp. What kind of brass?

    Sent from my GT-I9300 using Tapatalk 4
    Good point, double check the brass as there are two meathods of priming - Burdon and Boxer. Check out this link and it will tell you more than I can type Berdan vs. Boxer Primed Brass - YouTube

    If you get the wrong brass, then no matter how hard you try you'll never ''push'' the primer out in your press with that style of die, in fact you'll bugger the die trying?

    kj
    kiwi39 likes this.

  13. #13
    Addicted puku's Avatar
    Join Date
    Dec 2011
    Location
    Maniototo
    Posts
    2,018
    Quote Originally Posted by kimjon View Post
    Good point, double check the brass as there are two meathods of priming - Burdon and Boxer. Check out this link and it will tell you more than I can type Berdan vs. Boxer Primed Brass - YouTube

    If you get the wrong brass, then no matter how hard you try you'll never ''push'' the primer out in your press with that style of die, in fact you'll bugger the die trying?

    kj
    Huh hadn't thought of the berdan primers either.
    In my case the flash hole was off centre

    Sent from my GT-I9300 using Tapatalk 4
    kiwi39 likes this.
    Rule 5: Check your firing zone

  14. #14
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,635
    It may be a longshot, but I'd cut the stripped section off and then try screw it back in. It may just work?
    kiwi39 likes this.

  15. #15
    OCD Gravity Test Specialist kiwi39's Avatar
    Join Date
    Oct 2012
    Location
    Kapiti, Wellington
    Posts
    1,807
    Quote Originally Posted by kimjon View Post
    It may be a longshot, but I'd cut the stripped section off and then try screw it back in. It may just work?
    Yep. Seems to be working with the remaining thread.

    I'll get what I can out of it. Hopefully I can get a part from somewhere ... Anyone know where to get hold of some spares for lee dies ??


    Tim
    Last edited by kiwi39; 01-09-2013 at 09:55 PM.
