Thread: Doughnut issues

  1. #1
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102

    Doughnut issues

    Righto. I have a wee issue that I dont think is major but I will put it to the other anal reloaders like me out there on the forum who can have some imput and maybe a soloution.
    I have always used a Forster Bonanza press and use Redding type 's' bushing dies. Others that use the Redding bushing dies know that when when FL or neck sizing they can in some instances leave a wee doughnut at the shoulder junction. Not really considered a problem in standard cases.
    I get them but they are very slight (hardly visable) on my 6.5-06 cases and it does not seem to be a problem concerning accuracy. Maybe it could get better without them?

    My real concern is I am getting an AI cartridge and everything I have read, written buy successfull LR shooters using this cal is that they also normally use Redding type 's' dies. But because of the doughnut you get with the bushing dies, they have either had a die made to spec or used a lee collet die. The latter is of no use in a Bonanza press.
    I have purchased the dies and they have already arrived prior to finding out about this potential problem.

    A seated projectile in an unturned Lapua case is .294 in my 06 and I am assuming it will be close to the same in the new AI using Lapua brass. The reamer has a neck of .297 giving .003 clearance on unturned brass. I will most likely take .001 off the neck after neck wall and weight sorting.
    Considering the case neck will expand on firing to .297 and settle around .296 essentially giving me a .001 clearance until sized. The concern for me is the base of the neck will still potentially be .296 if the die forms a doughnut after sizing.
    I believe neck tension may be affected and worry but doubt the case could almost headspace on the base of neck and not the shoulder.
    Do others think this is a worry or am I being pedantic. If it is a concern, short of buying a spec die (I will if I have to) I would appreciate any ideas how to get rid of them if I get the doughnuts.

    Cheers in advance

  2. #2
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    6,686
    You could always make sure you throat the chamber for the bullet you want to use so it is nowhere near the "doughnut" when seated.....
    Contact me for reloading components, brass, projectiles, powder, primers, etc

    http://terminatorproducts.co.nz/

    http://www.youtube.com/user/Terminat...?feature=guide

  3. #3
    Member Savage1's Avatar
    Join Date
    Dec 2011
    Location
    Whangarei
    Posts
    3,492
    You are being pedantic. No offence.

  4. #4
    Ex stick thrower madjon_'s Avatar
    Join Date
    Dec 2011
    Location
    Richmond. Tasman.and Oz
    Posts
    3,461

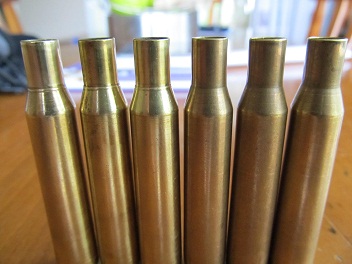

    same as this ?Name:  002.JPG
Views: 798
Size:  45.3 KB
    Real guns start with the number 3 or bigger and make two holes, one in and one out

  5. #5
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    7,205
    Dave, I use type S only for all my calibres and have yet to come across this porblem. The donut will only form from brass flow, not sizing. The bush does not size all the way to the shoulder junction, and the step is only that, a step, not a thickening of brass. Donut will form in some cals easier than others. I looked into it and the best way to keep on top is to inside ream. I have a Forster lathe that I can get inside cutters for but have not yet needed them. You will rechamber? As KiwiGreg said you couold set it back a touch and cut the throat long enough (for your intended pill) that it will not need to be seated into the junction (where donuts may form).

  6. #6
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by madjon_ View Post
    same as this ?Attachment 1546

    Yup. But possibly worse in the AI.

  7. #7
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by kiwijames View Post
    Dave, I use type S only for all my calibres and have yet to come across this porblem. The donut will only form from brass flow, not sizing. The bush does not size all the way to the shoulder junction, and the step is only that, a step, not a thickening of brass. Donut will form in some cals easier than others. I looked into it and the best way to keep on top is to inside ream. I have a Forster lathe that I can get inside cutters for but have not yet needed them. You will rechamber? As KiwiGreg said you couold set it back a touch and cut the throat long enough (for your intended pill) that it will not need to be seated into the junction (where donuts may form).
    Thanks James I have thought of inside reaming if I see a ES problem. The cartirdge reamer is on its way so I cant change the specs on that. I will see how it goes. As I said I dont really think it is a problem but I have never owned an AI cartridge before and I will end up with 2 in a month or so. I am just trying to learn and avoid any potential problems .

  8. #8
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    7,205
    Quote Originally Posted by R93 View Post
    Thanks James I have thought of inside reaming if I see a ES problem. The cartirdge reamer is on its way so I cant change the specs on that. I will see how it goes. As I said I dont really think it is a problem but I have never owned an AI cartridge before and I will end up with 2 in a month or so. I am just trying to learn and avoid any potential problems .
    Just got my first AI today too . Will do a write up shortly.

  9. #9
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by Savage1 View Post
    You are being pedantic. No offence.
    No offence takin. Its a compliment as far as reloading accurate ammo goes

  10. #10
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by kiwijames View Post
    Just got my first AI today too . Will do a write up shortly.
    Looking forward to it James. If you dont notice a problem with the bushing dies I doubt I will. I spose you have taken the day off work to play?

  11. #11
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    7,205
    Nah, still at work. I needed the die grinder.

  12. #12
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by kiwijames View Post
    Nah, still at work. I needed the die grinder.
    Oh. Whats up with that?

  13. #13
    Cutting Edge Bullets Terminator's Avatar
    Join Date
    Dec 2011
    Location
    HB
    Posts
    325
    The doughnut which can be caused by sizing and brass flow, normally builds up after a few firings in the neck shoulder junction area, alot of people don't realize that they have a small doughnut causing neck tension issues. Because of this all of my throats are set up so the rear bearing surface of the bullet stays at least 0.020 thousands in front of this area as already stated above. One tool that I found very helpful in one rifle I used to own with a very short throat is the K&M carbide neck turning mandrel with doughnut cutter, you just expand you necks with the expander mandrel then run it over the carbide turning mandrel and it will cut the doughnut away with out cutting any other part of the neck, worked a treat.
    1000yds is fun, 1500yds is getting interesting, 2000yds is exciting, 2500yds will blow your mind

  14. #14
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ
    Posts
    16,102
    Quote Originally Posted by Terminator View Post
    The doughnut which can be caused by sizing and brass flow, normally builds up after a few firings in the neck shoulder junction area, alot of people don't realize that they have a small doughnut causing neck tension issues. Because of this all of my throats are set up so the rear bearing surface of the bullet stays at least 0.020 thousands in front of this area as already stated above. One tool that I found very helpful in one rifle I used to own with a very short throat is the K&M carbide neck turning mandrel with doughnut cutter, you just expand you necks with the expander mandrel then run it over the carbide turning mandrel and it will cut the doughnut away with out cutting any other part of the neck, worked a treat.
    Thanks for that I will keep it mind if I have any problems.

  15. #15
    Member sneeze's Avatar
    Join Date
    Dec 2011
    Location
    nelson/marlborough
    Posts
    3,431
    Internal donuts gave me a problem in a 280ai after the first firing with nosler brass, checked by pushing a bullet into a fired case, it would stop when the boat tail/bearing surface
    junction of the bullet hit the donut at the neck shoulder juction, I cut them out them with a forster interneal neck reamer, cheap and very simple.The next lot of brass hasnt given any sign of donuts at all and the laupa brass in my .243ai is fine after 3 firings but Im still checking as the round count rises.All are sized with redding bushing dies but I wind the adjuster out a touch so I dont size all of the neck. About 3/4 of the 280ai and 7/8 on the .243ai
    "You'll never find a rainbow if you're looking down" Charlie Chaplin
