Thread: magnetic damping

  1. 29-10-2023, 04:20 PM #1
    blip
    blip is offline
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,638

    magnetic damping

    Cold windy shitty day up here but the mind is still working. Anyone tried magnetic damping the old lee balance beam scales? Got a set here and it might be worth looking into...
    Reply With Quote Reply With Quote
  2. Register to remove these Ads!
  3. 29-10-2023, 04:42 PM #2
    Marty Henry
    Marty Henry is offline
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088
    You need to generate Eddy currents in the magnetic field between the two magnets for it to work. So unless the beans either copper, steel or aluminum it won't work
    Reply With Quote Reply With Quote
  4. 29-10-2023, 04:49 PM #3
    blip
    blip is offline
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,638
    It has an aluminum tang on the end of the beam
    Reply With Quote Reply With Quote
  5. 29-10-2023, 04:52 PM #4
    Marty Henry
    Marty Henry is offline
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088
    That may work, later I'll dig out my ohaus and take a photo
    Reply With Quote Reply With Quote
  6. 29-10-2023, 05:20 PM #5
    woods223
    woods223 is offline
    Member
    Join Date
    Feb 2016
    Location
    Marlborough
    Posts
    1,039
    Lee scale has two magnets either side of beam pointer end. Common for people to swap out for stronger ones or simply put a small penny type magnet on bench below pan, it seems to work reliably/accurately.
    Bagheera and Micky Duck like this.
    Reply With Quote Reply With Quote
  7. 30-10-2023, 07:54 AM #6
    Marty Henry
    Marty Henry is offline
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088

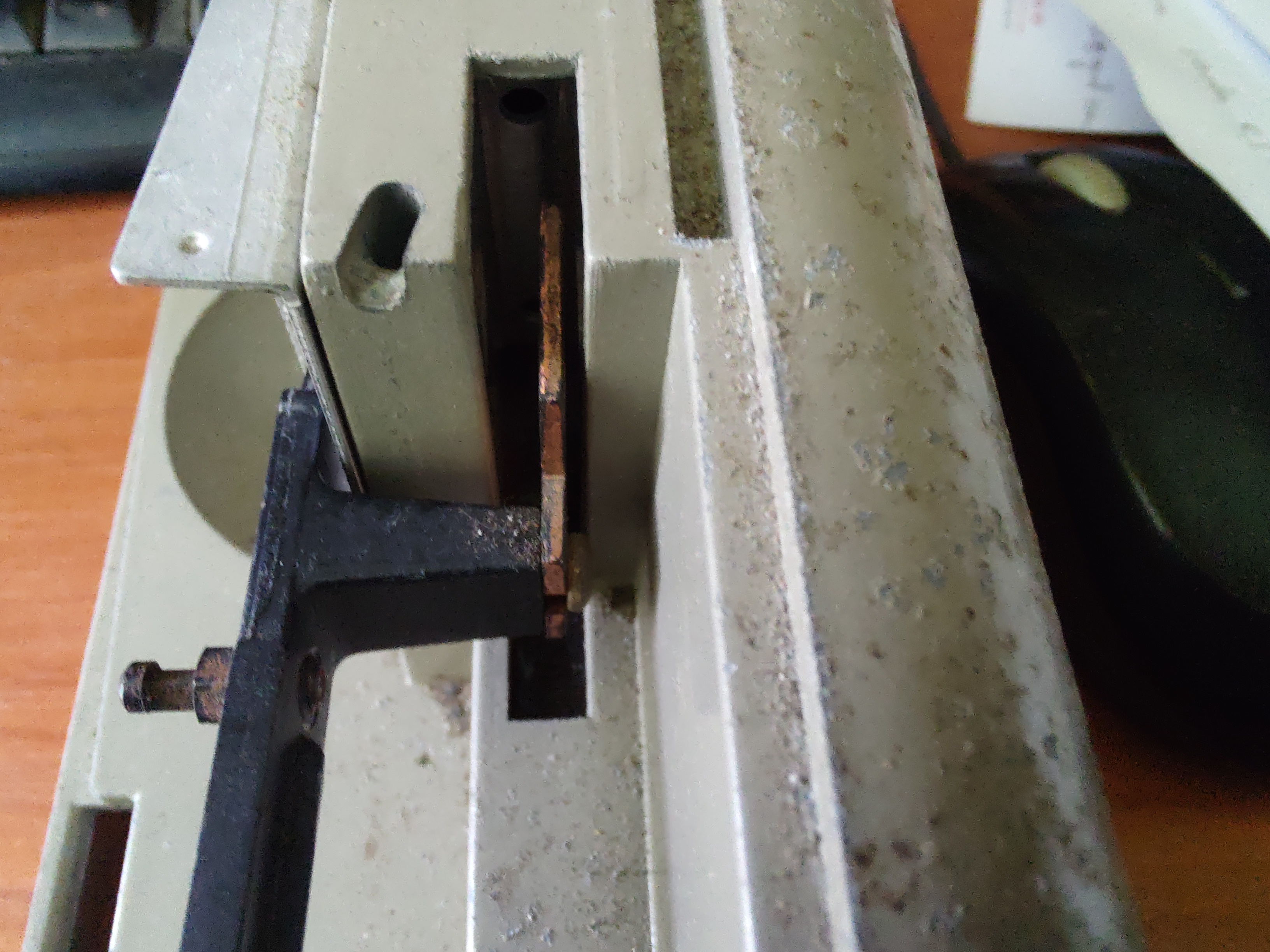

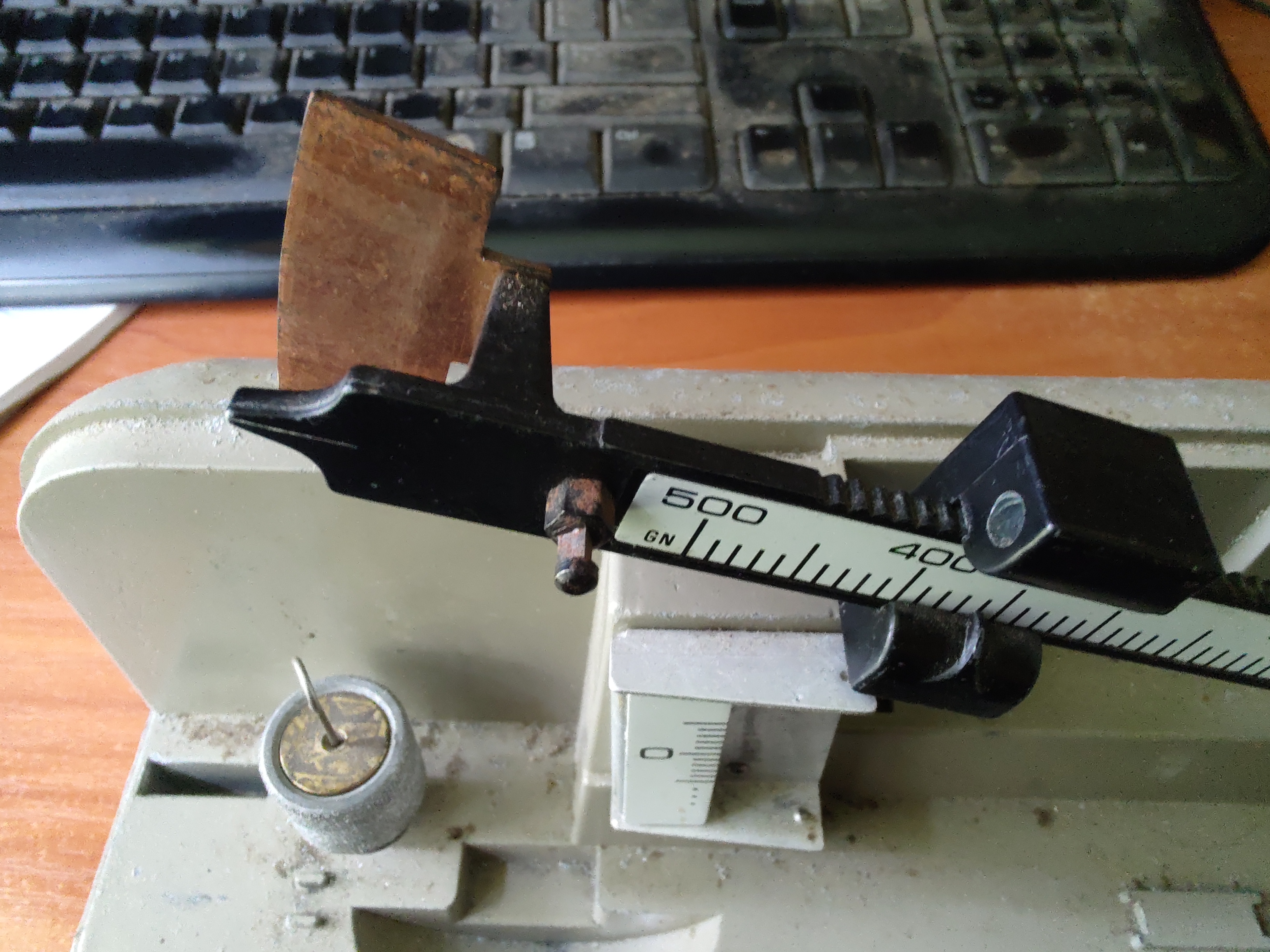

    A few closeups
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  8. 30-10-2023, 10:02 AM #7
    Jhon
    Jhon is offline
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,480
    Apparently current Lee Perfect scales don't ship with magnetic dampening. I have two disc magnets the size of old 50c pieces with holes in middle from Mitre10 which cling to the housing on the off-side of the pointer. So there must be some ferrous metal in there or maybe weak magnets after all..anyhow mine work perfectly (pun intended) with the two stacked magnets on the side of the housing
    woods223 likes this.
    I know a lot but it seems less every day...
    Reply With Quote Reply With Quote
  9. 30-10-2023, 10:29 AM #8
    Marty Henry
    Marty Henry is offline
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,088
    That seems a simple fix those rare earth magnets are really something
    Jhon likes this.
    Reply With Quote Reply With Quote
  10. 30-10-2023, 10:33 AM #9
    Oldbloke
    Oldbloke is offline
    Member Oldbloke's Avatar
    Join Date
    Jun 2020
    Location
    Victoria Australia
    Posts
    614
    Quote Originally Posted by woods223 View Post
    Lee scale has two magnets either side of beam pointer end. Common for people to swap out for stronger ones or simply put a small penny type magnet on bench below pan, it seems to work reliably/accurately.
    Yes, you can add stronger magnets. Speeds up the process but no effect on accuracy.
    Jhon likes this.
    Hunt safe, look after the bush & plug more pests. The greatest invention in the history of man is beer.
    https://youtu.be/2v3QrUvYj-Y
    A bit more bang is better.
    Reply With Quote Reply With Quote
  11. 03-11-2023, 08:19 PM #10
    blip
    blip is offline
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,638
    I took the crappy magnets out of my scales which were useless anyway and got a couple of rare earth magnets and put them in them also found a 40mm round magnet at work that I sit under the pan. They are really good now.
    Oldbloke likes this.
    Reply With Quote Reply With Quote
  12. 04-11-2023, 12:59 AM #11
    Oldbloke
    Oldbloke is offline
    Member Oldbloke's Avatar
    Join Date
    Jun 2020
    Location
    Victoria Australia
    Posts
    614
    Quote Originally Posted by blip View Post
    I took the crappy magnets out of my scales which were useless anyway and got a couple of rare earth magnets and put them in them also found a 40mm round magnet at work that I sit under the pan. They are really good now.
    Got a mate did exactly what you did and happy with the scales too. GMF why Lee dont do the same.
    Hunt safe, look after the bush & plug more pests. The greatest invention in the history of man is beer.
    https://youtu.be/2v3QrUvYj-Y
    A bit more bang is better.
    Reply With Quote Reply With Quote
