Thread: Magnetodspeed "sporter" suppressor mod

  1. #1
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,209

    Magnetodspeed "sporter" suppressor mod

    Well after getting completely different velocity readings with the same load a couple days apart using my mates Caldwell chrono I decided to mod my magnetospeed sporter so I can use it with a suppressor.
    I've found the magnetospeed to be very consistent across different lighting (cloudy vs clear and sunny).
    I also figured no point in having it sitting in the draw and using something I don't trust,
    I was going to sell and upgrade to the v3 magnetospeed but I would've probably lost a fair whack of $$$ plus had to outlay on the v3.
    First up apologies I didn't take any before pics.
    But basically followed a video tutorial on YouTube which I'll link in this thread too.
    After scribing a line .6" around the top of the base I then used a cut off wheel on my dremel to trim the base down so the whole unit will sit closer to the muzzle line when strapped to the suppressor.
    I also cut a piece of bike tube to go between the base and the suppressor as even cut down with the smaller rubber shim they come with I think the muzzle line would still be too high from the magneto ramp.
    Anyway here are some pics hope it all makes sense.

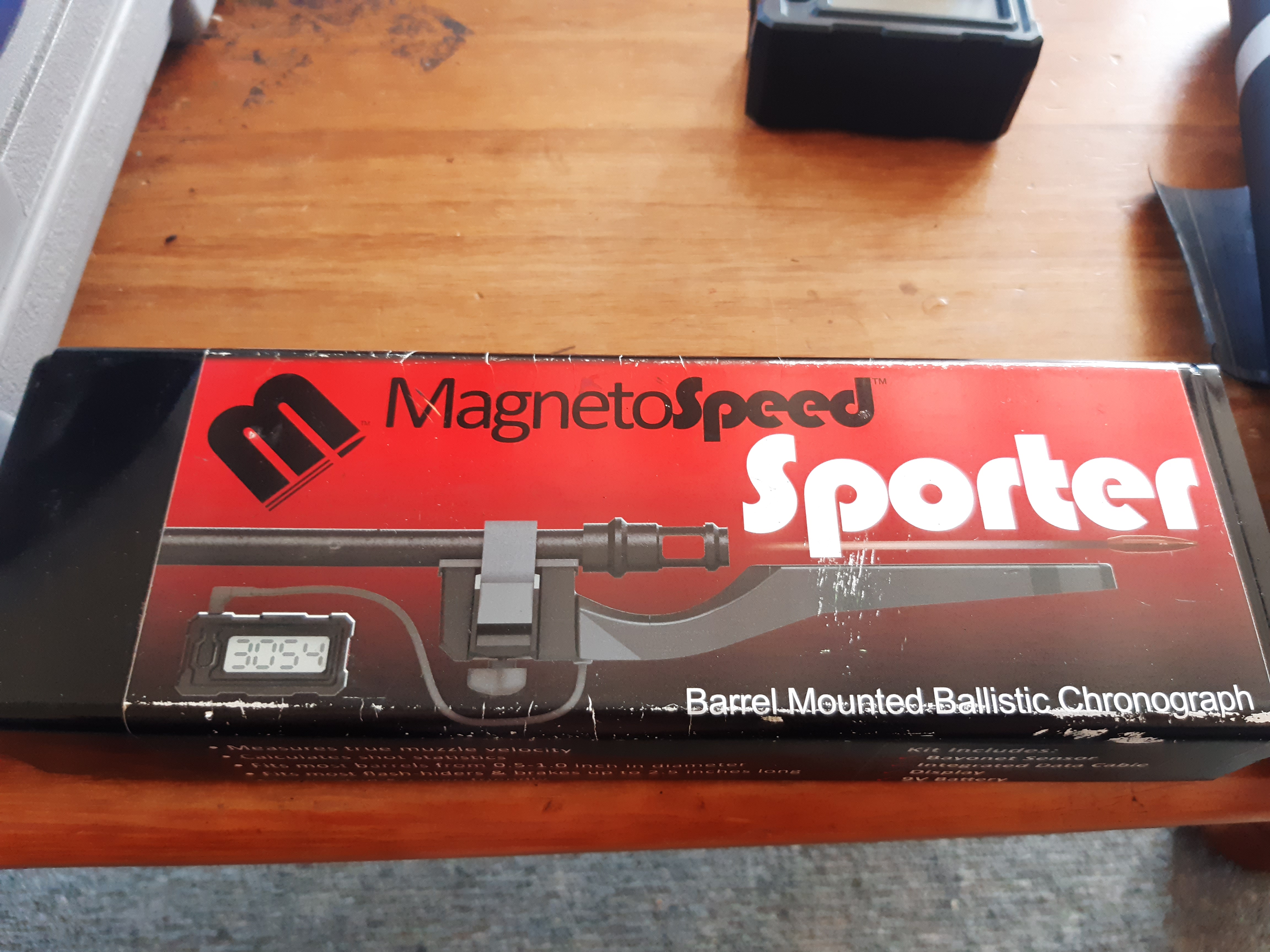

    Name:  20201002_120652.jpg
Views: 940
Size:  3.57 MB

    Name:  20201002_120039.jpg
Views: 893
Size:  3.23 MB

    Name:  20201002_120046.jpg
Views: 999
Size:  3.29 MB

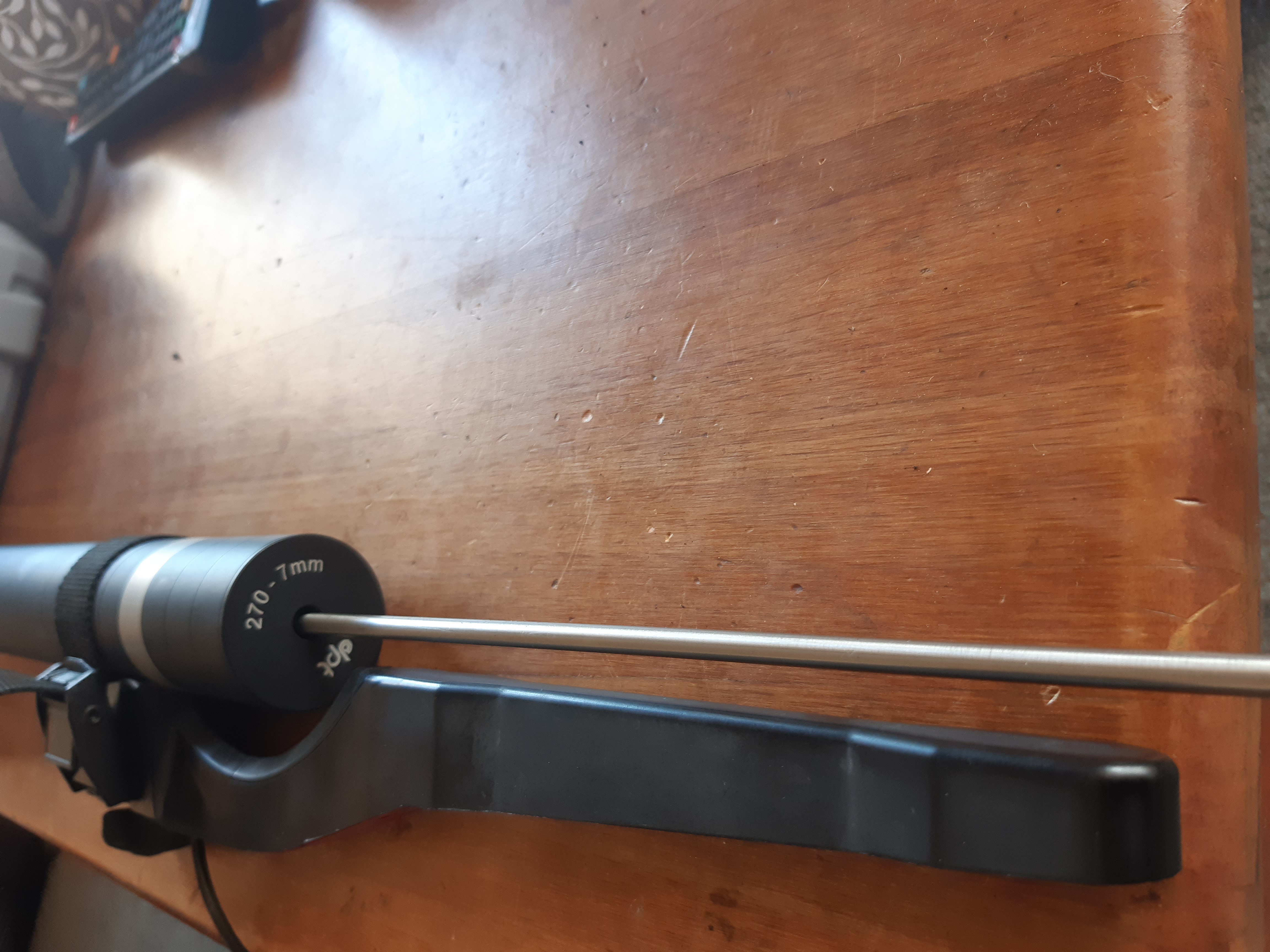

    Name:  20201002_115946.jpg
Views: 886
Size:  3.57 MB

    Name:  20201002_120240.jpg
Views: 952
Size:  3.24 MB

    Name:  20201002_120113.jpg
Views: 821
Size:  1.44 MB
    #DANNYCENT

  2. #2
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,209
    #DANNYCENT

  3. #3
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,981
    I might have to do that with the extra blade I think I still have lying around.
    dannyb likes this.
    There are only three types of people in this world. Those that can count, and those that can't!

  4. #4
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,209
    Quote Originally Posted by gadgetman View Post
    I might have to do that with the extra blade I think I still have lying around.
    I have always found the magnetospeed to be pretty consistent, hopefully I can use it again now
    #DANNYCENT

  5. #5
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    Quote Originally Posted by dannyb View Post
    I've found the magnetospeed to be very consistent across different lighting (cloudy vs clear and sunny).
    Not very surprising since the magnetospeed doesn't use light to get it's readings.

    I have a v3 but used my old Prochrono yesterday at the range. It was a cloudy day so I didn't put the overhead screens on, most of the readings seemed bang on except for one when the sun came out, 9147fps for a 308 seemed a little bit off...

  6. #6
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,981
    Quote Originally Posted by dannyb View Post
    I have always found the magnetospeed to be pretty consistent, hopefully I can use it again now
    Yeah, it's a good bit of kit, without the hassle of having to recheck alignment so much between shots.
    There are only three types of people in this world. Those that can count, and those that can't!

  7. #7
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,209
    Micky Duck likes this.
    #DANNYCENT

  8. #8
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by gadgetman View Post
    Yeah, it's a good bit of kit, without the hassle of having to recheck alignment so much between shots.
    Not alignment but I used to check the strap tightness on mine for the first 3 or 4 shots. This after having mine come loose after maybe 10 shots. At least it drooped down and wasn't at risk of a hit.
    gadgetman and dannyb like this.

  9. #9
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,797
    aha...all is clear as mud now thankyou...

  10. #10
    Member
    Join Date
    Jul 2012
    Location
    Hamilton
    Posts
    713

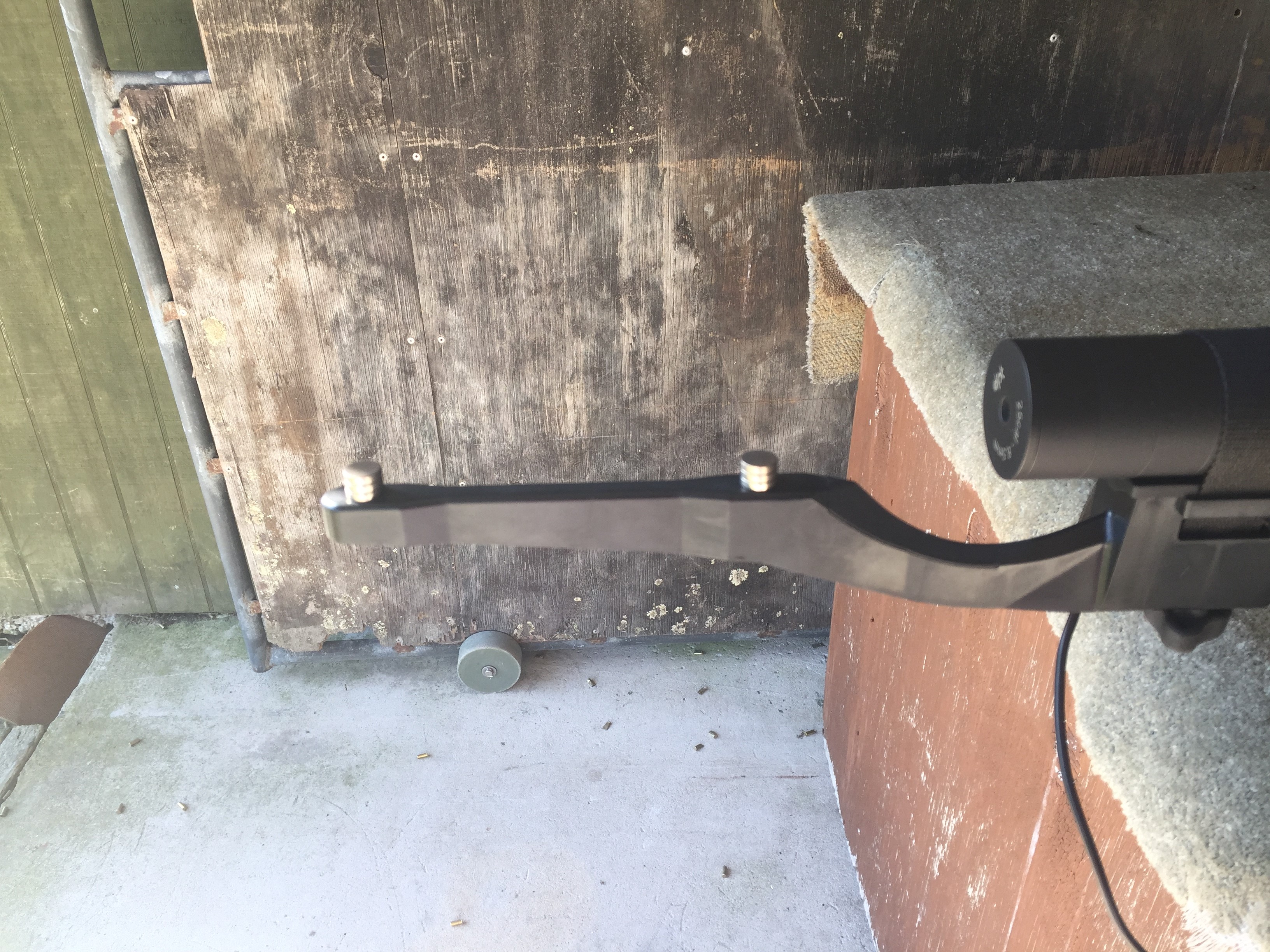

    If you're not keen on altering the bayonet, adding a couple of neodymium magnets seems to increase the magnetic fields enough that it picks up the projectile passing through. Tried it yesterday and it worked fine for the first 6 or 7 shots until the bayonet moved too far forward under recoil. Repositioned it and nipped the strap up tighter and it was registering fine again.
    Name:  Magneto Mod.jpg
Views: 700
Size:  1.99 MB
