Thread: Please help to identify these two MEC 600 jnr Charger bars

  1. #1
    Member
    Join Date
    Feb 2013
    Location
    Wanganui without an "h"
    Posts
    3,023

    Please help to identify these two MEC 600 jnr Charger bars

    I have two MEC charger bars which work well with the press, but cannot identify them as neither appear in any MEC lists of charger bars I have viewed. The RED is clearly for a single stage press and probably the silver also as the external measurements are the same

    First this red bar, stamped on one end 302 12 G A 6 PA with a screw in bolt which intrudes into the smaller of the two "holes." Neither of the "holes" have a chamfer on one end to accept a powder bush..

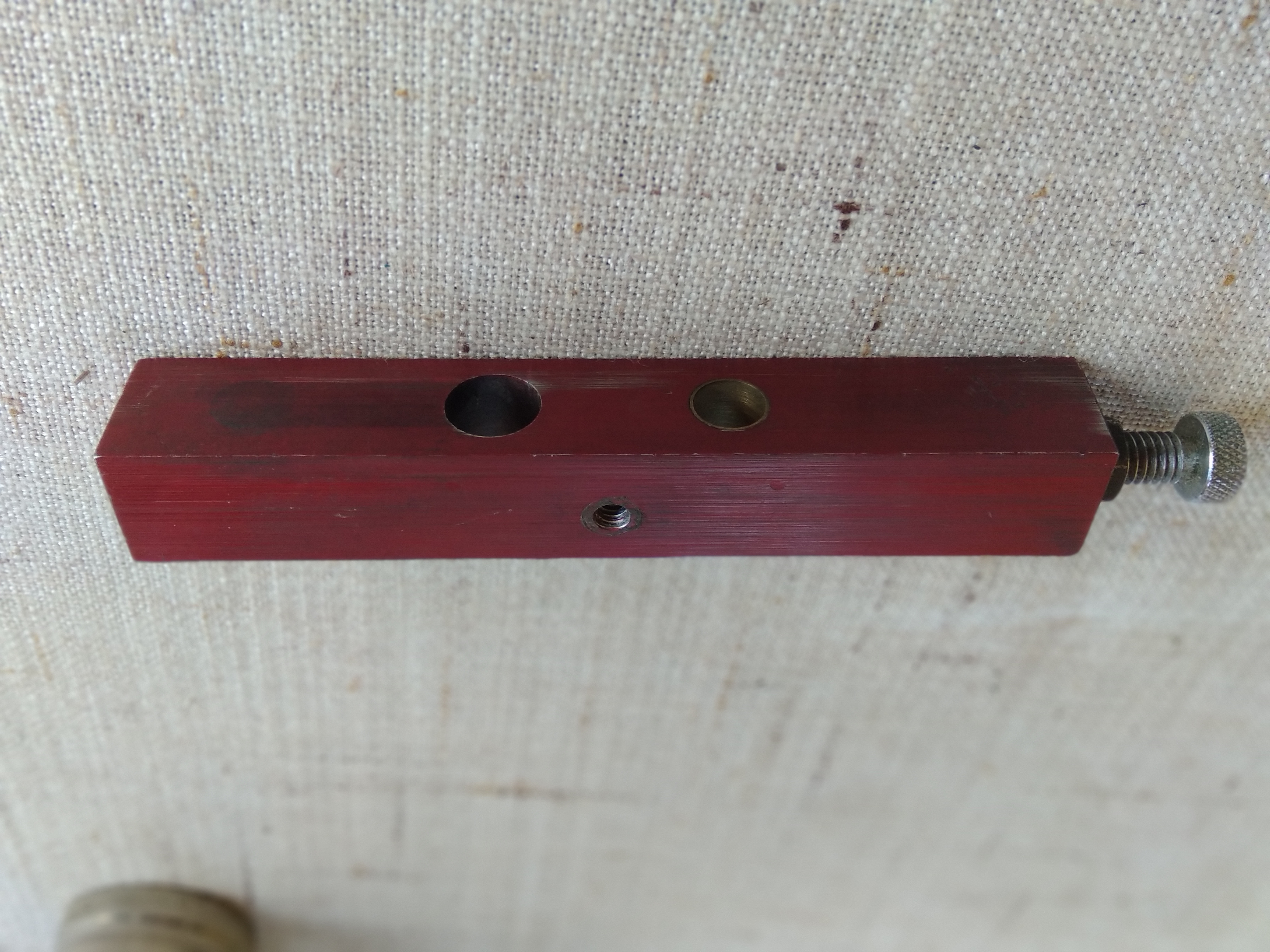

    Name:  red 1 .jpg
Views: 408
Size:  8.82 MB

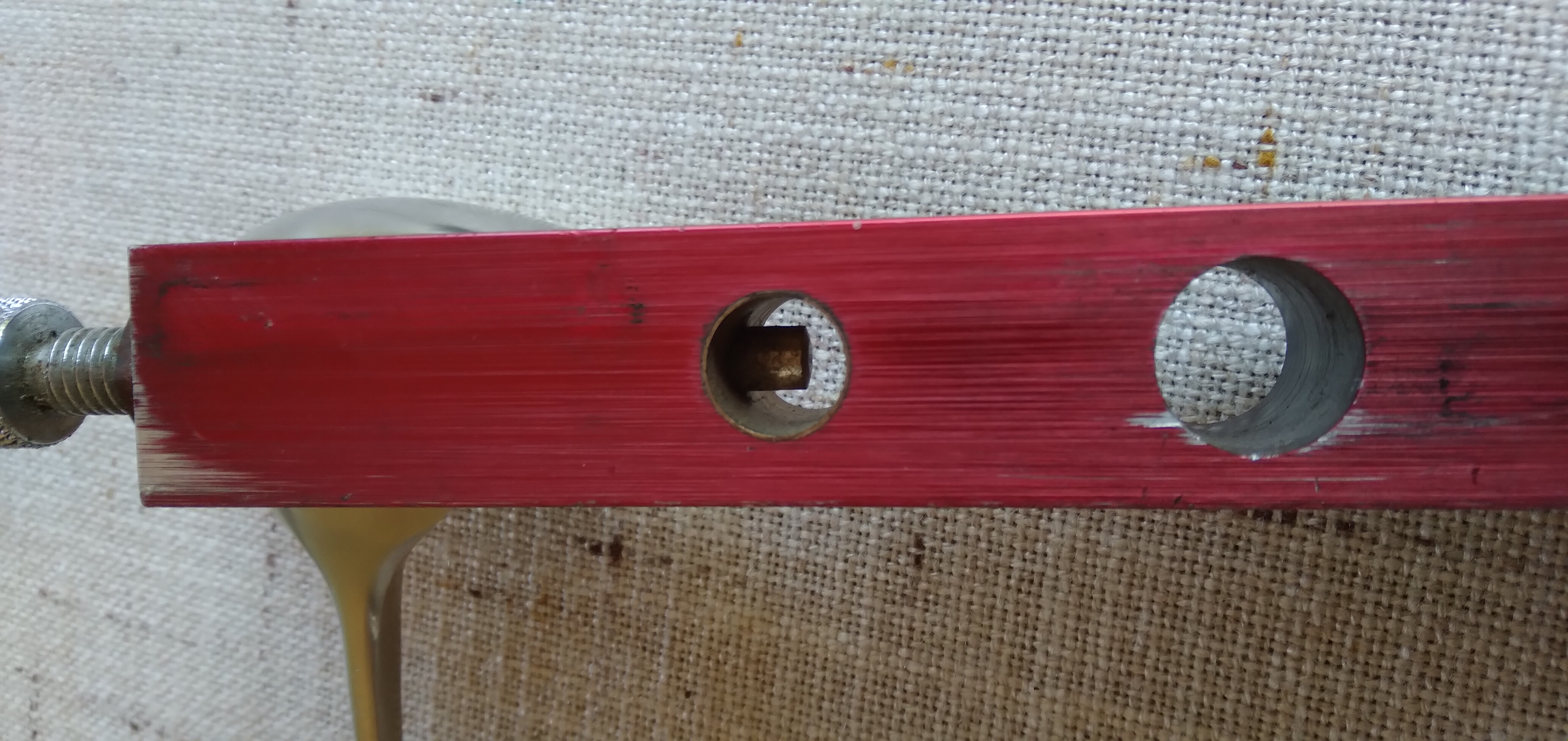

    Name:  red 2 .jpg
Views: 441
Size:  4.00 MB

    Second is a plain silver bar with no numerical or alpha stampings. Curiously it has a threaded bolt hole for the "sliding measure stop on two opposing sides,whereas the standard charger bar has only one hole. The larger hole is chanfered to accept a powder bushing.I suspect it be be a "Home Made" bar for a non standard lead load?

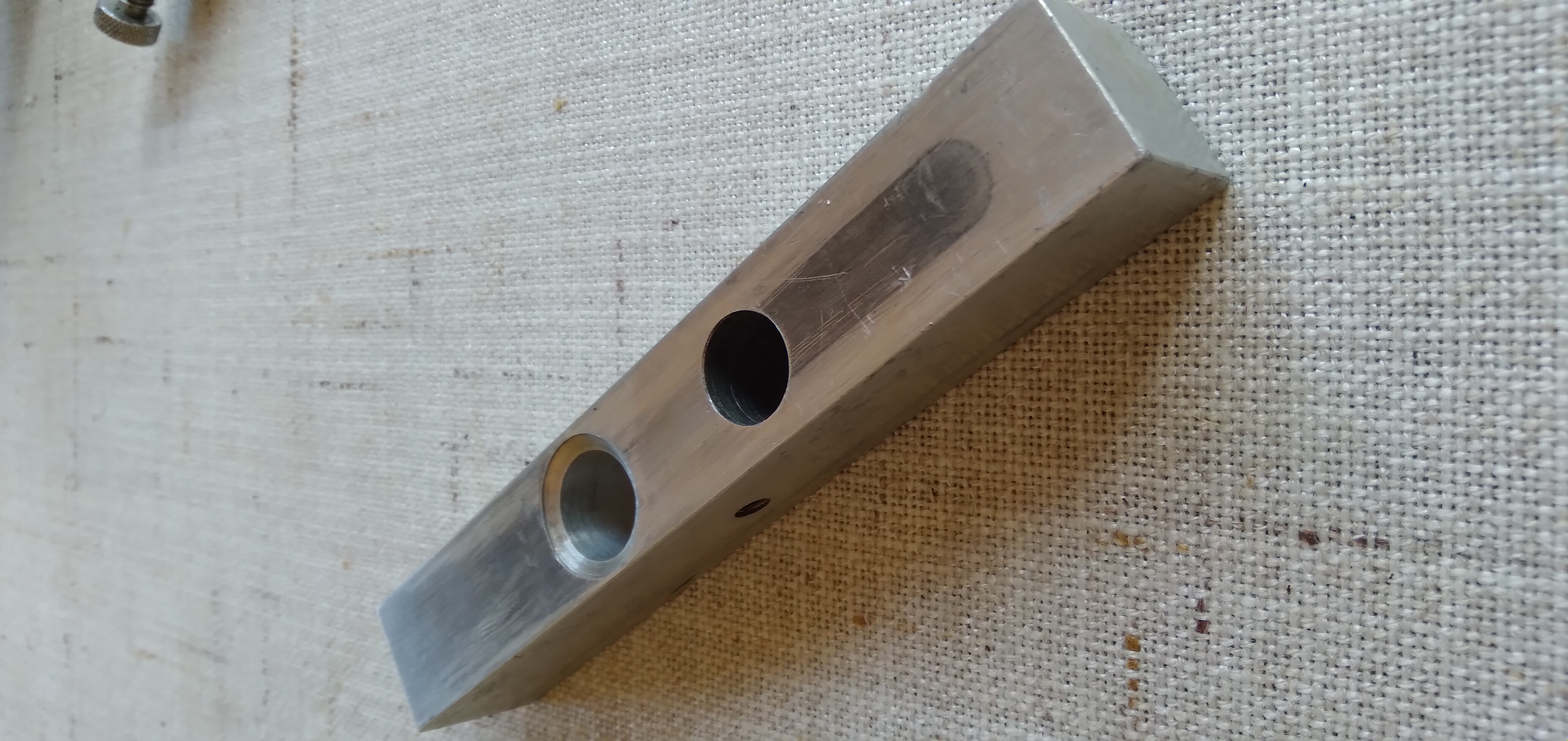

    Name:  silver 1.jpg
Views: 398
Size:  4.00 MB

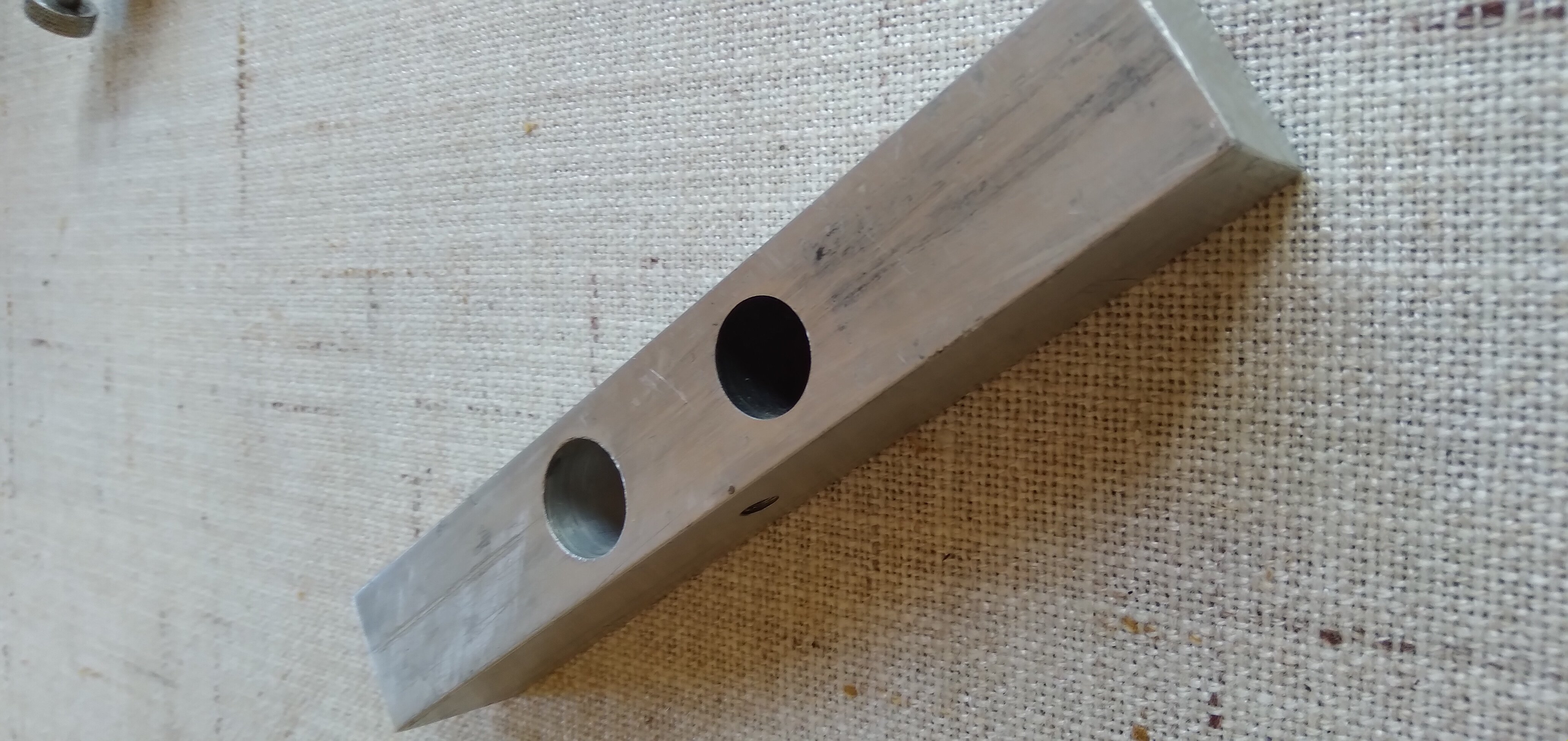

    Name:  silver 2 .jpg
Views: 433
Size:  4.00 MB

    Any assistance appreciated. Thank You
    .

  2. #2
    Member
    Join Date
    Jun 2014
    Location
    CNI
    Posts
    5,908
    The top one is to allow varying powder charge weights by screwing in/out the long screw. The short screw hole is top provide a stop when sliding the charge bar back and forth from powder charge to shot charge. You will have to throw charges to determine the actual drops of powder and shot charges.
    The silver bar has the lh hole recessed to accept a range of available Mec powder charge bushes. The rh hole is for shot charge and you will have to drop a charge through it and weigh to determine the actual shot charge wgt.
    Micky Duck and Got-ya like this.
    Summer grass
    Of stalwart warriors splendid dreams
    the aftermath.

    Matsuo Basho.

  3. #3
    Member
    Join Date
    Jan 2017
    Location
    Waiuku
    Posts
    820
    Woody is on to it.
