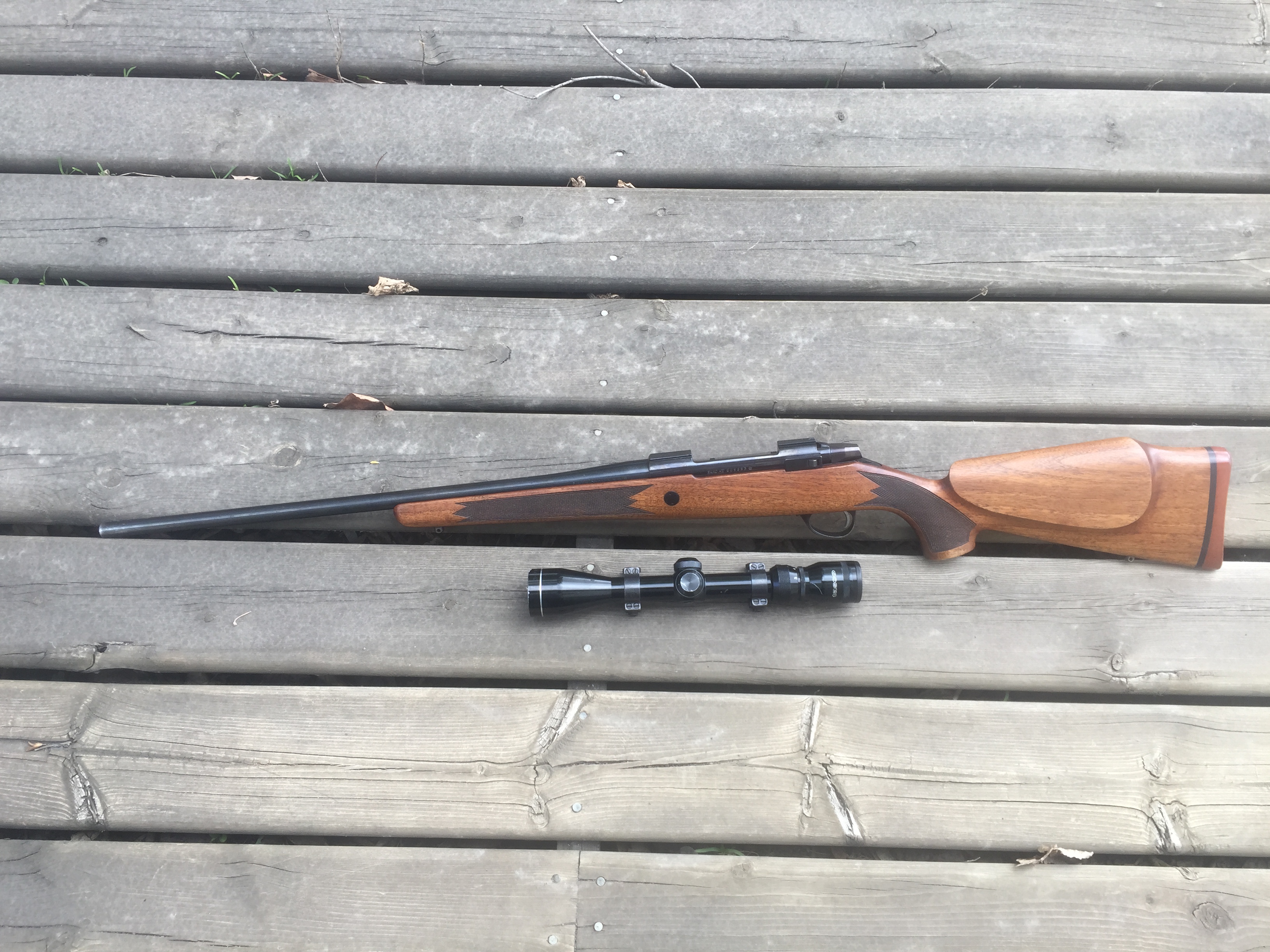

This arrived today, Sako AV in 7x64, with old type Sako rings and a tasco vari power, and a box of S&B 173gr ammo.
Attachment 87665
pretty tidy for a 20 plus year rifle, bit of bluing wear, few very small dings in the wood work,
bought redding dies and two pks Remington 140gr core-lots, (cheap $32)
think I upgrade the scope. nice little compact of sum sort.
Well had the AV, 7x64 out this days off, and sighted in with a cheap 3x9x40 Leopold.
Pretty impressed, shoot well, and has a very nice trigger, 140gr factory rem are ok, 25mm at 100m, previous day getting sighted in, was more like 35-40mm, average
rifle seams to like the S&B 173gr, Attachment 88840 14mm group at a 100m Attachment 88845
and a 50 and 45mm at 200m on a very gusty windy day.
my 7x64 loves the 150 gn partitions - puts 4 -5 rounds into a ragged 0.3moa hole.
@southernman that is a very tidy rifle, shoots well too.
Saved.
154gr SST predictions
Code:
Cartridge : 7 x 64 Brenneke
Bullet : .284, 154, Hornady SST InterLock 28302
Useable Case Capaci: 60.351 grain H2O = 3.919 cm³
Cartridge O.A.L. L6: 3.375 inch = 85.73 mm
Barrel Length : 22.8 inch = 579.1 mm
Predicted Data for Indicated Charges of the Following Powders.
Matching Maximum Pressure: 60000 psi, or 413 MPa
or a maximum loading ratio or filling of 103 %
These calculations refer to your specified settings in QuickLOAD 'Cartridge Dimensions' window.
C A U T I O N : any load listed can result in a powder charge that falls below minimum suggested
loads or exceeds maximum suggested loads as presented in current handloading manuals. Understand
that all of the listed powders can be unsuitable for the given combination of cartridge, bullet
and gun. Actual load order can vary, depending upon lot-to-lot powder and component variations.
USE ONLY FOR COMPARISON !
22 loads produced a Loading Ratio below user-defined minimum of 85%. These powders have been skipped.
Powder type Filling/Loading Ratio Charge Charge Vel. Prop.Burnt P max P muzz B_Time
% Grains Gramm fps % psi psi ms
--------------------------------- -----------------------------------------------------------------
Alliant RL26 102.8 61.5 3.98 3041 100.0 60000 13308 1.112 ! Near Maximum !
Alliant RL17 92.6 54.0 3.50 2954 100.0 60000 11743 1.116 ! Near Maximum !
IMR 7828ssc 103.0 58.9 3.81 2951 96.4 58841 12913 1.113 ! Near Maximum !
Alliant RL16 98.9 53.6 3.47 2928 100.0 60000 11600 1.128 ! Near Maximum !
Ramshot Hunter 97.2 55.9 3.62 2920 99.5 60000 12044 1.124 ! Near Maximum !
Alliant RL19 101.8 56.6 3.67 2920 97.9 60000 12322 1.118 ! Near Maximum !
Hodgdon H414 91.8 54.0 3.50 2913 99.1 60000 12031 1.127 ! Near Maximum !
Winchester 760 91.8 54.0 3.50 2913 99.1 60000 12031 1.127 ! Near Maximum !
Alliant RL22 103.0 57.9 3.75 2898 97.2 55650 12737 1.156 ! Near Maximum !
AA MagPro 103.0 60.9 3.95 2895 93.3 55138 13092 1.161 ! Near Maximum !
Hodgdon H4831sc 103.0 57.9 3.75 2891 95.8 59990 12059 1.114 ! Near Maximum !
IMR 4831 101.4 54.0 3.50 2883 100.0 60000 11312 1.141 ! Near Maximum !
Ramshot Magnum 103.0 62.4 4.04 2877 97.7 55365 12303 1.149 ! Near Maximum !
Ramshot BigGame 87.4 51.8 3.36 2874 100.0 60000 10981 1.131 ! Near Maximum !
IMR 4895 87.0 48.4 3.13 2865 100.0 60000 10955 1.139 ! Near Maximum !
Hodgdon Hybrid 100V 99.3 53.4 3.46 2865 100.0 60000 10648 1.130 ! Near Maximum !
Alliant RL15 87.8 48.8 3.17 2859 100.0 60000 10936 1.139 ! Near Maximum !
Hodgdon H4350 99.0 53.9 3.49 2857 98.6 60000 11359 1.126 ! Near Maximum !
IMR 4350 97.2 53.8 3.48 2856 98.7 60000 11339 1.126 ! Near Maximum !
IMR 4451 Enduron 92.9 51.1 3.31 2838 99.0 60000 11118 1.125 ! Near Maximum !
Hodgdon Varget 90.7 48.8 3.16 2828 100.0 60000 10569 1.128 ! Near Maximum !
IMR 4955 Enduron 103.0 55.7 3.61 2827 95.7 58377 11551 1.136 ! Near Maximum !
Alliant RL23 103.0 56.1 3.63 2821 100.0 51166 11647 1.202
IMR 4064 91.2 47.9 3.10 2819 100.0 60000 10365 1.134 ! Near Maximum !
IMR 4166 Enduron 92.2 49.1 3.18 2814 99.1 60000 10778 1.130 ! Near Maximum !
IMR 7828 103.0 55.7 3.61 2775 93.7 49113 12177 1.207
Hodgdon H4831 103.0 55.7 3.61 2771 94.0 52779 11567 1.183 ! Near Maximum !
Alliant RL25 103.0 57.0 3.69 2762 98.4 46169 12250 1.239
prediction for your rifle with 162gr ELD
Code:
Cartridge : 7 x 64 Brenneke
Bullet : .284, 162, Hornady ELD-X 2840
Useable Case Capaci: 58.362 grain H2O = 3.789 cm³
Cartridge O.A.L. L6: 3.375 inch = 85.73 mm
Barrel Length : 22.8 inch = 579.1 mm
Predicted Data for Indicated Charges of the Following Powders.
Matching Maximum Pressure: 60000 psi, or 413 MPa
or a maximum loading ratio or filling of 103 %
These calculations refer to your specified settings in QuickLOAD 'Cartridge Dimensions' window.
C A U T I O N : any load listed can result in a powder charge that falls below minimum suggested
loads or exceeds maximum suggested loads as presented in current handloading manuals. Understand
that all of the listed powders can be unsuitable for the given combination of cartridge, bullet
and gun. Actual load order can vary, depending upon lot-to-lot powder and component variations.
USE ONLY FOR COMPARISON !
19 loads produced a Loading Ratio below user-defined minimum of 85%. These powders have been skipped.
Powder type Filling/Loading Ratio Charge Charge Vel. Prop.Burnt P max P muzz B_Time
% Grains Gramm fps % psi psi ms
--------------------------------- -----------------------------------------------------------------
Alliant RL26 103.0 59.6 3.86 2914 100.0 55223 13069 1.170 ! Near Maximum !
Alliant RL17 94.7 53.4 3.46 2894 100.0 60000 11600 1.133 ! Near Maximum !
Alliant RL16 101.3 53.1 3.44 2872 100.0 60000 11457 1.143 ! Near Maximum !
Ramshot Hunter 99.4 55.2 3.58 2867 99.7 60000 11909 1.139 ! Near Maximum !
Hodgdon H414 93.8 53.4 3.46 2861 99.4 60000 11902 1.142 ! Near Maximum !
Winchester 760 93.8 53.4 3.46 2861 99.4 60000 11902 1.142 ! Near Maximum !
Alliant RL19 103.0 55.4 3.59 2843 98.1 58291 12122 1.148 ! Near Maximum !
IMR 7828ssc 103.0 56.9 3.69 2830 96.1 54703 12578 1.168 ! Near Maximum !
Ramshot BigGame 89.3 51.2 3.32 2817 100.0 60000 10828 1.147 ! Near Maximum !
IMR 4831 103.0 53.1 3.44 2808 100.0 58417 11127 1.169 ! Near Maximum !
Hodgdon Hybrid 100V 101.5 52.9 3.42 2808 100.0 60000 10503 1.146 ! Near Maximum !
Hodgdon H4350 101.0 53.2 3.44 2804 98.9 60000 11220 1.141 ! Near Maximum !
IMR 4350 99.1 53.0 3.44 2803 99.0 60000 11198 1.142 ! Near Maximum !
Alliant RL15 89.7 48.3 3.13 2802 100.0 60000 10771 1.154 ! Near Maximum !
IMR 4451 Enduron 94.6 50.3 3.26 2782 99.3 60000 10951 1.141 ! Near Maximum !
Hodgdon H4831sc 103.0 56.0 3.63 2779 95.6 56005 11733 1.166 ! Near Maximum !
Alliant RL22 103.0 56.0 3.63 2777 96.9 51194 12408 1.215
AA MagPro 103.0 58.9 3.82 2771 92.9 50481 12736 1.223
IMR 4166 Enduron 93.6 48.2 3.13 2756 99.3 60000 10571 1.144 ! Near Maximum !
Ramshot Magnum 103.0 60.4 3.91 2751 97.3 50688 12007 1.213
IMR 4955 Enduron 103.0 53.9 3.49 2722 95.5 54798 11229 1.185 ! Near Maximum !
Alliant RL23 103.0 54.2 3.51 2695 99.9 46547 11413 1.273
Hodgdon H4831 103.0 53.8 3.49 2660 93.7 48868 11244 1.241
IMR 7828 103.0 53.8 3.49 2652 93.2 45096 11838 1.279
Alliant RL25 103.0 55.1 3.57 2631 97.9 41937 11957 1.324
Got sent this info, may be of help to others, now to find a couple lbs of Reloader 26 or 17
@southernman that QL data is very interesting- would not have considered RL26 or 17 for this cal. They look very quick ��. Amazed at the huge difference between RL26 & 25!! I thought 26 was just a more temp stable version of 25???
Any chance you could run same data for 280ai ?
@chainsaw - I'm happy to run it for you - whats the projectile, COL, barrel length and you'll get best results if you supply the water capacity of a case fired in the rifle.
Sweet, thanks @Tentman much appreciated- I’m away for a few days so will need to dig out COL when I’m back. 24 in bbl, 1:9 twist running the old 162 AMAX.Quote:
Originally Posted by Tentman
Yes I thought so too,Quote:
Originally Posted by chainsaw
Looks like loading the .280 or7x64 to 60000 psi with good powder selection, may prove very worthwhile,
I be happy with the 162 gr at 2850-2900, hope my rifle is twisted fast enough,
Find out next days off, got a couple lbs of R17 coming, reloaded 26 is proving much harder to locate, pretty much everyone is out right across Canada,
I have might have to get sum one to run quickload for me with R 17 in the 9.3x62, looks like a very useful powder.
@southernman - Hows it going - give me the inputs for your 9.3x62 and I can run that too. In my 7x64 I got on best with AR2209 with 162's. I got heavy bolt lift at 2900 with RL17 , with 2209 it was happy at 2900, however my goto load settled on 53.8 of 2209 for 2820fps - still a good snorty load. The 7x64, 280 and 284 are all within a gnats whisker of each other for case capacity so differences in performance are pretty academic . . . .
@Tentman checked the load record, running 3.340 col in 280AI with the 162 AMAX.
Here Ya go . . . .
Cartridge : 7 x 64 Brenneke
Bullet : .284, 162, Hornady A-MAX 28402
Useable Case Capaci: 59.878 grain H2O = 3.888 cm³
Cartridge O.A.L. L6: 3.340 inch = 84.84 mm
Barrel Length : 24.0 inch = 609.6 mm
Predicted Data for Indicated Charges of the Following Powders.
Matching Maximum Pressure: 60500 psi, or 417 MPa
or a maximum loading ratio or filling of 105 %
These calculations refer to your specified settings in QuickLOAD 'Cartridge Dimensions' window.
C A U T I O N : any load listed can result in a powder charge that falls below minimum suggested
loads or exceeds maximum suggested loads as presented in current handloading manuals. Understand
that all of the listed powders can be unsuitable for the given combination of cartridge, bullet
and gun. Actual load order can vary, depending upon lot-to-lot powder and component variations.
USE ONLY FOR COMPARISON !
56 loads produced a Loading Ratio below user-defined minimum of 85%. These powders have been skipped.
Powder type Filling/Loading Ratio Charge Charge Vel. Prop.Burnt P max P muzz B_Time
% Grains Gramm fps % psi psi ms
--------------------------------- -----------------------------------------------------------------
Alliant Reloder-26 102.5 60.8 3.94 2985 100.0 60500 11974 1.180 ! Near Maximum !
Norma MRP 103.2 59.4 3.85 2957 99.8 60500 12094 1.179 ! Near Maximum !
Vihtavuori N560 104.9 59.1 3.83 2945 97.8 60500 12329 1.176 ! Near Maximum !
ReloadSwiss RS 70 99.8 58.7 3.80 2942 99.9 60500 11713 1.168 ! Near Maximum !
Accurate MAGPRO 105.0 61.6 3.99 2930 96.4 60096 12366 1.186 ! Near Maximum !
IMR 7828 SSC 103.4 58.6 3.80 2928 98.1 60500 11917 1.169 ! Near Maximum !
Raufoss RA15 105.0 58.6 3.80 2921 99.1 60337 11874 1.184 ! Near Maximum !
Alliant Reloder-22 105.0 58.6 3.80 2921 99.1 60337 11874 1.184 ! Near Maximum !
Bofors RP5/NP ~approximation 105.0 58.6 3.80 2921 99.1 60337 11874 1.184 ! Near Maximum !
ReloadSwiss RS 60 93.4 54.1 3.51 2920 100.0 60500 10701 1.175 ! Near Maximum !
ADI AR 2213 104.2 58.2 3.77 2913 98.0 60500 11800 1.168 ! Near Maximum !
Ramshot Magnum 104.9 63.0 4.08 2904 99.5 60500 11373 1.174 ! Near Maximum !
Alliant Reloder-17 92.4 53.5 3.47 2896 100.0 60500 10623 1.184 ! Near Maximum !
Elcho 17 92.4 53.5 3.47 2896 100.0 60500 10623 1.184 ! Near Maximum !
ADI AR 2209 101.0 55.5 3.59 2878 98.9 60500 11218 1.175 ! Near Maximum !
Alliant Reloder-19 101.6 56.1 3.63 2877 99.0 60500 11285 1.183 ! Near Maximum !
PB Clermont PCL 518 97.9 55.8 3.62 2877 99.9 60500 11033 1.189 ! Near Maximum !
ReloadSwiss RS 62 95.8 55.4 3.59 2875 100.0 60500 10731 1.201 ! Near Maximum !
Alliant Reloder-16 98.8 53.1 3.44 2874 100.0 60500 10482 1.195 ! Near Maximum !
PB Clermont PCL 511 94.0 55.3 3.58 2874 100.0 60500 10952 1.190 ! Near Maximum !
Ramshot Hunter 97.1 55.3 3.59 2873 100.0 60500 10937 1.190 ! Near Maximum !
Bofors RP14 ~approximation 102.3 56.5 3.66 2870 98.9 60500 11205 1.184 ! Near Maximum !
Hodgdon H414 91.7 53.5 3.47 2869 99.7 60500 10958 1.192 ! Near Maximum !
Winchester 760 91.7 53.5 3.47 2869 99.7 60500 10958 1.192 ! Near Maximum !
Somchem S365 98.9 54.3 3.52 2863 100.0 60500 10144 1.199 ! Near Maximum !
SNPE Vectan SP 12 105.0 61.9 4.01 2857 97.7 54971 11913 1.220 ! Near Maximum !
PB Clermont PCL 517 105.0 61.9 4.01 2852 97.5 54655 11915 1.223 ! Near Maximum !
Norma 204 96.3 54.9 3.56 2852 98.8 60500 10981 1.185 ! Near Maximum !
Raufoss RA4 99.5 54.9 3.56 2852 98.8 60500 10981 1.185 ! Near Maximum !
Bofors RP4 ~approximation 99.5 54.9 3.56 2852 98.8 60500 10981 1.185 ! Near Maximum !
Rottweil R905 105.0 57.5 3.73 2851 97.2 58113 11428 1.206 ! Near Maximum !
Vihtavuori N550 93.8 52.9 3.43 2851 100.0 60500 10580 1.202 ! Near Maximum !
Norma URP 96.6 52.7 3.42 2851 100.0 60500 10447 1.197 ! Near Maximum !
Hodgdon H4831 SC 102.8 57.4 3.72 2851 97.3 60500 11104 1.181 ! Near Maximum !
Bofors RP19 ~approximation 96.6 52.8 3.42 2850 100.0 60500 10445 1.197 ! Near Maximum !
Accurate 4350 95.9 52.9 3.43 2847 100.0 60500 10417 1.215 ! Near Maximum !
Somchem S385 101.8 56.8 3.68 2842 99.5 60500 10793 1.204 ! Near Maximum !
Winchester WXR 105.0 57.3 3.71 2840 98.3 55048 11653 1.234 ! Near Maximum !
Bofors RP15 105.0 57.3 3.71 2840 98.3 55048 11653 1.234 ! Near Maximum !
IMR 4831 101.4 53.6 3.47 2833 100.0 60500 10223 1.206 ! Near Maximum !
Winchester Supreme 780 100.2 58.3 3.78 2831 98.8 60500 10724 1.189 ! Near Maximum !
Bofors RP4 NT ~approximation 97.1 54.4 3.52 2830 99.6 60500 10588 1.198 ! Near Maximum !
Accurate 3100 105.0 58.0 3.76 2828 99.9 60259 10501 1.219 ! Near Maximum !
Alliant Reloder-23 105.0 56.7 3.67 2828 100.0 55169 10627 1.237 ! Near Maximum !
SNPE Vectan SP 11 90.2 51.4 3.33 2828 100.0 60500 10044 1.197 ! Near Maximum !
Ramshot Big Game 87.3 51.3 3.33 2822 100.0 60500 9940 1.197 ! Near Maximum !
Rottweil R904 100.2 54.5 3.53 2822 98.0 60500 10692 1.188 ! Near Maximum !
ReloadSwiss RS 52 87.7 50.0 3.24 2816 100.0 60500 9771 1.205 ! Near Maximum !
IMR 4895 86.9 48.0 3.11 2815 100.0 60500 9938 1.204 ! Near Maximum !
IMR 4955 Enduron 103.8 55.7 3.61 2814 97.5 60500 10741 1.187 ! Near Maximum !
Lovex S070 96.2 52.5 3.40 2814 99.8 60500 10396 1.207 ! Near Maximum !
Hodgdon H4350 98.9 53.4 3.46 2813 99.4 60500 10374 1.191 ! Near Maximum !
IMR 4350 97.1 53.3 3.45 2813 99.5 60500 10353 1.191 ! Near Maximum !
Bofors RP11 ~approximation 87.8 48.4 3.14 2810 100.0 60500 9911 1.203 ! Near Maximum !
Alliant Reloder-15 87.8 48.4 3.14 2810 100.0 60500 9911 1.203 ! Near Maximum !
Raufoss RA11 87.8 48.4 3.14 2810 100.0 60500 9911 1.203 ! Near Maximum !
Hodgdon Hybrid 100V 99.2 53.0 3.43 2810 100.0 60500 9624 1.198 ! Near Maximum !
Hodgdon H380 89.2 50.3 3.26 2808 100.0 60500 10074 1.207 ! Near Maximum !
Norma 203B 88.2 48.7 3.15 2806 100.0 60500 9832 1.205 ! Near Maximum !
Bofors RP7 NT ~approximation 91.2 50.8 3.29 2806 99.8 60500 10073 1.180 ! Near Maximum !
IMR 7828 105.0 56.3 3.65 2803 96.6 52695 1152
Thanks for that, I think the 280ai has bigger case capacity at 65.0 gn H20, but confirms the powders I’ve been working on. Original loads were with RL22 and although I could push them close to 3000 FPS before hitting pressure signs the accuracy node was back at 2850. Recently been playing with N560 after @Tikka7mm08 post and ladder test gets me to 3035 FPS with 162 AMaxs and slight pressure signs at 61.5 gns. Also tried IMR4350 which got up to 2950 FPS before pressure signs. Interesting though IMR4350 comes out well down the QL list. Next step is to find sweet spot with N560, fingers crossed !
