Thread: Reloading bench

  1. #1
    Member
    Join Date
    Nov 2012
    Location
    NI
    Posts
    1,529

    Reloading bench

    Gidday, weekends mission is to put up a reloading bench and setup all my gear. Whats everyone's opinions on reloading bench height. The attached photo is all I can really setup in the rental I'm in now. I like the angled braces as it keeps everything tidy. I've got 40mm ply top and 4 by 3 timber for angle braces. Top is 600 deep to the wall, which is plenty for my setup. Will probably add shelving onto wall at back of bench at some stage. Do i need to really stiffen up and brace round the press, or will the ply be stiff enough.

    I'm 6 foot tall and quite like to stand when reloading. Any little tips etc. would be well appreciated.

    Cheers

    Scott

    Name:  Reloading bench.jpg
Views: 449
Size:  7.8 KB

  2. #2
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    4,124
    One thing I have found is that my Lyman Gen 6 does not appreciate being shaken, which is bound to happen with the action of using a press.

    I don't know what you use to dispense and weigh powder, but I suggest you have a place near your press that is separate and unaffected by vibration.

    Either that or build a bench really solidly. ( I use a tv stand on castors beside the bench )

    I value bench space for sorting stuff and cutting down on clutter. Build the largest one you possibly can.
    RIP Harry F. 29/04/20

  3. #3
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,513
    Must be able to stand & sit and be comfortable with both.

  4. #4
    Member
    Join Date
    Nov 2012
    Location
    NI
    Posts
    1,529
    Quote Originally Posted by Max Headroom View Post
    One thing I have found is that my Lyman Gen 6 does not appreciate being shaken, which is bound to happen with the action of using a press.

    I don't know what you use to dispense and weigh powder, but I suggest you have a place near your press that is separate and unaffected by vibration.

    Either that or build a bench really solidly. ( I use a tv stand on castors beside the bench )

    I value bench space for sorting stuff and cutting down on clutter. Build the largest one you possibly can.
    That's a bloody good point, I think I'll put a small dividing gap (3-4mm) on the part of the bench with the scales. I've got Chargemaster and A&D scales, so definitely don't want any shaking.
    Max Headroom likes this.

  5. #5
    Member Tikka7mm08's Avatar
    Join Date
    Mar 2012
    Location
    North Loburn
    Posts
    4,442

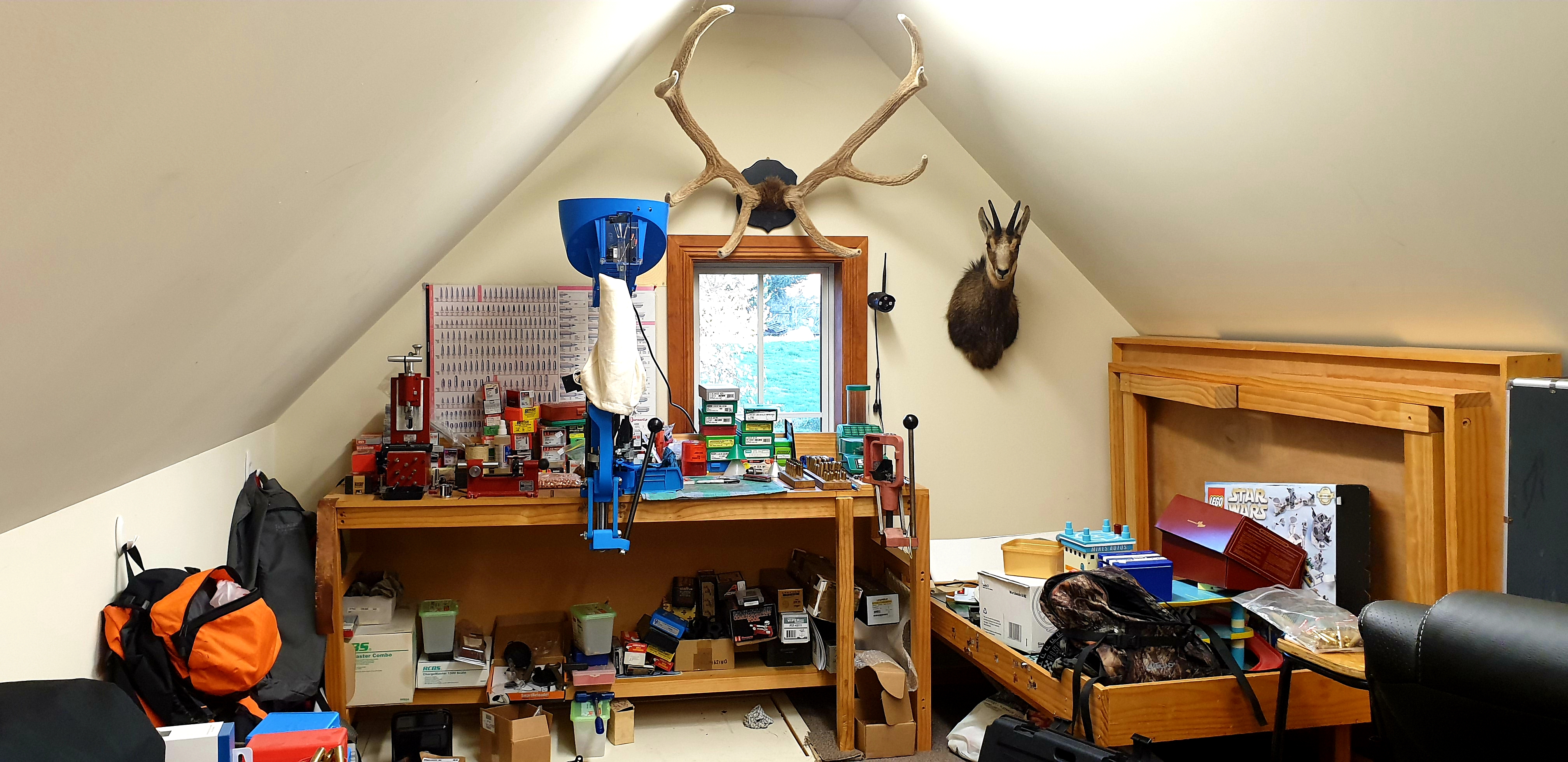

    I made my own - and its still standing (if you know me I'll understand if you call me a liar). More is more with a reloading bench. Wish I went bigger...and extra strength in the press area.


    Name:  20190524_164404.jpg
Views: 605
Size:  3.94 MB

  6. #6
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,476
    Quote Originally Posted by Tikka7mm08 View Post
    I made my own - and its still standing (if you know me I'll understand if you call me a liar). More is more with a reloading bench. Wish I went bigger...and extra strength in the press area.


    Attachment 111991
    Any 708 loads there?

  7. #7
    Member Tikka7mm08's Avatar
    Join Date
    Mar 2012
    Location
    North Loburn
    Posts
    4,442
    Brass prepped and ready and @Gerardo is kindly gifting some 140 projectiles to try too.

  8. #8
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    2,599
    If you use a balance beam scale and stand to reload, mount a seperate shelf at eye level to put the scale on. Stops any variation in reading the scale if it is "eye balled" from the same position every time.
    Sideshow likes this.

  9. #9
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,536
    Lights lights lights
    Identify your target beyond all doubt

  10. #10
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    7,916
    Nice benches!
    Wasn’t there a thread on this?
    https://www.nzhuntingandshooting.co....g-bench-31987/
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  11. #11
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    4,124
    Quote Originally Posted by Tommy View Post
    Lights lights lights
    Just not fluorescent ones. They interfere with scales accuracy.
    RIP Harry F. 29/04/20

  12. #12
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,536
    Quote Originally Posted by Max Headroom View Post
    Just not fluorescent ones. They interfere with scales accuracy.
    Yeah that. LED and incandescent
    Identify your target beyond all doubt

  13. #13
    Member Tikka7mm08's Avatar
    Join Date
    Mar 2012
    Location
    North Loburn
    Posts
    4,442
    They don't affect my chargemaster...thought they would.

  14. #14
    Member
    Join Date
    Apr 2019
    Location
    Tioga County
    Posts
    351
    I have 3 different benches and I have yet to reach a consensus on what the ideal height is for a reloading bench. Someday I will figure it out and build my "ultimate" bench.

  15. #15
    Member cambo's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,154

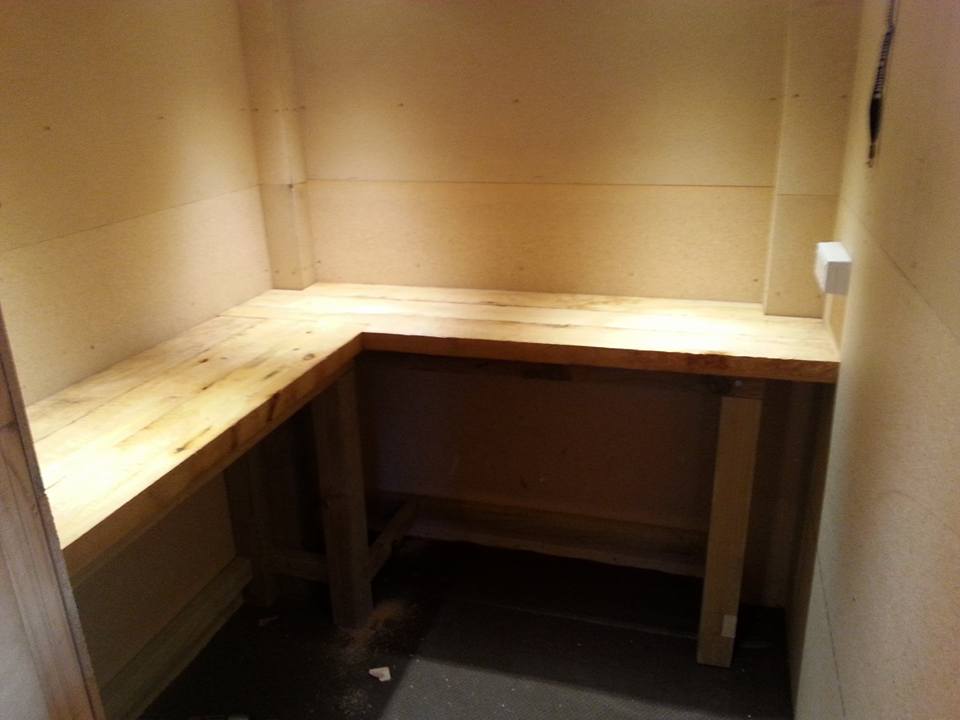

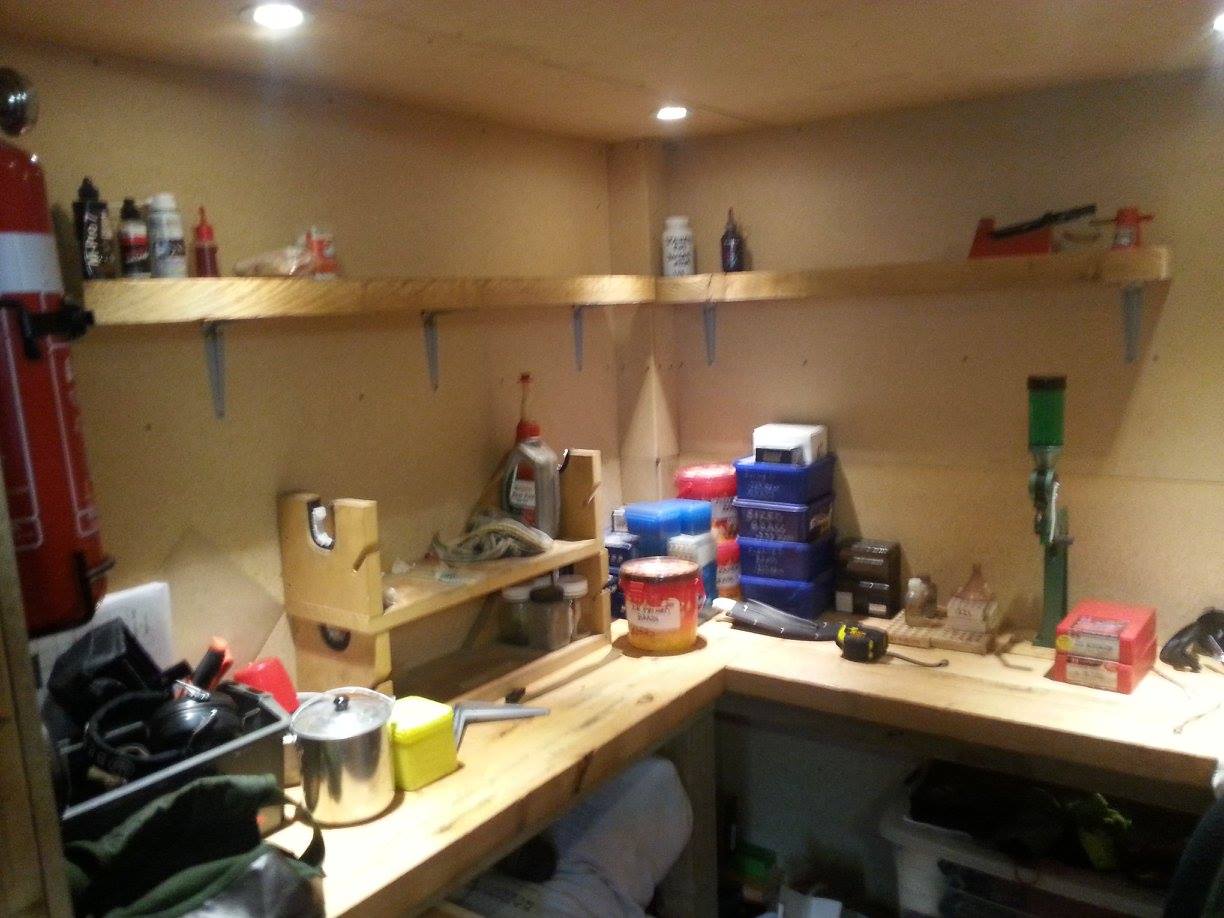

    This is what I did. Made a small room in a corner of the garage.

    Name:  Reloading room 1.jpg
Views: 338
Size:  42.3 KB

    Name:  Reloading room 2.jpg
Views: 341
Size:  116.5 KB
    Life is natures way of keeping meat fresh
