Thread: When a belted case head separates

  1. #1
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    2,095

    When a belted case head separates

    Does this happen right at the junction of the belt and main body or is it a little way further forward like in unbelted cartridges ?

    I'm wondering where you measure case looking for expansion of the base as a sign of too much pressure. Do you measure on the belt or on the body in front of it ? Just right at the edge of the belt under the step or a few mm further out ?

  2. #2
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,266
    Case separation usually occurs about 10mm ahead of the internal web in the case, where the case walls are starting to thin. The case design (rimmed, rimless, or belted) doesn't make any difference.
    Klhari likes this.

  3. #3
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    I measure inside the extractor groove with a blade micrometer. Don't have any belted mags so cannot comment on them.
    Be careful though you can draw incorrect pressure conclusions with this method.
    I take 2 measurements in exactly the same places each time. Use the headstamp as reference.
    Bagheera and Moa Hunter like this.

  4. #4
    Fulla
    Join Date
    May 2012
    Location
    Cni
    Posts
    1,660
    you will usually see a line there first. or use a paper clip with a 90 degree bend on the end to feel for it. but I tend to see it on the outside first. I would of thought 5mm above the belt. somewhere about there.
    kotuku likes this.

  5. #5
    Member
    Join Date
    Oct 2016
    Location
    Auckland
    Posts
    594
    For measuring case expansion on a belted magnum measure just in front of the belt.
    zimmer likes this.

  6. #6
    Member
    Join Date
    Aug 2018
    Location
    Napier
    Posts
    135

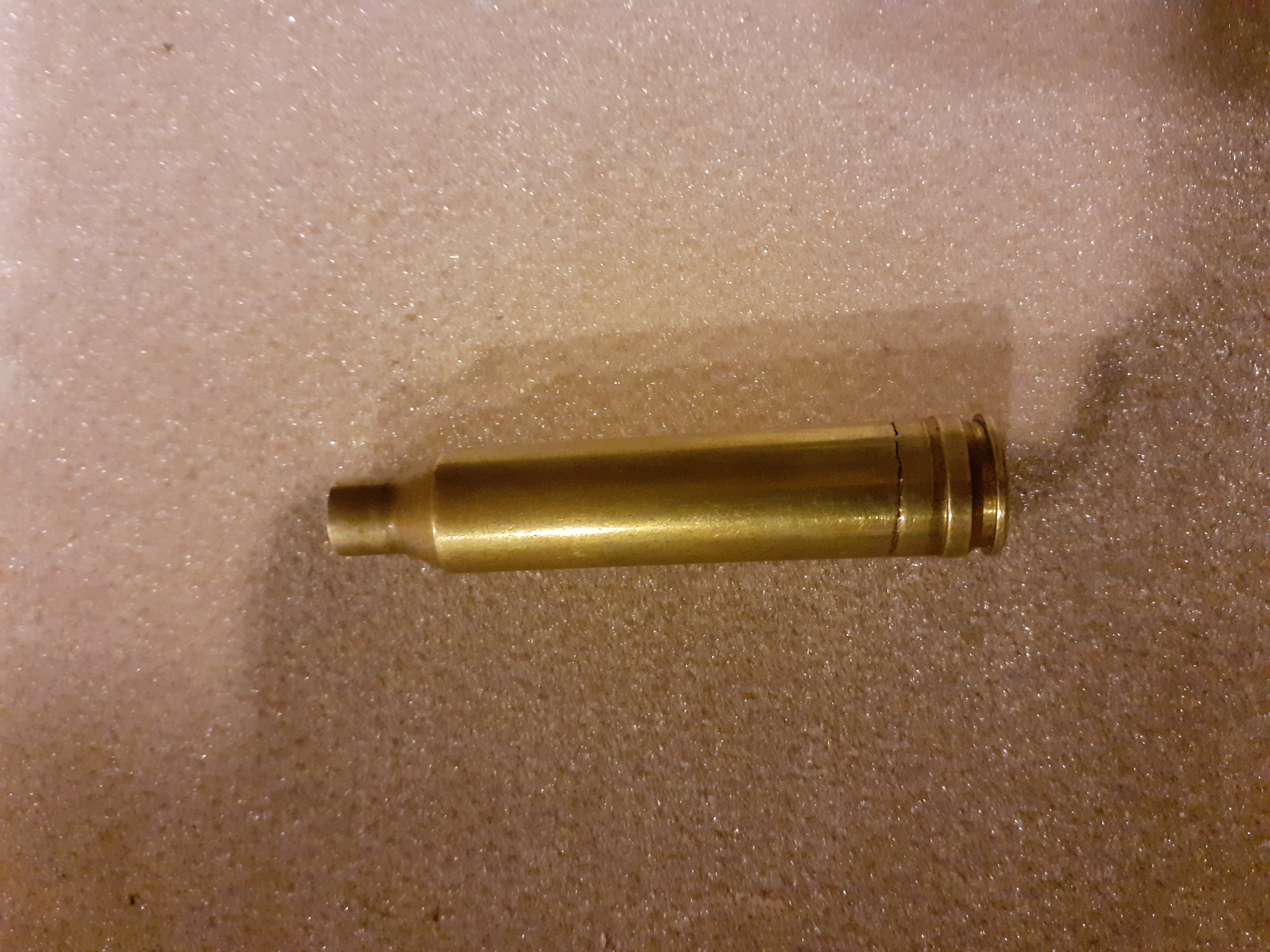

    Name:  20200630_172638.jpg
Views: 390
Size:  3.31 MB
    About there somewhere

  7. #7
    Member
    Join Date
    Jun 2014
    Location
    CNI
    Posts
    5,908
    Take the cases into a dark room and shine a tiny single bulb led into the case. Any sign of incipient head separation will be easily seen as a dark recessed ring a few mm above the web.
    Summer grass
    Of stalwart warriors splendid dreams
    the aftermath.

    Matsuo Basho.

  8. #8
    Member
    Join Date
    Jun 2014
    Location
    CNI
    Posts
    5,908
    Belted cases should be headspaced off the shoulder rather than off the belt.
    nor-west, Bagheera and shooternz like this.
    Summer grass
    Of stalwart warriors splendid dreams
    the aftermath.

    Matsuo Basho.

  9. #9
    Member
    Join Date
    Jun 2012
    Location
    Blenhiem
    Posts
    1,108
    Quote Originally Posted by Ham 7mm View Post
    Attachment 143918
    About there somewhere
    How many times fired?

  10. #10
    Member
    Join Date
    Aug 2018
    Location
    Napier
    Posts
    135
    About 6 but combined with new hot batch of adi powder giving me an extra 100fps unexpectedly was the thing that caused it.
