    .223 barrel length 1-12 twist rate

    Can anyone help with what would be minimum barrel length you'd recomend for 50 gr projectiles up to max 63
    Twist is 1 / 12

    Cheers Happy.
    "This is my Flag... Ill only have the one ..

  2. #2
    Member
    Join Date
    May 2012
    Location
    pirongia waikato
    Posts
    866
    Don't know happy sorry, but I purchased a rifle recently with a 1in 8 twist rate, and intend to go 63 grain pills. It has a 20 inch barrel, but I don't do long range stuff, more 50 60m that kind of distance mostly.

  3. #3
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    4,573
    you'll find a 1n12 should stabilise a 63 as far as know barrel length wont affect weather a bullet will stabilise as far as I know that's down to purely twist rate but I could be wrong guys have 12 inch barrel ar's and they go sweet but in my opinion after looking at charts I wouldn't go any shorter than 16inches the driffance in speed between a standard 22 inch sporting barrel and 16 inches is next to nothing on the greater skeem of things but driffance between 16 and 12 is huge

  4. #4
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul (Pukekohe)
    Posts
    6,045
    You will find the 12.5" barrel AR15s are running a 1 in 7" twist.
    Welcome to Sako club.

  5. #5
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    6,686
    Depends on how long you want the overall length of the rifle to be & how much velocity you are willing to sacrifice ?

    Unless stability is right on the edge, barrel length or velocity makes little difference to a particular twist rate or barrels suitability to stabilise certain projectiles .

    Shot two ARs back to back in the weekend with the same 52 grain ammo, one 16", 1-9" the other 20", 1-7"

    I was surprised by the approx 200 fps difference between the rifles

    I don't know enough about ARs to know if gas ports/systems make a difference to velocity ?
    Contact me for reloading components, brass, projectiles, powder, primers, etc

    http://terminatorproducts.co.nz/

    http://www.youtube.com/user/Terminat...?feature=guide

  6. #6
    Member Matt2308's Avatar
    Join Date
    Jul 2012
    Location
    Christchurch
    Posts
    1,361
    Found an article that I read a few years ago whilst choosing the length of barrel for a rifle I was building in .223AI
    Hope this helps.

    http://www.accuratereloading.com/223sb.html

  7. #7
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    Taupo
    Posts
    4,891
    Not really. Powder makes the biggest difference. @Kiwi Greg

  8. #8
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,052

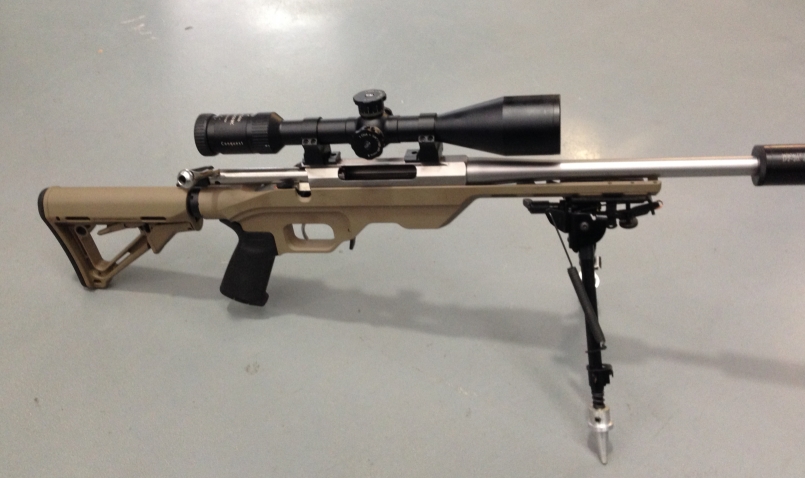

    Having a measure up this Arvo. Will post current length and then what I d like to shorten it to so you have an idea of what I want to do.

    Basically its make this shorter. Its an unTikkafied Tikka ... Id like to get it a little shorter.. Tape measure this Arvo ...

    Name:  223 S MDT.JPG
Views: 1005
Size:  244.2 KB
    "This is my Flag... Ill only have the one ..

  9. #9
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,052
    Current length measuring from receiver end of hex to thread end at tip = 435 mm or 17.3 inches

    I would like to move suppressor back to within say 1 inch of stock end. Barrel would then be 14.75 inches. ( 375 mm)

    Its very accurate at present and I ll leave it alone if that's at risk ... Using Hornady training ammo its brilliant and therefore cheap to shoot.

    Id guess 1/2" to 3/4 " or better at 110 yards in the weekend .
    "This is my Flag... Ill only have the one ..

  10. #10
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    4,606
    What do you want to use it for? I.e is terminal performance critical?

  11. #11
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    4,573
    Now ive seen the rifle and read the messurenents my suggestion is dont touch it a 14 inch barrel would drop speed quite a bit and my geuss is a little less accuracy as well on the other hand "take off" tikka barrels arnt hard to get so if it fucked it you could chuck a 2nd hand barrel on easy enough
