Thread: 303B, Churchill Sporter but what model?

  1. #1
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473

    303B, Churchill Sporter but what model?

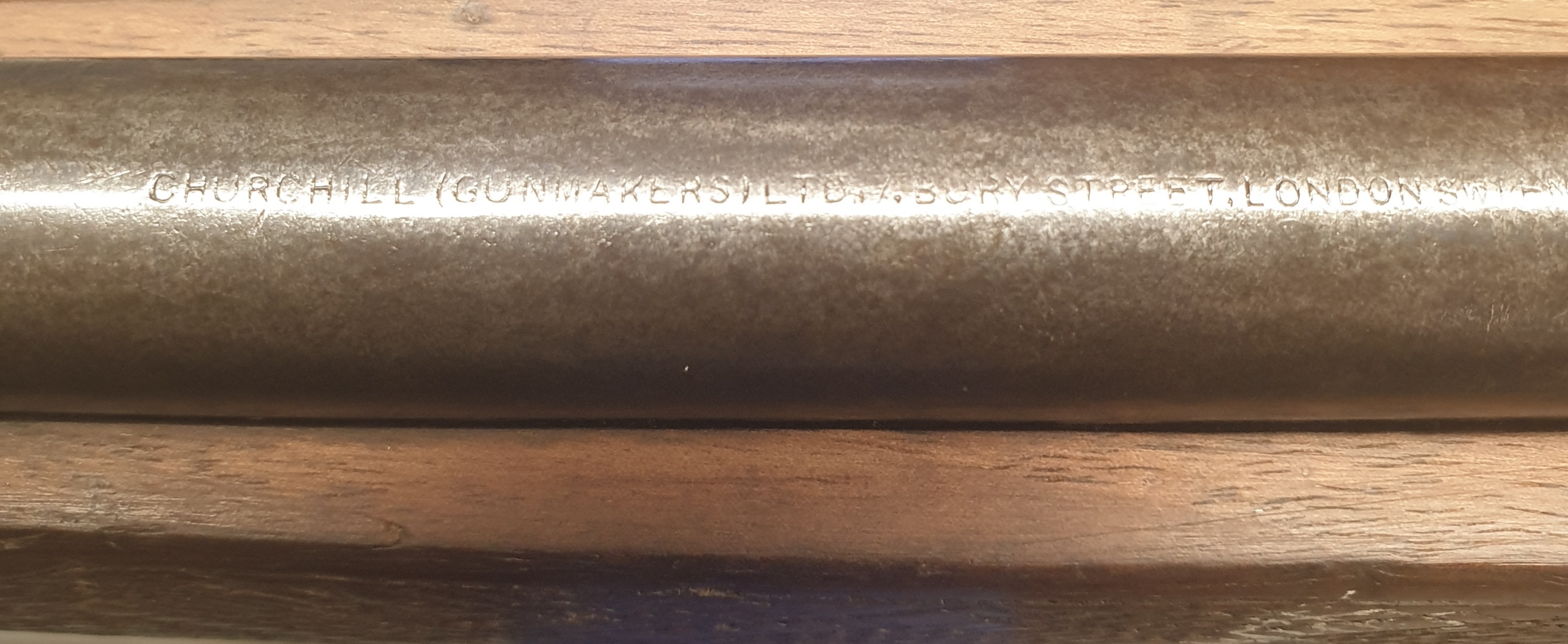

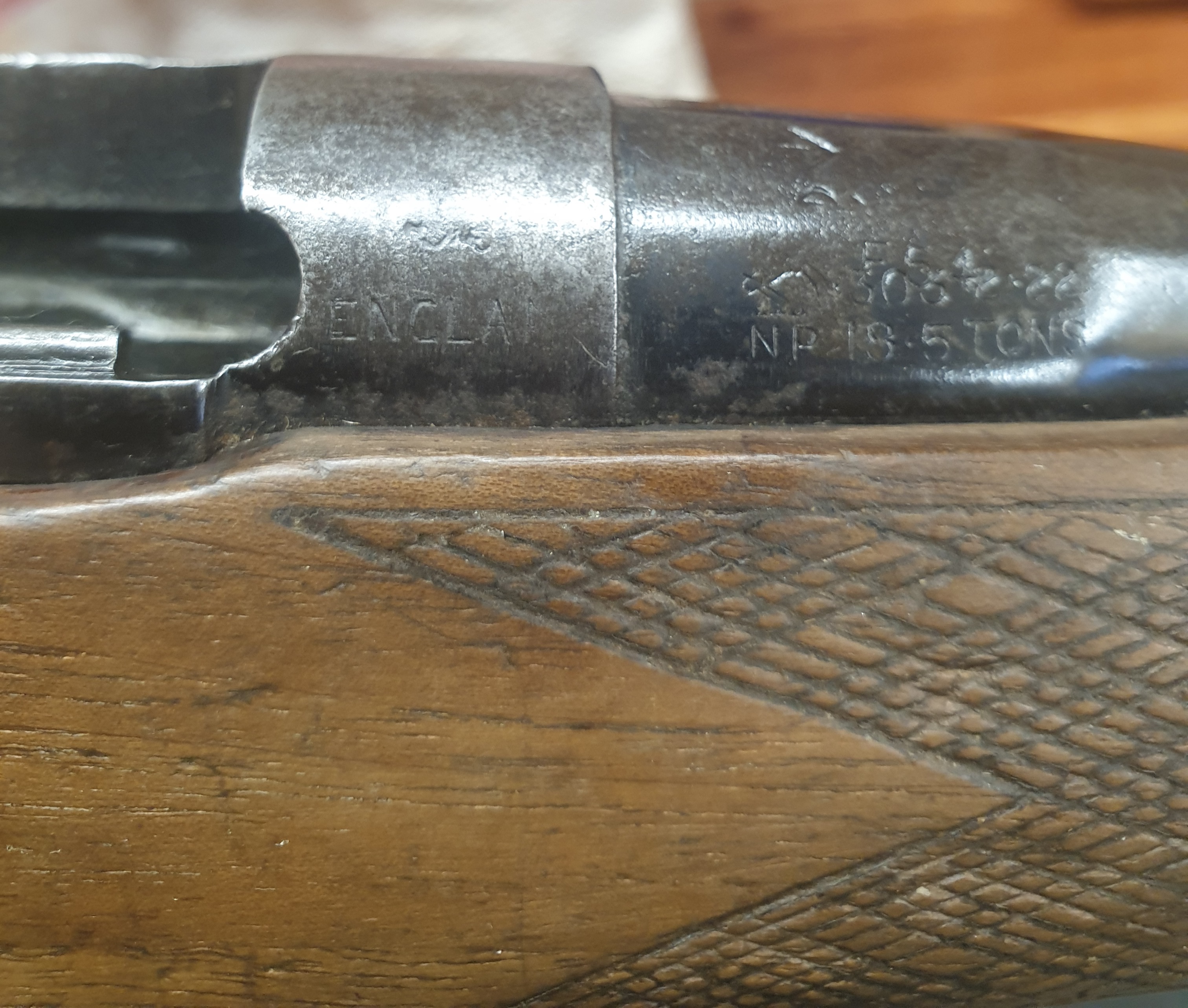

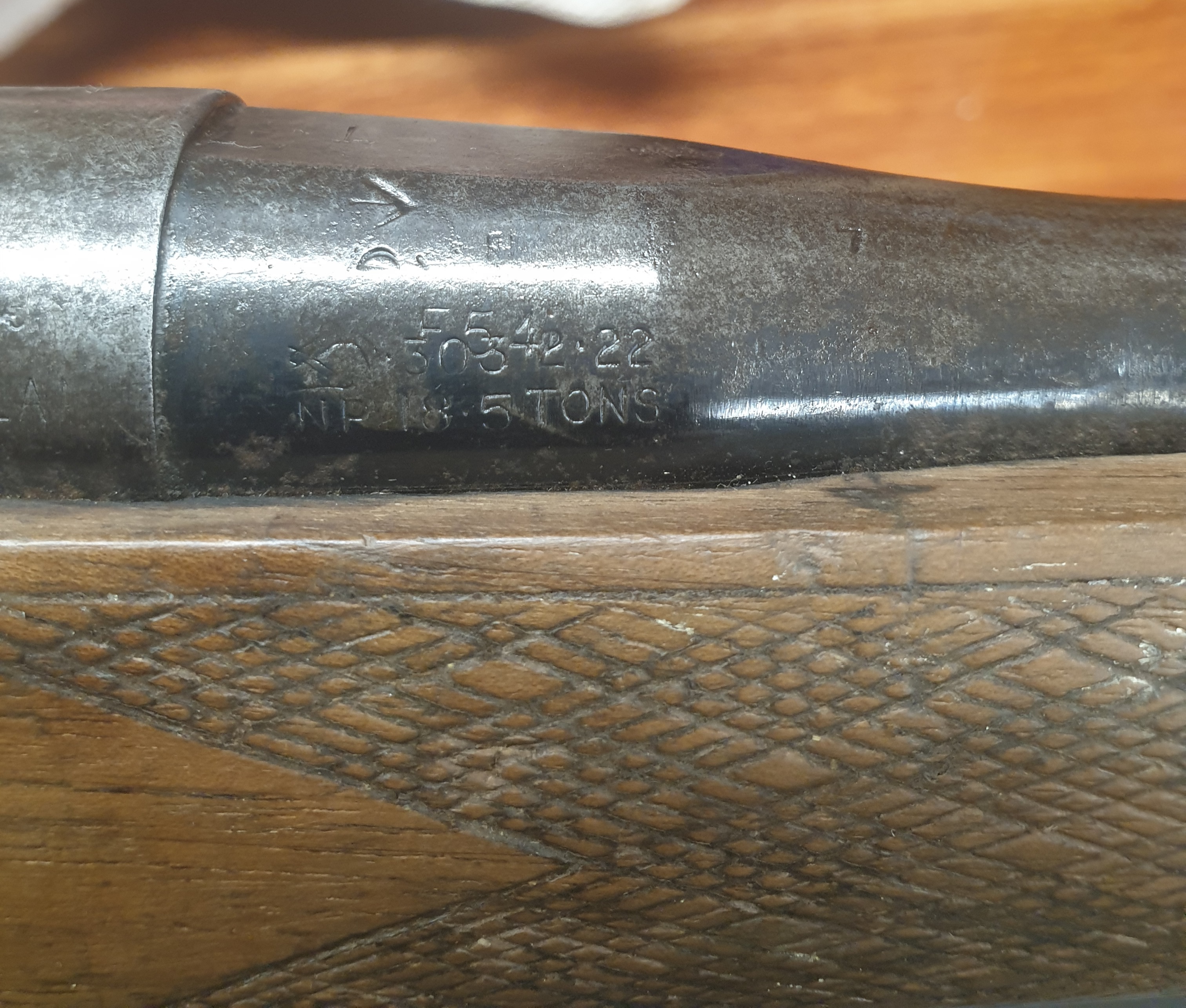

    Hi Team, I have an old Churchill sporter 303B with not too many visible markings. Top of barrel has the faint text stating " Churchill (Gunmakers) Ltd 7 Berry Street London..." with ending txt I can't make out. The Proof Stamp is reasonably legible but not a lot else.

    I'd be interested in what model it is, kind looks like a No. IV originally.

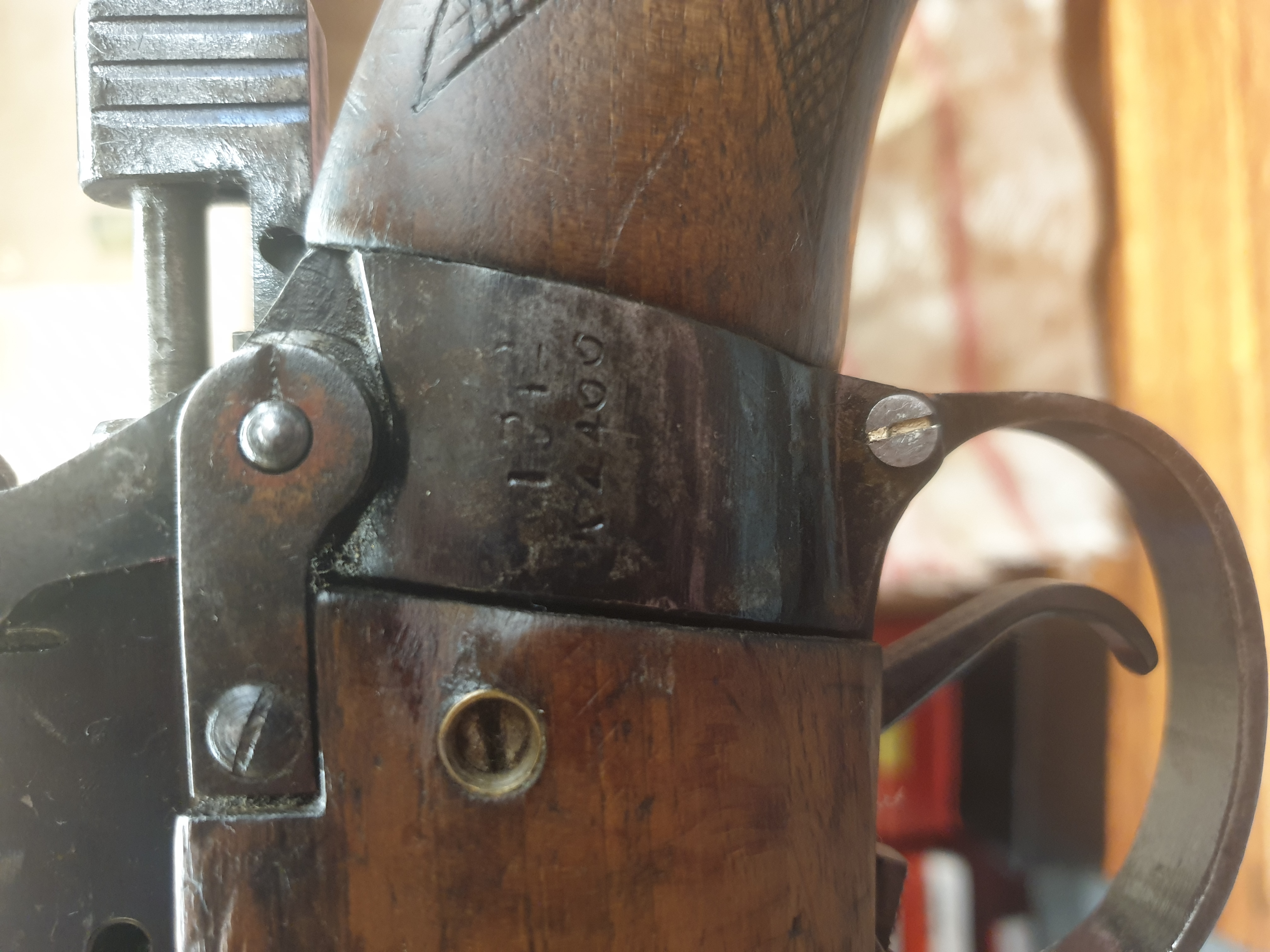

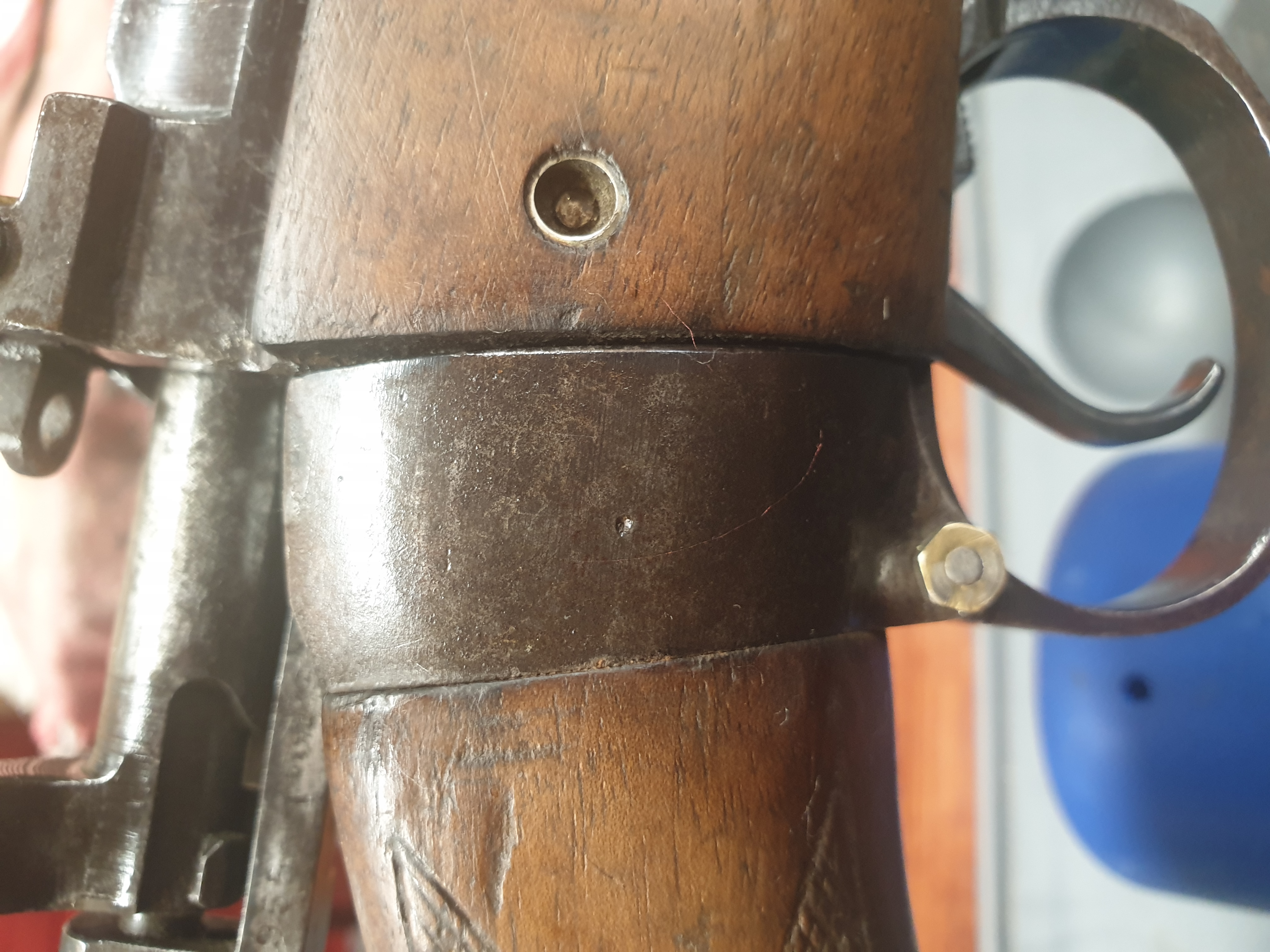

    More pressing is the ugly screws running thru the wood in front of the metal wrist band and through the metal at the rear top of the trigger guard. I'd appreciate info on a. What these do and b. What they should be replaced with..and if anyone has originals available....

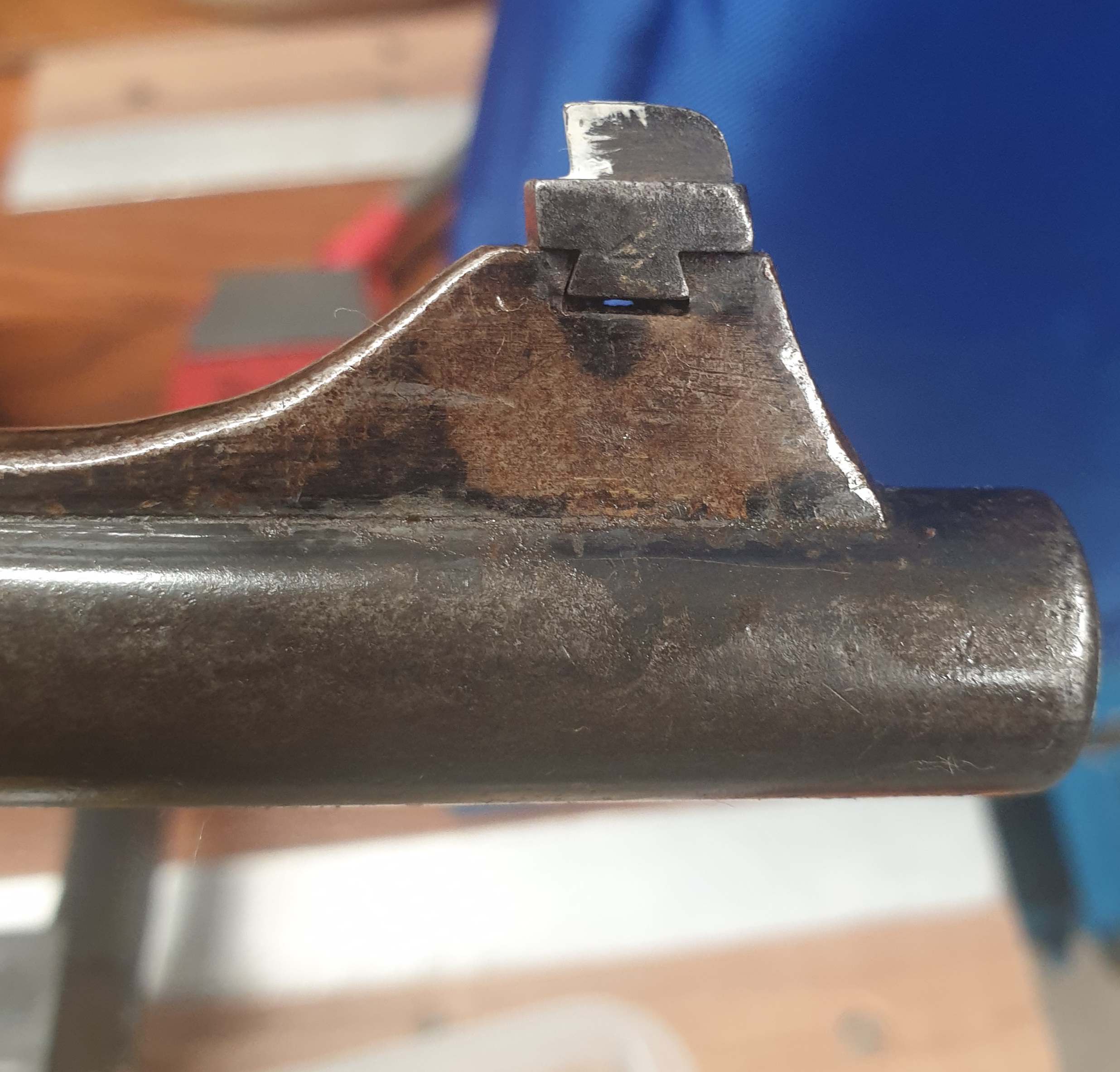

    Had the old girl out at the range today shooting HXP primed brass with 37.5g AR2206H behind 174gn Greek pulled FMJs. 20 rounds of fun. A few taps to the front sight for windage correction and its looking like around 2MOA. Has a dark bore but around 60% rifling. Nice tight action and good headspace. Good fun as a club gun and maybe a few goats etc.

    Name:  20230528_181105.jpg
Views: 340
Size:  1.95 MB
    Name:  20230528_181032.jpg
Views: 319
Size:  803.8 KB
    Name:  20230528_181010.jpg
Views: 330
Size:  1.68 MB
    Name:  20230528_180955.jpg
Views: 330
Size:  1.83 MB
    Name:  20230528_180924.jpg
Views: 317
Size:  1.12 MB
    Name:  20230528_161622.jpg
Views: 420
Size:  3.38 MB
    Name:  20230528_161459.jpg
Views: 432
Size:  3.16 MB
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  2. #2
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,673

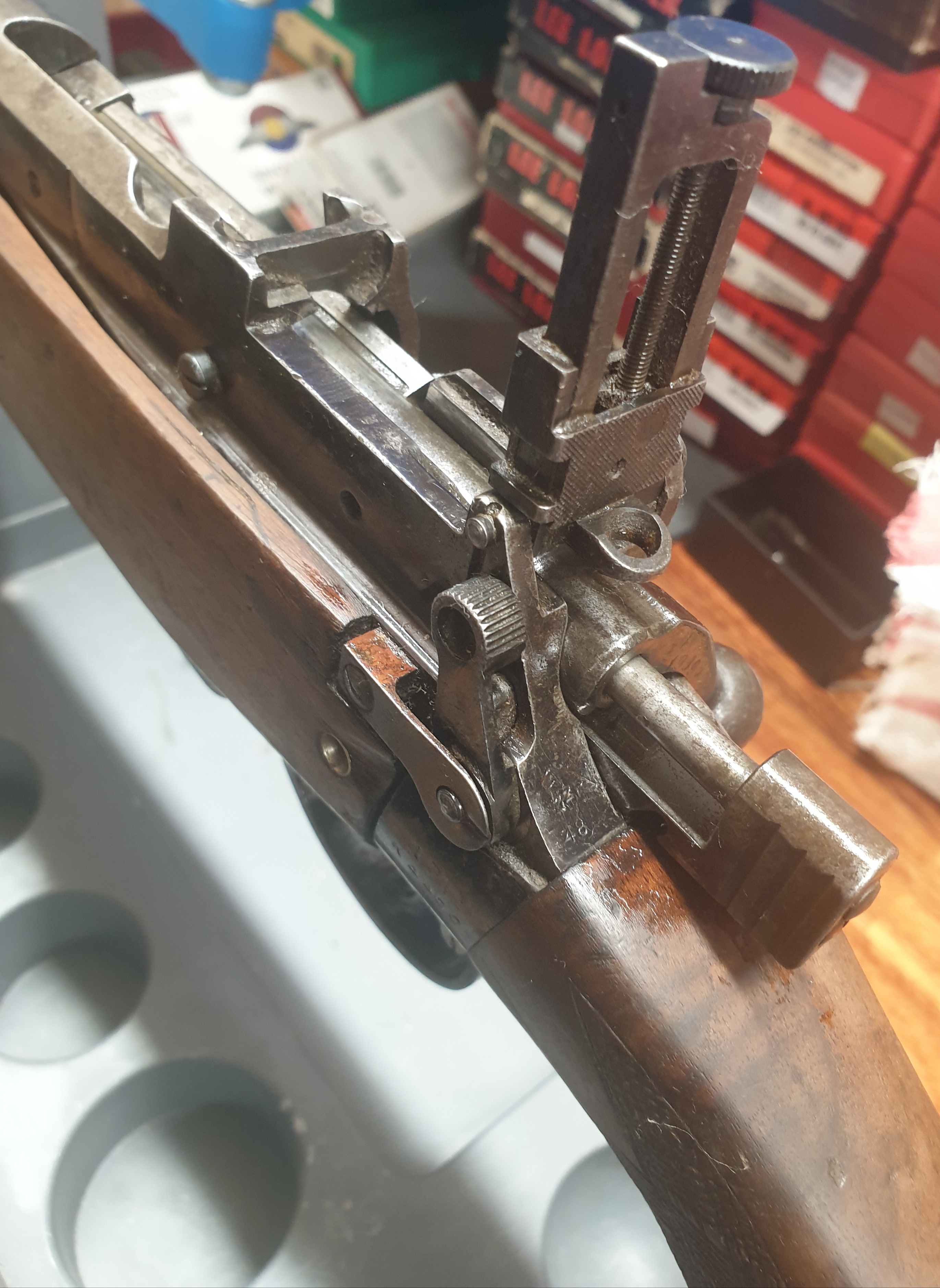

    safety catch and apertures do indeed say one of the later models...being a refurb...post war jobbie it could well be a bitza....your screw issues will be easy sorted...bet @Wingman has the bits needed
    Jhon likes this.
    75/15/10 black powder matters

  3. #3
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    Well no luck with what @Wingman has unfortunately. Anyone else out there with bits?
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  4. #4
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    Bump
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  5. #5
    NO4
    NO4 is offline
    Member NO4's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    371
    Like already mentioned its a post war refurb, Churchill got post war Enfield's and Mausers and sporterized them (sometimes from parts) Just like parker hale did, Does it have a five or ten shot mag? As for the missing screw they do come up on trade me every now and then. Churchill gun makers 7 bury street Sw1 London England was what is stamped on mine
    Last edited by NO4; 01-06-2023 at 08:46 PM.
    Hot Barrels and tight lines

  6. #6
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    5 shot mag. Do the screws have a particular name/designation? Like, what am I searching for?

    Thks
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  7. #7
    NO4
    NO4 is offline
    Member NO4's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    371
    its called a trigger guard rear screw or lower wrist screw(4BA)The screw from the front barrel band on NO4's will fit or you could just simply re drill and tap to fit a more common size hex screw(if you don't mind loosing the originality)The other screw in the rear of the front wood is for keeping the wood from splaying under recoil,MK2 rifles were done like yours,MK1's still had the brass plate and pin, Does your action have a slot in the bolt head groove or is there a release catch behind the charger bridge, also is the trigger hung of the bottom metal or attached to the reciever?
    Last edited by NO4; 02-06-2023 at 09:58 PM.
    Hot Barrels and tight lines

  8. #8
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473

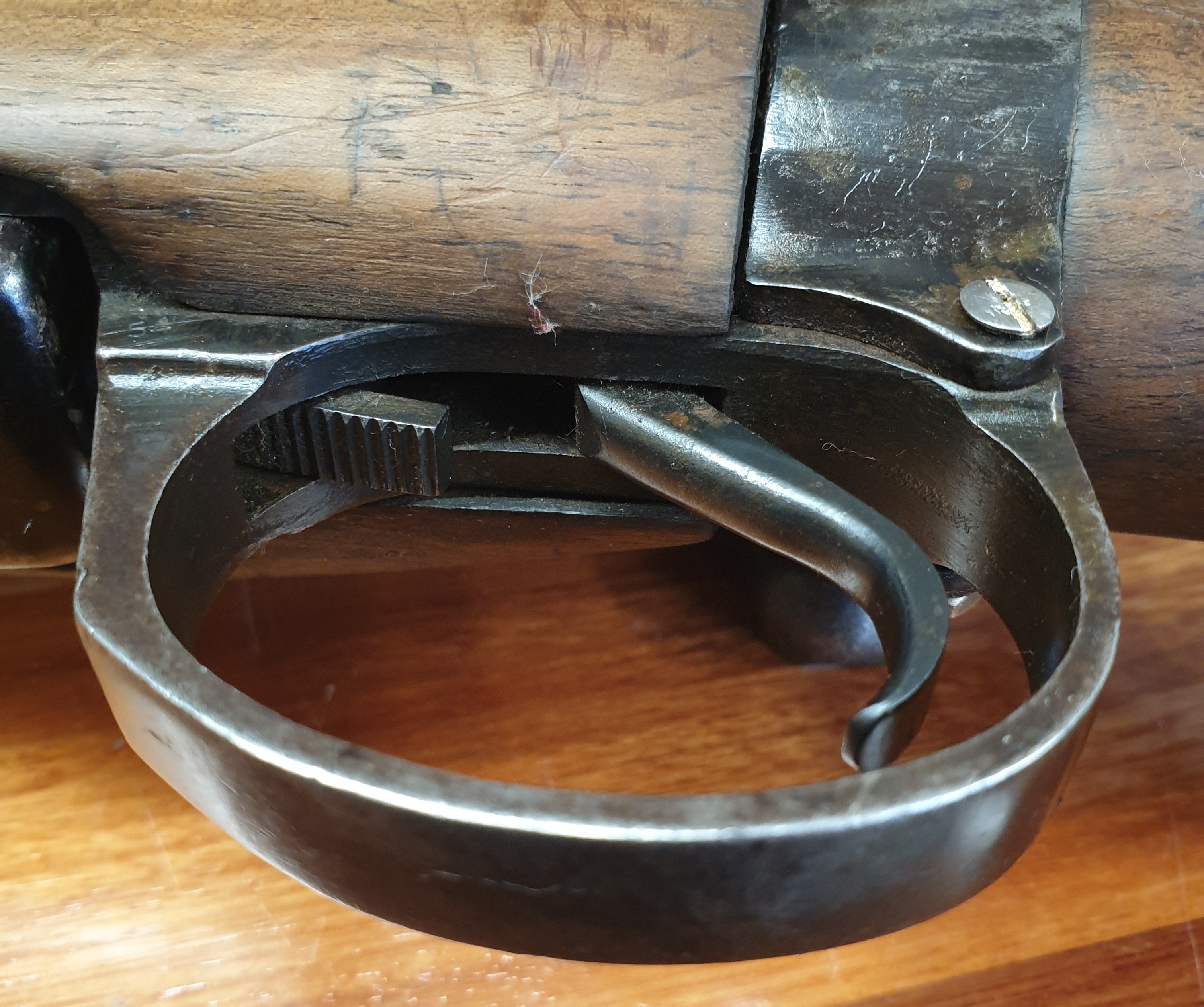

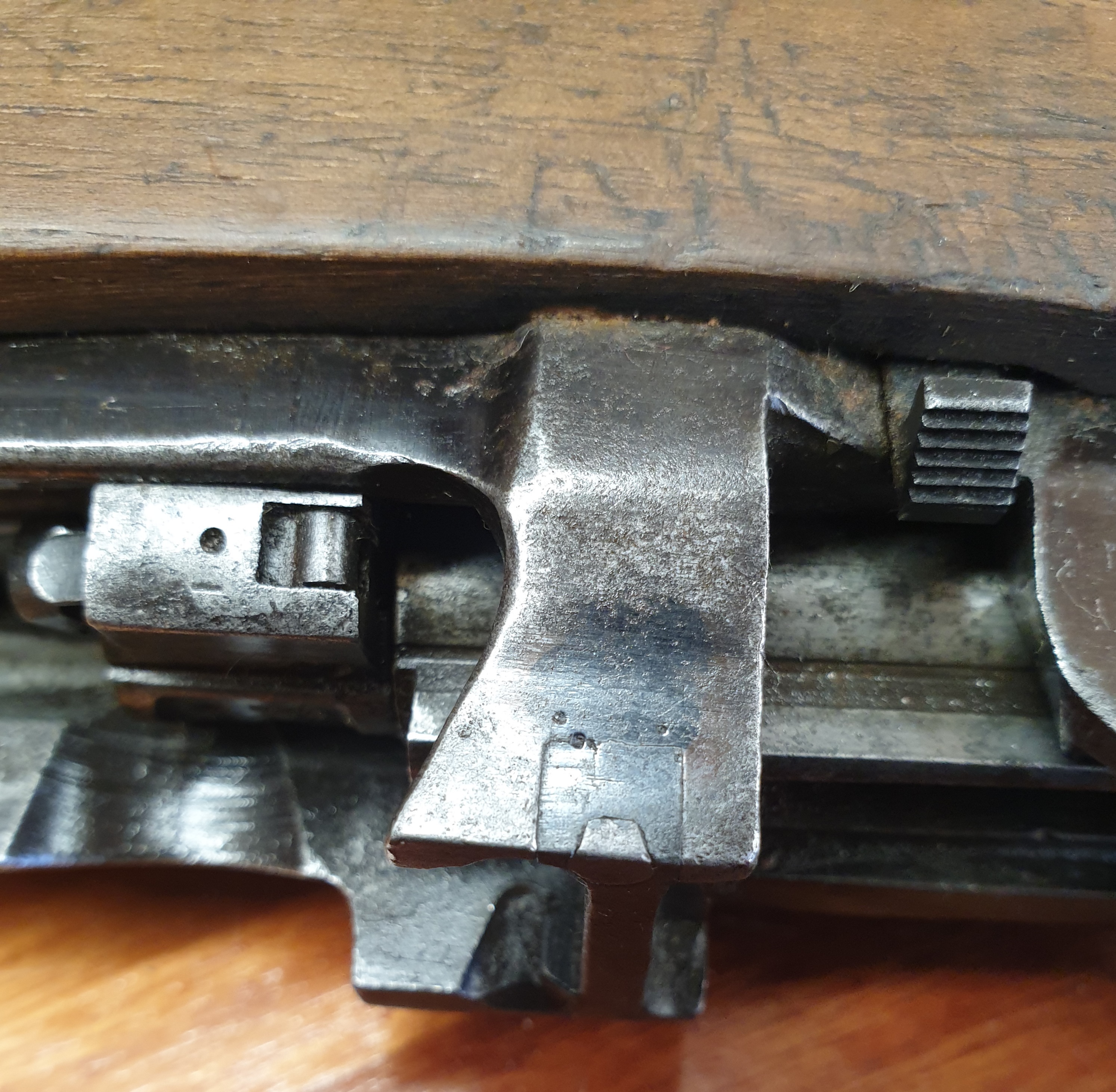

    There is a release catch. The trigger appears to be pinned in the top of the trigger guard


    Name:  20230603_144613.jpg
Views: 172
Size:  1.99 MB

    Name:  20230603_144627.jpg
Views: 172
Size:  1.76 MB
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  9. #9
    NO4
    NO4 is offline
    Member NO4's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    371
    thanks for the extra pics @Jhon It's No4 MK1 action British made Fazakerly, BSA or Maltby. Is there any faint markings on the left hand side of the receiver or have they been completely scrubbed of
    Hot Barrels and tight lines

  10. #10
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    Quote Originally Posted by NO4 View Post
    thanks for the extra pics @Jhon It's No4 MK1 action British made Fazakerly, BSA or Maltby. Is there any faint markings on the left hand side of the receiver or have they been completely scrubbed of

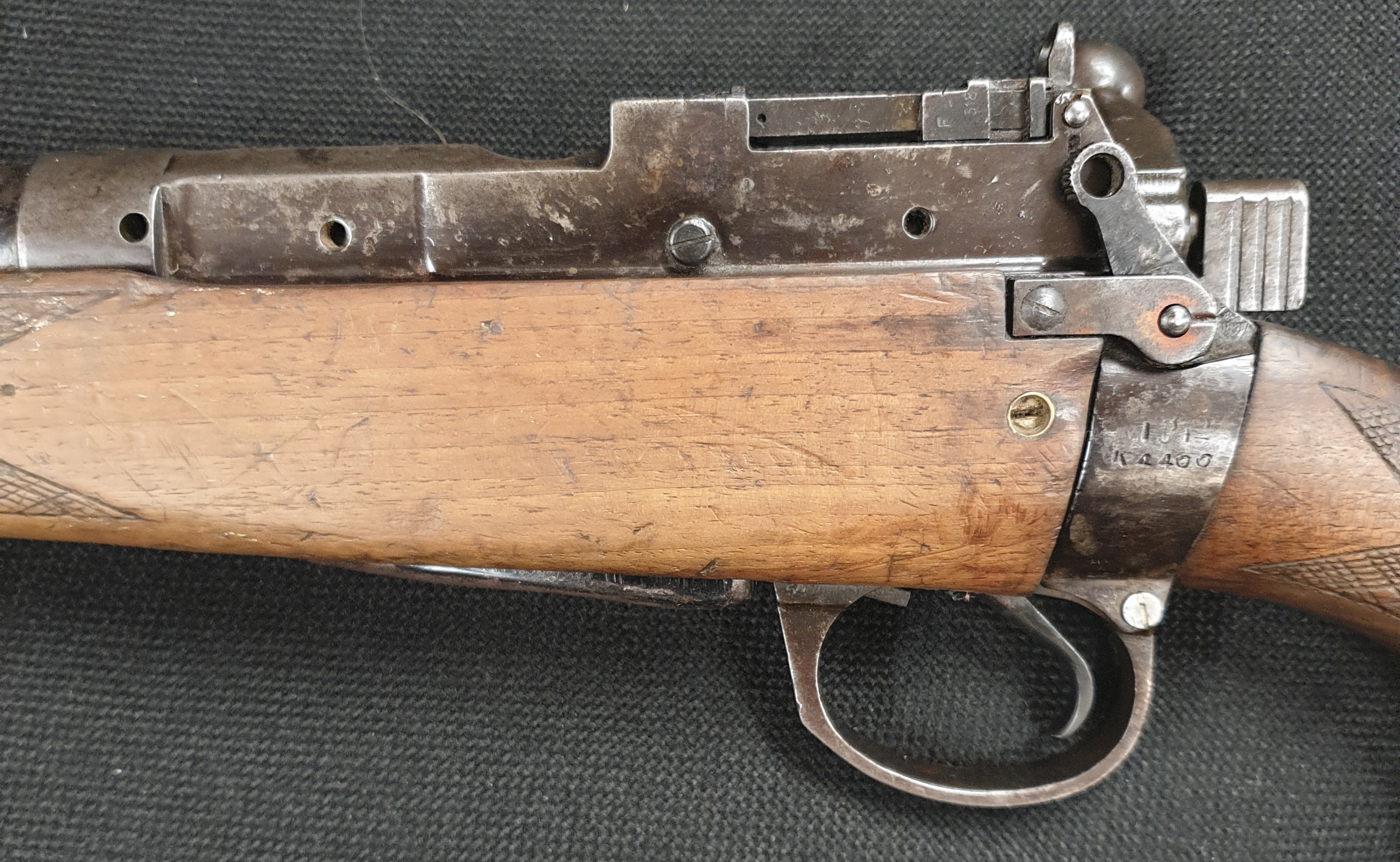

    Scrubbed off. Thks for the info. Very useful. It dies also have tapped and threaded holes for a scope mount on the left side of the receiver. Something else to look for

    Name:  20230603_214045.jpg
Views: 146
Size:  1.71 MB
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  11. #11
    NO4
    NO4 is offline
    Member NO4's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    371
    if it helps your rear sight is a fazakerley stamped singer sight and its missing the retaining pin,easy fix tho.You can get repo scope mounts there was one on here a while back i think. Happy to help if you havent guessed i have a fondness for NO.4's
    Hot Barrels and tight lines

  12. #12
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    Quote Originally Posted by NO4 View Post
    if it helps your rear sight is a fazakerley stamped singer sight and its missing the retaining pin,easy fix tho.You can get repo scope mounts there was one on here a while back i think. Happy to help if you havent guessed i have a fondness for NO.4's
    I have a.mate on here who shoots a No.4.Mk1 in original wood. With all its stamps. An accurate and lovely rifle to shoot. This Churchill was out on loan to a family member who didn't really look after so it came back to me but I am only now getting to shoot it. So far its reasonably promising..possibly give my mate a run for his money lol. We had guessed the Churchill was a No 4 but its a little different to his in the bolt release.

    I'm not sure what you refer to re the retaining pin. Not doubting you are correct, just don't know what I'm looking at. Do you have one with pin present you could post a photo of? Does it matter that it is missing? Cheers
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.

  13. #13
    NO4
    NO4 is offline
    Member NO4's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    371
    Name:  no4 pin.jpg
Views: 134
Size:  89.9 KB

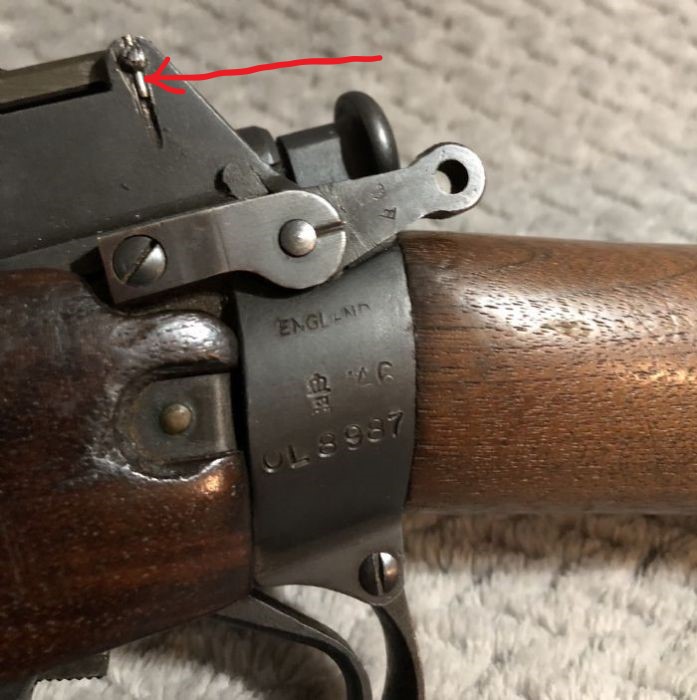

    that little pin,can be made from a bit of wire or small drill bit.
    Jhon likes this.
    Hot Barrels and tight lines

  14. #14
    Member
    Join Date
    Apr 2017
    Location
    The 'Naki
    Posts
    2,473
    Okaay, I can do that. Thanks!
    I know a lot but it seems less every day...

    Due to the exorbitant cost of reloading components, warning shots will not be given.
