Thread: AR15 bore guide dimensions

  1. #1
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872

    AR15 bore guide dimensions

    Anyone have an AR15 bore guide, and willing to do some measurements for me ?

    Looking for the diameter and length of the sections so I can turn one from some spare acetal rod I have lying around.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute

  2. #2
    Member
    Join Date
    Oct 2016
    Location
    Auckland
    Posts
    594
    This one is a Sinclair Int. Model 250mm long 25.3mm diameter. Section with O-ring 9.2mm D x 22mm L shoulder section 12.5mm D x 9.4mm L

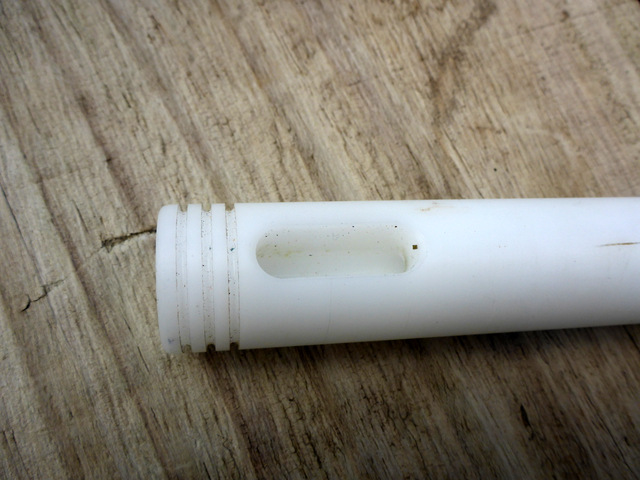

    Name:  P1010571-001.JPG
Views: 301
Size:  110.7 KB

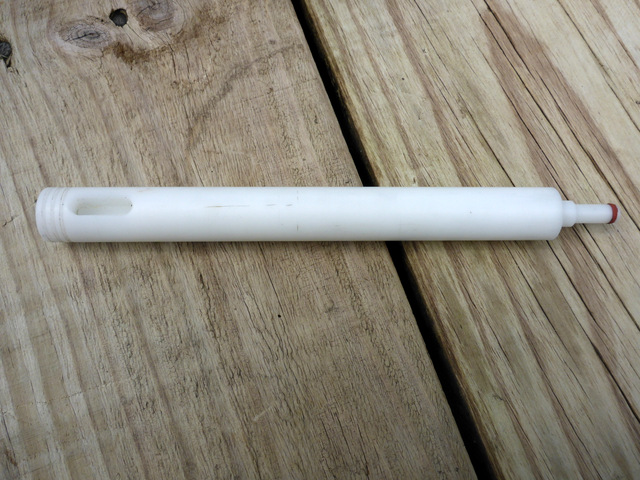

    Name:  P1010569-001.JPG
Views: 311
Size:  143.2 KB

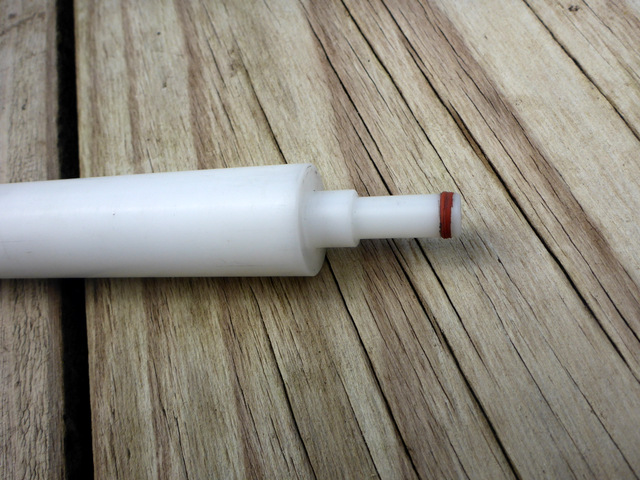

    Name:  P1010570-001.JPG
Views: 299
Size:  139.5 KB
    ebf likes this.

  3. #3
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Thank you @Dermastor
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
