Thread: Bergara BA-13 barrel and screw layout dimensions - feel like taking some measuements?

Pretty much what the title says - looking to confirm Bergara didn't change anything in their screw and rail layout. They shouldn't have.... but you know what they say about making assumptions.

If you've got a vernier handy, I'd like to confirm that these dimensions are close to your take-down BA-13's chamber diameter and screw layout dimensions.
Apologies for the size of the text in the images... forum wouldn't accept them in a larger size.

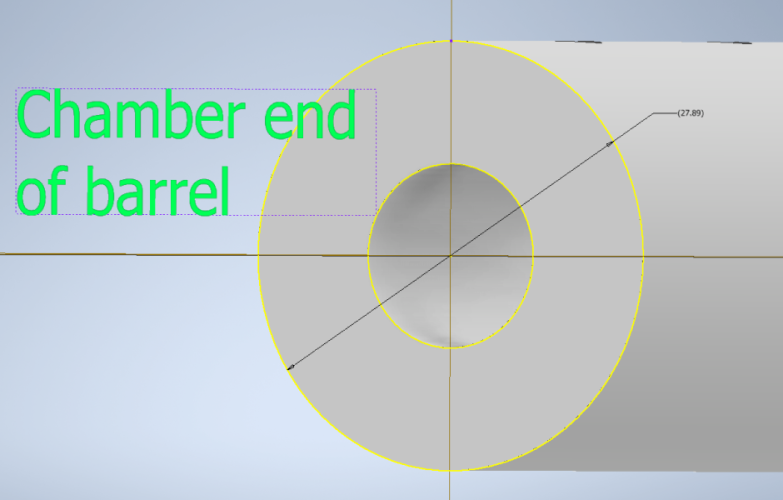

Outer Diameter of barrel at the chamber should be ~27.89mm

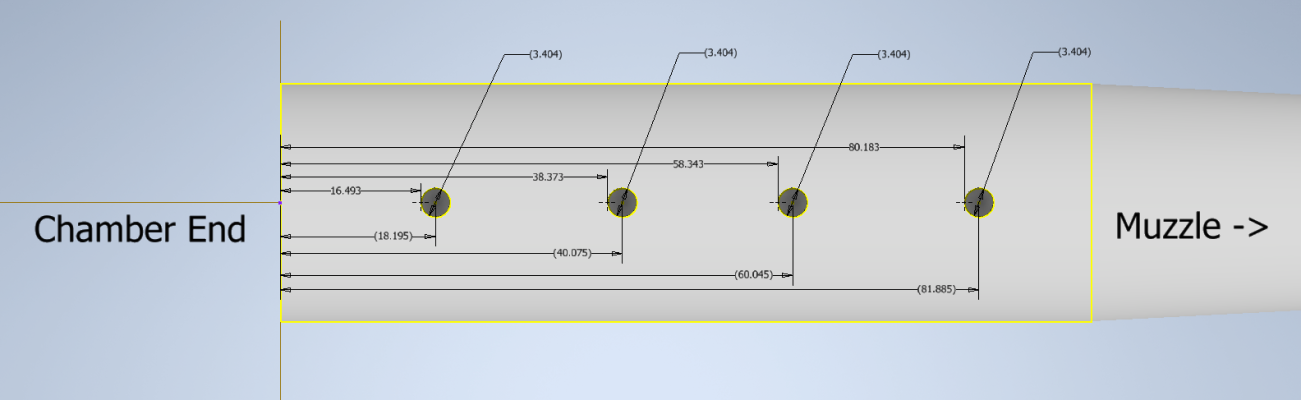

Here I've measured from the rear of the barrel to center of each screw hole, as well as to the rearmost edge of the screw hole, since measuring to the center of a hole isn't usually all that easy. Upper row of numbers are to the rear of the screw hole, lower numbers are to the center. This'll require removing the rail to take the measurements off the barrel since the screw heads on the rail are a different diameter than the threaded internal diameter of the holes in the barrel
