Thread: Bolt?

  1. #1
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986

    Bolt?

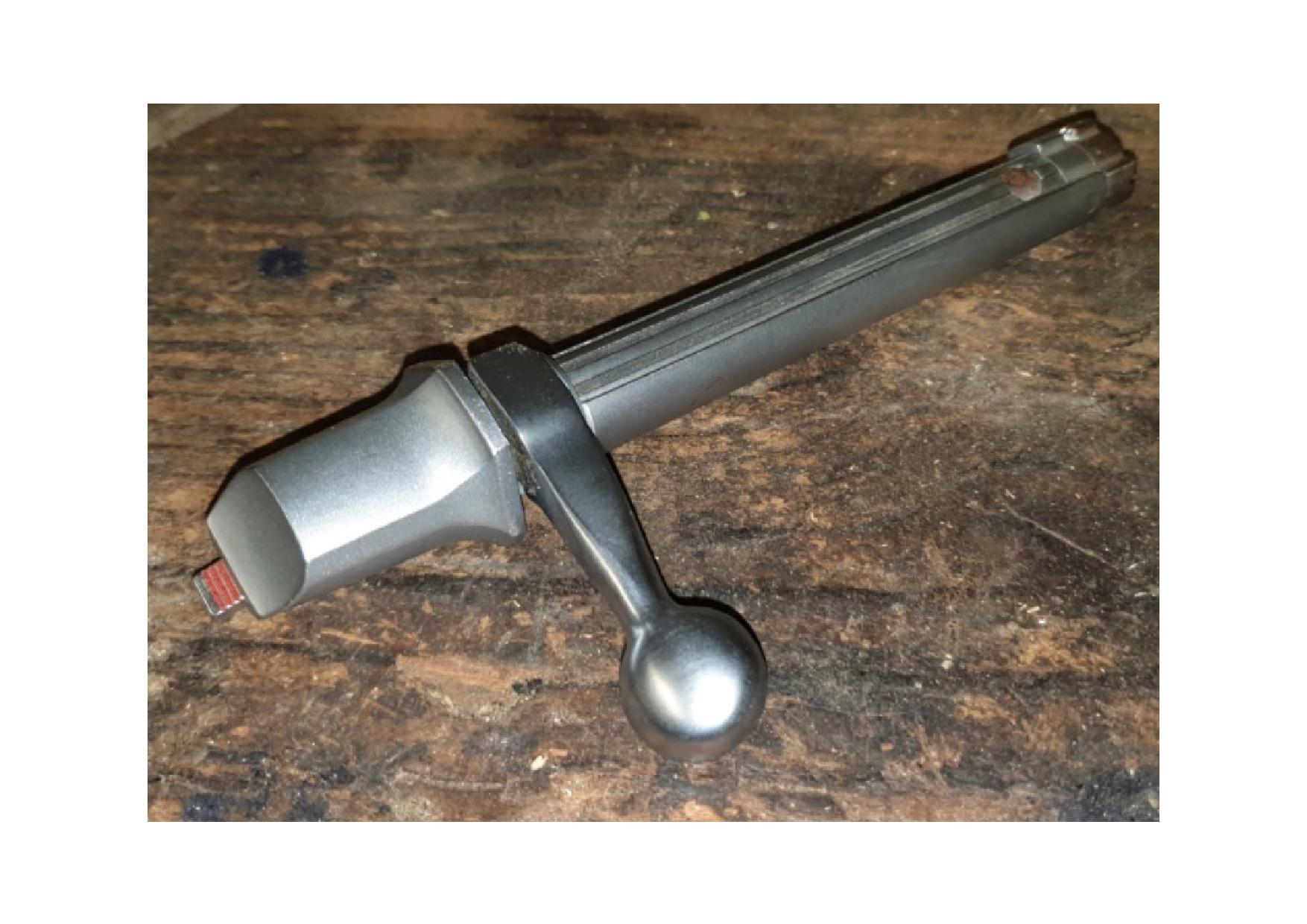

    Does anyone recognise the brand of rifle this bolt comes from?

    Sorry, it's in pdf file format, I got errors when trying to upload it as the original jpg.

    Unknown Bolt.pdf

    Can someone try opening and viewing the file please. If it won't open I'll head off to plan b.

  2. #2
    Banned
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,992
    Name:  Unknown Bolt-page-001.jpg
Views: 542
Size:  191.5 KB
    zimmer likes this.

  3. #3
    Banned
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,992
    browning x-bolt ?
    7mmsaum and ChrisW like this.

  4. #4
    Member
    Join Date
    Jan 2018
    Location
    New Zealand
    Posts
    796
    Certainly a Browning. Mechanically it looks the same as a Miroku M-bolt I had, which im familiar with - which was the same as the original browning A-bolt.

    Im not familiar with the X-bolt, so cant say if they changed much from A to X bolt. But that rotating part is a dead giveaway.
    My vote is Browning A-bolt.
    Last edited by ChrisW; 20-07-2020 at 05:28 PM.
    Bill999 likes this.

  5. #5
    Member
    Join Date
    Jan 2018
    Location
    New Zealand
    Posts
    796

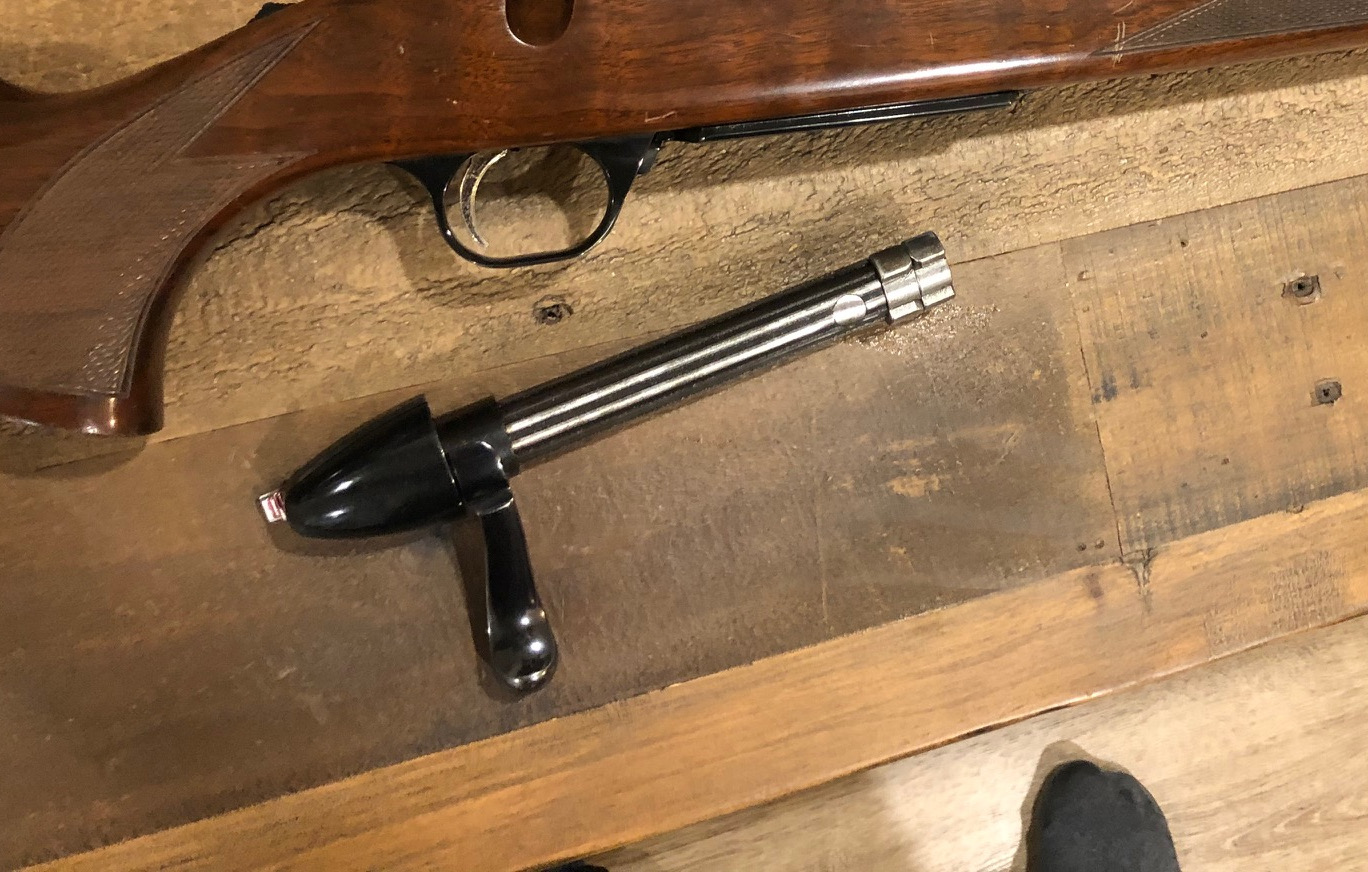

    Here is the Miroku M-bolt bolt.
    M-bolt is the same as the original A-bolt, but with different a different bolt handle and shroud.

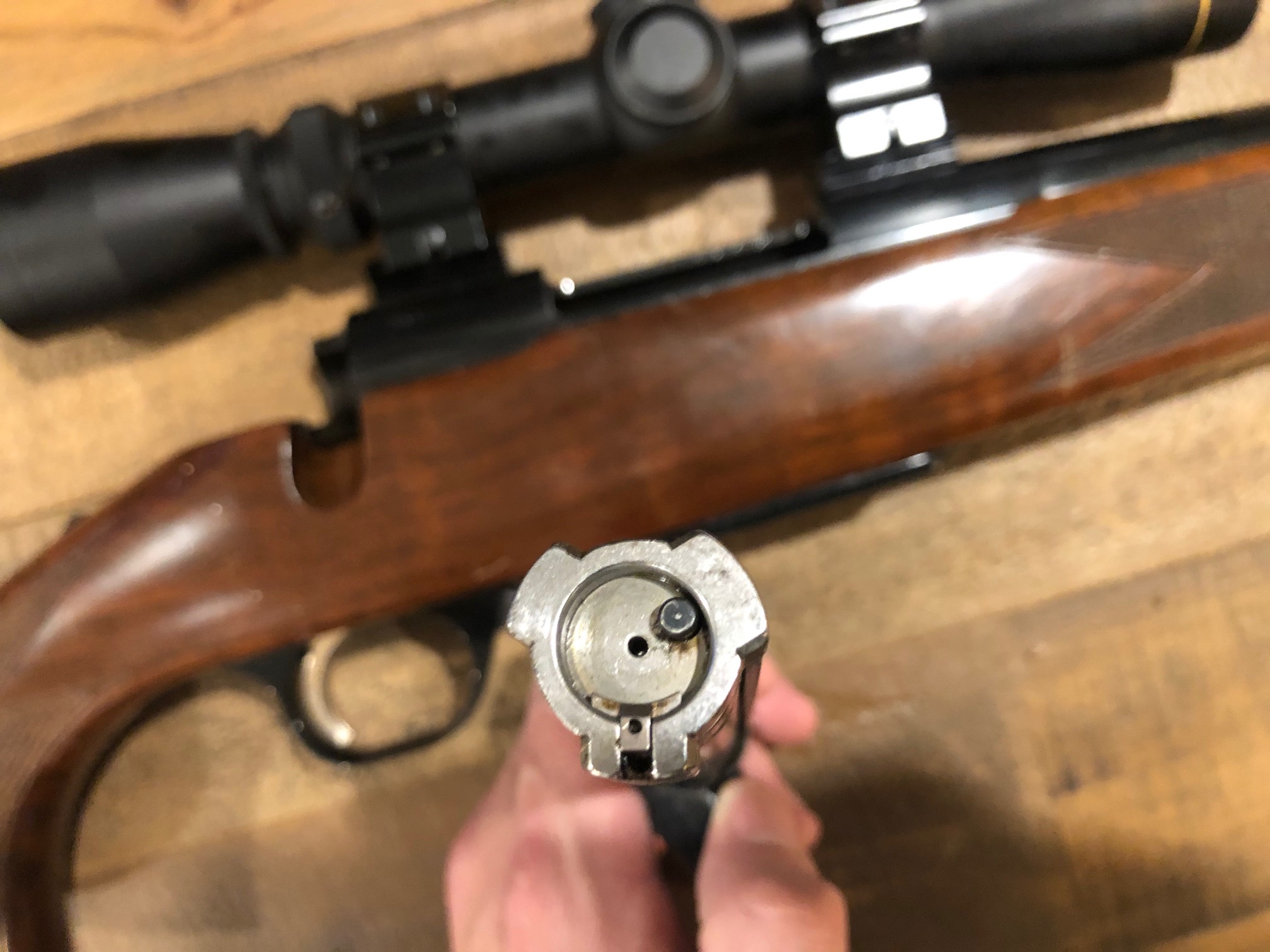

    In order to insert into rifle you need to spin it so that collar that runs the length of the bolt is at the bottom. (so its spun around in my image)

    Name:  IMG_2928.jpg
Views: 602
Size:  353.0 KB
    Name:  bolt111.jpg
Views: 624
Size:  487.9 KB
    zimmer likes this.

  6. #6
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Excellent.
    Thanks @gonetropo for your reply and posting the pic. I was trying to do my original post and upload on my tablet. Didn't work.
    Thanks @ChrisW for your reply and pic of the Miroku. Nice rifle.
    Micky Duck likes this.

  7. #7
    Member
    Join Date
    Jul 2018
    Location
    Auckland
    Posts
    627
    A Bolt innit?

  8. #8
    Member
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,304
    Yes that is a Browning A Bolt MK1, I'm a fan of them myself, they made the first Stainless Synthetic stock (actually painted wood lol) rifle that was really available & I imported (or asked to have) one of them in 1986-7 in 30/06, shot animals all over the world with it !

    Miroku M Bolts are cool to & I would like a short 223 model !

  9. #9
    Member
    Join Date
    Nov 2018
    Location
    Ashburton
    Posts
    862
    Not X-Bolt

  10. #10
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,502
    What Scout said. A-Bolt original after the BBR.
    sometimes1 likes this.

  11. #11
    Member
    Join Date
    Feb 2012
    Location
    Rapa
    Posts
    1,048
    Yip. A-Bolt Stainless Stalker most likely. Browning did away with the bolt fluting on the A-Bolt II.

  12. #12
    Gone but not forgotten
    Join Date
    Dec 2011
    Location
    Kaukapakapa
    Posts
    448
    yup not abolt II have 2 of those no fluting like that

  13. #13
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    AB3?

  14. #14
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198
    Quote Originally Posted by zimmer View Post
    Does anyone recognise the brand of rifle this bolt comes from?

    Sorry, it's in pdf file format, I got errors when trying to upload it as the original jpg.

    Attachment 145502

    Can someone try opening and viewing the file please. If it won't open I'll head off to plan b.
    Now you know what rifle it is for you just need to remember where you hid the rifle !

    Its usually the other way around. Guys having the rifle and forgetting where they hid the bolt
    dannyb likes this.

  15. #15
    Member mawzer308's Avatar
    Join Date
    Nov 2015
    Location
    Central Plateau
    Posts
    1,550
    Browning A bolt
