    Brno ZKK 600 trigger recommendations

    Hi all
    I have a Brno 600 that was rechambered from 7x57 to 284 Win and it has the set trigger that won't set. I have tried to adjust but still no engagement, so I am now looking for a replacement trigger. These rifles came out with two triggers supplied in a cloth bag, the set one and a single stage trigger, and I have tried to find one of the single stage triggers but they have all disappeared it seems? I was looking at a Timney but have recently read that they can sometimes not have enough travel and don't always hit the primer reliably? I am keen to hear your experiences and any recommendations for other brands of triggers or fixes. The rifle and calibre are great to use and load for and a decent adjustable trigger would be an improvement. I look forward to your advice and many thanks for reading.

    Regards
    Ruger7mm

  2. #2
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    991
    You missed out on a 601 complete action that was sold earlier this week - with the trigger you are looking for fitted

  3. #3
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,875
    Iv got a 601 with the set trigger fitted that’s working if you would like some pics of how it should look


    Sent from my iPhone using Tapatalk

  4. #4
    Member
    Join Date
    Nov 2012
    Location
    Palmerston North
    Posts
    272
    Hi Bill that would be most appreciated Cheers R

  5. #5
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,875

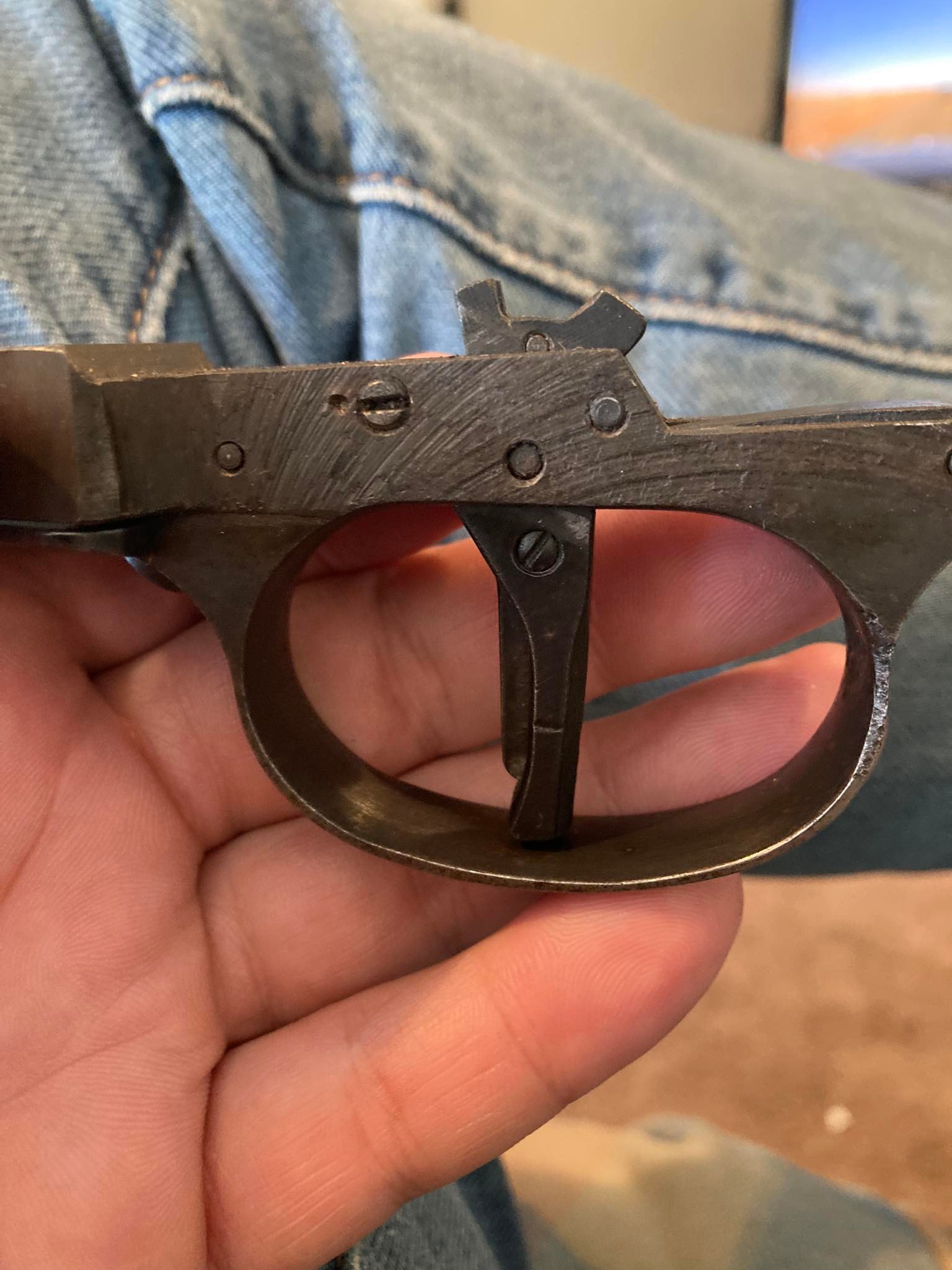

    Name:  BRNO1.jpg
Views: 1114
Size:  289.1 KB

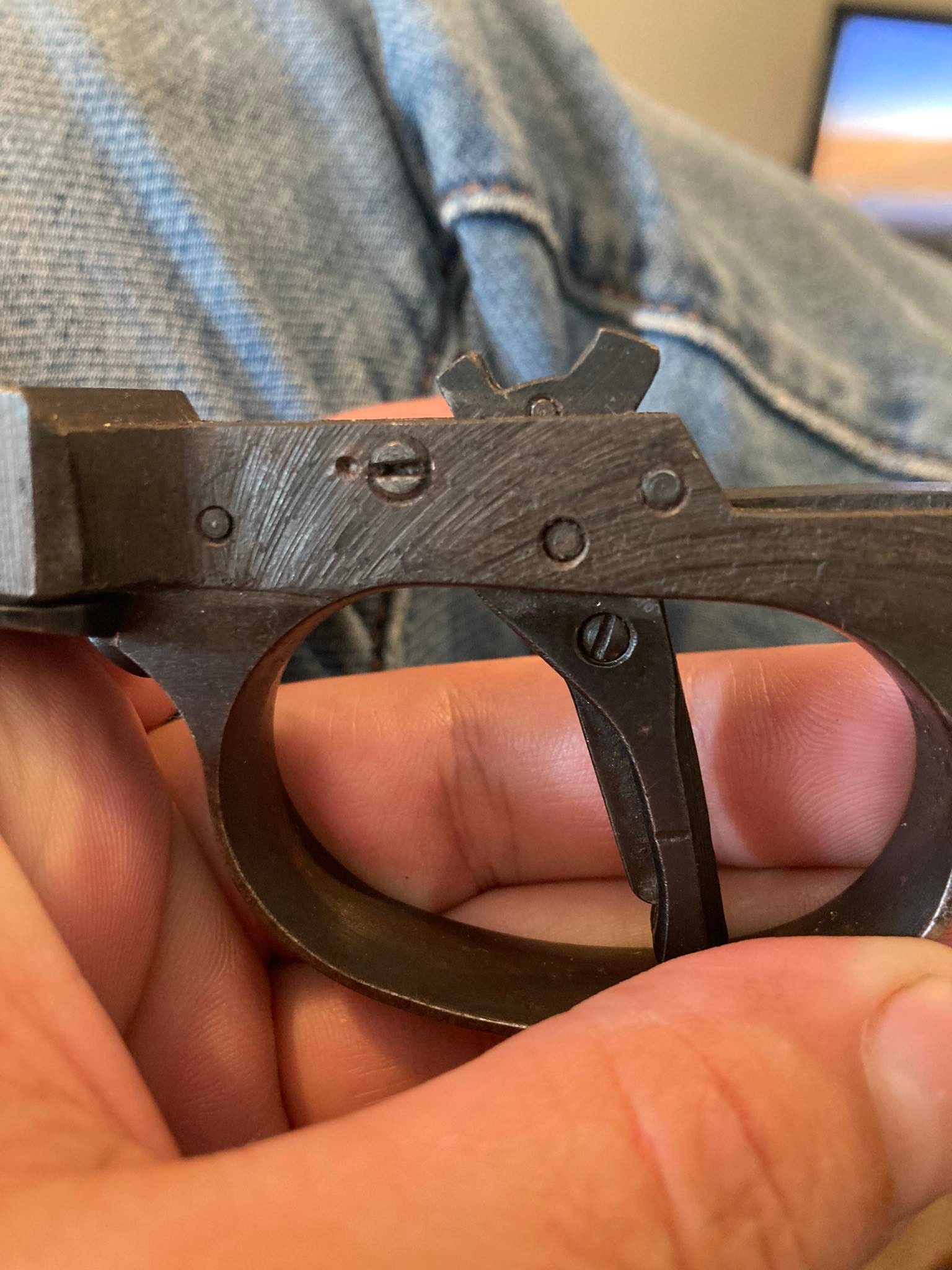

    Name:  BRNO2.jpg
Views: 995
Size:  315.0 KB

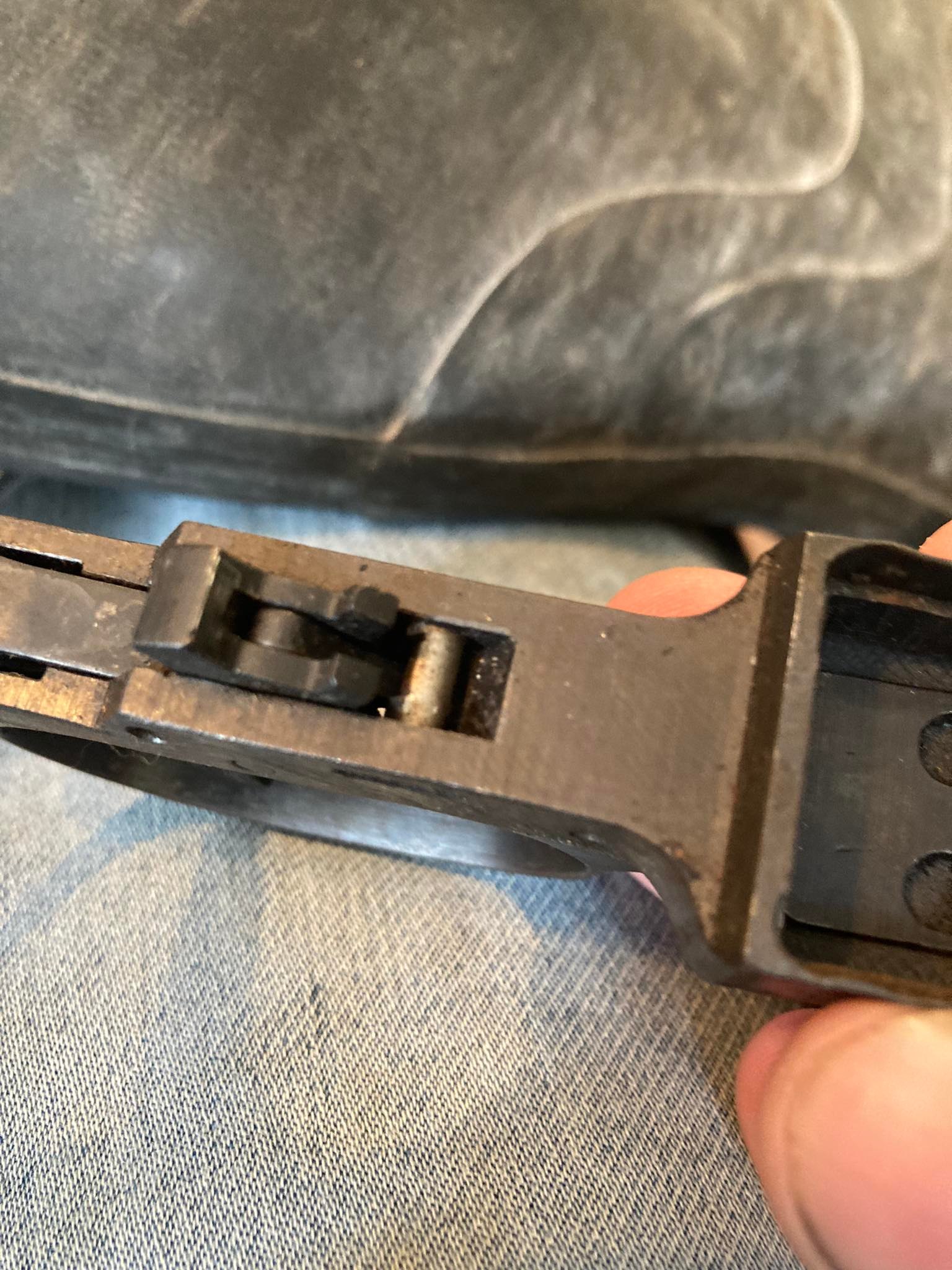

    Name:  Brno3.jpg
Views: 883
Size:  397.9 KB

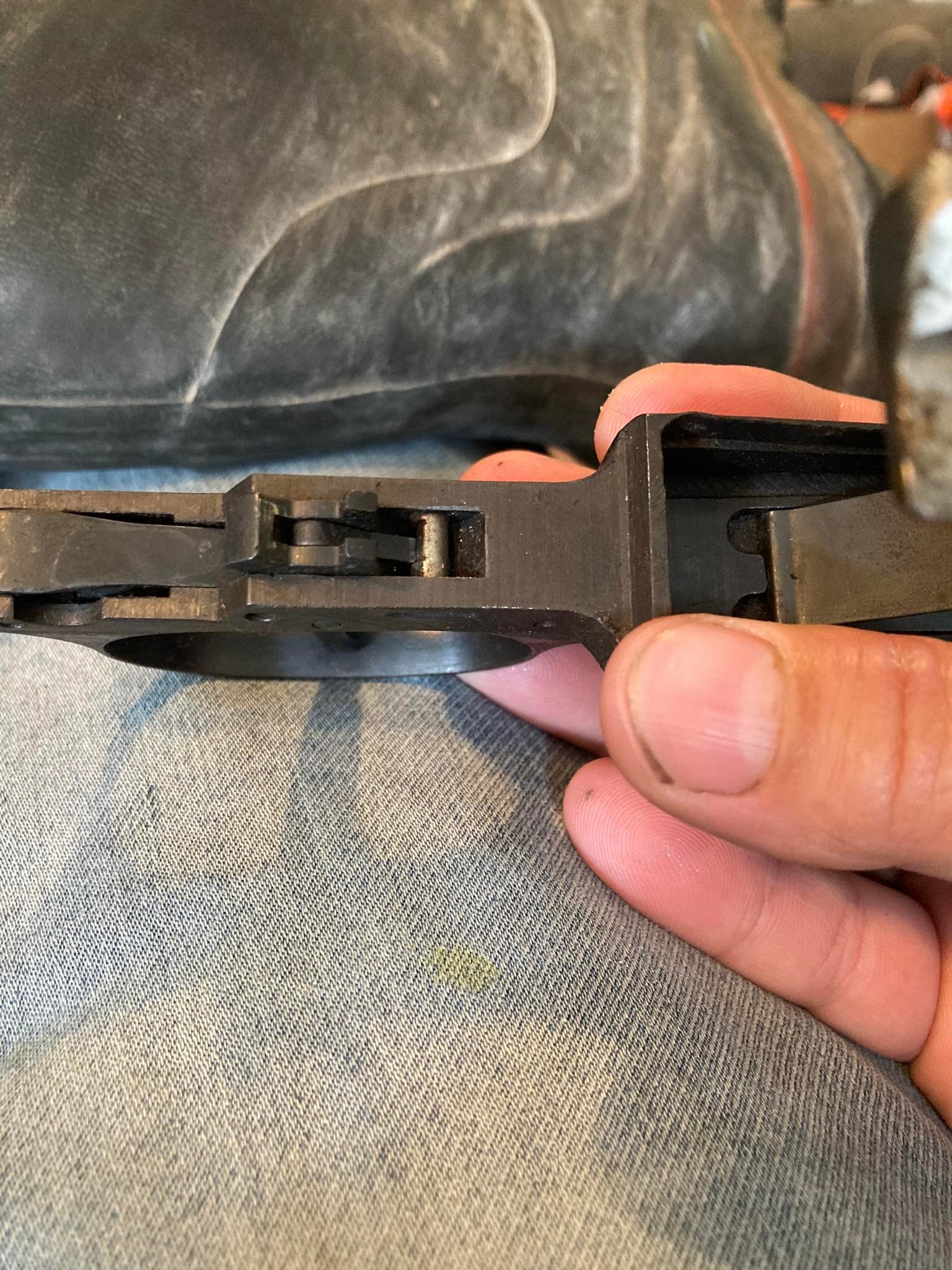

    Name:  brno4.jpg
Views: 956
Size:  506.5 KB

    I didn't realize the trigger stays with the bottom metal rather than the action
    pushes forward to click into that bar in front, then depress the trigger inside the trigger for release

  6. #6
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    How exactly have you been adjusting the set trigger?

  7. #7
    Numzane Spudattack's Avatar
    Join Date
    Aug 2012
    Location
    Tauranga
    Posts
    2,990
    Quote Originally Posted by Bill999 View Post
    Attachment 195591

    Attachment 195592

    Attachment 195593

    Attachment 195594

    I didn't realize the trigger stays with the bottom metal rather than the action
    pushes forward to click into that bar in front, then depress the trigger inside the trigger for release
    Yes, very important this, if the set trigger is not located properly the set function won’t work, possibly the cause of the malfunction?


    Sent from my iPhone using Tapatalk
    "Here's the deal I'm the best there is. Plain and simple. I wake up in the morning and I piss excellence."

  8. #8
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,875
    Iv never used mine I just think they look cool as fuck
    Iv checked that it works but it’s appeal is purely visual


    Sent from my iPhone using Tapatalk

  9. #9
    Member
    Join Date
    Nov 2012
    Location
    Palmerston North
    Posts
    272
    Thanks Bill I will be checking my unit out when I get home I also read a post on an American forum that suggests to check that the flat spring is not upside down Great photos. Cheers R7mm

  10. #10
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    The manual says screwing the adjustment screw too tight can stop the trigger catching the notch of it's cam surface, so that could be your problem with it not "setting".
    Another potential fishhook is that the trigger must be "set" before adjusting it.

  11. #11
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,875
    Quote Originally Posted by Ruger7mm View Post
    Thanks Bill I will be checking my unit out when I get home I also read a post on an American forum that suggests to check that the flat spring is not upside down Great photos. Cheers R7mm
    iv got it apart at the moment so if you have any queries in the next day or so before i pop it back together I can get some close ups of specifics once you start to get into it

  12. #12
    Member
    Join Date
    Nov 2012
    Location
    Palmerston North
    Posts
    272
    Hi Bill
    Many thanks for your help, I'll be back home tonight so will have a close inspection and get back to you.
    Cheers
    R7mm

  13. #13
    Member
    Join Date
    Nov 2012
    Location
    Palmerston North
    Posts
    272
    Hi Muzza
    Thanks for the offer, I have a spare set trigger so might take you up on the offer. I am up in Taranaki about every two weeks or so for work so could drop off. Maybe PM your contact details and we can arrange something.
    Thanks again
    R7mm
