Thread: BSA Martini 22 Target rifle

I got given this little gem the other day.
Has anybody any idea what model it is and age the serial numbers are all the same 505xx
Only problem i see is when you look through the rear sight the front sight is about 3 or 4 degree off to the left, how do i fix that. rear sight has PH7A on it

I have one - mine has been extensively modified into a sporter and has a scope fitted - this one has had some mods to - the forend wood has been cut back - originally would have been a lot longer and a sling stud put under the barrel thats unusual the normally were into the wooden forend - now the front sight issue - they are on a dovetail so carefull tapping with a soft punch should move the sight back to its correct position inline to the bore - but make sure you use a punch /method that is not going to mark the sight - it may be very stiff to move - so if you are not confident get a gun smith to do it for you - model is I believe a model 1 Martini action BSA small bore - others on here may be more exact - I see it still has the original brass cup on forend that held the front sight blades neat touch many are missing - just a point to the whole breech block trigger assembly comes out - then you can put a cleaning rod thru just under the back peep sight neat touch from BSA

Originally Posted by Harryg

I got given this little gem the other day.
Has anybody any idea what model it is and age the serial numbers are all the same 505xx
Only problem i see is when you look through the rear sight the front sight is about 3 or 4 degree off to the left, how do i fix that. rear sight has PH7A on it

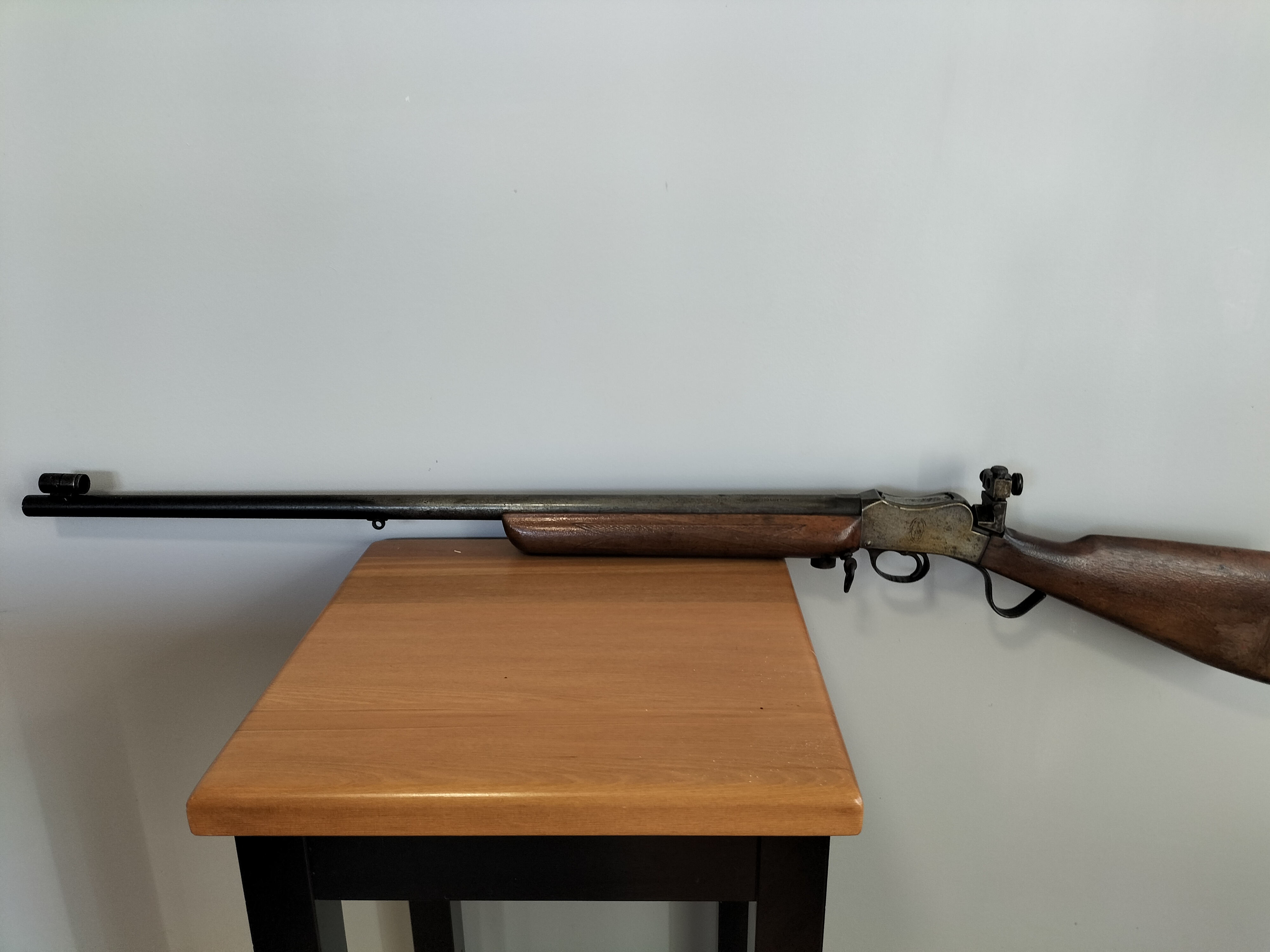

Attachment 246849

Your rear sight will have windage adjustments so check that they are centred and test fire. If the front sight looks in the middle of the barrel you should not have a problem. If the front sight was off by 3 to 4 degrees it would not be on the barrel at all. Best test fire and adjust before anything else. do not file or change anything before that.
GPM.

good stuff ya onto it Granpamac - my thinking was maybe someone had moved sight over trying to get it off or some such - neat little units - mine has had barrel cut back to 18 inches and barrel profiled to reduce weight - suppressor fitted - and a scope mount made - just finishing the wood - stocks were very thick and heavy - just having a few problems getting final shape right - but what else do you do with them - ya turn them into a rather neat bunny buster that shoots

It's a Model 12/15 by the look of it.

yes did some looking one photo showed a model 12 and well it had a stud under the barrel as this one does so that could well be original - the forend was the same so maybe not cut back ( I have had two) certainly mine were a lot longer - but the photo shows a V sight on barrel as well as rear aperture and the fore end is chequered - maybe numbers of variations for same basic model ??

- I see it still has the original brass cup on forend that held the front sight blades neat touch many are missing - just a point to the whole breech block trigger assembly comes out - then you can put a cleaning rod thru just under the back peep sight neat touch from BSA[/QUOTE]

Brass cap is still there and it holds one extra blade sight there is a peep hole sight on it at the moment
I can't remove the front stock the screw is in solid. I won't be parting with it or doing any modifications

Originally Posted by BSA

It's a Model 12/15 by the look of it.

Thought it might be a 12 any idea how old

should come out - they have a short steel sleeve thru the wood that the screw fits thru - whole thing must be rusted in - use a correct fitting screw driver - sometimes a slot head of correct shape and size on end of a socket set handle gives a lot better leverage than a screwdriver - I modify my screw drivers with a file when working on this old stuff to make sure the slot head screwdriver fits the screw exactly - but try to get it off then the underside of the barrel can have a good clean and oil - I had real problems getting the stock of one of mine - they have a big slot head bolt accessed thru a hole drilled right thru stock - used a strong bar socket set slot head combination and finally herd a squeak inside as the rust stopped holding hands -

Originally Posted by Harryg

Thought it might be a 12 any idea how old

https://www.rifleman.org.uk/BSA_Mode...Centurion.html

Early 30s

Originally Posted by Harryg

- I see it still has the original brass cup on forend that held the front sight blades neat touch many are missing - just a point to the whole breech block trigger assembly comes out - then you can put a cleaning rod thru just under the back peep sight neat touch from BSA

Brass cap is still there and it holds one extra blade sight there is a peep hole sight on it at the moment
I can't remove the front stock the screw is in solid. I won't be parting with it or doing any modifications[/QUOTE]

if you change the front ring sight for the blade - be gentle with the thread on that front sight - they are a very very fine thread patience and a little light oil

Originally Posted by Harryg

I got given this little gem the other day.

Only problem i see is when you look through the rear sight the front sight is about 3 or 4 degree off to the left, how do i fix that. rear sight has PH7A on it]

Do you mean the foresight is rotated anticlockwise from vert/ horizontal ?
Maybe the butt isn’t vertical.

Originally Posted by Bagheera

Do you mean the foresight is rotated anticlockwise from vert/ horizontal ?
Maybe the butt isn’t vertical.

It looks like the foresight is rotated a few degrees but as the sight is in a dove tail i don't understand

can you put up a close photo or two front on and rear on is the ring foresight sitting correctly the back of the foresight screwed in properly just seems hard to understand rotated a few degrees well unless the bloody thing has been run over

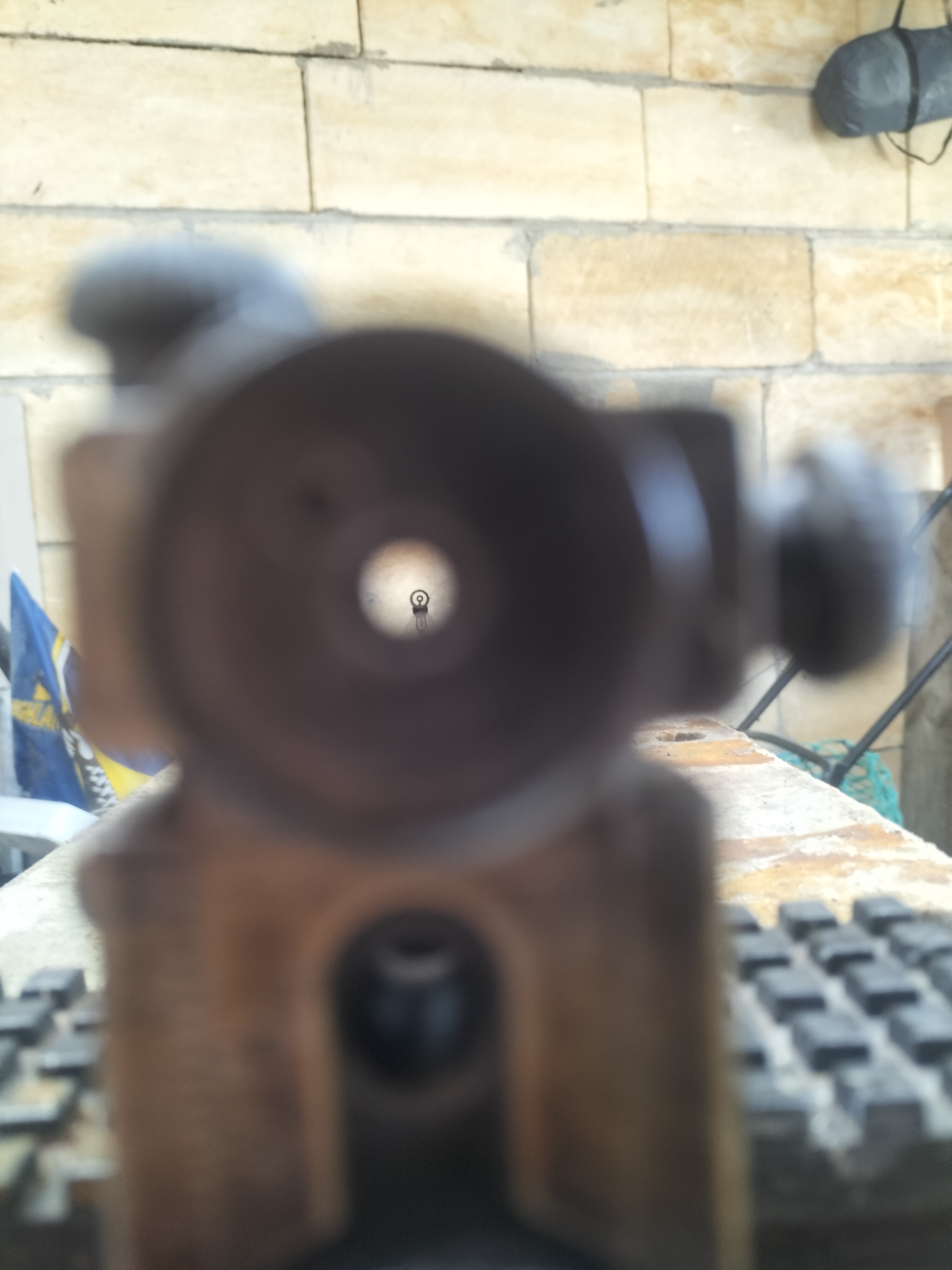

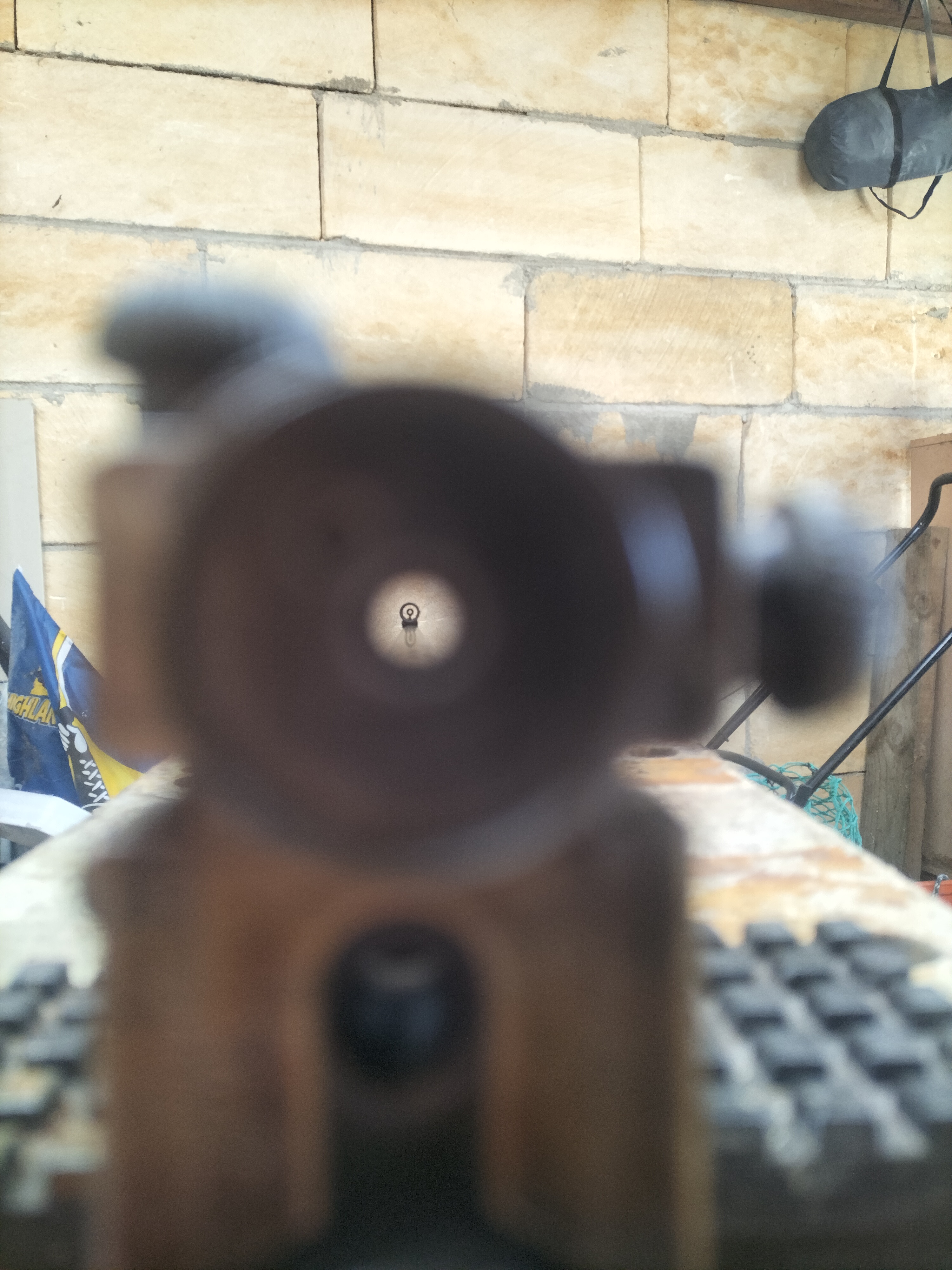

Trying to get a good photo using the phone but this is about as good as i can get
Doesn't look bad in photo but very noticeable when shouldered I know we all hold a gun a little bit different but not this much
