Thread: Bugger - Any bright ideas or she done

  1. #1
    Member Bobba's Avatar
    Join Date
    May 2018
    Location
    Ngaruawahia
    Posts
    1,294

    Bugger - Any bright ideas or she done

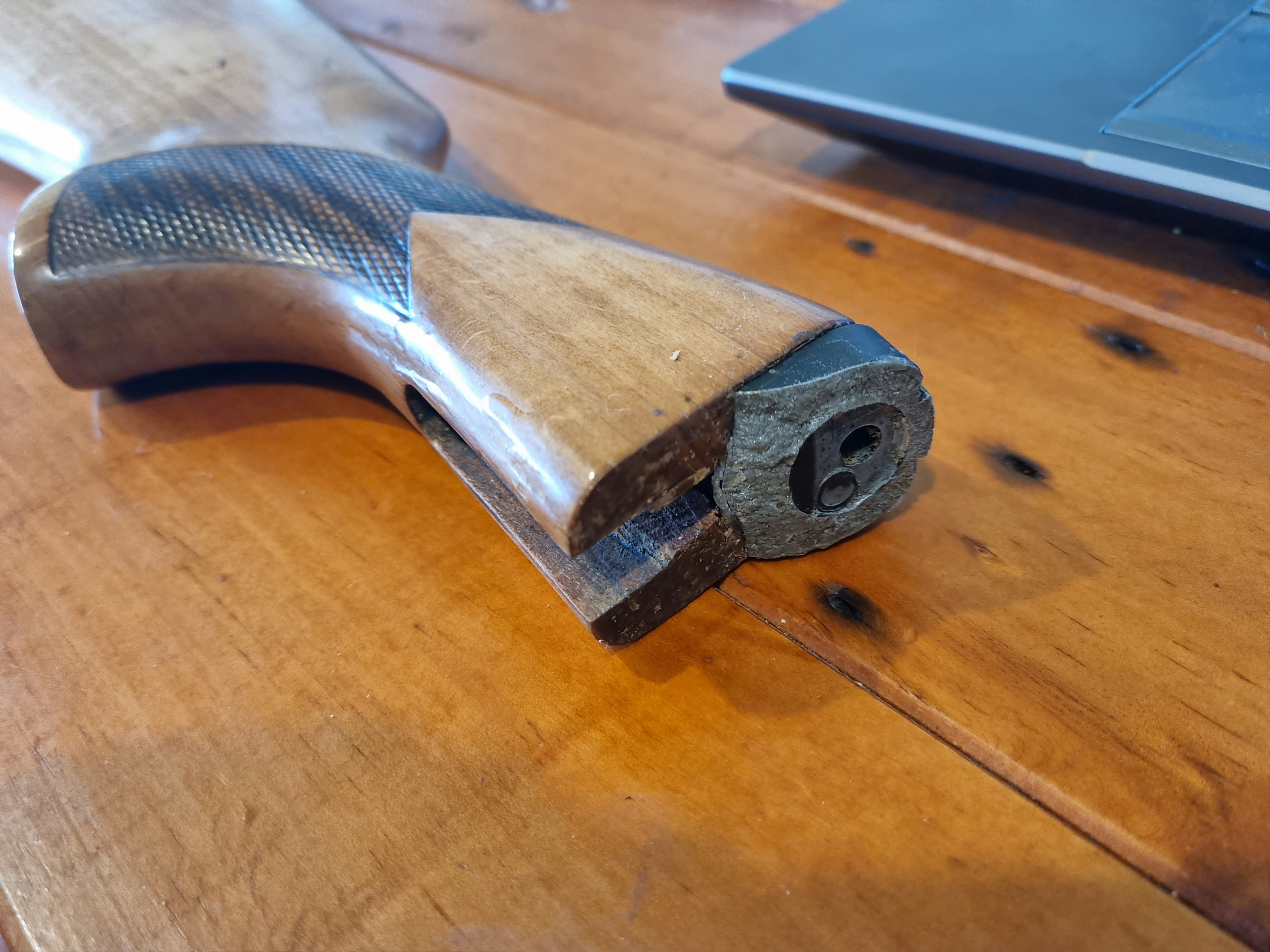

    So my mate broke his Anschutz 520 using high velocity ammo. Feel a little guilty as i sold it to him but was all good when I did. Anyway want to help him out.

    Any bright ideas, spares part out there or is she done?

    Name:  20230721_132951.jpg
Views: 672
Size:  2.07 MB

  2. #2
    Member
    Join Date
    Jun 2023
    Location
    waimakau
    Posts
    3,600
    Does it need to be registered as 2 firearms now
    TimC likes this.

  3. #3
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul (Pukekohe)
    Posts
    6,031
    So the alloy receiver has broken?
    @gundoc
    Welcome to Sako club.

  4. #4
    Member
    Join Date
    Dec 2011
    Location
    Te Awamutu
    Posts
    977
    Bugger alright.

    Unfortunately the harsh reality of the fatigue characteristics of aluminium alloys. They have no limit where a force doesn't fatigue them. They will fatigue and fail over enough cycles no matter the load. Although, I'm sure in most designs and applications they won't be in service long enough to reach that point.
    I'm not familiar with this rifle but it looks like the bolt group must of been shock loading the end of the receiver, perhaps the recoil spring had weakened or was too light duty to manage the loading.

    I doubt it's fixable without a new receiver.
    Last edited by Makros; 21-07-2023 at 03:23 PM.

  5. #5
    Member Bobba's Avatar
    Join Date
    May 2018
    Location
    Ngaruawahia
    Posts
    1,294
    Quote Originally Posted by dogmatix View Post
    So the alloy receiver has broken?
    @gundoc
    Yep snap clean off. Apparently a common fault and not made of the best materials.

  6. #6
    Member
    Join Date
    Feb 2022
    Location
    Nz
    Posts
    1,104
    chuck up some more photos if you can

  7. #7
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,472
    Its stuffed.


    Sent from my iPhone using Tapatalk
    TimC likes this.

  8. #8
    Member
    Join Date
    Jan 2020
    Location
    porirua
    Posts
    793
    Din collings back in the seventys had nail boxes full of busted recievers in his workshop all replaced under warranty back then
    nor-west and 6x47 like this.

  9. #9
    Banned
    Join Date
    May 2023
    Location
    Levin
    Posts
    266
    Looks like you got yourself a parts gun

  10. #10
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    Can we see the other half of the break please

  11. #11
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    If the sides of the receiver have sufficient thickness, I imagine it would be straight forward to clamp the broken rear piece of receiver from the stock in position with the forward section and drill through both, one hole on each side, then tap a thread into the forward section and epoxy and screw both together with a high grade epoxy. Perhaps even making a steel cap on the rear section that the screws pass through and relieving and bedding it into the butt.

  12. #12
    Member
    Join Date
    Jul 2018
    Location
    Wellsford
    Posts
    105
    I had 1 like that, not fully broken- just cracked. Asked several skilled welders if it could be fixed, no dice. The 525 receivers will work and don't suffer the same problems, I could have got one at the time but a bit spendy at $350. I sold off the parts for around $200 and moved on. Italian junk to be fair.
    zimmer likes this.

  13. #13
    Member Bobba's Avatar
    Join Date
    May 2018
    Location
    Ngaruawahia
    Posts
    1,294

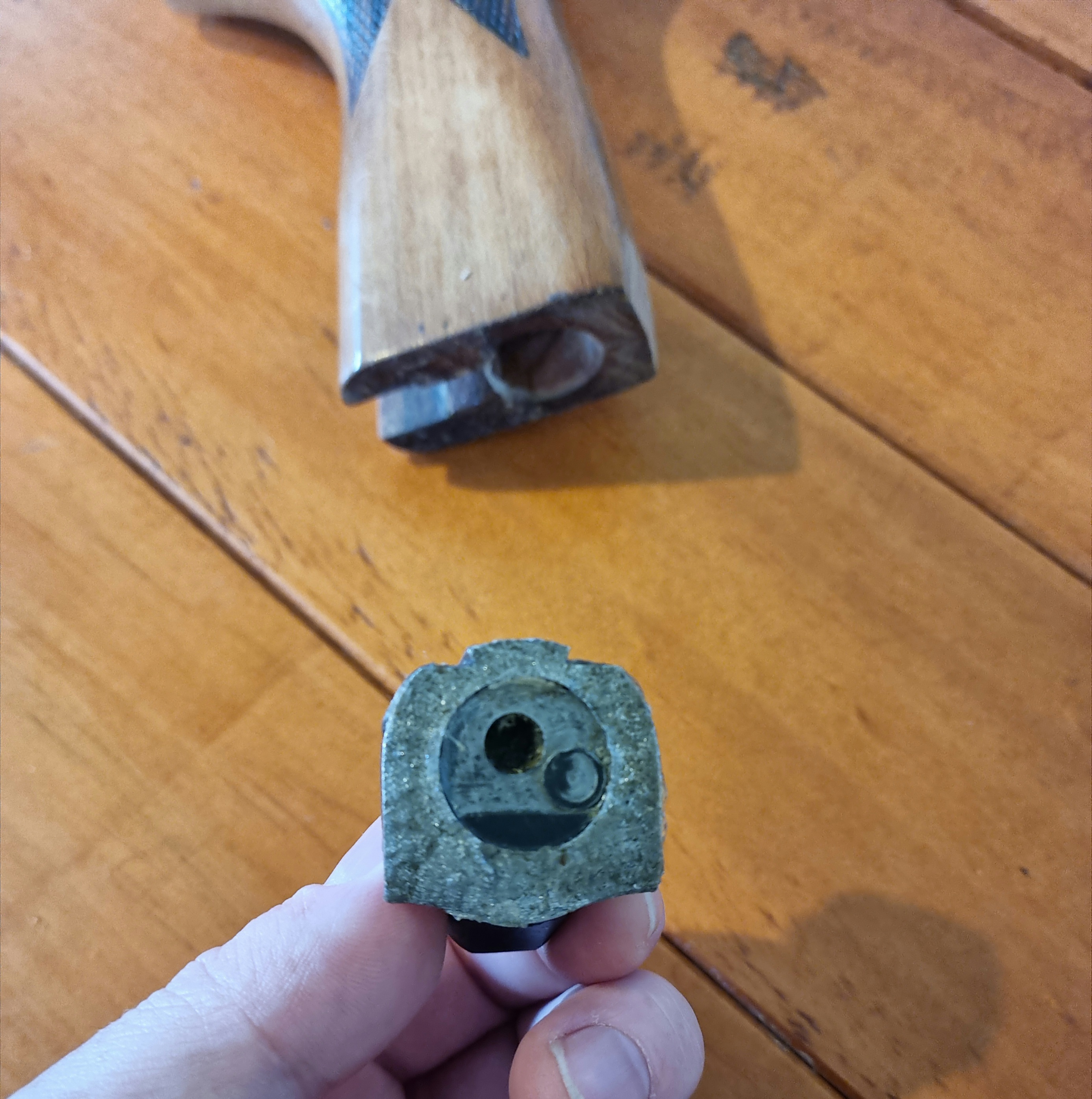

    He only dropped off this half unfortunately.

    This was kinda my thinking, align, drill and tap with back up plate and possibly also fasten to back of rail. Need the other half to figure it out.

    Name:  20230721_144621.jpg
Views: 448
Size:  1.48 MB

  14. #14
    Member Bobba's Avatar
    Join Date
    May 2018
    Location
    Ngaruawahia
    Posts
    1,294
    Quote Originally Posted by 00buck View Post
    I had 1 like that, not fully broken- just cracked. Asked several skilled welders if it could be fixed, no dice. The 525 receivers will work and don't suffer the same problems, I could have got one at the time but a bit spendy at $350. I sold off the parts for around $200 and moved on. Italian junk to be fair.
    I think your right. Any repair is not going to last long so probably not worth the effort.

    He should just go buy new but i think the registration thing is holding him back.

  15. #15
    Member
    Join Date
    Aug 2019
    Location
    North Canterbury
    Posts
    271
    Quote Originally Posted by Moa Hunter View Post
    If the sides of the receiver have sufficient thickness, I imagine it would be straight forward to clamp the broken rear piece of receiver from the stock in position with the forward section and drill through both, one hole on each side, then tap a thread into the forward section and epoxy and screw both together with a high grade epoxy. Perhaps even making a steel cap on the rear section that the screws pass through and relieving and bedding it into the butt.
    This was my first thoughts, in construction we an expoxy resin; Hilti RE500, this stuff I use for all sorts of projects
    Moa Hunter and Jaco Goosen like this.
