Thread: Flush mag for howa mini

  1. #1
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,514

    Flush mag for howa mini

    Anyone had any luck cutting down the howa mini magazine to sit flush with the stock?like the idea of one in 7.62x39 but don’t like the sticking out mags. Thanks

  2. #2
    Member
    Join Date
    Aug 2018
    Location
    Christchurch
    Posts
    1,647
    The magazine well protudes from the stock anyway. It'll never be satisfactorily flush with the stock. And it's single stack so you'd end up with a 2rd mag.

  3. #3
    Caretaker stug's Avatar
    Join Date
    May 2012
    Location
    Rolleston, Canterbury
    Posts
    5,040
    I made a blind mag stock for a Howa mini. I ended up cutting the mag short and sitting it inside the stock. The pain with this is the much reduced mag capacity, but the biggest one is trying to reload the mag.
    You need to push the round about half way into the chamber and then slide it back into the mag. With a scope on there is not much room to do this.
    The other problem is there are no feed lips on the action so the feed lips have to be on the magazine box. I tried making a double stack internal mag box but feeding was an issue because the feed ramp is designed for a centre feed, rather than rounds coming in from the side. By altering the sides of the feed ramp it might work.
    All up it is a lot of work to do and would probably be easier to buy a Zastava mini.

  4. #4
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,152
    I've cut two down, if you dock the tail of the follower you'll still get 4 (x39 cases) or 5 (x223 cases) down. It doesn't come flush with the stock as the bottom metal protrudes a little bit but it still carries heaps better, sort of the same as a T3 with the 3 shot mag - and nicer than a 527 with its 3 or 5 shot mag, your hand comes back to the point of balance.

  5. #5
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,152
    Some magazines will "convert" a double stack to a single for presentation to the bolt for pick-up and chambering, these will top load fine, I have a Savage Stevens 223 with a blind magazine like this. I looked at modifying a Savage Stevens blind mag but it was going to take someone with a lot more skill (and patience) than I.

  6. #6
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,514
    Not worried about reducing the number of shots as usually only load 3 in the A7 even though it can take more.

  7. #7
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,152
    Here ya go - this thread has a picture of one with the 5 shot (223) in. Carries better than it looks.

    https://www.nzhuntingandshooting.co....n-1-9-a-41297/

    Cheers

  8. #8
    AWS
    AWS is offline
    Member
    Join Date
    Feb 2019
    Location
    New Mexico
    Posts
    46

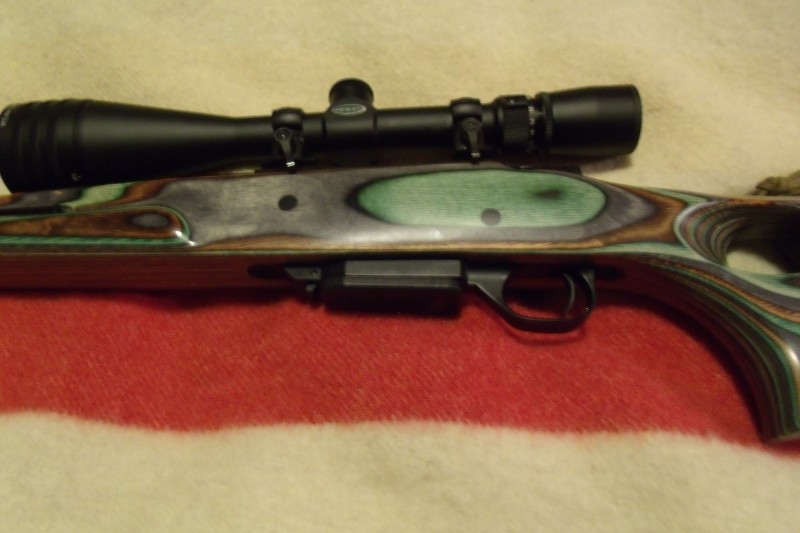

    Here's a short mag I did on my Howa Mini in 6.5 Grendel. I will try and post a link to a "How To"

    Name:  IZnzGD.jpg
Views: 2139
Size:  69.6 KB

    Link

    http://www.65grendel.com/forum/showt...ound-flush-mag
    Last edited by AWS; 23-04-2019 at 03:23 AM.
    northdude and Pete_D like this.

  9. #9
    Member
    Join Date
    Aug 2016
    Location
    Gisborne
    Posts
    385
    Quote Originally Posted by AWS View Post
    Here's a short mag I did on my Howa Mini in 6.5 Grendel. I will try and post a link to a "How To"

    Attachment 109694

    Link

    Modified 4 round flush mag
    Looks good, I am going to buy a spare mag for my sons Mini and give this a go. I just need to join that forum I guess to see the photos. Was it difficult ?

  10. #10
    AWS
    AWS is offline
    Member
    Join Date
    Feb 2019
    Location
    New Mexico
    Posts
    46
    No, actually it is pretty simple, it is almost as if Howa planned it to be done. I didn't shorten the top of the bottom plate so mine holds one less than the mag in the "how to". The hardest part is taking a saw to an expensive mag.
    northdude and Pete_D like this.

  11. #11
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,514
    That’s the look I’m after,looks way better than the 10 shot,why won’t howa make a flush mag as an option when purchasing??

  12. #12
    Member
    Join Date
    Dec 2011
    Location
    North Otago
    Posts
    154
    Howa does make a 5 shot mag, seen them advertised in nz but that was a couple of years ago, haven't seen seen them again.

  13. #13
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,152
    I bought a 5 shot one, it turned out to be a ten with a extended leg on the follower so it only held 5 . . . was the same box

  14. #14
    Member
    Join Date
    Oct 2014
    Location
    Stratford, Taranaki
    Posts
    1,458
    Quote Originally Posted by Tentman View Post
    I bought a 5 shot one, it turned out to be a ten with a extended leg on the follower so it only held 5 . . . was the same box
    I see Reloaders have them. I looked at the pics and couldn't see much difference in size so was hesitant to buy one! Thanks for the confirmation

  15. #15
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960

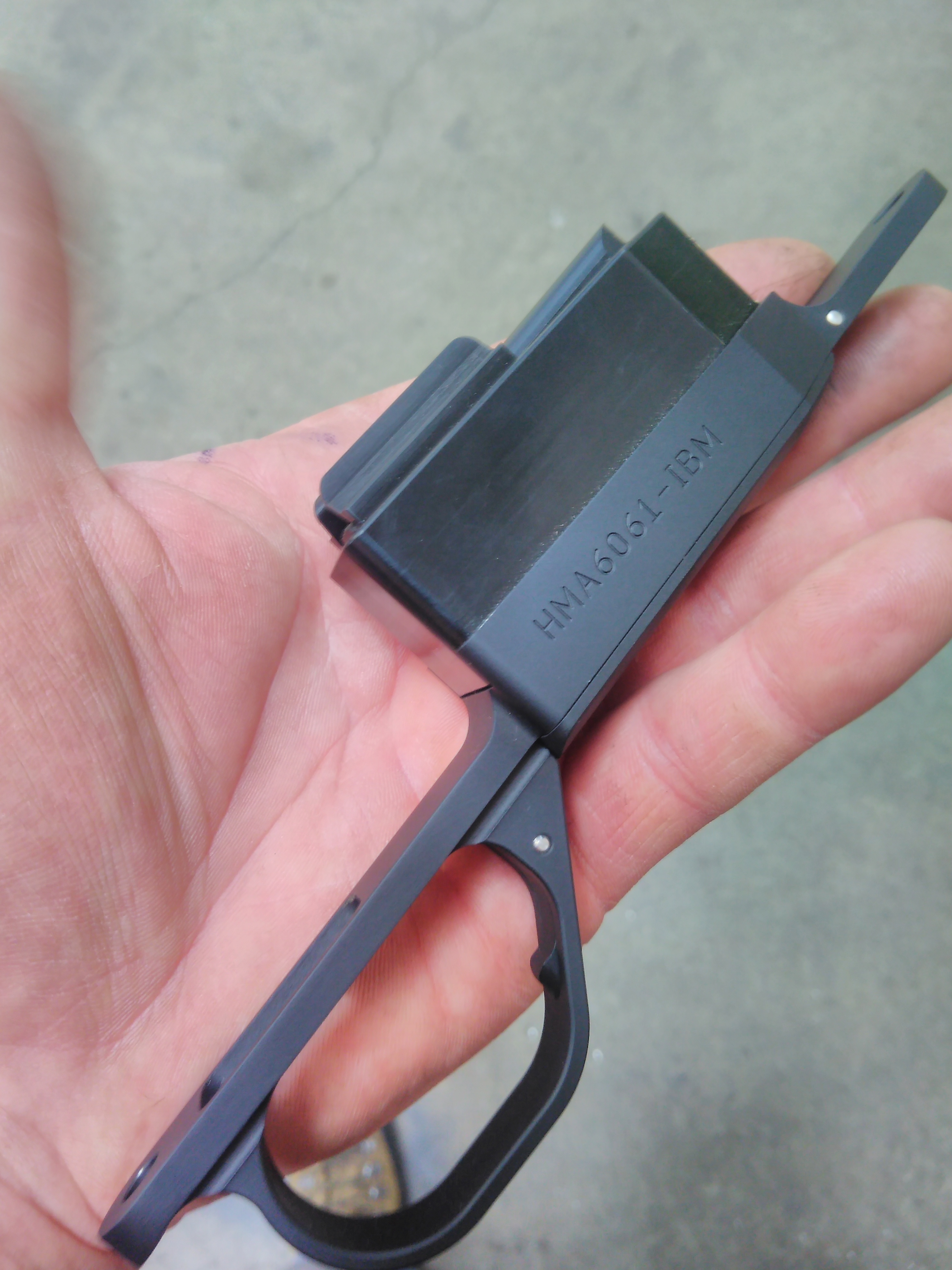

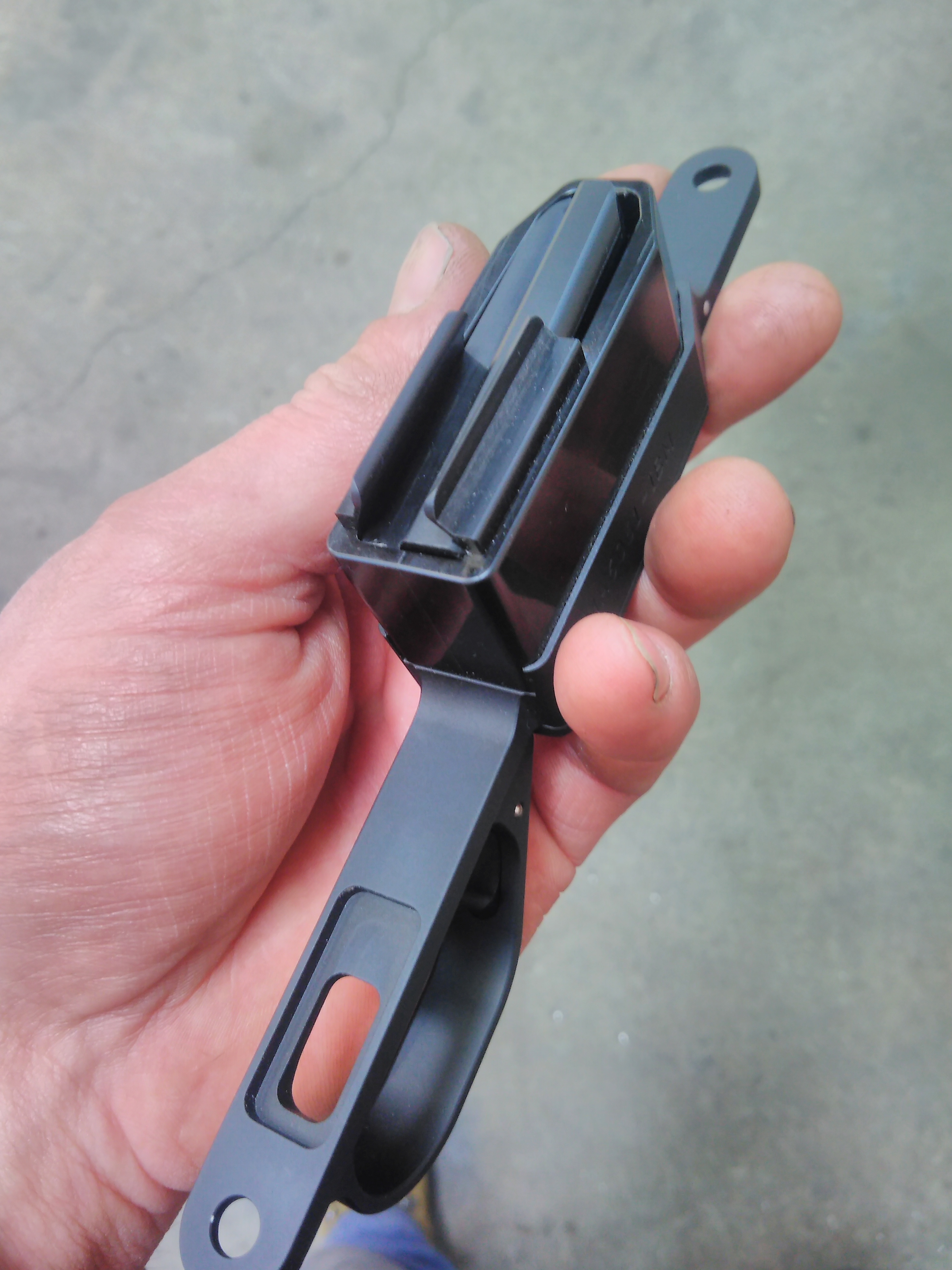

    I can hardly wait to get home and fit it.

    Name:  IMG_20200903_123201.jpg
Views: 1448
Size:  1.98 MB

    Name:  IMG_20200903_123207.jpg
Views: 1612
Size:  1.95 MB
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.
