Thread: Help needed - what is this muzzle thread?

  1. #1
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726

    Help needed - what is this muzzle thread?

    Unknown thread on a 300 BLK

    Not 5/8x24.

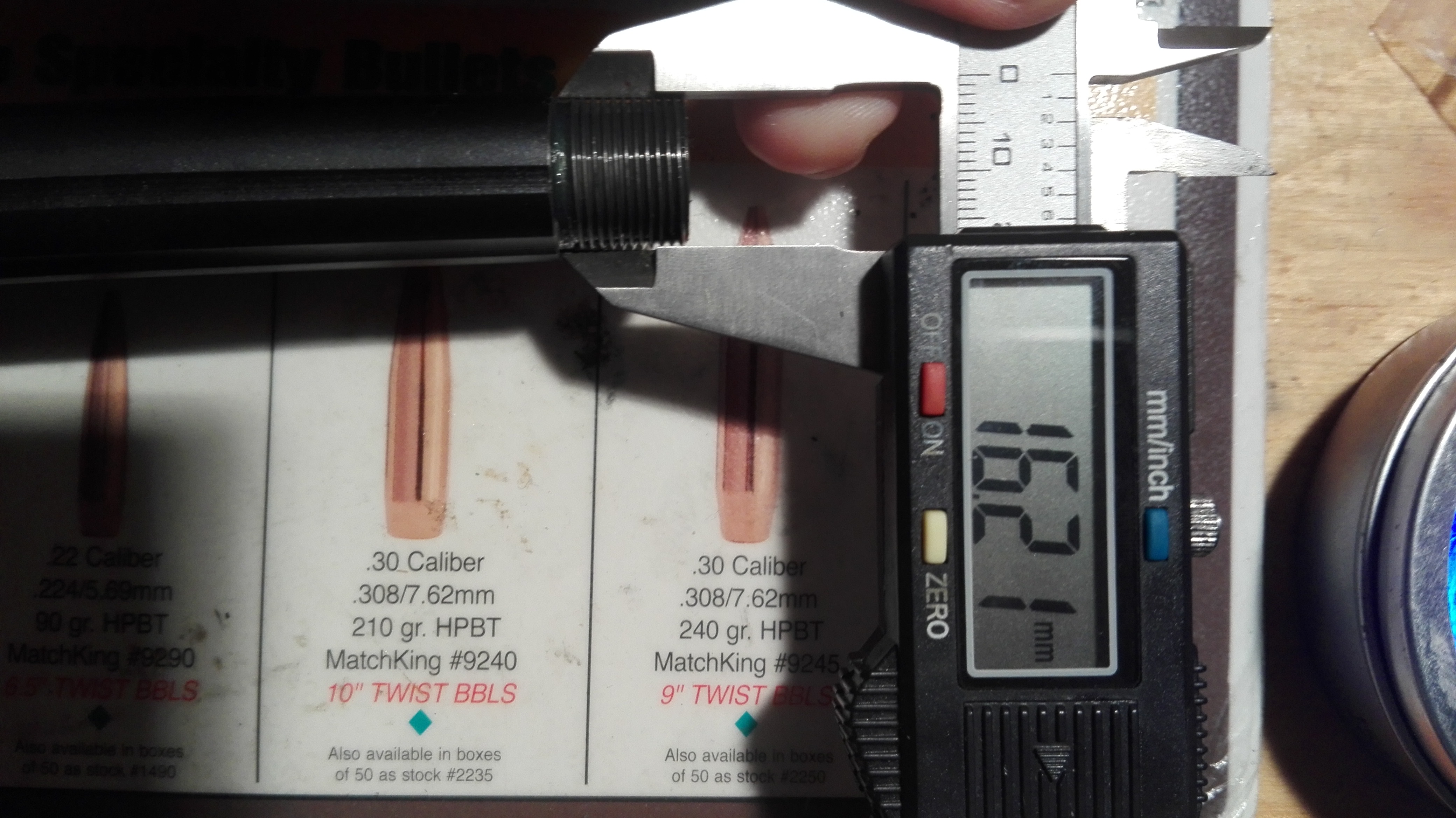

    Name:  IMG_20180630_173348.jpg
Views: 461
Size:  2.38 MB

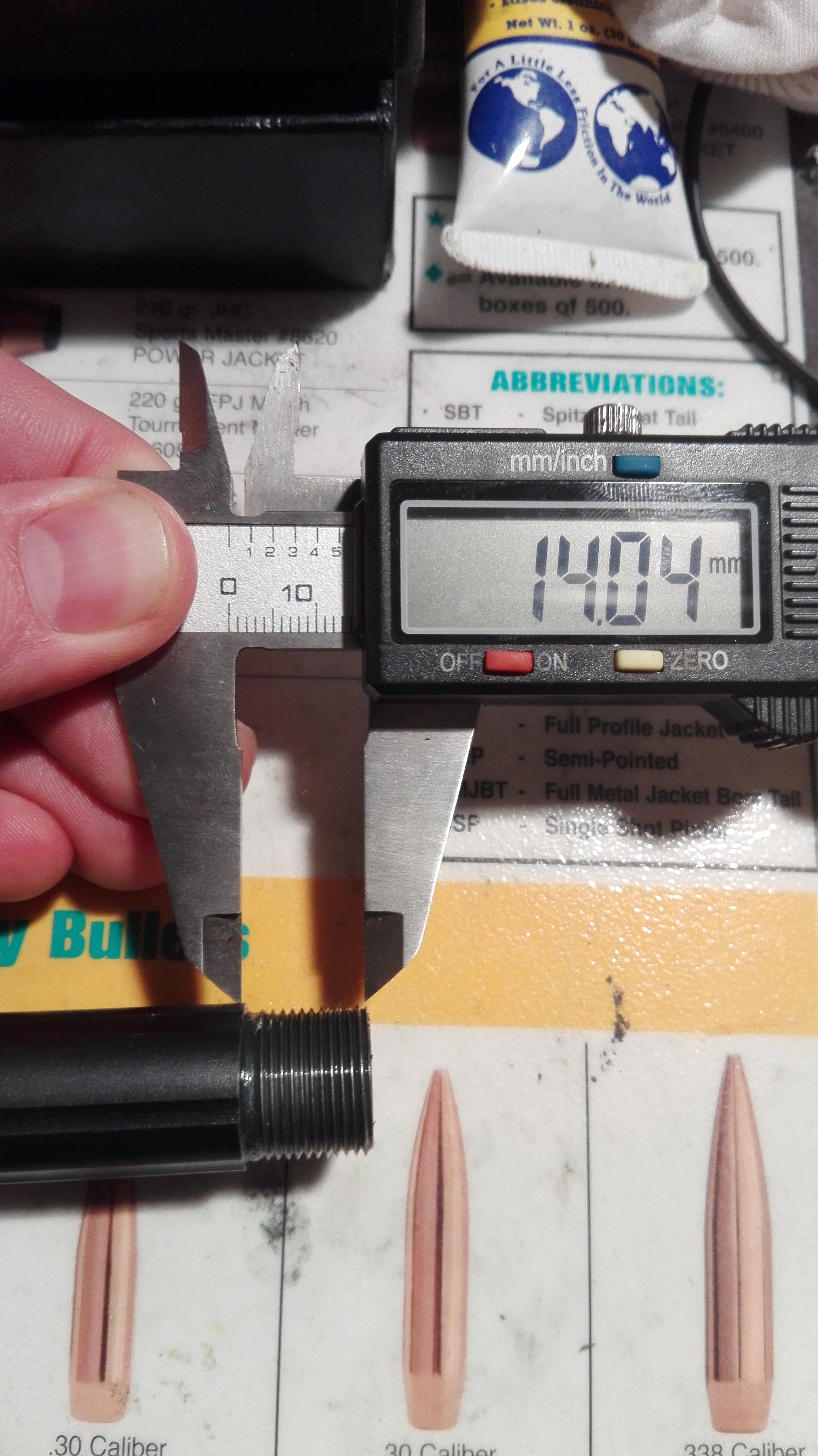

    Name:  IMG_20180630_173311.jpg
Views: 459
Size:  2.82 MB
    Warm Barrels!

  2. #2
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,981
    Measure the threads only, peak to peak, or trough to trough, not to the shoulder. Do it over the greatest span of threads you can.
    veitnamcam likes this.
    There are only three types of people in this world. Those that can count, and those that can't!

  3. #3
    Banned
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,992
    who's the manufacturer ?

  4. #4
    Member scotty's Avatar
    Join Date
    Dec 2013
    Location
    waikato
    Posts
    2,460
    oversized 16x1 ?..........

  5. #5
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    Quote Originally Posted by gadgetman View Post
    Measure the threads only, peak to peak, or trough to trough, not to the shoulder. Do it over the greatest span of threads you can.
    Over the greatest span 11.4 - 12mm

    between a thread .90mm
    Warm Barrels!

  6. #6
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    Quote Originally Posted by gonetropo View Post
    who's the manufacturer ?
    Bergara but has been shortened and threaded hence it is not the factory 5/8x24
    Warm Barrels!

  7. #7
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,972
    Quote Originally Posted by 300_BLK View Post
    Over the greatest span 11.4 - 12mm

    between a thread .90mm
    Over how many threads? 12mm over 12 threads would be 16x1 if its not that then could be anything especially if done by a home gamer.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  8. #8
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,981
    Quote Originally Posted by 300_BLK View Post
    Over the greatest span 11.4 - 12mm

    between a thread .90mm
    Looking at the photo you'd be looking at a bit over 11mm over a bit over 11 threads which would be more like 1mm pitch. I'd guess as @scotty said above.
    There are only three types of people in this world. Those that can count, and those that can't!

  9. #9
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    Quote Originally Posted by veitnamcam View Post
    Over how many threads? 12mm over 12 threads would be 16x1 if its not that then could be anything especially if done by a home gamer.
    Quote Originally Posted by gadgetman View Post
    Looking at the photo you'd be looking at a bit over 11mm over a bit over 11 threads which would be more like 1mm pitch. I'd guess as @scotty said above.
    12mm over 12 threads so I guess 16x1 is the winner?
    Warm Barrels!

  10. #10
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,972
    Quote Originally Posted by 300_BLK View Post
    12mm over 12 threads so I guess 16x1 is the winner?
    Looks like it....in your photo it almost looks like the the thread is tapered? or maybe just a trick of the camera.
    Regardless if 11mm=11 threads and 12mm = 12 threads it will be 1mm pitch.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  11. #11
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    NZ
    Posts
    3,726
    Thanks @veitnamcam & @gadgetman
    Warm Barrels!

  12. #12
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,536
    Quote Originally Posted by veitnamcam View Post
    Looks like it....in your photo it almost looks like the the thread is tapered? or maybe just a trick of the camera.
    Regardless if 11mm=11 threads and 12mm = 12 threads it will be 1mm pitch.
    Ohhh how classic would pipe threads be on a barrel
    veitnamcam likes this.
    Identify your target beyond all doubt

  13. #13
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,972
    Quote Originally Posted by Tommy View Post
    Ohhh how classic would pipe threads be on a barrel
    If you did it up real tight it would give the muzzle some choke like the flash 22lrs
    Tommy likes this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  14. #14
    DPT
    DPT is offline
    Member
    Join Date
    Mar 2012
    Location
    Hamilton
    Posts
    521
    Id find it interesting that the thread has been changed from 5/8-24 to 16x1, both threads are very very similar in diameter and pitch. It could possibly be an over sized 5/8-24. Who threaded it?
    veitnamcam and Kiwi Greg like this.

  15. #15
    Member
    Join Date
    Jul 2017
    Location
    Whangarei
    Posts
    1,195
    Not trying to complicate things but being in the hydraulic Hose game I find an M16 thread is typically .1 - .2mm under size. So smack on 5/8". and the differance between 24tpi and 1mm pitch is about bugger all, 24tpi would be 1.05mm.
    So none of this helps explain a thread OD of 16.2mm
    Zq
