Thread: Help - stuck bolt

  1. #1
    Member mopheadrob's Avatar
    Join Date
    Jun 2018
    Location
    Christchurch
    Posts
    689

    Help - stuck bolt

    Hey guys. My Mossberg ATR bolt won’t slide back. Bolt lifts, needs a bit of a thump to open all the way, but it gets stuck there.

    I had a round in the chamber so I fired that to make the rifle safe.

    Any suggestions - or is it a gunsmith job?

  2. #2
    Member
    Join Date
    Nov 2021
    Location
    Waikouaiti
    Posts
    642
    Knock it down with a bit of wood. Give a few taps. It will come down. Then have a think about what you did wrong.
    Micky Duck likes this.

  3. #3
    Member
    Join Date
    Oct 2014
    Location
    Napier
    Posts
    1,144
    Squirt a few drops of oil down the muzzle leave upright for an hour then tap with a piece of wood or plastic headed hammer. Or tap a cleaning rod down the barrel. Good luck.
    csmiffy likes this.

  4. #4
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    988
    What Muzza said.

  5. #5
    Member
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    150
    Yep; don’t beat the bolt handle and taking it to a gunsmith is sensible.

    As it seems the bolt will lift, and if you want to have a go yourself, things I’d try are (1) remove the trigger and bolt stop, just in case something is binding there; and (2) put a squirt of WD-40, CRC, Kroil etc down the barrel and then drop a steel cleaning rod repeatedly from about 1 foot in height (cut an old brush down to just the stub of you are worried about protecting the thread on the rod).

    I’ve got every stuck case I’ve had (which is not many!) out this way without issue. Ditto a broken pull through once.
    zimmer, Moa Hunter and Micky Duck like this.

  6. #6
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,055
    If they use a bolt design similar to savage or the omark with a floating bolt head it could be possible the cross pin has bent or snappedwhich would be more difficult to rectify.
    Micky Duck likes this.

  7. #7
    Member
    Join Date
    Feb 2019
    Location
    Tarras
    Posts
    1,387
    Quote Originally Posted by Marty Henry View Post
    If they use a bolt design similar to savage or the omark with a floating bolt head it could be possible the cross pin has bent or snappedwhich would be more difficult to rectify.
    Can u explain more on this as my Savage has been doing this the last few rounds on factory ammo

  8. #8
    Member scotty's Avatar
    Join Date
    Dec 2013
    Location
    waikato
    Posts
    2,454
    give up and put in the pay it forward thread............

    i have no seriously helpful input so i thought i would suggest something ridiculous.

  9. #9
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,055
    Quote Originally Posted by Padox View Post
    Can u explain more on this as my Savage has been doing this the last few rounds on factory ammo
    I don't own a savage but friends do and they are excellent rifles. The floating bolt head design is supposed to ensure better locking by permitting the locking head to "wobble" slightly and therefore align itself properly in the recesses. There is an added bonus that headspace is easy to ajust with different size bolt heads same as in the Lee enfield.
    The bolt head is attached to the bolt body with a cross bolt pin with a hole in the middle to allow the firing pin to pass through which holds the parts together..
    In theory this cross pin can bend or snap rendering the gun unusable.
    The omark version had some early failures resulting in destroyed guns (the so called small pin version) so named because the far side of the pin going into the bolt body was only about 3mm in diameter and could snap under the load of closing or opening the bolt.
    The answer was to double the size of that part to 6mm.

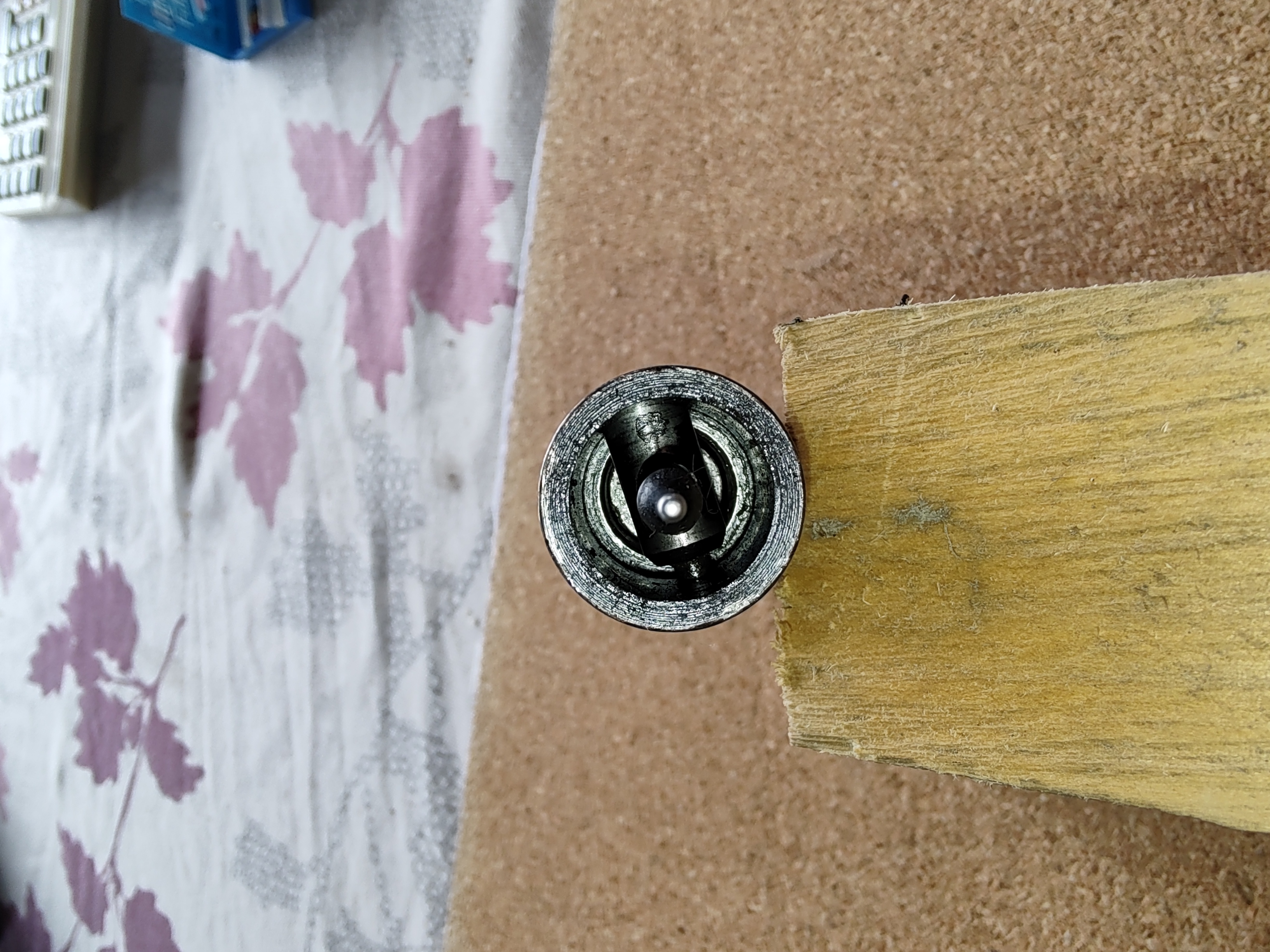

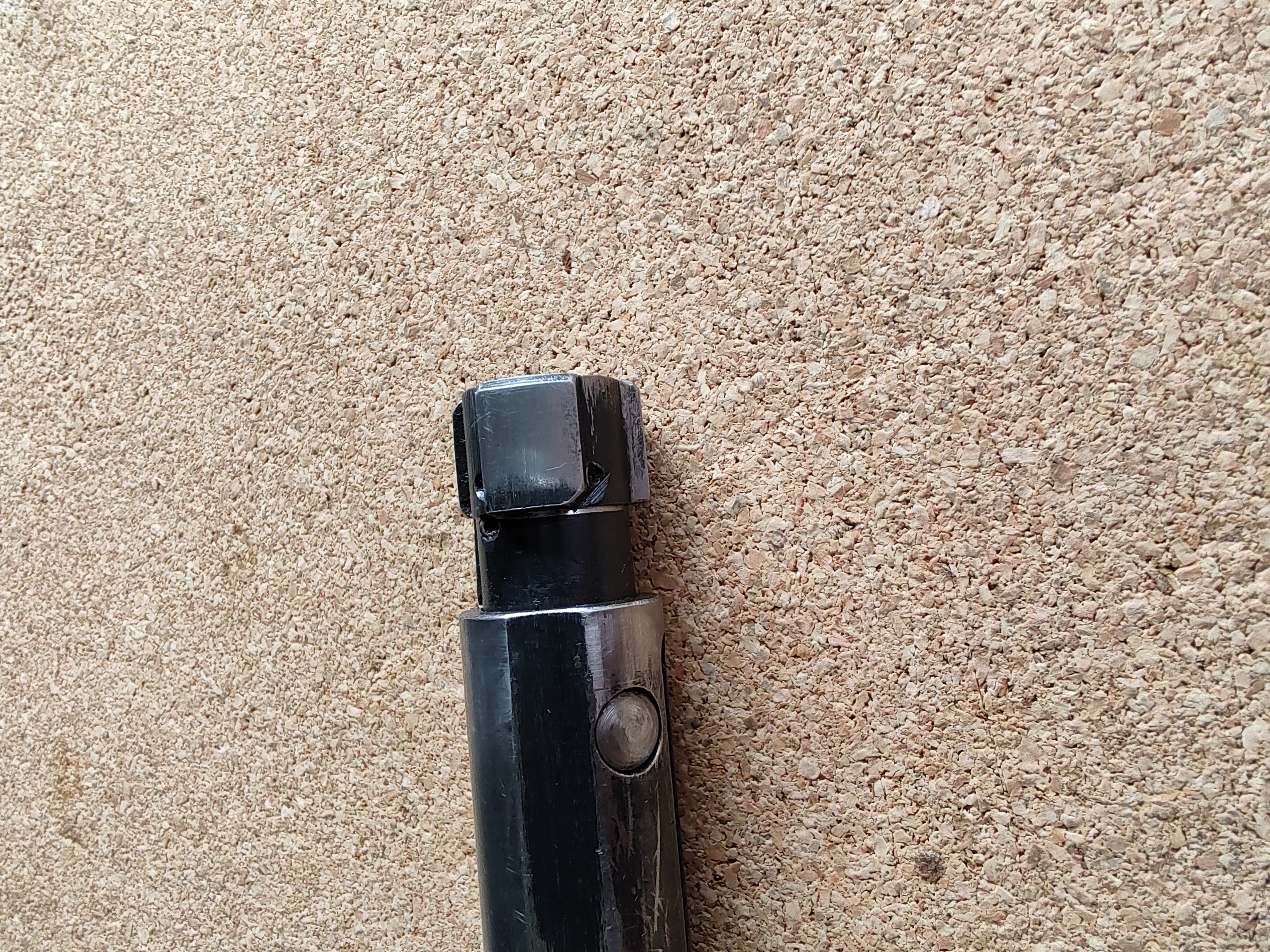

    The photos are of an omark bolt complete and with the bolt head removed showing the firing pin and cross pin.
    Hopefugly that's helpful
    Attached Images Attached Images
    Moa Hunter and Micky Duck like this.

  10. #10
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    Quote Originally Posted by Padox View Post
    Can u explain more on this as my Savage has been doing this the last few rounds on factory ammo
    @Padox, I feel that in the interests of personal safety you should cease using the rifle immediately and to help you out, I will come down to Tarras with the 2506AI and shoot the Fallow bucks for you to keep you from harm

  11. #11
    Member
    Join Date
    Feb 2019
    Location
    Tarras
    Posts
    1,387
    Don't know that there will be any this year as I'm normally scouting over the next month but the next 10 days will be isolated due to my daughters surgery to take the tumor out
    ZQLewis likes this.

  12. #12
    Banned
    Join Date
    Mar 2015
    Location
    North Canterbury
    Posts
    5,462
    Quote Originally Posted by Padox View Post
    Don't know that there will be any this year as I'm normally scouting over the next month but the next 10 days will be isolated due to my daughters surgery to take the tumor out
    Gee thats not something I would like to be facing, at least treatment for young people has made spectacular gains in the last three decades. Good wishes to you

  13. #13
    Member
    Join Date
    Feb 2019
    Location
    Tarras
    Posts
    1,387
    Treatments have come a long way if I can reduce the amount of medication she has to take we on a win
    dannyb likes this.

  14. #14
    Member mopheadrob's Avatar
    Join Date
    Jun 2018
    Location
    Christchurch
    Posts
    689
    Thanks all for the sage advice. Being an impatient bugger and prone to ingoring those much wiser than myself, I gave it a gentle tap with a rubber mallet. Out it came.

    The spent cartridge had a shiny ring of abrasion around the base, so I’m thinking I should have FL sized them. I usually just give a little shoulder bump, but there’s a chance these came from someone else (memory is terrible these days). Checked another round and the same thing.

    Bummer… anyone got a bullet puller I can borrow?!

  15. #15
    Member mopheadrob's Avatar
    Join Date
    Jun 2018
    Location
    Christchurch
    Posts
    689
    Oh, and yup - it’s got the weird cross pin bolt design. Thanks for the explanation, I wondered why it was like that as it seemed pretty easy to wiggle loose
