Thread: Jungle carbine flash suppressor dimensions

  1. 26-10-2015, 07:47 PM #1
    AzumitH
    AzumitH is offline
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    366

    Jungle carbine flash suppressor dimensions

    As the title suggests, I'm after some dimensions so I can knock up something similar for a project. Does anyone have one in the safe they could slap a ruler/calipers on and get me some numbers?

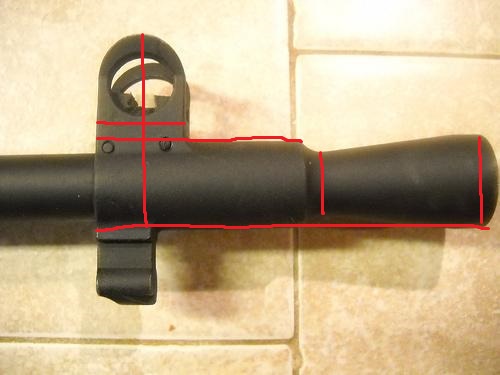

    Name: 5365683610_1526d23905-1.jpg Views: 889 Size: 38.6 KB

    Measurements along the red lines would be ace.

    Thanks in advance.
    Reply With Quote Reply With Quote
  2. Register to remove these Ads!
  3. 27-10-2015, 06:35 AM #2
    NZShoota
    NZShoota is offline
    Member
    Join Date
    Feb 2012
    Location
    Rapa
    Posts
    1,048
    I'll get some for you today.
    Reply With Quote Reply With Quote
  4. 27-10-2015, 03:21 PM #3
    NZShoota
    NZShoota is offline
    Member
    Join Date
    Feb 2012
    Location
    Rapa
    Posts
    1,048

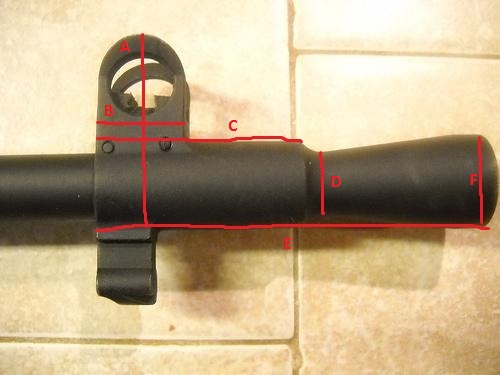

    Name: Jungle carbine.jpg Views: 713 Size: 39.2 KB

    A 43.72mm
    B 20.68mm
    C 44.70mm
    D 15.31mm
    E 89.58mm
    F 22.64mm
    AzumitH, steven and res like this.
    Reply With Quote Reply With Quote
  5. 27-10-2015, 07:35 PM #4
    AzumitH
    AzumitH is offline
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    366
    Absolute legend @NZShoota, thanks so much for that
    Reply With Quote Reply With Quote
  6. 29-10-2015, 12:08 PM #5
    steven
    steven is offline
    Member
    Join Date
    Dec 2012
    Location
    Wellington
    Posts
    1,786
    Enfield No 5 Mk1 Front Sight, Flash Eliminator | Trade Me
    "I do not wish to be a pawn or canon fodder on the whims of MY Government"
    Reply With Quote Reply With Quote
  7. 29-10-2015, 09:34 PM #6
    AzumitH
    AzumitH is offline
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    366
    Purchased, thanks for the heads up guys (got a sneaky PM too). Saves me some time in Solidworks
    Reply With Quote Reply With Quote
  8. 29-10-2015, 09:45 PM #7
    clickbang
    clickbang is offline
    Member clickbang's Avatar
    Join Date
    Apr 2015
    Location
    South
    Posts
    394
    Can ya tell us what ya making .

    Sent from my GT-I9300 using Tapatalk
    Reply With Quote Reply With Quote
  9. 29-10-2015, 09:55 PM #8
    AzumitH
    AzumitH is offline
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    366
    Have been taking photos, will make a thread in projects subforum once I'm all done, which will be a lot sooner now
    Reply With Quote Reply With Quote
