Weight totally depends on what the rifle is chambered in, barrel length and thickness.. suppressor, grip and scope used.
The chassis sits at about 600 grams with most grips fitted.
The barreled actions fluctuate a lot between a s/s light weight and a blued heavy barrel. The best weight savings is achieved by cutting the barrel short, thinning it and fitting a carbon tension sleeve.
Very easy to achieve a sub 2kg rifle fully set up.
My personal rifle in 6.5 grendel is 1.6kg.
Attachment 209759
With the chassis,grip (heavy rubberized one at that) and neopod bipod fitted I am at around 700 grams ..... The original stock alone was nigh on a kilo.....
When I first picked up the chassis I honestly thought someone was taking the piss and it was just a toy , not a rifle part.
@Wingman any vids of these up being used yet?
I'm just waiting on my rings to turn up, then I'll get it on the scale as a 12.5" Grendel with a VX5. Might even do a video with it if I get time.
@Wingman when you say "the best weight savings is achieved by cutting the barrel short, thinning it and fitting a carbon tension sleeve". What sort of cost to do that?
$350Quote:
Originally Posted by Preacher
Wow that's really reasonable I reckon. Had a much higher figure in my mind.
Video as promised
https://youtu.be/845yYh1PqGw
Picked my new rig up today.
Attachment 211048
Yep a other full on week of custom builds completed today. Enjoy guys! Post up pics your Elude adventures!
Attachment 211049
That photo has my loins twitching.
Ah man I was so happy with my current .223! These look absolutely amazing man! So stoked they are kiwi made too!
@Wingman, would it be possible please to describe the build of your rifle and the various lightening steps necessary from normal (if any) that gives the stated 1.6kg weight, assuming already that that figure is without bipod, scope and rings?
Hey mate, yes correct, bare rifle weight, without going into to much detail, grams add up to kgs... I really pushed the boat out on my personal build.Quote:
Originally Posted by Puffin
The base production chassis that is available is 510gr. My one is a little lighter at 488gr as it has a few custom built prototype parts on it such as the cheek rest and mount and a few hollow drilled parts.
FYI the same chassis in magnesium instead of 6061 T6 alloy weights 382gr.
The barreled actions vary in weight depending on chambering, barrel length, material and barrel profile.. here is a std heavy barrel blued 16.5" .300blk and and a std S/S 20" barrel lightweight 6.5 Grendel on the scales.
Attachment 211138
Attachment 211139
My Grendel started as the lightweight S/S model. It has a smaller knox profile and lends itself to a much lighter build. My barrel has been cut back to 10.5" re-profiled and carbon fiber tension sleeved. It now weighs 394 grams. The bare s/s lightweight action is about 360gr from memory but I dont seem to have a photo..
Attachment 211140
My bolt knob has been removed and replaced with a carbon one which shaved another 7 grams.
Attachment 211141
Attachment 211142
Attachment 211143
All the bolts on the rifle (102gr) have been replaced with titanium bolts (46gr).
All my accessories are also lightweight options:
I run the shorter DPT Mini over barrel suppressor with 2 baffles. 200gr instead of 285gr for the std DPT.
Attachment 211144
The already light Talley ultra low rings have been machined/ hollowed out on the underside shaving a few more grams... I run a very minimalistic M-loc bipod, and a compact scope.
There are lots of other small things that shave very small amounts of weight but this all removes from the total weight.
I want one of these chassis for my rem700 sa!!
Looking good @Chur Bay ... :thumbsup:Quote:
Originally Posted by Chur Bay
That's about as minimalist as it gets.
With a set-up like that you can't be much over 2kg ready to go?
A light weight 6mm arc please.
6mm BR please
That my thinking too. 1/10 twist 16" barrel for the lighter projectiles. Like under 90 grains.Quote:
Originally Posted by Gkp
Why on earth would you want a 6MMARC with a slow twist? Its only efficient with the heavier projectiles and you can fire 80 grain projectiles through a 1 in 8 twist fine but not 108/110 through a 1 in 10.Quote:
Originally Posted by DeonK
Because i can and i don't agree that it only effiecient with with heavier projectiles. Each to their own mate. Someone on here( forgot his name) got one and he knows what he talking about.
Also i already got a 1/8 twist which i want to keep as it is.
While 6mm ARC has some benefits with a long barrel shooting 100-110gr bullets it is pretty limp wristed with a short barrel which I designed this chassis to be used with.
Ideally a 12.5 inch barrel is where this chassis shines to keep it compact and light without loosing its knockdown power in the Howa mini chamberings.
I have built a few 6mm ARCs and they have nothing on a 6.5mm Grendel with a short barrel. The Grendel runs the higher BC 123gr bullets with the option of running 130gr or even 140gr if you wanted more energy.
6mm Grendel can spice up the ARC a bit and can be made with a Grendel bushing neck die with a 6mm bushing.
6mm AR turbo 40deg for the speed chasers.
6x45 is better for the slower twist lighter 6mm bullets but in general the 6mm range need a 20" to 24" barrel to get performance to match the 6.5 grendel.
6BR or 6mm Dasher are possible built on the .450 bushmaster bolt face. Whether or not the mini action with its smaller bolt lugs are designed to cope with these higher presuered cartridges is debatable.
Thanks for the very imformative explanation @Wingman. Food for thought.
Hmmm... Not so sure about that mate.Quote:
Originally Posted by Wingman
What velocity can you achieve out of the 12.5" Grendel barrel? Not a ragged edge figure, a kind to brass no pressure kind of figure.
Haven't got the figures in front of me, but IIRC the Quickload models were very anemic. Like 2100-2200 ft/sec MV.
Whilst I get the weight / portability bonus, a 20" 6mm barrel in 6mm XC / Creedmoor etc is going to be carry way more energy downrange with the 108gr ELD-M for example.
My 22" 6mm has almost double the energy of a 12.5" Grendel assuming a 2,300 ft/sec MV for the Grendel, which is probably generous. And the Grendel performs considerably worse in windage as well. If I were to shorten my 6mm barrel to 16" I'm pretty confident I'd be seeing an MV around 2,700 ft/sec, which still significantly outperforms the Grendel down-range.
So unless I'm missing something here, there's pretty major trade-off in killing power going for the mini-action / short barrel package.
Would be good to hear your views on that.
Hey mate, you miss understand what I said.. I'm comparing 6mm offerings (6mm ARC 6ppc 6x45 etc) in the limited mag length howa mini rifle that these chassis are designed for... apple's and oranges comparing a 6mm Creedmore to a 12.5" 6.5 Grandel.
The 12.5 grendel gets just under 2300fps with BM8208.
To state the obvious at this point, a 12.5" 6mm ARC shooting 108s doesnt come close to a 6.5 Grendel shooting 123gr.
There is a cross over point where most of the howa mini chamberings alighn, some flatter shooting and some harder hitting but I am a speaking from a longer range carried energy point of view. Maybe I should have made that more transparent. I have also had better luck with the 6.5 match bullets over the 6mm match bullets when it comes to 100% energy dump on animals with no pass through. So although the custom loaded 12.5" 6mm a has a little more muzzle velocity (2360fps) than the 6.5mm (2290fps) it doesn't kill as well as the grendel in my experience.
As you well know I do enjoy a longer shot so this is how I tend to trade these things off against each other but either cartridge is as good as a full length .223rem at more moderate hunting ranges.
Ah I see sorry for the misunderstanding, my bad.
A couple more builds..
A very custom prototype 9mm Luger in a Ceracoated flat dark earth Elude chassis. Runs 1911 9 round mags with a custom mag adaptor and custom control feed bolt.
Stacks 147gr sub ammo out of the 11" vulcan fast 1-10" twist S/S barrel into neat little ragged hole groups at 50y.
Attachment 212702

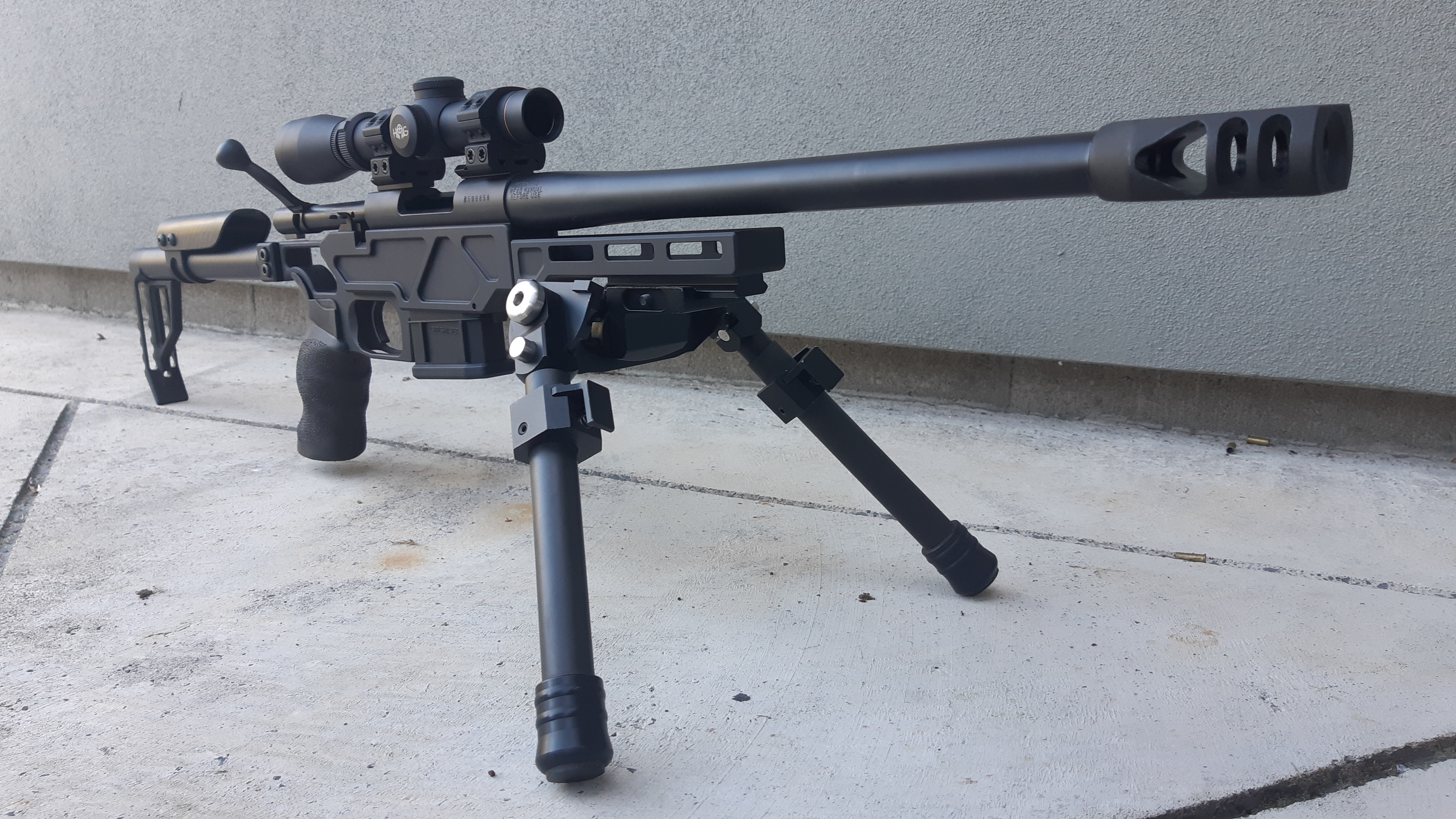

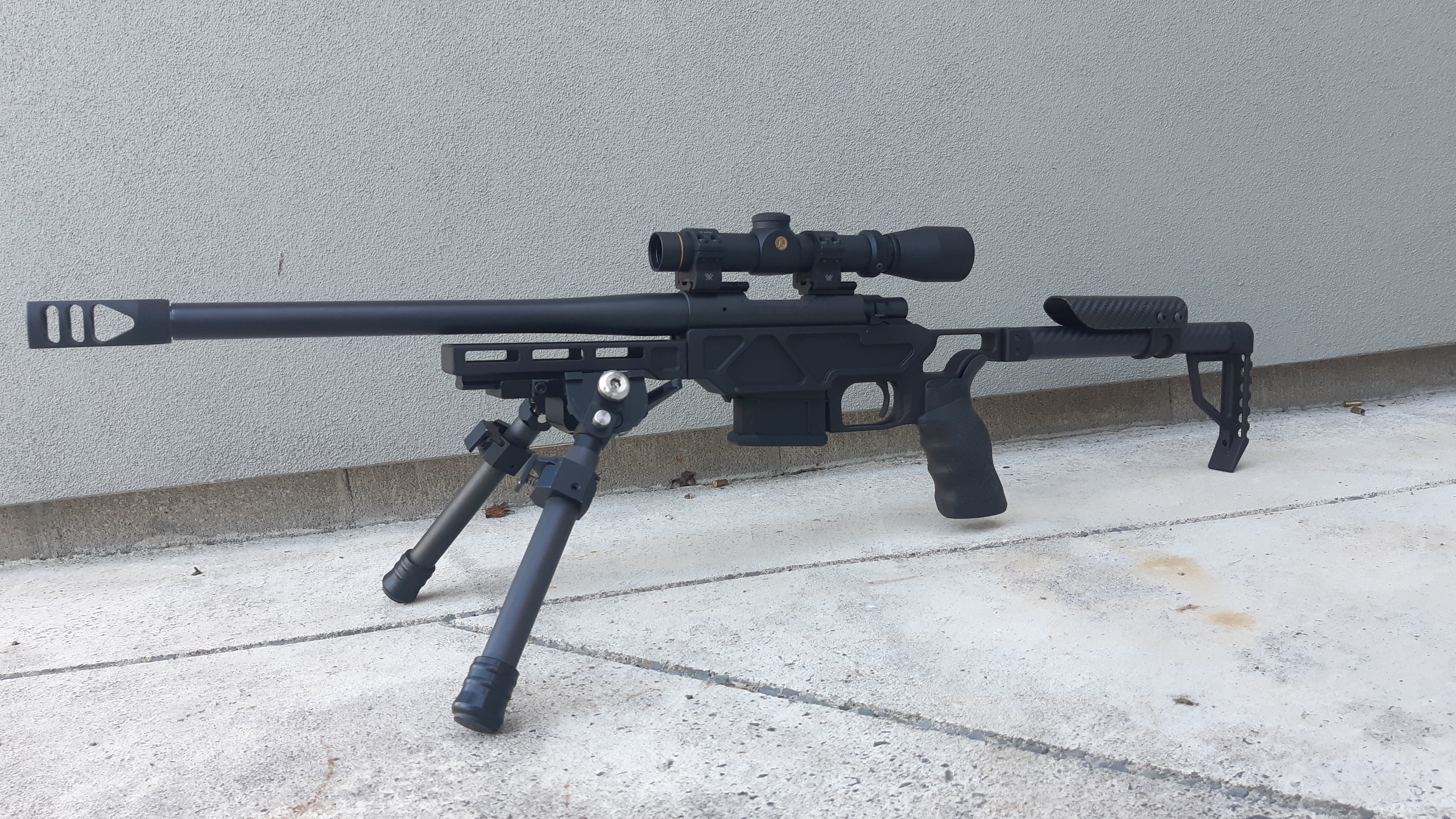

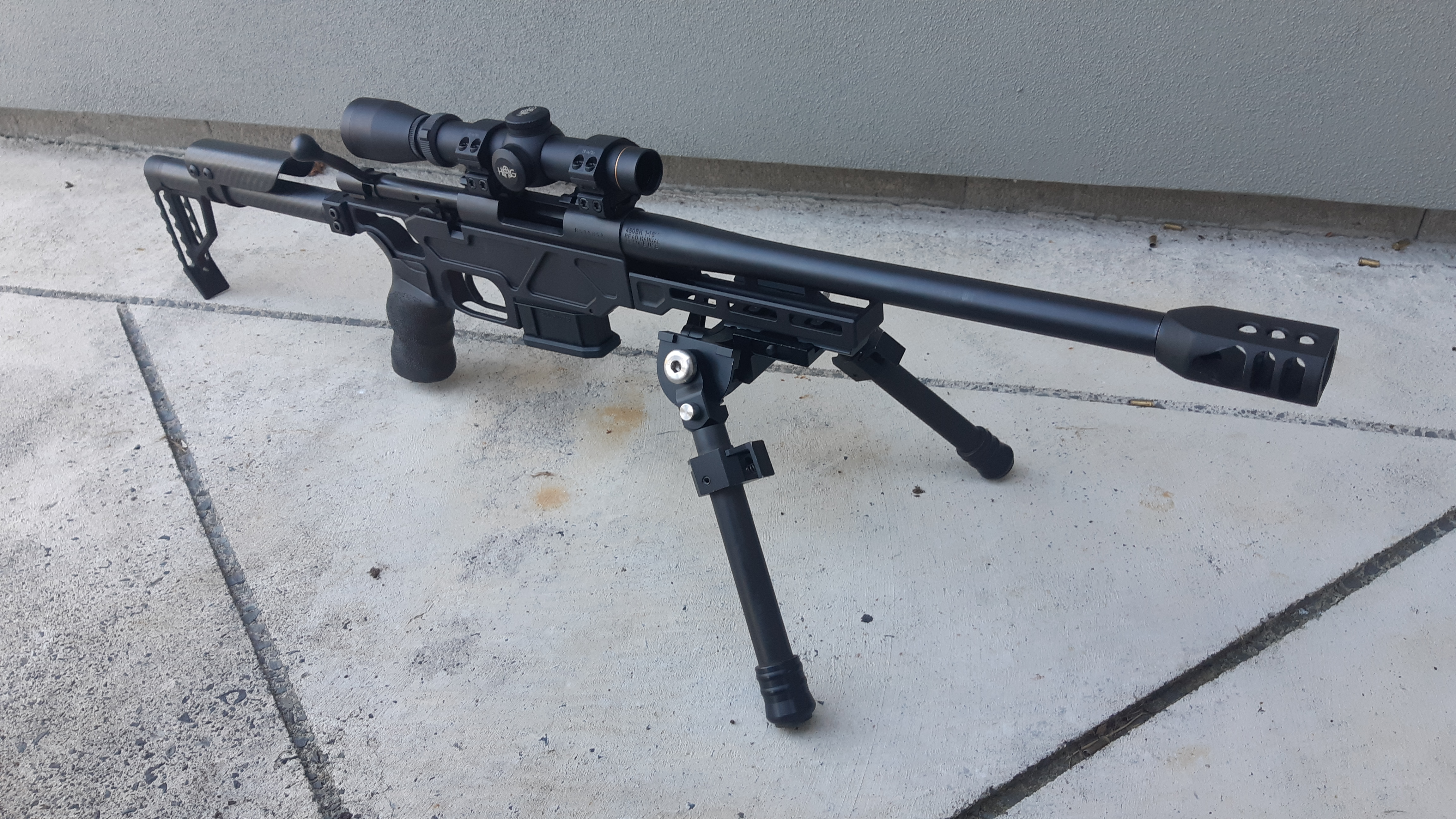

Also a mini thumper in .450 Bushmaster, 13" barrel with interchangeable muzzle break and suppressor for subs and supers. Topped of with the Leupold 1-4x20 Pig plex.. This one is a whole lot of fun..
Attachment 212703
Attachment 212704
Attachment 212705
@Wingman what's the current wait list for 1of these set ups
Depends on what chambering you want. Some are available now others are due Feb.Quote:
Originally Posted by Padox
@Wingman are you selling just the chassis yet?
Yes
@Wingman what's a chassis worth?
1k
when you decide to make a long action one for the HOWA1500 you will be even busier than you are now LOL....
I picked up my xmas pressie but unfortunately no chance to shoot yet.
It's a 6.5 Grendel with the carbon tensioned 12.5" barrel + DPT, topped with a 1-8x Nikko Stirling Octa.
The chassis alone is unbelievably light! Truly a some great engineering there.
https://i.imgur.com/ejfUu8X.jpg
(Temporarily removed the cheek riser until I sort out a decent cheek weld for my face... even though scope is sitting on medium rings, the butt stock tube is better for me.)
@Wingman do you have any chassis in stock or are they all currently spoken for?
There was one on the counter at Shooter Ready a few days ago, don't know if it was sold or not.Quote:
Originally Posted by Scotts
Had mine out for a pest mission with my son this week, he absolutely loved shooting it!
Attachment 213913
Mine is finally up and running also.
About to head out for the weekend and see if we can find some freezer fillers and see how it shoots.
Also in grendel with 11inch barrel.
Sighting in was promising - 3 rounds at 100 mtrs after sight in using the custom sst factory ammo
Attachment 213916

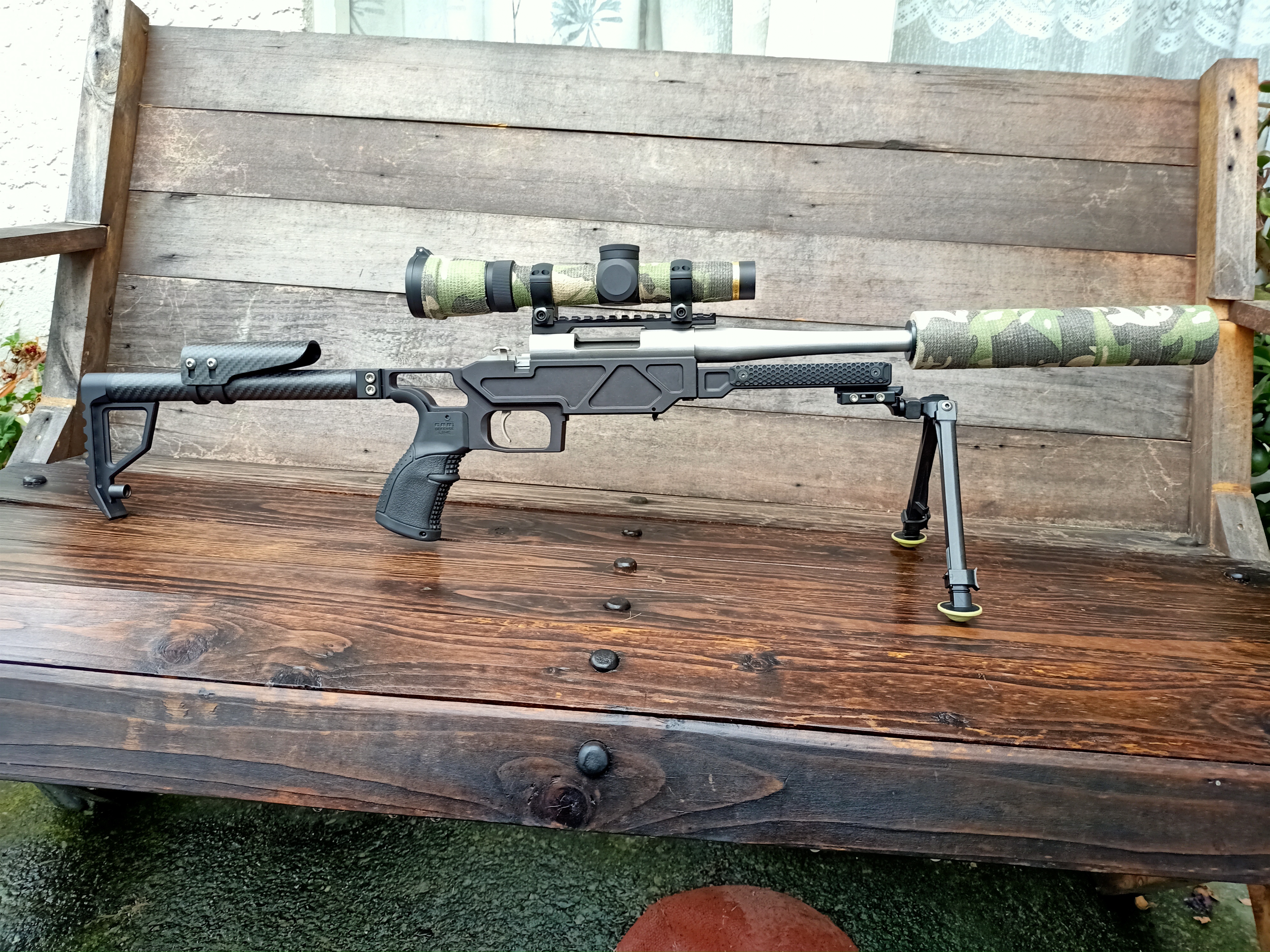

And the finished (ish) rifle...
Attachment 213917
Now in @Scotts hot little handsQuote:
Originally Posted by Mintie
