Thread: Leupold CDS set/grub screw size

  1. 10-11-2019, 06:22 PM #1
    BruntyHunt
    BruntyHunt is offline
    Member
    Join Date
    Sep 2018
    Location
    Christchurch
    Posts
    86

    Leupold CDS set/grub screw size

    Hey, Anyone know what the size specs are for the set screws used on a VX3i CDS turret? There’s three of them which hold the turret on.

    Cheers
    Reply With Quote Reply With Quote
  2. Register to remove these Ads!
  3. 10-11-2019, 06:28 PM #2
    dannyb
    dannyb is offline
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,409
    Farken tiny and made of soft cheese
    Reply With Quote Reply With Quote
  4. 10-11-2019, 06:42 PM #3
    BruntyHunt
    BruntyHunt is offline
    Member
    Join Date
    Sep 2018
    Location
    Christchurch
    Posts
    86
    Yea they suck, stripped one today, I was real lucky to get it back out!!
    There must be some better alternatives out there
    dannyb likes this.
    Reply With Quote Reply With Quote
  5. 10-11-2019, 06:47 PM #4
    dogmatix
    dogmatix is offline
    Member dogmatix's Avatar
    Join Date
    Dec 2011
    Location
    Northern Gaul (Pukekohe)
    Posts
    6,167
    Email Leupold and they can send you replacements.
    Welcome to Sako club.
    Reply With Quote Reply With Quote
  6. 10-11-2019, 06:48 PM #5
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Grub screw spec is 4-40, it is 1/4 (0.250) inch long.

    You need a 3/64 hex allen key, in a pinch a 1.0mm metric allen key will work as well.
    Last edited by ebf; 10-11-2019 at 06:59 PM.
    Bagheera, Woody, dannyb and 1 others like this.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
    Reply With Quote Reply With Quote
  7. 10-11-2019, 07:00 PM #6
    BruntyHunt
    BruntyHunt is offline
    Member
    Join Date
    Sep 2018
    Location
    Christchurch
    Posts
    86
    Awesome! Thanks heaps
    Reply With Quote Reply With Quote
  8. 10-11-2019, 07:05 PM #7
    Ryan_Songhurst
    Ryan_Songhurst is offline
    Wadiyatalkinabeet Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,594
    Warning.... I have had two different sized grub screws on different VX3's, had the same with VX6 and VX5 also
    Woody and dannyb like this.
    Flappy Disc Customs Bespoke Hunting Rifles
    Reply With Quote Reply With Quote
  9. 10-11-2019, 07:27 PM #8
    BruntyHunt
    BruntyHunt is offline
    Member
    Join Date
    Sep 2018
    Location
    Christchurch
    Posts
    86
    Best be confirming with leupold then, thanks for the warning.
    Reply With Quote Reply With Quote
  10. 10-11-2019, 08:06 PM #9
    ebf
    ebf is offline
    Mushroom juice ! Hic ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Above the Hutt
    Posts
    6,872
    Quote Originally Posted by Ryan_Songhurst View Post
    Warning.... I have had two different sized grub screws on different VX3's, had the same with VX6 and VX5 also
    Both CDS @Ryan_Songhurst ?

    This was from my CDS turret.
    Viva la Howa ! R.I.P. Toby | Black rifles matter... | #illegitimate_ute
    Reply With Quote Reply With Quote
  11. 10-11-2019, 08:08 PM #10
    Ryan_Songhurst
    Ryan_Songhurst is offline
    Wadiyatalkinabeet Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,594
    Yes
    Flappy Disc Customs Bespoke Hunting Rifles
    Reply With Quote Reply With Quote
  12. 10-11-2019, 08:09 PM #11
    Ryan_Songhurst
    Ryan_Songhurst is offline
    Wadiyatalkinabeet Ryan_Songhurst's Avatar
    Join Date
    Sep 2015
    Location
    South Island
    Posts
    10,594
    Theres two different sizes, some scopes have one size, some have the other, seemingly at random
    veitnamcam, ebf, 10-Ring and 1 others like this.
    Flappy Disc Customs Bespoke Hunting Rifles
    Reply With Quote Reply With Quote
  13. 10-11-2019, 09:37 PM #12
    199p
    199p is offline
    Member 199p's Avatar
    Join Date
    Dec 2011
    Location
    Palmerston North
    Posts
    4,337
    Quote Originally Posted by Ryan_Songhurst View Post
    Warning.... I have had two different sized grub screws on different VX3's, had the same with VX6 and VX5 also
    My vx6 non hd and vx5 hd have two different sizes

    Sent from my SM-G975F using Tapatalk
    Konus binoculars " The power to imagine"
    Reply With Quote Reply With Quote
  14. 11-09-2021, 09:10 PM #13
    ando2506
    ando2506 is offline
    Member
    Join Date
    Feb 2021
    Location
    Otago
    Posts
    344

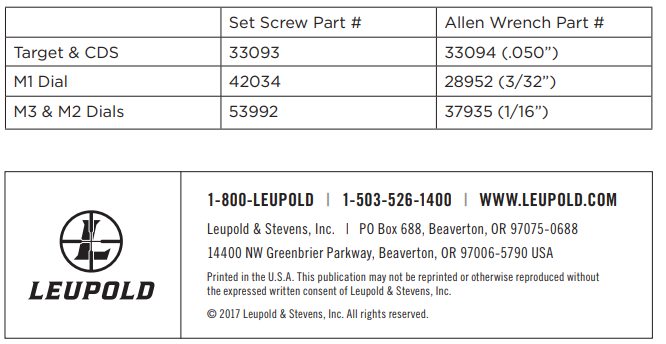

    Name: Leupold CDS allen key.PNG Views: 1224 Size: 57.4 KB
    Reply With Quote Reply With Quote
  15. 12-09-2021, 01:18 AM #14
    Dicko
    Dicko is offline
    Member
    Join Date
    May 2012
    Location
    Sydney
    Posts
    1,752
    Quote Originally Posted by BruntyHunt View Post
    Hey, Anyone know what the size specs are for the set screws used on a VX3i CDS turret? There’s three of them which hold the turret on.

    Cheers
    If it’s about the Allen key it’s a 0.05” for the vx3i cds.

    They’re much smaller than the ones on the VX5-HD!
    Reply With Quote Reply With Quote
