Thread: Model 7 action bolts?

  1. #1
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373

    Model 7 action bolts?

    The rear action bolts on my model 7 is seeming a bit sad in regards to the state of the pocket. I am lairy to have to torque it to spec and complete the rounding (not my doing).

    What is the best option for a replacement? Find one from a machinist shop or something else?

    Any suggestions are appreciated.

  2. #2
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,763
    Contact Gun Works in ChCh.
    Out beyond ideas of wrongdoing, and right-doing, there is a field. I will meet you there.
    - Rumi

  3. #3
    Member
    Join Date
    Jun 2020
    Location
    Canterbury
    Posts
    456
    You don't really need to tighten the rear action screw on the Model 7 too much anyway - just barely tight enough is all I do. Those little 3/32 hex heads are super easy to round out if you aren't careful - my stainless 223 was bought new and the rear action screw head was pretty much rounded out straight from the factory ...
    Preacher likes this.

  4. #4
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    I can't recall the size but Black's fasteners were able to supply me some that just needed adjusting for length. The head was different from the OEM but less likely to strip out.

  5. #5
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Yeah I would like to get one in Torx if I could. I'm aware it doesn't need a bunch of kina's but I don't want to have to worry about it stripping ON there... spend way too much time wet lately and the OCD won't allow me to put it away without pulling action and fully drying. As an aside @Tentman do you recall what the thread pitch etc was? Lost me fecking gauge somewhere lately and it's a fair haul to any fastener supply from us I reckon.

  6. #6
    Member
    Join Date
    Jun 2020
    Location
    Canterbury
    Posts
    456
    I am not Tentman but the rear action screw is 8-36 same as the middle action screw on a 700 ADL
    Preacher likes this.

  7. #7
    Member
    Join Date
    Sep 2013
    Location
    Taupo
    Posts
    1,405
    Remington action screws are 1/4"UNF, if the model 7 is the same as the mod 700
    Anzor do them in 316ss

    Edit. Looks like they aren't. Not sure if Anzor do 8-32.

  8. #8
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210

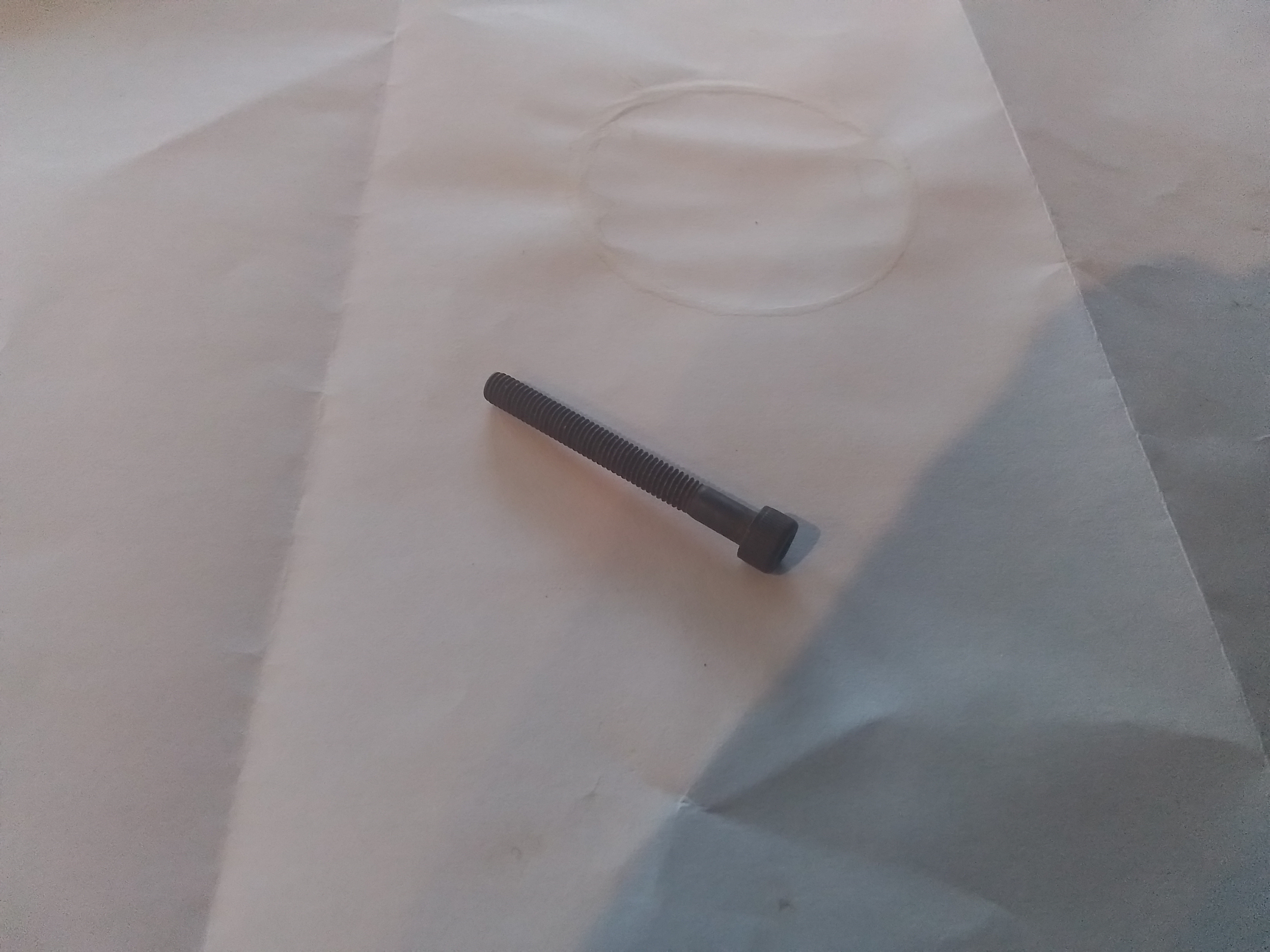

    Here is what I measure as an 8/36, but I don't have a thread Guage. 37mm long. If it will work for you it's yours.

    Name:  17056471227971062813003758451350.jpg
Views: 162
Size:  1.53 MB
    Micky Duck, csmiffy and Preacher like this.

  9. #9
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Legends

  10. #10
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    5,210
    PM me your address. I'll get it away tomorrow.
    Preacher likes this.

  11. #11
    Member
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    1,402
    I had to google it for mine but apparently the spec for the rear action screw is only like 15 inch-pounds, way less than I would have guessed.
