Thread: not enough elevation in scope

  1. #1
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    279

    not enough elevation in scope

    hi guys . i have a howa 22-250 with boyds stock suppressed that ive got a burris 6.5-20 e1 to put on . took my 3-9 e1 off but cant get enough adjustment from my 6.5-20 . at full height up adjustment im still 100mm to low at 100yds. think
    i have talley base/ring combo on . thinking i might need to email burris maybe . any thoughts ?

  2. #2
    Member Tikka7mm08's Avatar
    Join Date
    Mar 2012
    Location
    North Loburn
    Posts
    4,430
    That is weird. Can you swap front and back rings over to see if that solves it? Others will be along with thoughts.
    Micky Duck likes this.

  3. #3
    Member
    Join Date
    Apr 2019
    Location
    Wanganui
    Posts
    3,245
    @sig4x4 any chance of a side profile photo? just to get a look at rings etc

  4. #4
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,732
    They only have 30 MOA of elevation which is the least I have ever heard of so that might be your problem. Once mounted you will have less than 15 minutes each way (up and down). You might need to shim your mounts. Cut a coke tin into shims.

    https://www.burrisoptics.com/scopes/...pe-6.5-20x50mm
    Trout, Tikka7mm08, Tasbay and 3 others like this.

  5. #5
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    279

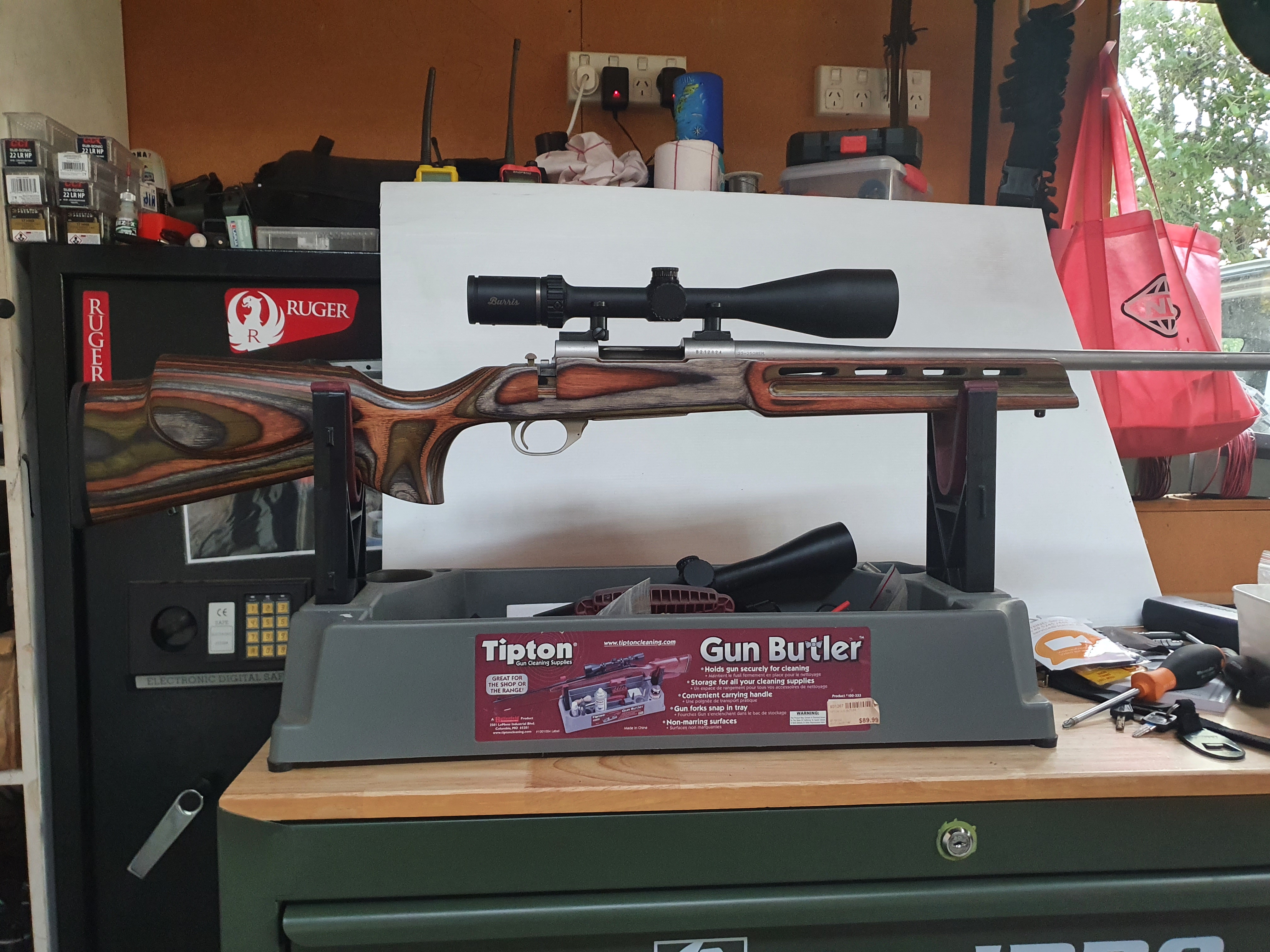

    side profileName:  20220124_201622.jpg
Views: 811
Size:  3.08 MB
    rossi.45 likes this.

  6. #6
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    279
    happen to have a set of nikko 30mm zero locks that after installing with equal packers will give me enough adjustments.so think i may buy a set of them in 25mm

  7. #7
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,732
    Thats why they have a ballistic reticle because they are not suitable for dialing once you get them zeroed.

  8. #8
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    279
    Quote Originally Posted by Tikka7mm08 View Post
    That is weird. Can you swap front and back rings over to see if that solves it? Others will be along with thoughts.
    they are different front to back
    Tikka7mm08 likes this.

  9. #9
    Member
    Join Date
    Jan 2018
    Location
    lower hutt
    Posts
    279
    Quote Originally Posted by Tahr View Post
    Thats why they have a ballistic reticle because they are not suitable for dialing once you get them zeroed.
    not trying to use it as a dial up just trying to sight in . spent some time this morning at mates farm and at full adjustment am still 100mm low at 100yrds

  10. #10
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,732
    Quote Originally Posted by sig4x4 View Post
    not trying to use it as a dial up just trying to sight in . spent some time this morning at mates farm and at full adjustment am still 100mm low at 100yrds
    I didn't suggest you were. I was commenting on the purpose of the configuration of the 'scope. Ballistic reticle coupled with minimal elevation adjustment.

  11. #11
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    You could hammer a felling wedge in under the Barrel,jack that Barrel up a bit.
    Just use a polymer one not a steel wedge so you don't scratch the bluing.
    Moa Hunter, Joe_90 and Roarless20 like this.
    "Sixty percent of the time,it works every time"

  12. #12
    Member
    Join Date
    Dec 2011
    Location
    Southern Alps
    Posts
    4,550
    Buy a scope with 80moa to 100moa.Theres some good $500 scopes around.Save you the cost of ammo buggering around with yr present low moa scope.
    rossi.45 likes this.

  13. #13
    Member
    Join Date
    Jan 2014
    Location
    Hastings
    Posts
    70
    20 moa rail and any weaver style ring

  14. #14
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,874
    scopes on sideways, rotate it so there is a windage on the right hand side

    down is taking you right at the mo
    Moa Hunter and uk_exile like this.

  15. #15
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    1,065
    Quote Originally Posted by Bill999 View Post
    scopes on sideways, rotate it so there is a windage on the right hand side

    down is taking you right at the mo
    Looks correct in that regard. If you rotate it, the elevation knob will be on the left hand side, or rotating it the other way will have the windage under the scope.
