Thread: Proof marks on a P14

  1. #1
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    2,612

    Proof marks on a P14

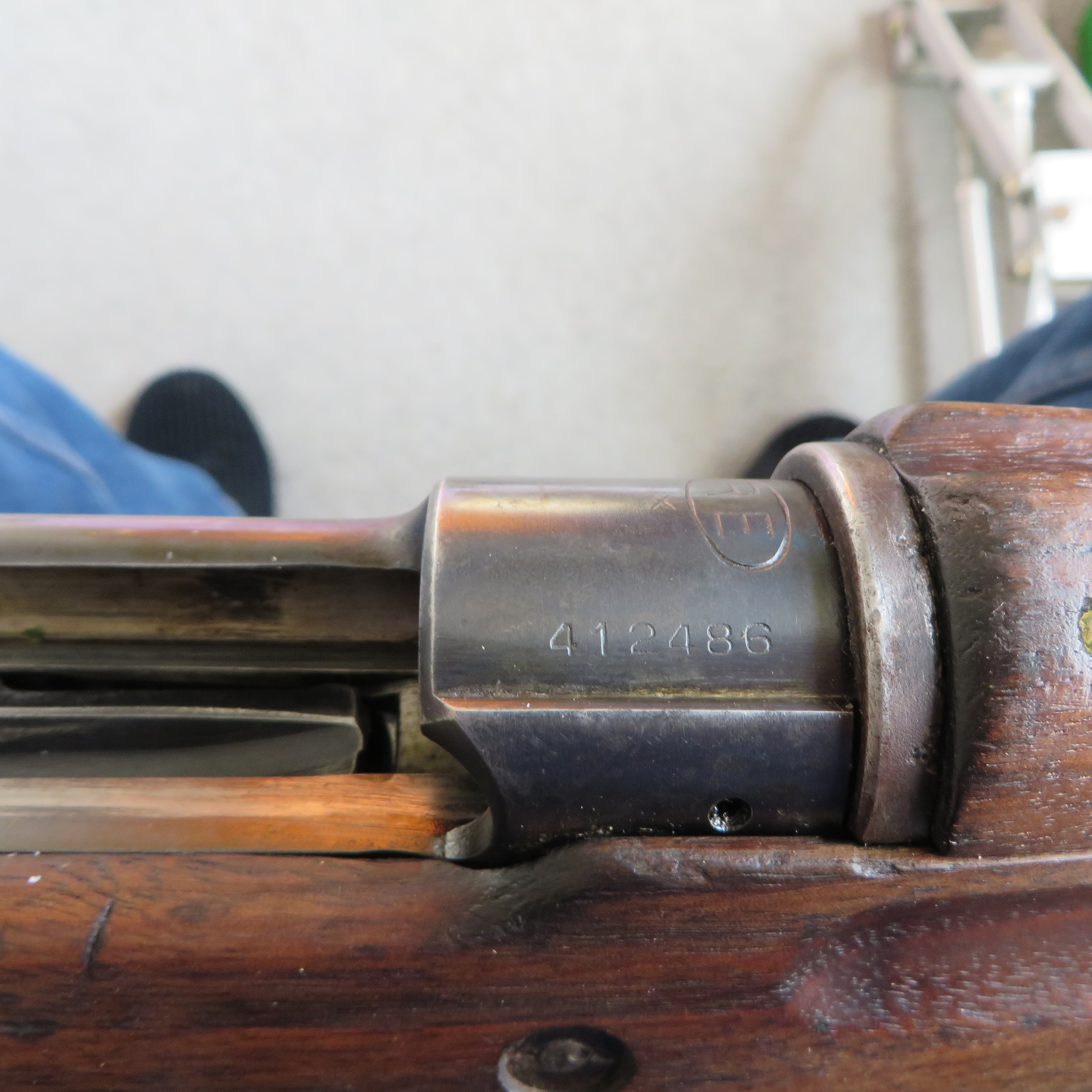

    So I have a Remington (RE *) 1917 built P14.
    Its got that many marks on the receiver they ended up putting the Proof stamps on the muzzle end!

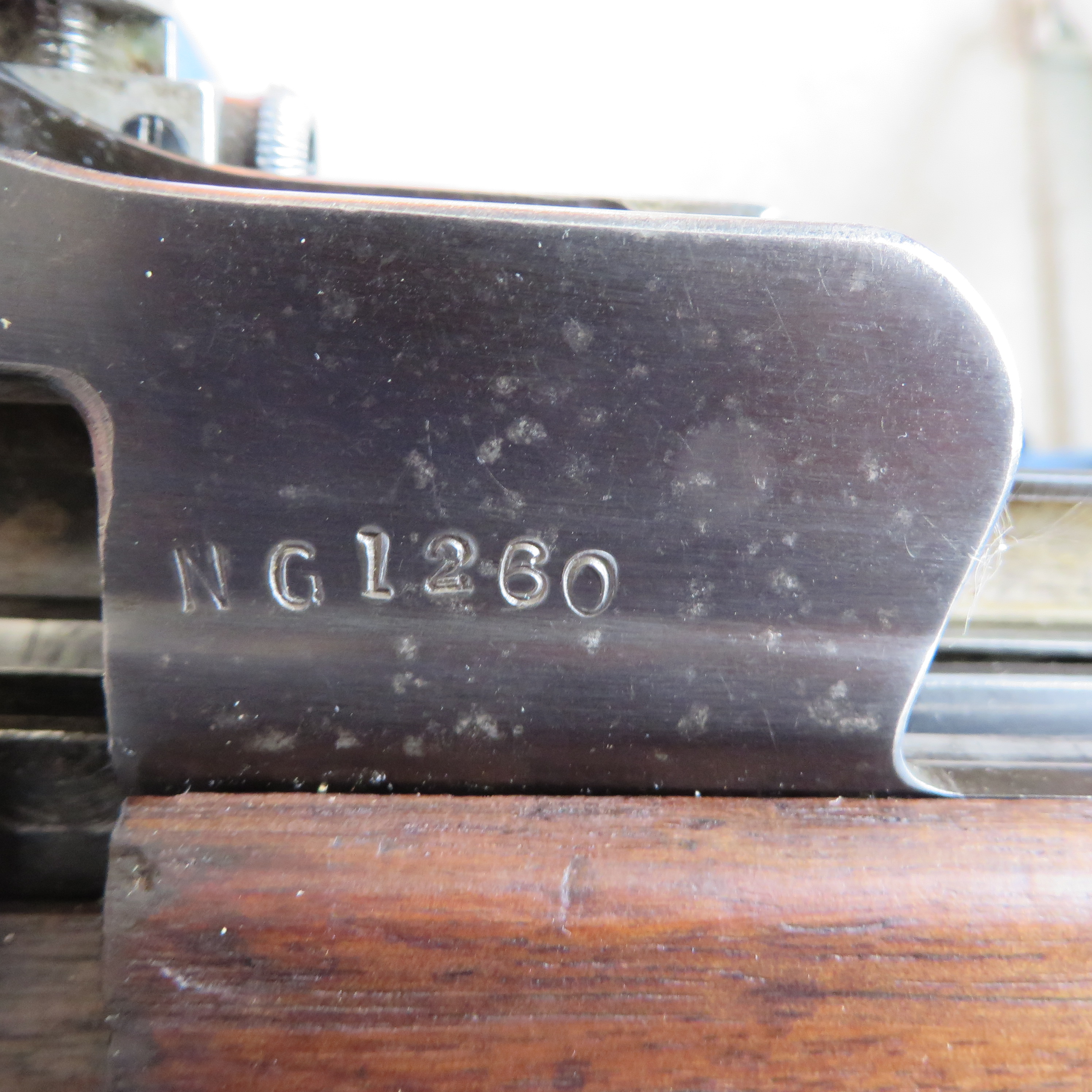

    I know what a few of the marks mean but if someone can identify them all that would be awesome. I have probably mentioned it before but it has another serial type number on the right hand ear ( this was normally only done to rifles that would be scoped, and ONLY ever done to Winchesters of course)

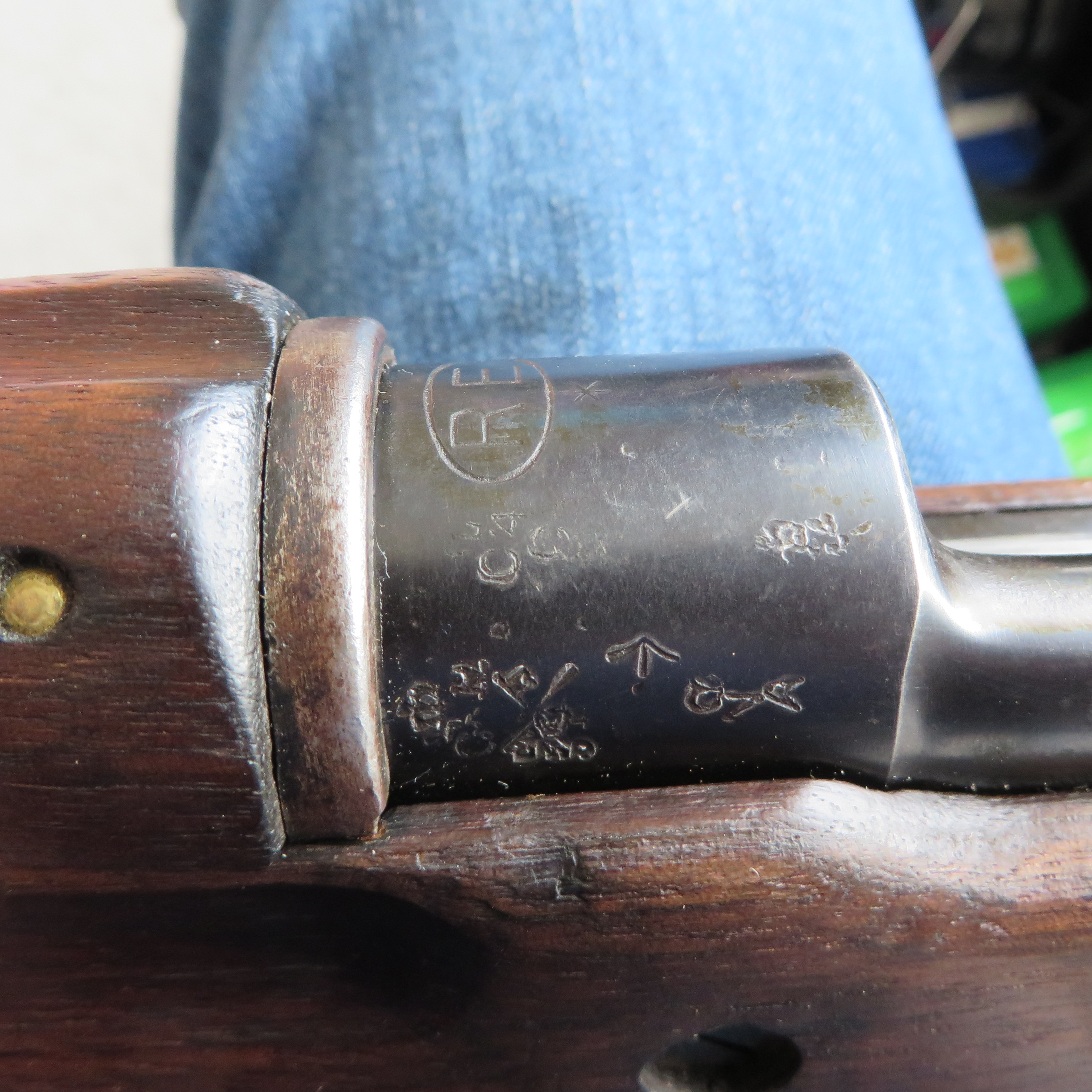

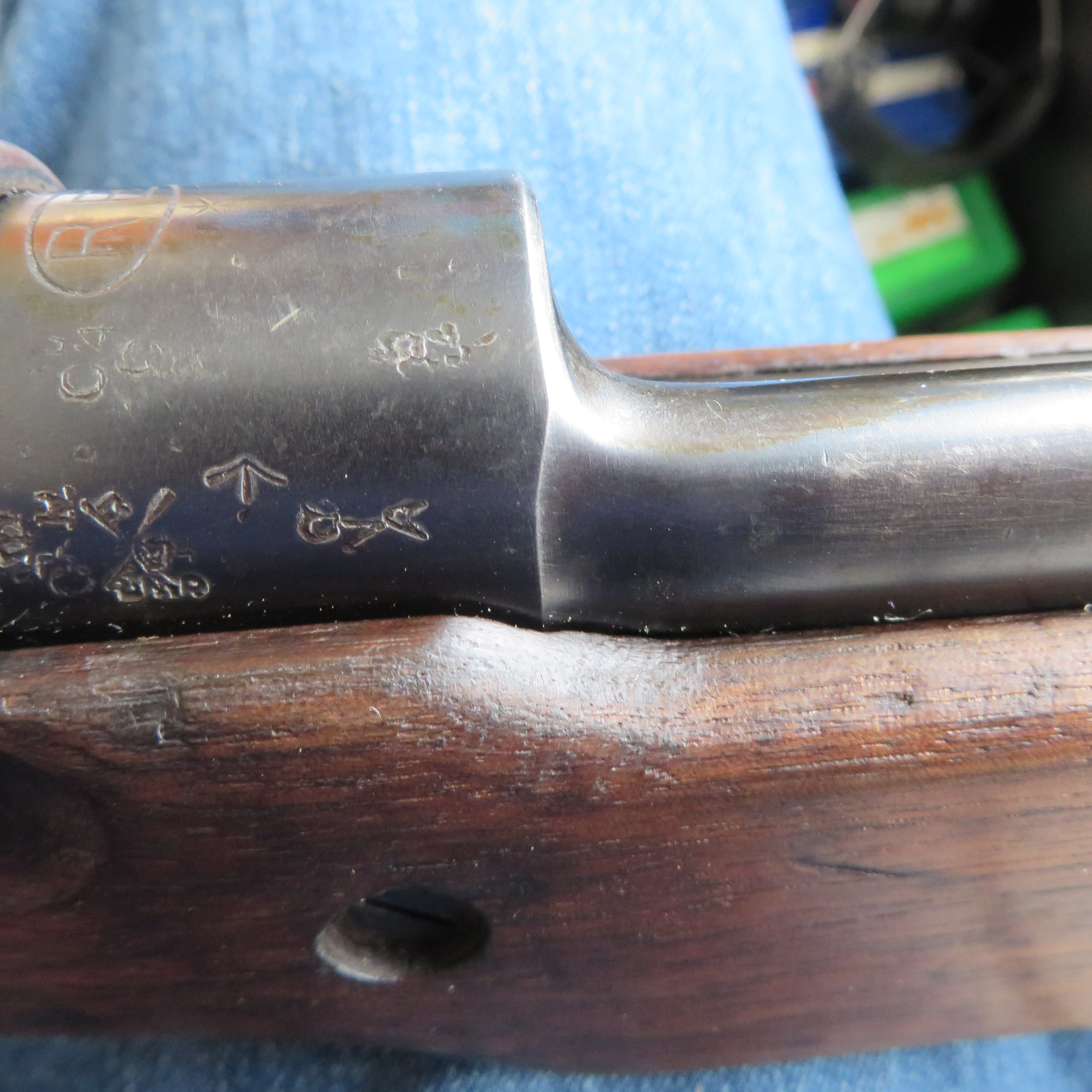

    Of most interest to me is what the CVA means on the right of the first pic and what the stamp in the left top of the picture with the C in it means, of course the ear stamp is a curious factor as well and doesnt look to be done at the build time but later at an armory?

    Name:  IMG_4969.JPG
Views: 671
Size:  2.05 MB

    Name:  IMG_4970.JPG
Views: 558
Size:  2.15 MB

    Name:  IMG_4971.JPG
Views: 393
Size:  2.07 MB

    Name:  IMG_4978.JPG
Views: 347
Size:  1.76 MB

    Name:  IMG_4980.JPG
Views: 326
Size:  1.90 MB

    Name:  IMG_4985.JPG
Views: 394
Size:  1.71 MB

  2. #2
    Tread carefully in the suck... ishoot10s's Avatar
    Join Date
    May 2012
    Location
    NW of the true capital...
    Posts
    1,904

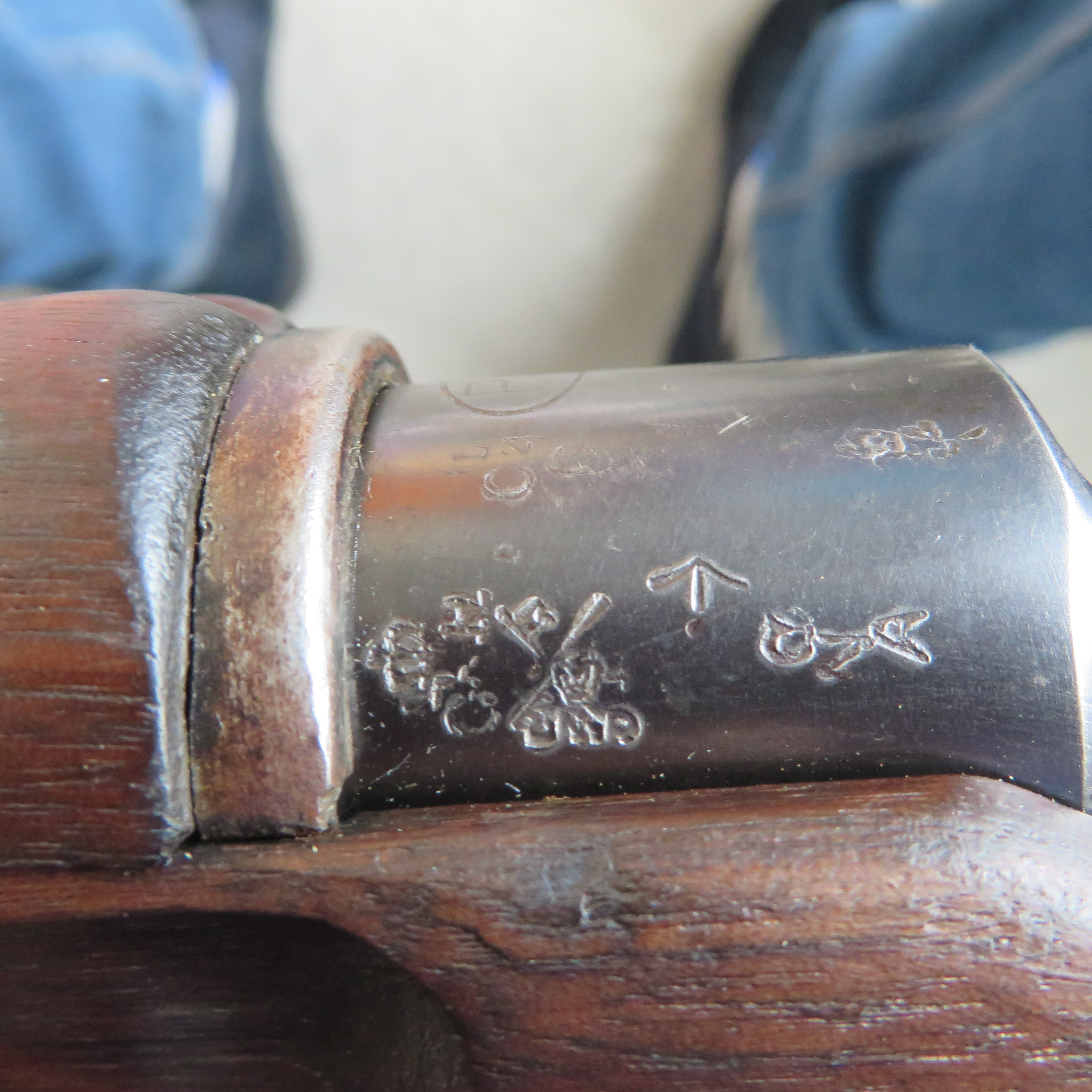

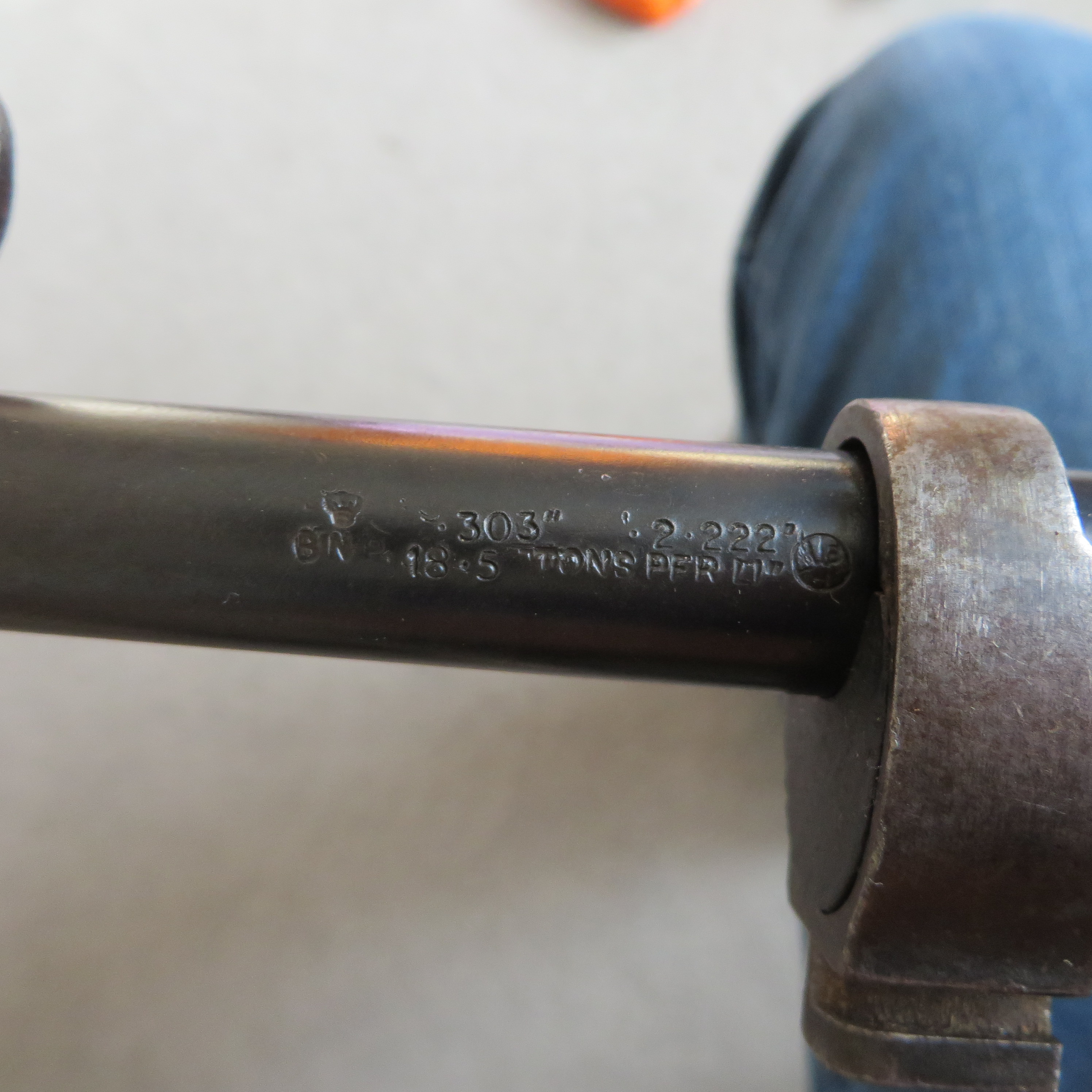

    The military proof mark is sideways in the lower left of the first pic. It’s a crown above GR then crossed flags and a P. It has A BNP proof at 90 degrees obliterating the P. The BNP and other muzzle end markings were added when it was sold out of service. They were not standard military proof requirements. The marks just left of the RE might be a very faint inspectors mark. That would normally be a crown with a number under and a letter under that.

    The Arrow with a dot under is the British acceptance mark.

    Actually, I think your CVA is the inspectors stamp. It’s half a crown, with something else under, and the A under that, parts lost in the curvature of the receiver.

    Name:  F42A4A74-EECE-48F1-B5CF-FBC2B34EFFEC.jpeg
Views: 294
Size:  10.9 KB
    Last edited by ishoot10s; 23-11-2020 at 08:14 PM.
    johnd likes this.
    10MRT shooters do it 60 times, in two directions and at two speeds.

  3. #3
    Member Kimber 7mm-08's Avatar
    Join Date
    Nov 2020
    Location
    Arrowtown
    Posts
    699
    Remington made P14's are generally poorly struck when it comes to proof marks etc. I think you'll find that CVA is actually part of a crown at the top (poorly struck so looks like a C), then other parts of the inspectors marks. Will check my remington P14's to confirm.
    ishoot10s and johnd like this.

  4. #4
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    2,612
    So from what @mimms2 provided this could have been SoS from 1954 onwards ( the crown and BNP at the muzzle)
