    Ruger American Mag Mod

    Late last year I acquired a Ruger American in .223 as a work rifle.
    It has worked out surprisingly well with standard ammo but due to a bad influence in this forum (https://www.nzhuntingandshooting.co....23-deer-64884/) I've been wanting to try some heavier projectiles which has led a wee issue.
    And wee is the word, despite the American being a full length action the .223 mag is designed only for the standard length load.
    But with the power of google and the natural habit of rifle owners to tinker, a solution was found on a different forum - https://www.24hourcampfire.com/ubbth...ics/10354692/2

    So this morning was set aside to see if I could extend the useable mag length without destroying it -

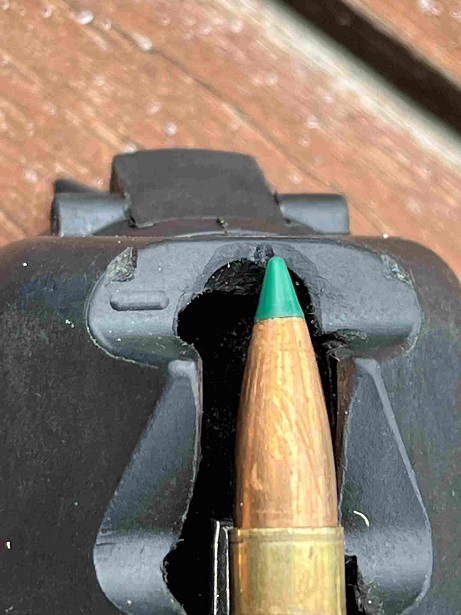

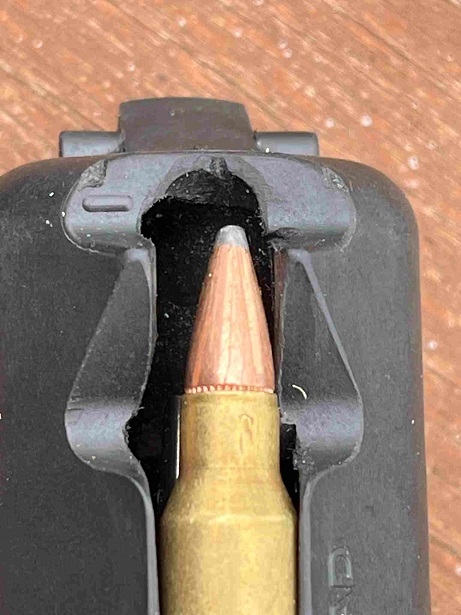

    Standard round in the mag vs dummy round I plan to load

    Name:  IMG_0153.jpg
Views: 137
Size:  99.3 KB Name:  IMG_0154.jpg
Views: 134
Size:  99.8 KB

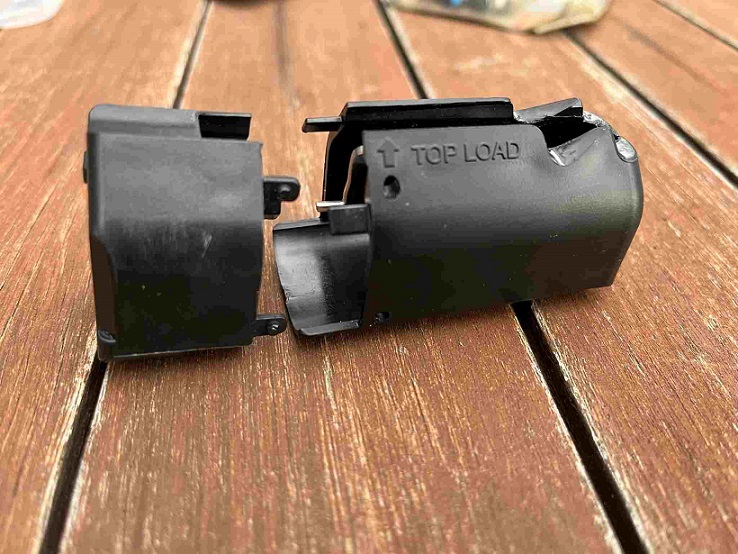

    The mag split in two easily

    Name:  IMG_0151.jpg
Views: 147
Size:  165.9 KB

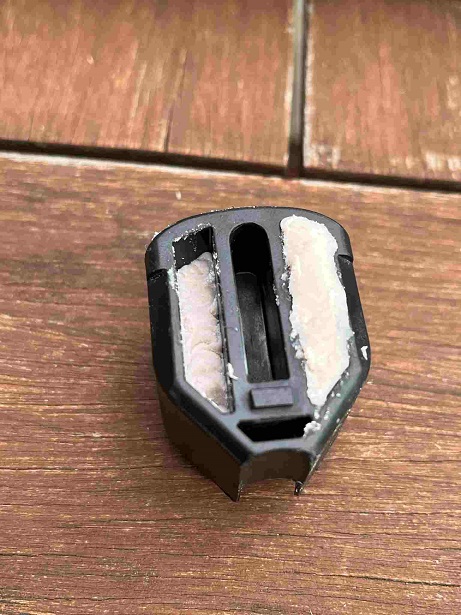

    You need to fill all of these slots in the back of the mag epoxy putty then let it set

    Name:  IMG_0152.jpg
Views: 140
Size:  121.2 KB

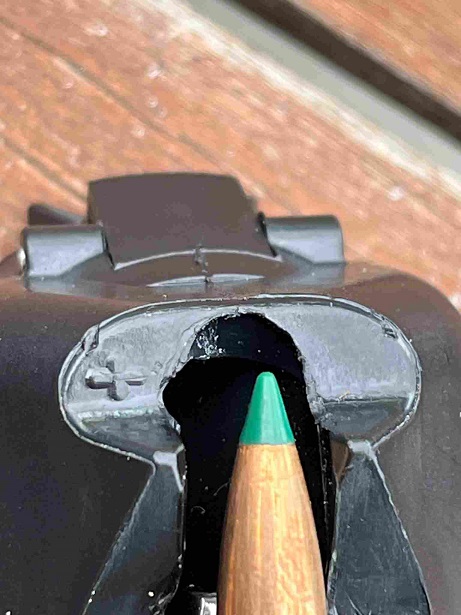

    I got a little preoccupied with the Dremel and forgot to take a pic of routing out the inside but the result is the mag will now take up to a 2.4" LOA load.
    The spare mag gets done tomorrow.

    Name:  IMG_0156.jpg
Views: 133
Size:  94.5 KB
    Hunter_Nick likes this.
    The Biggest Room is the Room for Improvement
