Ruger American Mag Mod

Late last year I acquired a Ruger American in .223 as a work rifle.
It has worked out surprisingly well with standard ammo but due to a bad influence in this forum (https://www.nzhuntingandshooting.co....23-deer-64884/) I've been wanting to try some heavier projectiles which has led a wee issue.
And wee is the word, despite the American being a full length action the .223 mag is designed only for the standard length load.
But with the power of google and the natural habit of rifle owners to tinker, a solution was found on a different forum - https://www.24hourcampfire.com/ubbth...ics/10354692/2

So this morning was set aside to see if I could extend the useable mag length without destroying it -

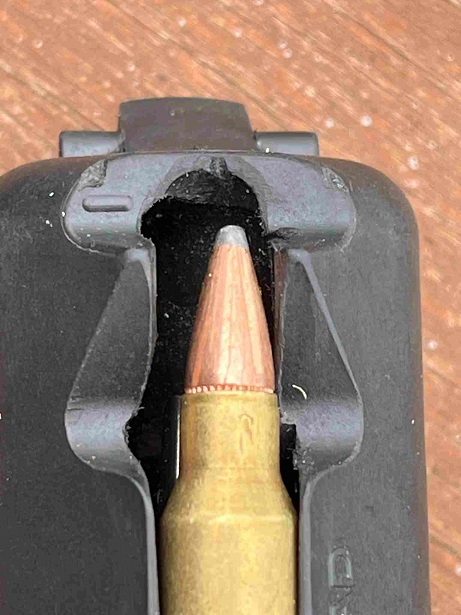

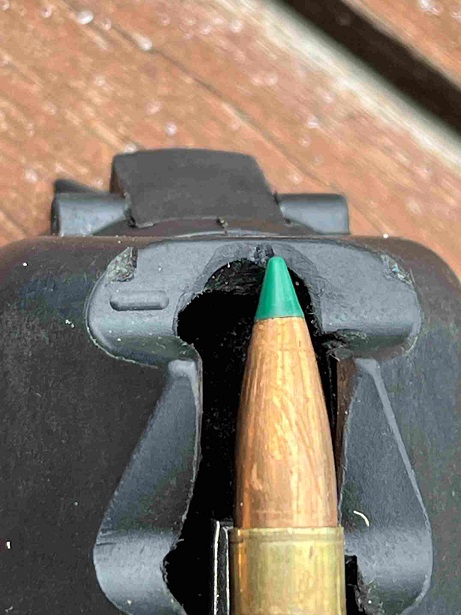

Standard round in the mag vs dummy round I plan to load

Attachment 223184 Attachment 223185

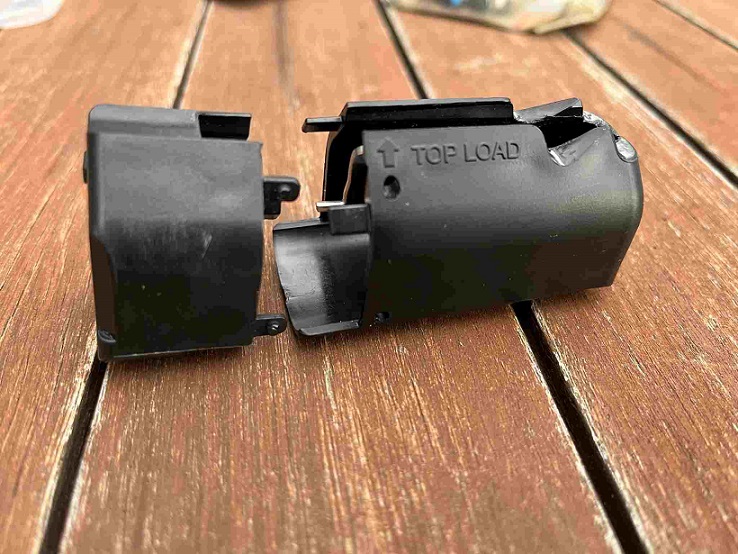

The mag split in two easily

Attachment 223186

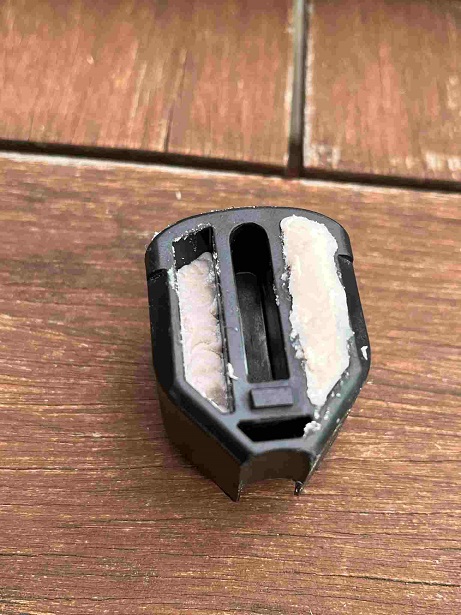

You need to fill all of these slots in the back of the mag epoxy putty then let it set

Attachment 223188

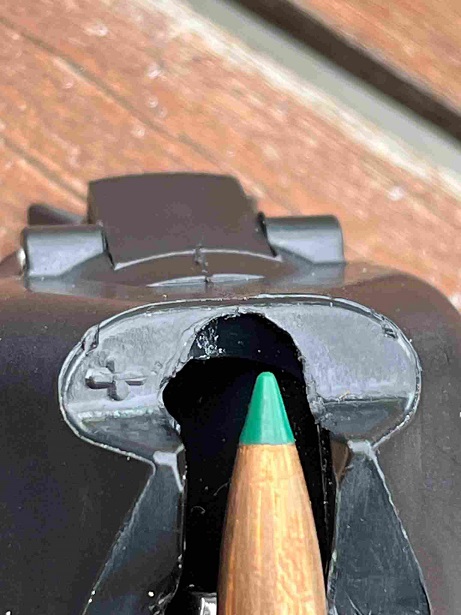

I got a little preoccupied with the Dremel and forgot to take a pic of routing out the inside but the result is the mag will now take up to a 2.4" LOA load.
The spare mag gets done tomorrow.

Attachment 223189
