Thread: Scope Field of View vs Eye Relief

  1. #1
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    2,095

    Scope Field of View vs Eye Relief

    It looks to me as if a bigger field of view can be obtained by using a shorter eye relief.
    It's sort of intuitive.
    Likewise, you might get more FOV by making the ocular lens diameter bigger.
    If you could compromise on eye relief you could offer a better field of view.
    This might be the case with rimfire shooting and specially with airguns.
    In fact, one manufacturer makes an airgun scope with essentially no eye relief - the "Touch" !
    Its field of view is twice that of a comparable model with a more normal eye relief.
    Compared to the entry level Vantage SF, shortening the eye relief from 89mm to 76mm in the Airmax SF increases the FOV by 40%. Bringing the eye relief down to 30mm (like binoculars) in the Airmax 30 Touch more than doubles the field of view.

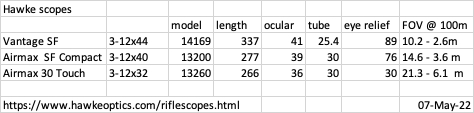

    Vantage SF 3-12x44 89mm 10.2 - 2.6 m@100m
    Airmax SF 3-12x40 76mm 14.6 - 3.6 m@100m
    Airmax Touch 3-12x32 30mm 21.3 - 6.1 m@100m

    Name:  Hawke scope table.jpg
Views: 137
Size:  33.8 KB
    Moa Hunter likes this.
