Thread: Single shot scope mounting

  1. #1
    Member
    Join Date
    Feb 2017
    Location
    Jafa land
    Posts
    5,439

    Single shot scope mounting

    Let's see your scope mounting for single shot rifles.

    Thinking of getting one or a lever as a short bush gun now that I need a replacement.

    I have an aero precision scope mount but the cheek weld will probably give parallax issues.

    Currently going to dig up @vipers or @rossi.45 thread on them.

  2. #2
    northdude
    Guest
    what kind of single shot have you got

  3. #3
    Member Ground Control's Avatar
    Join Date
    Oct 2012
    Location
    Australia / Marlborough Sounds
    Posts
    1,349
    What ever you get make sure you mount the scope as low as physically possible to aid in proper eye alignment for quick shotgun like snap shooting .
    FALL IN LOVE WITH THE NUMBERS , NOT THE IDEA

  4. #4
    Member
    Join Date
    Feb 2017
    Location
    Jafa land
    Posts
    5,439
    Quote Originally Posted by muzza View Post
    Does the rifle not come either equipped with a dovetail or D&Ted for a base?
    The baikal I'm looking at does have a dove tail. Most use an air gun mount off trademe.
    Quote Originally Posted by northdude View Post
    what kind of single shot have you got
    Planning on getting a baikal.
    Quote Originally Posted by Ground Control View Post
    What ever you get make sure you mount the scope as low as physically possible to aid in proper eye alignment for quick shotgun like snap shooting .
    That's the thing. A lot seem to be fairly high.

  5. #5
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    How are you with iron sights? I have experimented with multiple different mounts on my Baikal and keen going back to the irons as it just makes it more handy in the thick shit I seem to always find.

    Am going to probably shorten it as much as possible and suppress at some point soon so will need to find a mount I can live with.
    @Russian_22there is a thread somewhere on the forum about this. Even as far as machining off dovetail and having picatinny mounted.

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,072

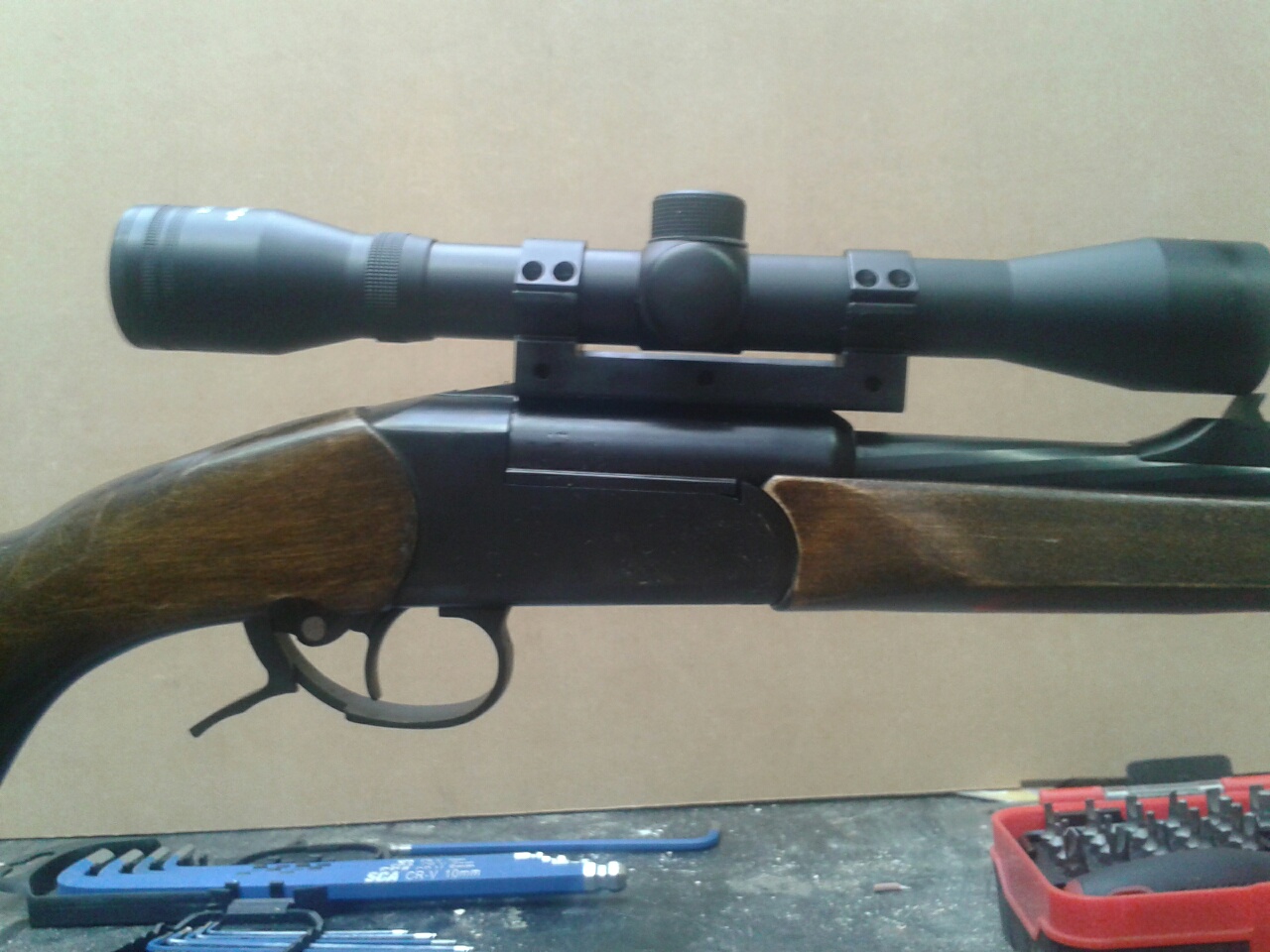

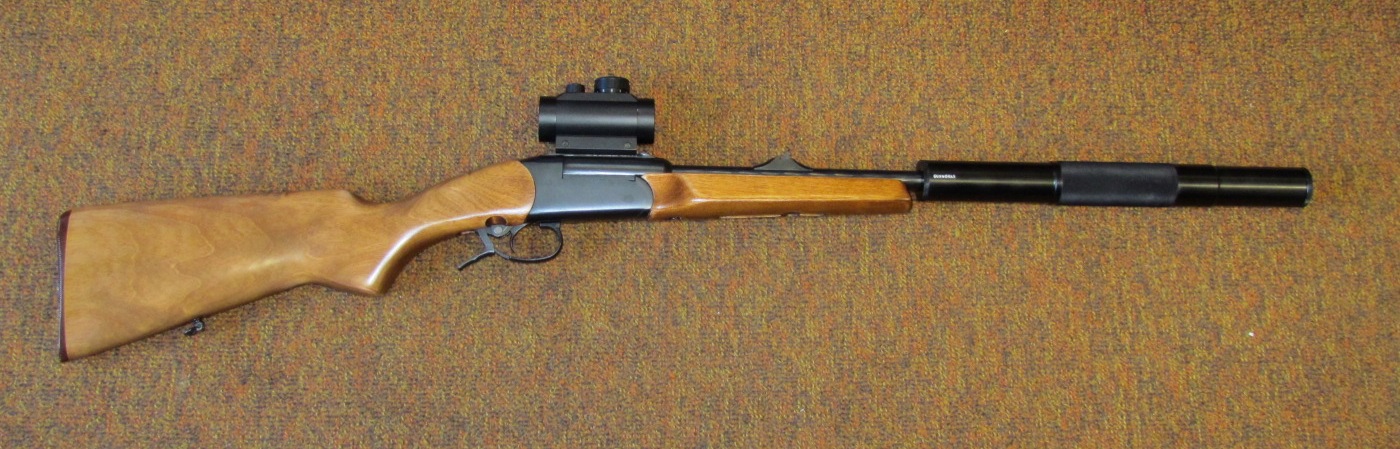

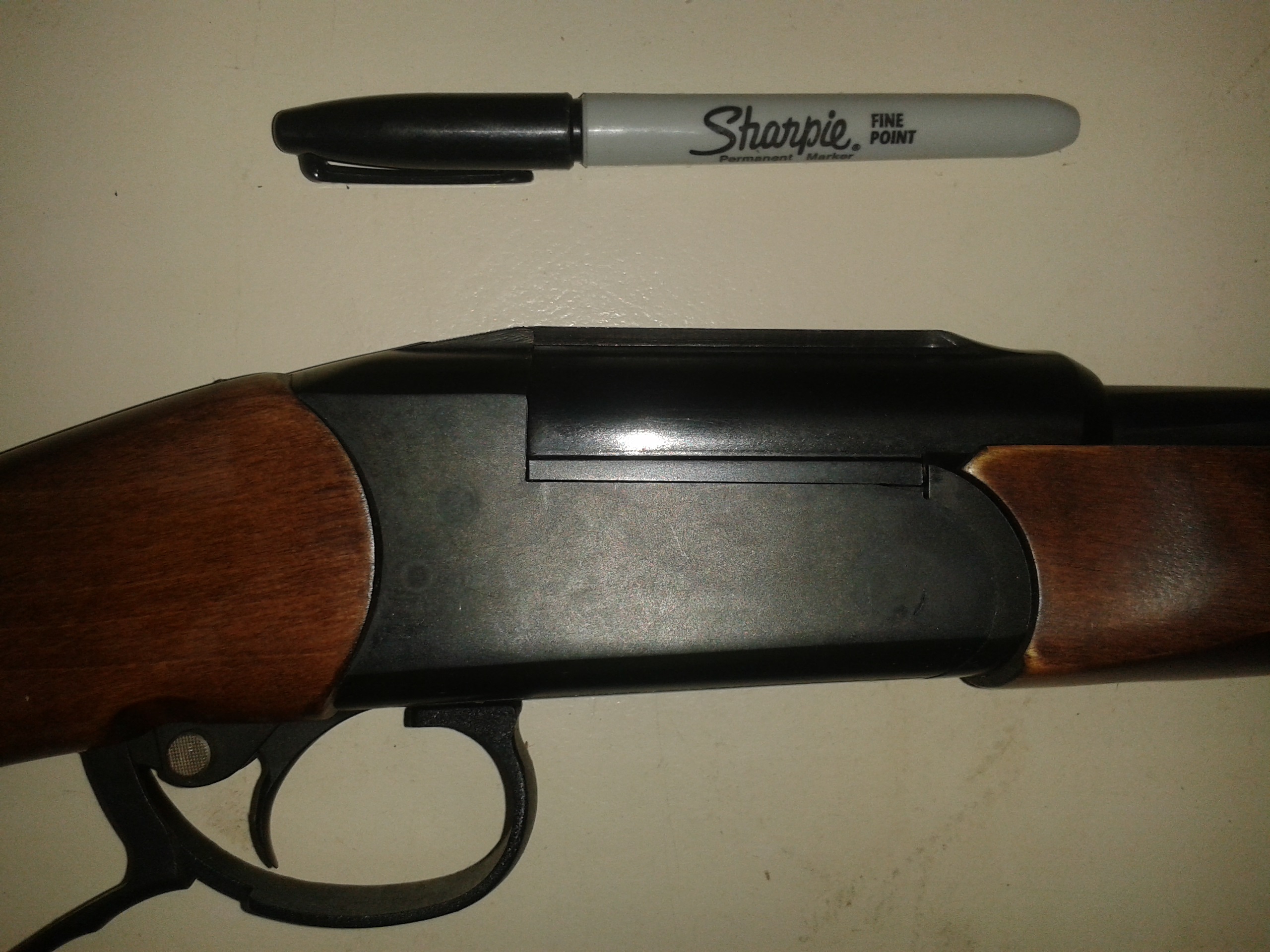

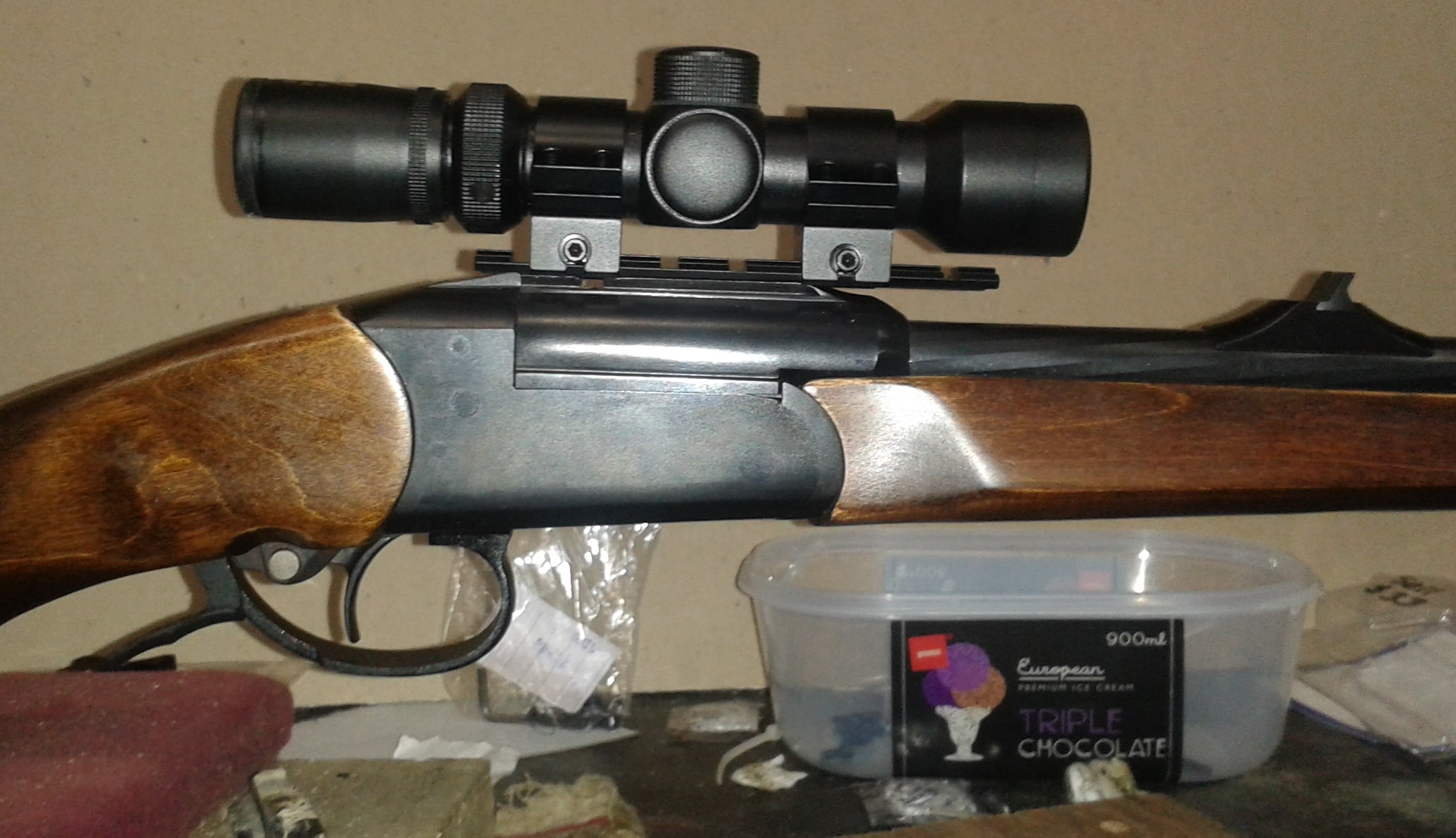

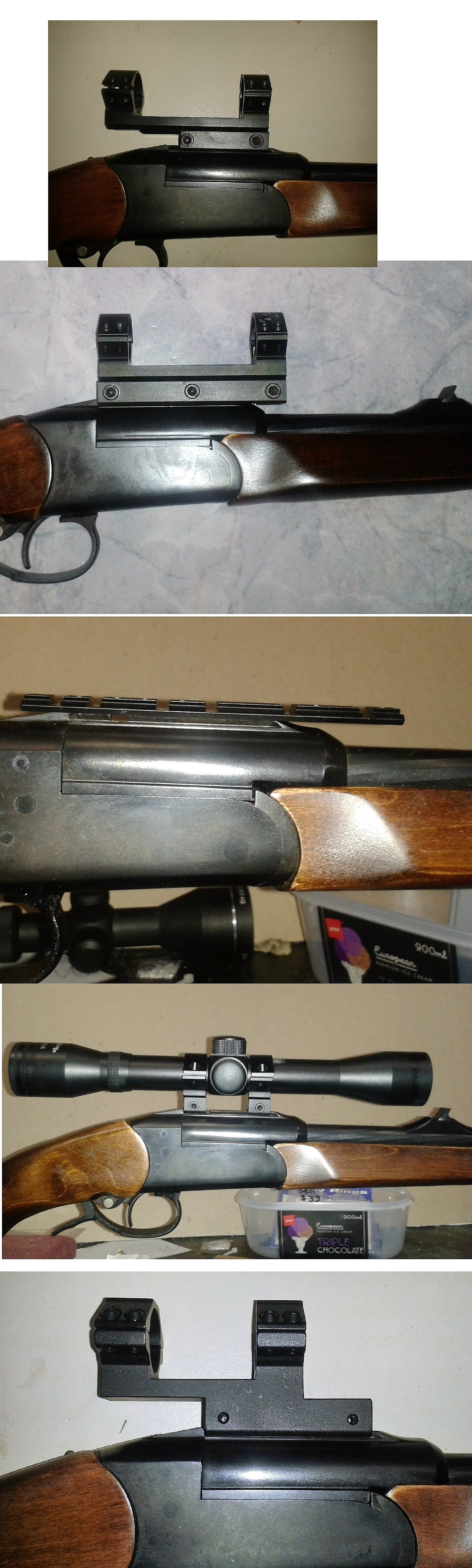

    Whatever you use, there is one thing to check. The ramp on the back part of the baikal action is slightly higher than the dovetail. If your mount (whatever one you choose) overhangs the rear of the dovetail, you will need to file the ramp down so that the action closes completely and easily. This may help with ideas. I have a few options here and have done a few if you want help. Low is better, but watch eye relief. With a normal length scope you may find you have to remove the open sights. Most of the one piece ones are a bit high, there are some low ones around.

    Name:  Mount options.jpg
Views: 756
Size:  1.84 MBName:  20170325_091220_resized.jpg
Views: 766
Size:  284.2 KBName:  Dove tail.jpg
Views: 600
Size:  1,011.7 KBName:  IMG_0496.JPG
Views: 663
Size:  259.3 KBName:  Izh18 scope mount weaver rail and N C Star ultra compact.jpg
Views: 1613
Size:  397.4 KB
    Preacher likes this.

  7. #7
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,055
    Baikals have a 12 mm dovetail, so any 22 mount will go on as low as possible otherwise you will need a riser.
    A red dot will avoid parallax issues and is good for 200 yds on deer pigs or goats.
    People I feel are too hung up on scopes and magnification and have by and large forgotton that open sights have secured more game in this country than any other type. A red dot is also superb for snap shooting. Give it a go.
    Preacher likes this.

  8. #8
    Member Double Shot's Avatar
    Join Date
    Nov 2013
    Location
    Papamoa Beach
    Posts
    2,832

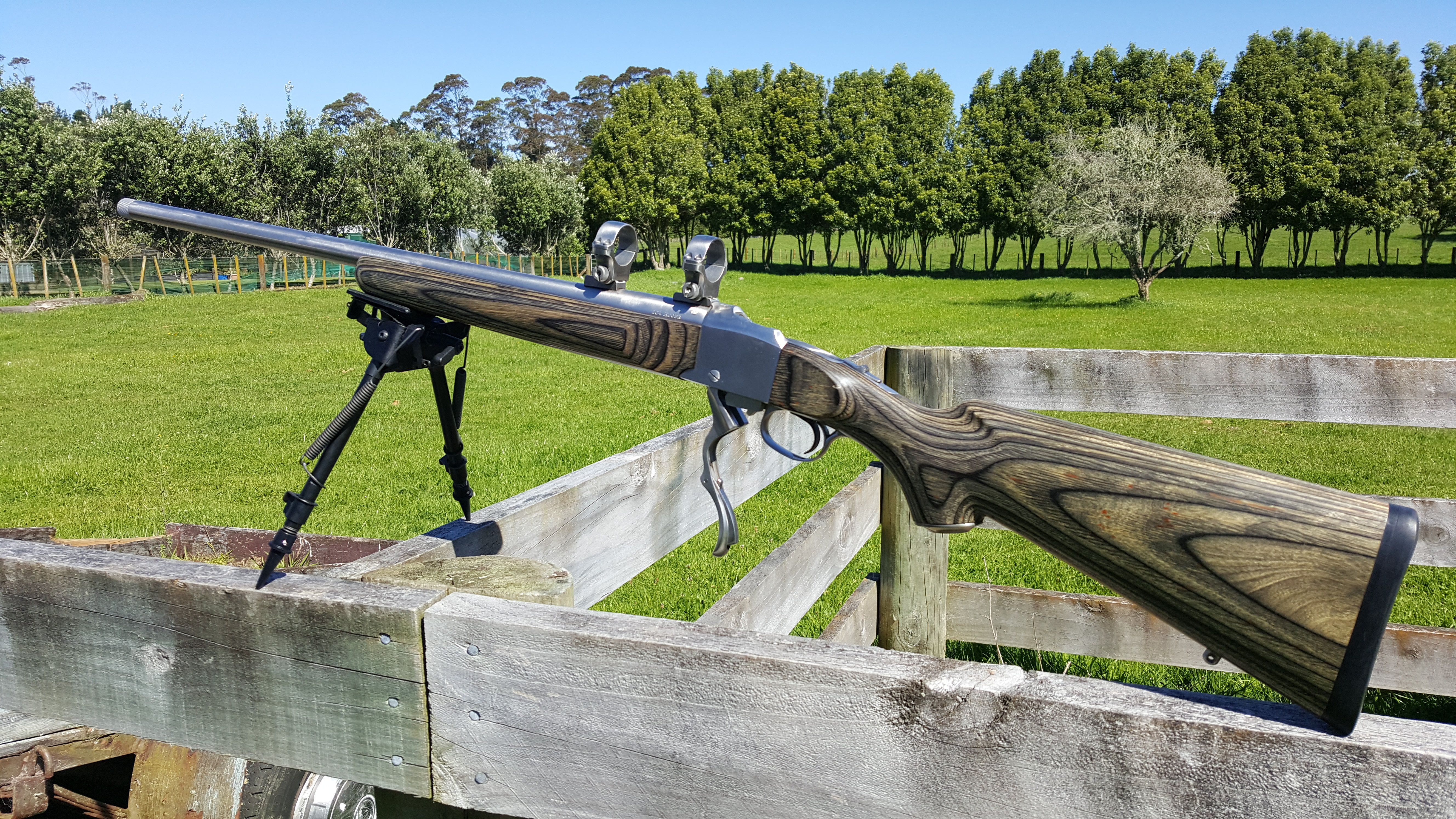

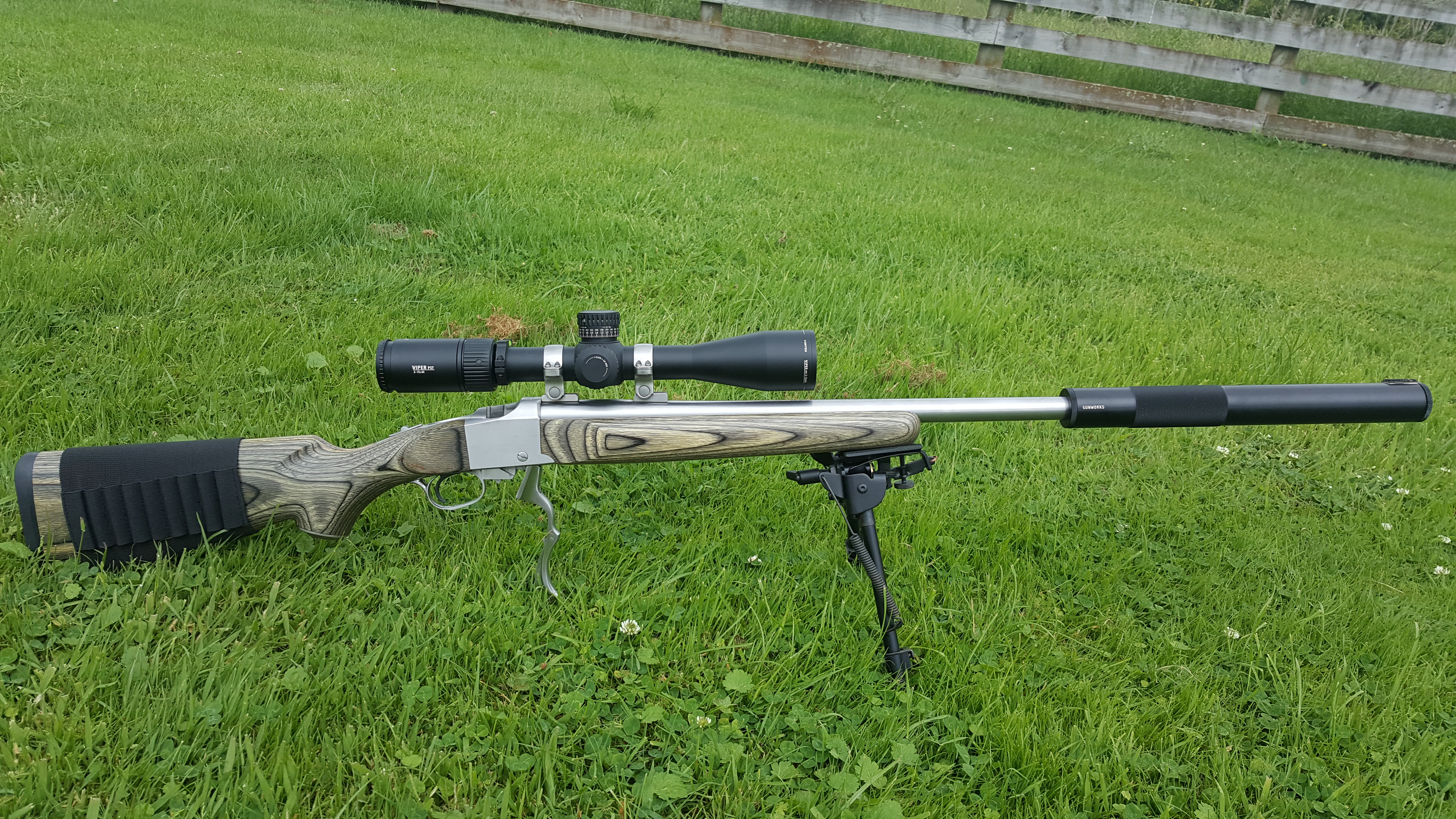

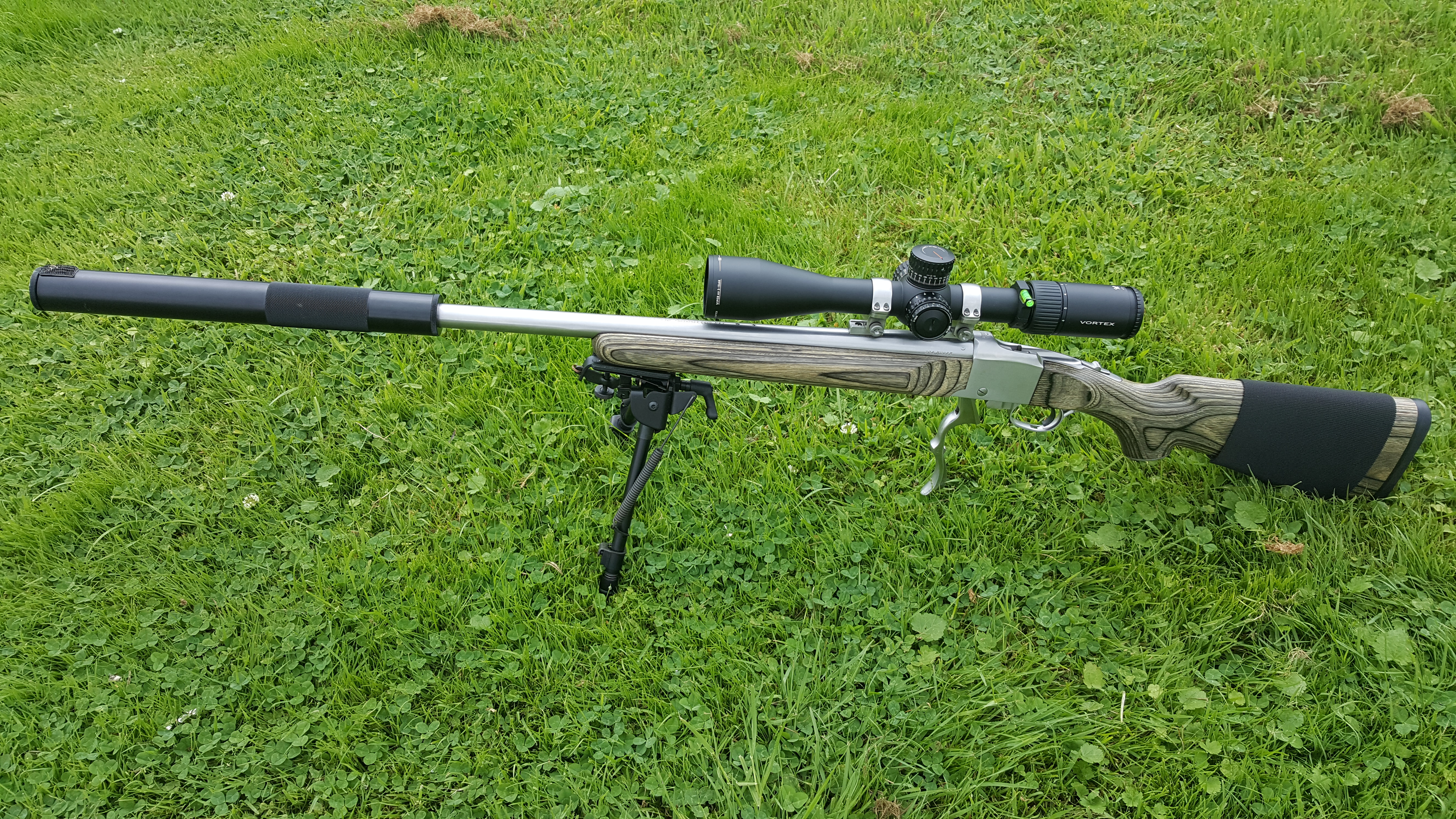

    Here's mine, comes with the bases though...

    Name:  Ruger No.1 .204 SS Laminate Stock  L.jpg
Views: 893
Size:  6.82 MB
    Name:  Ruger No.1 .204 SS Laminate Stock  Vortex Viper PST Gen II 3-15x44 Gunworks Suppressor 1.jpg
Views: 824
Size:  7.03 MB
    Name:  Ruger No.1 .204 SS Laminate Stock  Vortex Viper PST Gen II 3-15x44 Gunworks Suppressor 2.jpg
Views: 1187
Size:  8.65 MB

  9. #9
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,072
    Quote Originally Posted by Double Shot View Post
    Here's mine, comes with the bases though...

    Attachment 108101
    Attachment 108102
    Attachment 108103
    Thats not a Baikal....Very Nice. What cal? (If you dont object to me asking, please?) I got to use one in 375 H&H magnum....That is fun.

  10. #10
    Member Double Shot's Avatar
    Join Date
    Nov 2013
    Location
    Papamoa Beach
    Posts
    2,832
    Quote Originally Posted by timattalon View Post
    Thats not a Baikal....Very Nice. What cal? (If you dont object to me asking, please?) I got to use one in 375 H&H magnum....That is fun.
    Yeah missed that post further down as I was trying to upload photos...

    Ruger No.1 in .204, this thing is a laser, love it but do not use nearly enough, hoping to change that though..

  11. #11
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    @timattalon that's what I had in mind for the reference.

    Another option could be adding a cheek riser to get correct alignment. If you end up with a wood stock Baikal you will likely also have to smooth some of the stock anyway.

    Love my lil Russian but quality wood work is not from factory.
    @Marty Henry, mine measures a snug 11mm. However they come out of a tractor factory I believe so yeah...

  12. #12
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    As for Double Shot...that’s a beautiful rifle. Maybe one day I can con the Wife into an "art purchase"

    Blue and walnut though.

  13. #13
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,657
    Quote Originally Posted by timattalon View Post
    Whatever you use, there is one thing to check. The ramp on the back part of the baikal action is slightly higher than the dovetail. If your mount (whatever one you choose) overhangs the rear of the dovetail, you will need to file the ramp down so that the action closes completely and easily. This may help with ideas. I have a few options here and have done a few if you want help. Low is better, but watch eye relief. With a normal length scope you may find you have to remove the open sights. Most of the one piece ones are a bit high, there are some low ones around.

    Attachment 108100Attachment 108104Attachment 108105Attachment 108106Attachment 108107
    the 2nd one works just great,with added bonus being one piece the rings HAVE to be aligned properly.
    Preacher likes this.

  14. #14
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Also be aware if you want to keep rear sights on the Baikal you will need a small objective bell or an offset mount that will put it further forward.

    Issue I had was I could not get decent sight picture with scopes I had on hand and relation to rear sight.

  15. #15
    Member
    Join Date
    Feb 2017
    Location
    Jafa land
    Posts
    5,439
    Quote Originally Posted by Preacher View Post
    How are you with iron sights? I have experimented with multiple different mounts on my Baikal and keen going back to the irons as it just makes it more handy in the thick shit I seem to always find.

    Am going to probably shorten it as much as possible and suppress at some point soon so will need to find a mount I can live with.
    @Russian_22there is a thread somewhere on the forum about this. Even as far as machining off dovetail and having picatinny mounted.
    Decent enough. Got groupings I was happy with at 100 with some flip ups.

    I was planning on using it as a bush gun with odd shots at slips.

    Quote Originally Posted by timattalon View Post
    Whatever you use, there is one thing to check. The ramp on the back part of the baikal action is slightly higher than the dovetail. If your mount (whatever one you choose) overhangs the rear of the dovetail, you will need to file the ramp down so that the action closes completely and easily. This may help with ideas. I have a few options here and have done a few if you want help. Low is better, but watch eye relief. With a normal length scope you may find you have to remove the open sights. Most of the one piece ones are a bit high, there are some low ones around.

    Attachment 108100Attachment 108104Attachment 108105Attachment 108106Attachment 108107
    Cheers! Gives lots of options!

    Quote Originally Posted by Marty Henry View Post
    Baikals have a 12 mm dovetail, so any 22 mount will go on as low as possible otherwise you will need a riser.
    A red dot will avoid parallax issues and is good for 200 yds on deer pigs or goats.
    People I feel are too hung up on scopes and magnification and have by and large forgotton that open sights have secured more game in this country than any other type. A red dot is also superb for snap shooting. Give it a go.
    A red dot would be ideal. Probably a Bushnell trs25 would do the trick.

    Quote Originally Posted by Preacher View Post
    Also be aware if you want to keep rear sights on the Baikal you will need a small objective bell or an offset mount that will put it further forward.

    Issue I had was I could not get decent sight picture with scopes I had on hand and relation to rear sight.
    My vx2 is a 1-4x20 so is pretty small.
    Micky Duck likes this.
