Thread: Sling swivel studs

  1. #1
    Member
    Join Date
    Jul 2019
    Location
    Cantabury
    Posts
    15

    Sling swivel studs

    Hi everyone. Sorry but another random question. Does anyone know where I could source a timber thread sling swivel stud with a 6mm outer thread diameter? the ones that I have found in shops e.g. uncle Mikes are a smaller thread and wont fit into the existing stock holes. I'm guessing the one I have is some random imperial size (close to 6mm) but I would like to fit a new sling and don't want to damage the old sling or swivels to fit it on.
    Once again any advice is really appreciated.

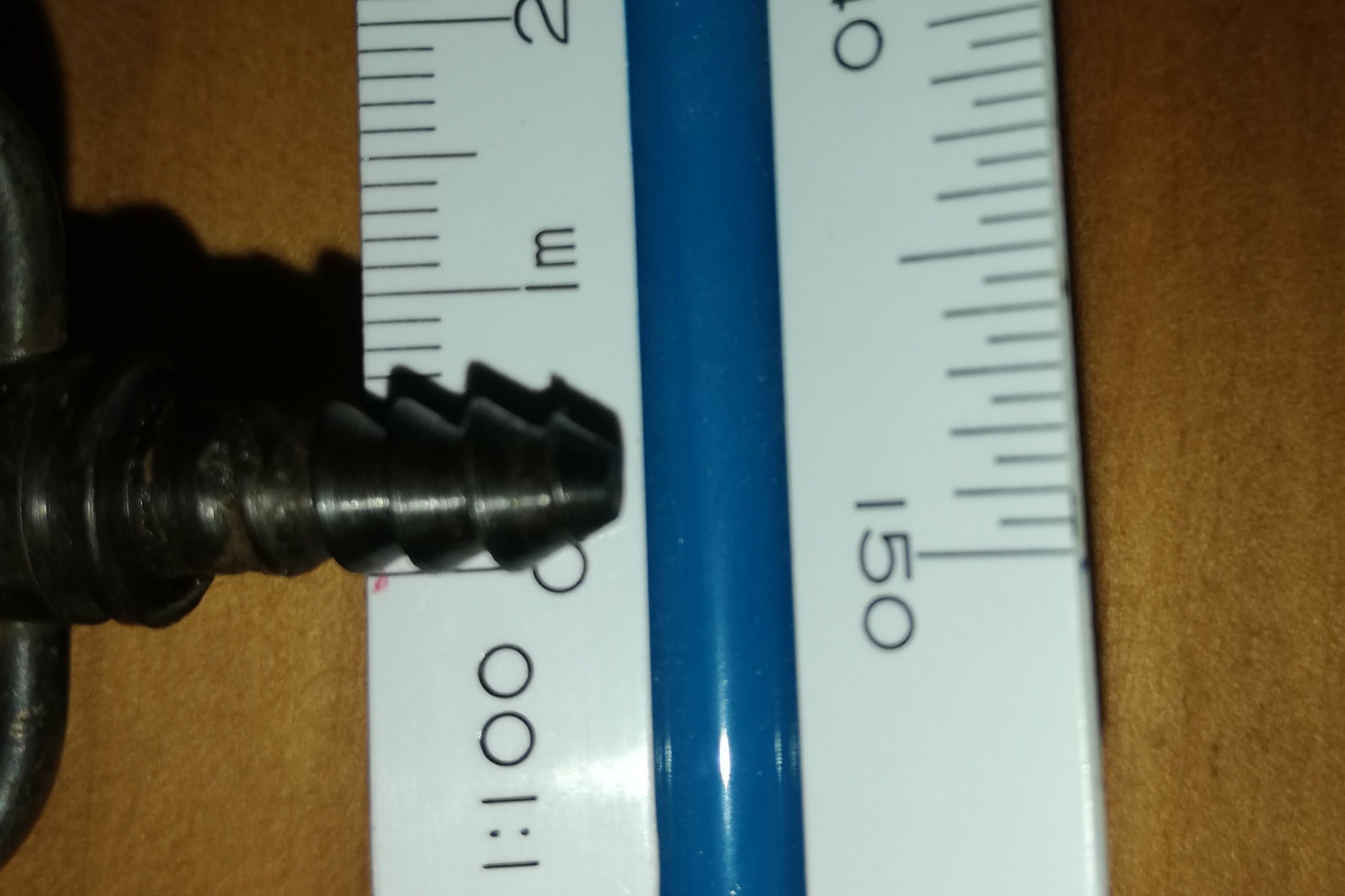

    Name:  sling swivel.jpg
Views: 328
Size:  868.7 KB

  2. #2
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,681
    wouldnt be hard to change hole to accept smaller thread,pack hole with wood...even matches will work and simply thread new swivel in place...you can also glue wood in place to make it stronger still...I just moved along half n inch and made another hole.

  3. #3
    Member
    Join Date
    Jul 2019
    Location
    Cantabury
    Posts
    15
    Thanks Micky I just didn't want to dick around with the hole too much as I wanted to put the original stud back in one day. In saying that I probably could just dowel the hole out like you suggest, you're bloody helpful thanks mate.

  4. #4
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    4,124
    No need to apologise for asking questions, bud. Passing on knowledge is part of what this forum is about, if I'm not mistaken.

  5. #5
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,471
    Il go measure the ones in my shed now

  6. #6
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,471
    Nah 5mm and is a stud not a sling loop

  7. #7
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,985
    cut off a rawl plug to the desired length and screw into that

  8. #8
    Member
    Join Date
    Jul 2019
    Location
    Cantabury
    Posts
    15
    Thanks guys yeah Gibbo my terminology is probably a bit off... Thanks for looking though.
    Gonetropo good idea a rawl plug would prob do less damage to the existing thread so ill try that first.
    Max sorry for saying sorry...

  9. #9
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    4,124
    Quote Originally Posted by Newbie View Post
    Thanks guys yeah Gibbo my terminology is probably a bit off... Thanks for looking though.
    Gonetropo good idea a rawl plug would prob do less damage to the existing thread so ill try that first.
    Max sorry for saying sorry...
    No prob..

  10. #10
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,471
    Have you looked at any of the online stores? Perhaps give them a call.

    https://www.workshopinnovation.co.nz...ngSwivelScrews

  11. #11
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,635
    My bil put a tawa dowel in my old Sako Hunter which swivel hole had got loose by injudicious use of oil on the stock.Flushed it off and screwed in the swivel. Never moved again. Just putting new swivels on my sons 44 mag. But have sealed the stock with Truoil and Armourall mix.

  12. #12
    northdude
    Guest
    Is it a plastic stock or wood
