Thread: Suppressor threading

  1. #1
    Member
    Join Date
    Jan 2013
    Location
    Auckland
    Posts
    590

    Suppressor threading

    Having recently moved to Auckland I need to cultivate some useful contacts again.
    Does anyone have a pet gunsmith or experienced AND competent turner to recommend for threading a barrel fit a rimfire suppressor?

    It's a fancy KIDD barrel and I don't want to take any risks.

  2. #2
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,258
    If you ever pass through hamilton i would suggest cleland engineering

  3. #3
    Member
    Join Date
    Jan 2013
    Location
    Auckland
    Posts
    590
    Was considering sending rifle and new barrel and suppressor to Cleland - get some trigger tweaking done too.

  4. #4
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    1,065
    I've had good service from Roger Spackman at Sub-Silent Suppressors.
    He has a dedicated lathe he uses just for threading barrels.
    As a bonus, he is Auckland based. Might be worth talking to him about suppressors while you are at it.
    Sub-Silent Suppressors | custom rimfire, centerfire, CO2 and PCP silencers, suppressors and moderators. Ruger 10/22 Bullet Comparison Chart

  5. #5
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    4,606
    Quote Originally Posted by quentin View Post
    I've had good service from Roger Spackman at Sub-Silent Suppressors.
    He has a dedicated lathe he uses just for threading barrels.
    As a bonus, he is Auckland based. Might be worth talking to him about suppressors while you are at it.
    Sub-Silent Suppressors | custom rimfire, centerfire, CO2 and PCP silencers, suppressors and moderators. Ruger 10/22 Bullet Comparison Chart
    "It's a fancy Kidd barrel so don't want to take any risks" would probably rule out the above option

  6. #6
    res
    res is offline
    Member res's Avatar
    Join Date
    Apr 2014
    Location
    Quebec
    Posts
    3,379
    I can't speak highly enough about Scott Trail at ssrnz, this would be a very simple task for him.
    Using Tapatalk

  7. #7
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by res View Post
    I can't speak highly enough about Scott Trail at ssrnz, this would be a very simple task for him.
    Scott Traill is excellent but of course not in Orkland.
    MAE did a superb job of threading on semi 22 for me. Not sure though if they just do threading - my threading was combined with the purchase of on of their suppressors.

  8. #8
    res
    res is offline
    Member res's Avatar
    Join Date
    Apr 2014
    Location
    Quebec
    Posts
    3,379
    Couriering a barrel may be cheaper than driving across dorkland I guess
    Using Tapatalk

  9. #9
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    1,065
    If you do not need to get this done in Auckland, then +1 for Scott Traill at SSRNZ
    dirtyhabit likes this.

  10. #10
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Quote Originally Posted by res View Post
    Couriering a barrel may be cheaper than driving across dorkland I guess
    I wouldn't have a problem driving across Auckland to MAE but certainly wouldn't do the same to get to RR's

  11. #11
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,052
    @Friwi at DPT in the Tron.. Very good work
    Willie likes this.
    "This is my Flag... Ill only have the one ..

  12. #12
    Bah, humbug ! Frogfeatures's Avatar
    Join Date
    Nov 2013
    Location
    Auckland, until I can escape south....to Southland.
    Posts
    1,666
    Alan Reid Toolmaking in Ellice Rd, on the shore, done some work for me.
    Really happy with his work.
    He nui to ngaromanga, he iti to putanga.

    You depart with mighty boasts, but you come back having done little.
    Sounds like a typical hunting trip !

  13. #13
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,287
    Here is a bit of information regarding kidds barrels:
    The original blanks are from Lothar Walther in Germany.
    The guys at kidds receive the barrel blanks, check them, take a good amount of time to "taper lap" the barrels so that the bore is slightly chocked toward the muzzle. This is a really an important step to get the best accuracy out of a 22 long rifle. The best 22 hunter benchrest rifles in the USA all have that chocking taper toward the last few inches of the muzzle. Even Anschutz barrels are manufactured like that.
    Now when you start removing some material from the end of a barrel to make a thread, the internal bore dimensions at the muzzle can open slightly , and more so for button rifled barrels like the lothar Walther ones.
    When you buy a factory threaded barrel from kidd, it has a recess inside the thread so that the muzzle crown is inside the fat part of the barrel. The guys at kidds know perfectly well that they could not guaranty the accuracy of their factory threaded barrels if they were crowning the muzzle at the end of the thread like it is common practice.

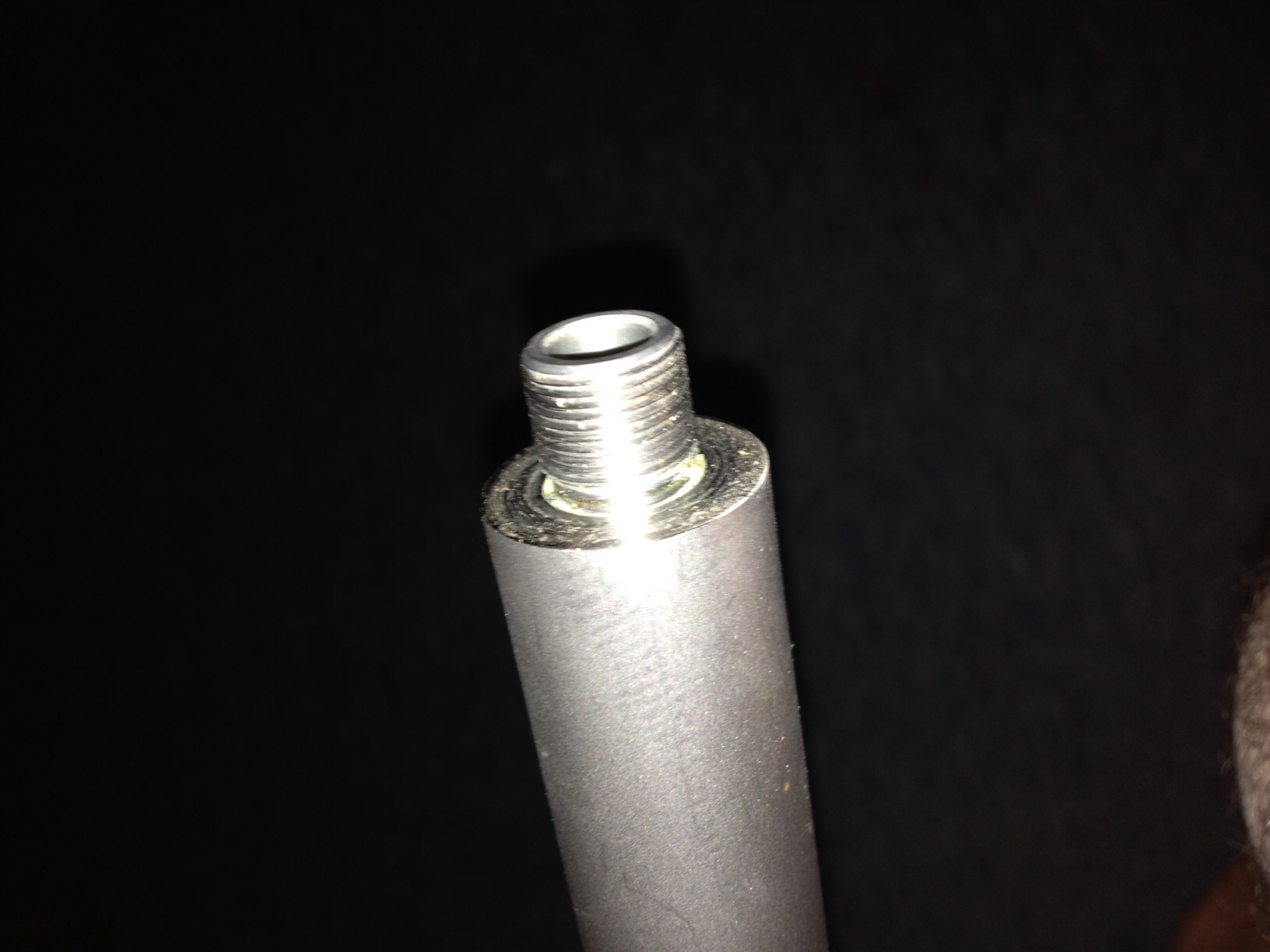

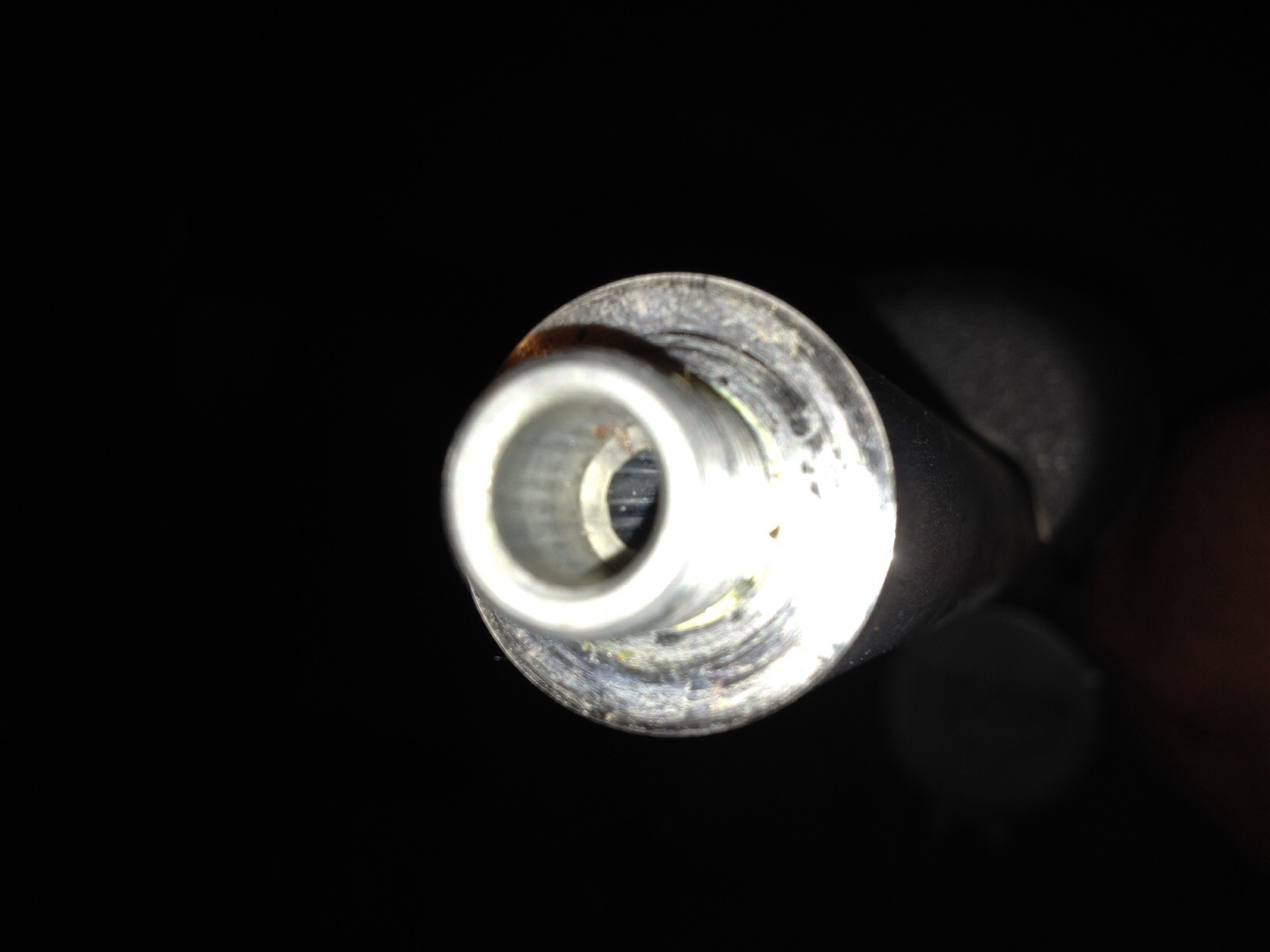

    Please take look at my kidd barrel muzzle which was factory threaded (1/2"-28):
    Name:  image.jpg
Views: 1176
Size:  238.8 KBName:  image.jpg
Views: 1235
Size:  177.1 KB

    There thread is cut exactly to the dimensions, and my suppressor (1/2"-28)has a nice tight fit on it. That is one solution that works.

    The problem with the standard thread for 22's (1/2"-20 in Europe and nz, and 1/2"-28 in the USA) is that it takes away to much meat at the end of the barrels specially when done on a varmint type barrel.

    Now, there would be another solution. That would be to have suppressor made with a much wider thread or even a custom thread to match the diameter of the barrel you intended to get threaded.
    On my kidd barrel the fat part is 23.4 mm diameter. A custom thread of 21 mmX1mm pitch or 0.875"X20 or 28 TPI would leave enough shoulder for the suppressor back end to stop against and would allow to remove very little meet from the muzzle end which in turn would keep internal bore dimensions correct. Of course this a more expensive way of fitting a suppressor as all the work and machining time is charged up.

    I know millions of 22's worldwide have had there barrel cut and threaded for 1/2" type threads and are producing an accuracy from golf balls diameter or better at 50 m which satisfy most of their owners when they want to shoot rabbits size game.
    But if you want the ultimate in accuracy with your 22 ,you now know what needs to get done.
    Gerbs, MrDrifter and res like this.

  14. #14
    Member craigc's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    2,235
    If I was you I'd get HRE to build a custom suppressor with a larger thread.

  15. #15
    Member craigc's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    2,235
    Quote Originally Posted by quentin View Post
    I've had good service from Roger Spackman at Sub-Silent Suppressors.
    He has a dedicated lathe he uses just for threading barrels.
    As a bonus, he is Auckland based. Might be worth talking to him about suppressors while you are at it.
    Sub-Silent Suppressors | custom rimfire, centerfire, CO2 and PCP silencers, suppressors and moderators. Ruger 10/22 Bullet Comparison Chart
    You must be joking
    7mmsaum, BRADS, shift14 and 2 others like this.
