Thread: threading odd muzzle

  1. #1
    Member
    Join Date
    Jun 2021
    Location
    huntly
    Posts
    751

    threading odd muzzle

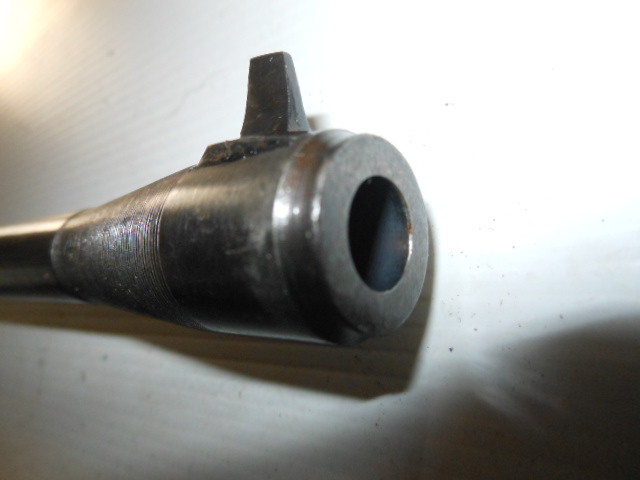

    I have this .22 with this odd muzzle that I want to get threaded for a suppressor. I don't want to cut the muzzle off for a traditional external thread, I'll need to thread internally and have an adapter made but the two local hamilton gunsmiths reckon they can't do it. Have no interest and time in posting and filling out police forms to send to a smith that may be able to. I thought of trying it myself, I know how use a tap set and have some engineering skills to make a crude adapter but a bit nervous that I may get it all on the piss. Anyone here in the waikato got the skills and tools that could help? Thanks.
    Name:  coalrange 017.jpg
Views: 281
Size:  117.6 KB

  2. #2
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    Leave the tap set in the drawer.
    Someone will be able to help.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  3. #3
    Member
    Join Date
    May 2015
    Location
    Rangiora
    Posts
    102
    I know it's not what you want to do but Gunworks counter bored a suppressor into my old .22 Norinco JW 25 and worked brilliantly-- no loose of front sight etc. Thought someone can help you out there.

  4. #4
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,157
    You would have to ream it out inside
    Re crown down in there
    Put an internal thread in there
    Make an adapter bush with a hole with enough clearance for the projectile to pass through

    I would locktite to bush to the suppressor so the muzzle will look completely normal with the suppressor removed

    Not that hard too do
    Just tricky and one off
    Your local gun plumber would hate it
    Just turning hours into dollars for them

  5. #5
    Member
    Join Date
    Dec 2011
    Location
    Te Awamutu
    Posts
    977
    Nice TOZ 17.
    I find their little dingle berry barrel end to be part of their character
    Micky Duck likes this.

  6. #6
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,157

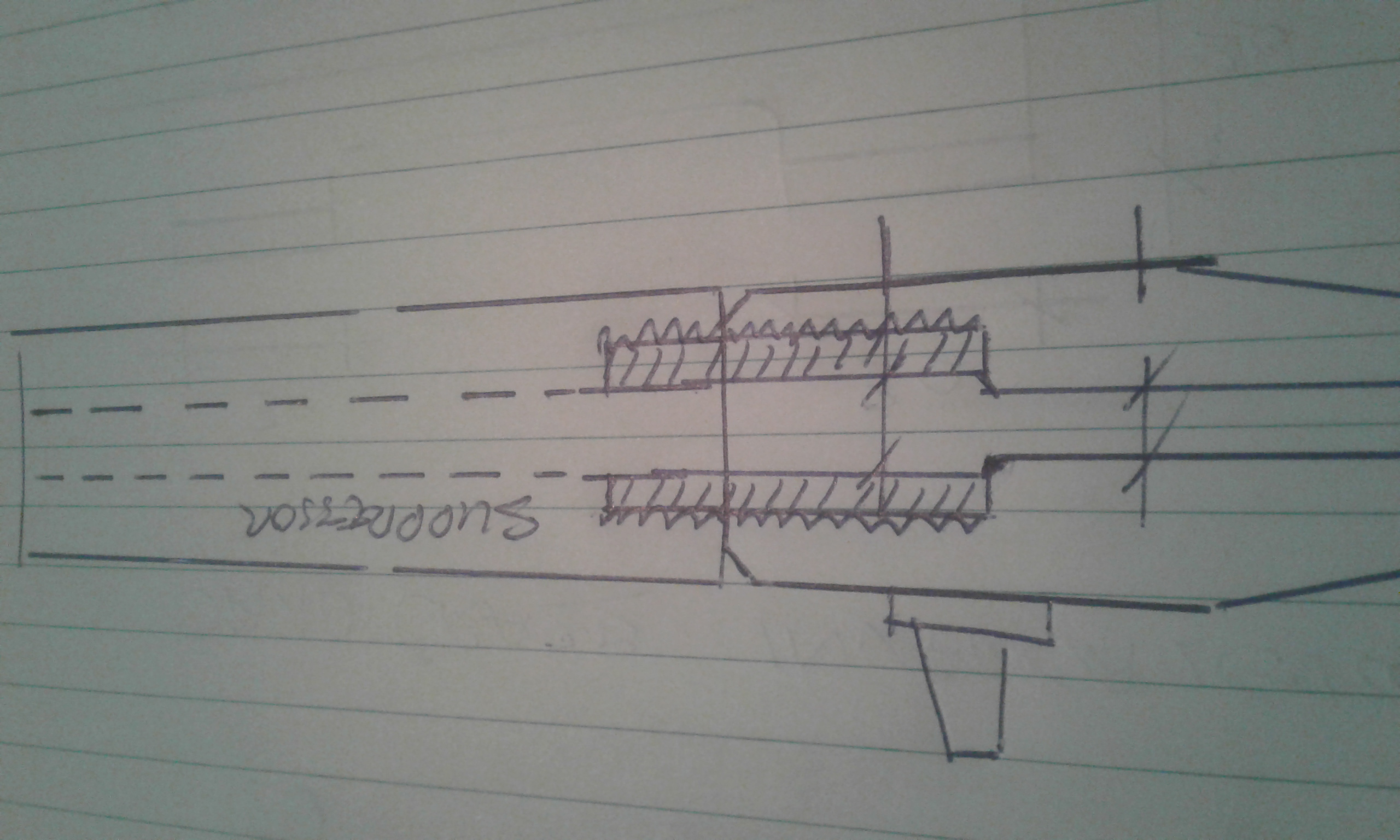

    Sort of like thisName:  20210820_170740.jpg
Views: 249
Size:  853.9 KB
    Three O'Three likes this.

  7. #7
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,157
    I'm sure someone on here has a toz done this way

  8. #8
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,259
    It can be internally threaded and an adapter made but it must be done on a lathe with a 4-jaw chuck and clocked true with the bore using a neat fitting spud. Any proper gunsmith should whack it out in less than an hour. They were 'bread & butter' jobs 30-40 years ago.

  9. #9
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,157
    Quote Originally Posted by gundoc View Post
    It can be internally threaded and an adapter made but it must be done on a lathe with a 4-jaw chuck and clocked true with the bore using a neat fitting spud. Any proper gunsmith should whack it out in less than an hour. They were 'bread & butter' jobs 30-40 years ago.
    Gunsmiths are not what they used to be @gundoc

    Bread and butter now is putting plastic bits together and buying in parts

  10. #10
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,634
    try it with subsonics as it is....I did and decided not to bother with suppressor anymore for the 22lr....

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,634
    do you include DPT in that "local smiths"?????? also have you looked into the push on models???

  12. #12
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    4,551
    Be very careful with those toz rifles
    That big thing on the front affects harmonics
    I have seen some cut off and threaded and any form of accuracy just gone
    Micky Duck likes this.

  13. #13
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,283
    @ 303, when we re open after the lockdown, bring your rifle along at our workshop at dpt and I can take measurements and see what we can do for you.

  14. #14
    Member
    Join Date
    Jun 2021
    Location
    huntly
    Posts
    751
    Quote Originally Posted by Micky Duck View Post
    do you include DPT in that "local smiths"?????? also have you looked into the push on models???
    Yes and yes. I even made a slip-on, worked but it was easily misaligned if bumped.

  15. #15
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,634
    well it appears Friwi is willing to have a look......job done one would say.
    veitnamcam, ONYVA and Marty Henry like this.
