Thread: Tikka 1" Optilock ring mount height

  1. #1
    Member
    Join Date
    Jun 2020
    Location
    Canterbury
    Posts
    456

    Tikka 1" Optilock ring mount height

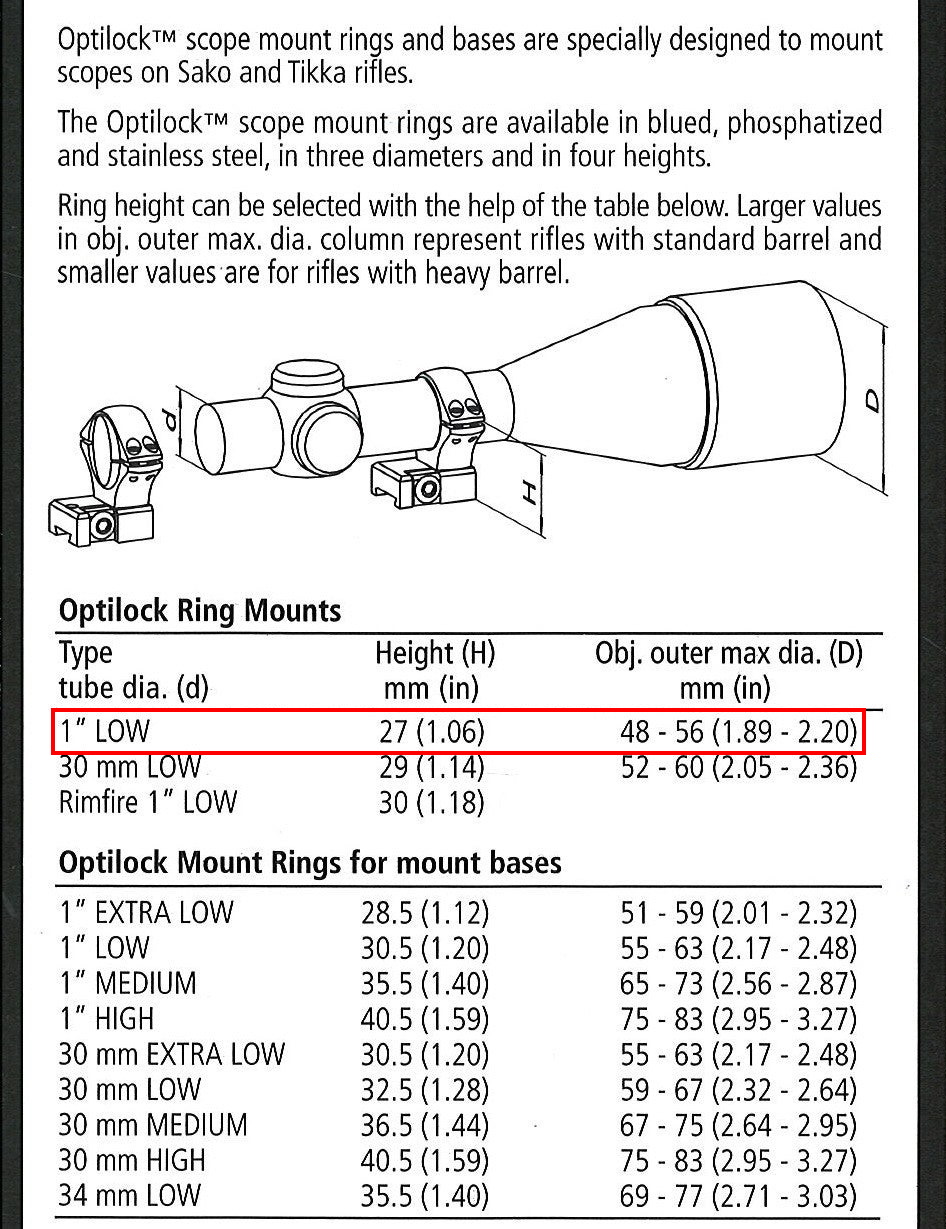

    Trying to find out the actual height of these rings to see if my scope will fit (z3 3 - 10 x 42 with a scope cap so ~54mm diameter at the objective end) - I found this chart (posted on here a few years back) which seems to indicate 27mm from the bottom? of the mount to the centre of the scope tube. Can anyone confirm the height measured from the top of the receiver to either the bottom or centre of the scope tube? I am thinking these might be a bit low for what I need ...

    Cheers

    Name:  Sako_Optilock_Rings_Bases_Charts_a69b6d27-5c2e-45c4-89c3-3fb957d50d5c.jpg
Views: 1422
Size:  384.8 KB

  2. #2
    Member
    Join Date
    Dec 2019
    Location
    Dunedin
    Posts
    370

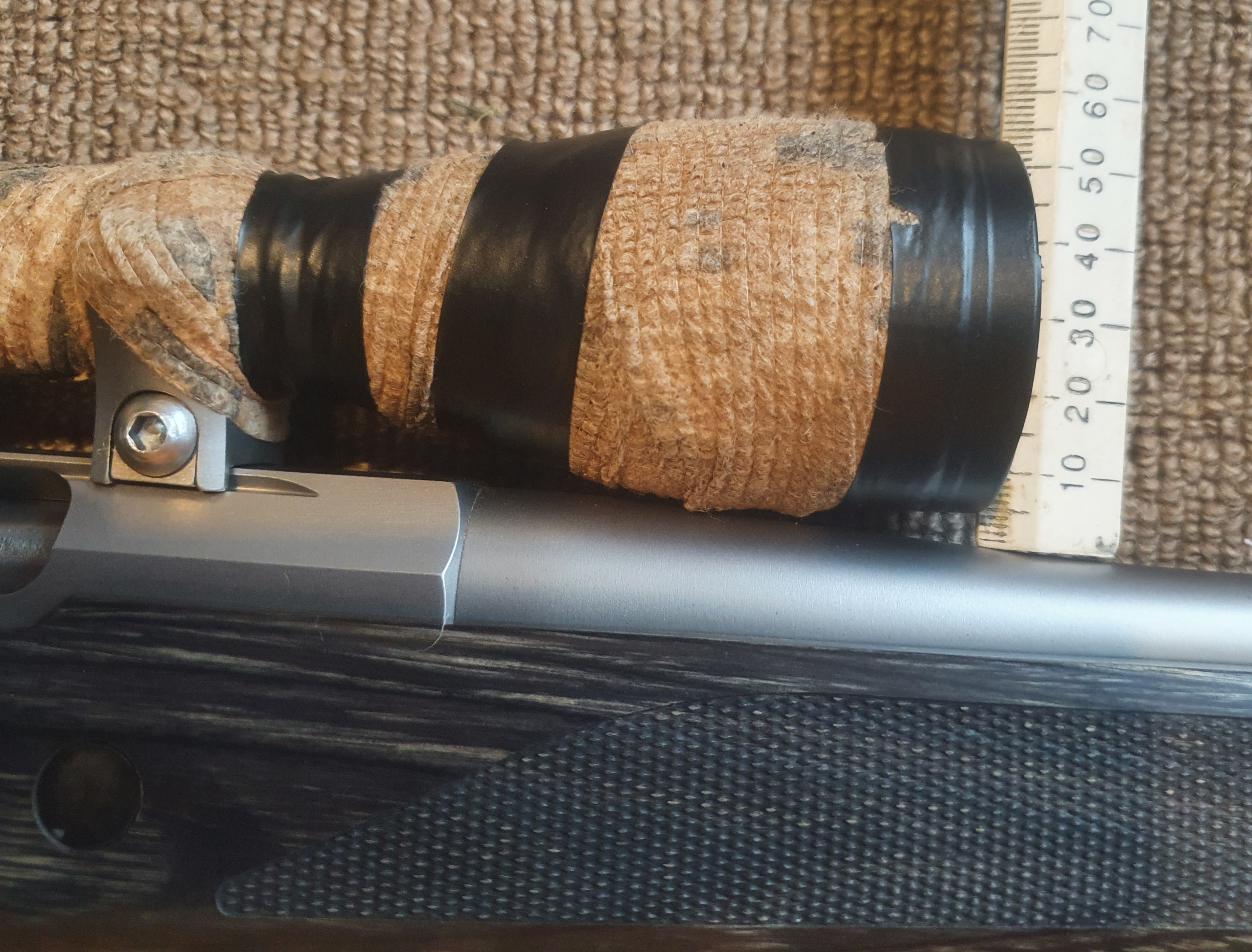

    Are you using the ones with bases or the ones like these?

    Lows with a 3-10x42. 4-5mm clearance right at the very end
    Name:  20221004_173901.jpg
Views: 603
Size:  2.05 MB
    Shamus_ likes this.

  3. #3
    Member
    Join Date
    Jun 2020
    Location
    Canterbury
    Posts
    456
    Quote Originally Posted by Southerner223 View Post
    Are you using the ones with bases or the ones like these?

    Lows with a 3-10x42. 4-5mm clearance right at the very end
    Attachment 207353
    One piece ring mounts as in your picture so thanks for that Looks like it's going to very tight if not too tight - the scope caps add a couple of mm to the diameter and it's not the front of the objective that's the issue it's further back where the barrel is a bit thicker.
    Southerner223 likes this.

  4. #4
    Member
    Join Date
    Dec 2019
    Location
    Dunedin
    Posts
    370
    Yea its very close further back under the tape so unfortunately I doubt it would work. Glad I could help, is a gamble sometimes without a real example!
    Shamus_ likes this.

  5. #5
    Member
    Join Date
    Jun 2020
    Location
    Canterbury
    Posts
    456
    Quote Originally Posted by Southerner223 View Post
    Yea its very close further back under the tape so unfortunately I doubt it would work. Glad I could help, is a gamble sometimes without a real example!
    A picture is worth a 1000 words so that was very helpful. Cheers

  6. #6
    Member
    Join Date
    Jul 2020
    Location
    Europe
    Posts
    12
    Seems the tape you have wrapped around the objective adds 1 or 2mm?


    But, there would be no way to fit a x50mm objective using these rings?
