Thread: Tikka mag feeding problem

  1. #1
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186

    Tikka mag feeding problem

    For my 7mm wsm, brought a long action tikka magazine, now having issues getting rounds to feed.... any bright ideas?

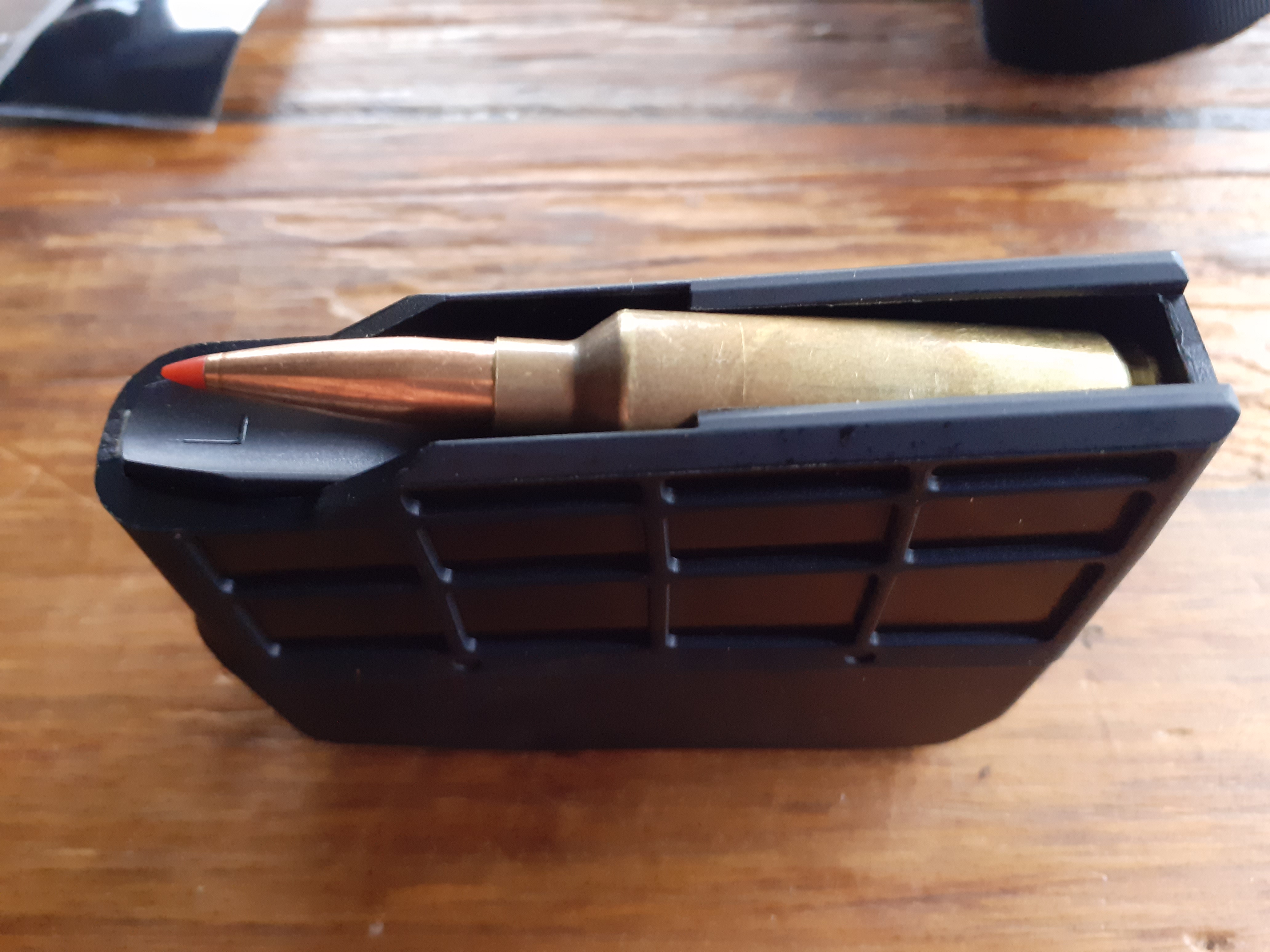

    Some times the rim of the case is high enough to catch but most of the time it won't. Haven't done the bolt stop mod yet but releasing it doesn't help (have to release bolt to get chambered round to eject anyway)Name:  20191101_195414.jpg
Views: 434

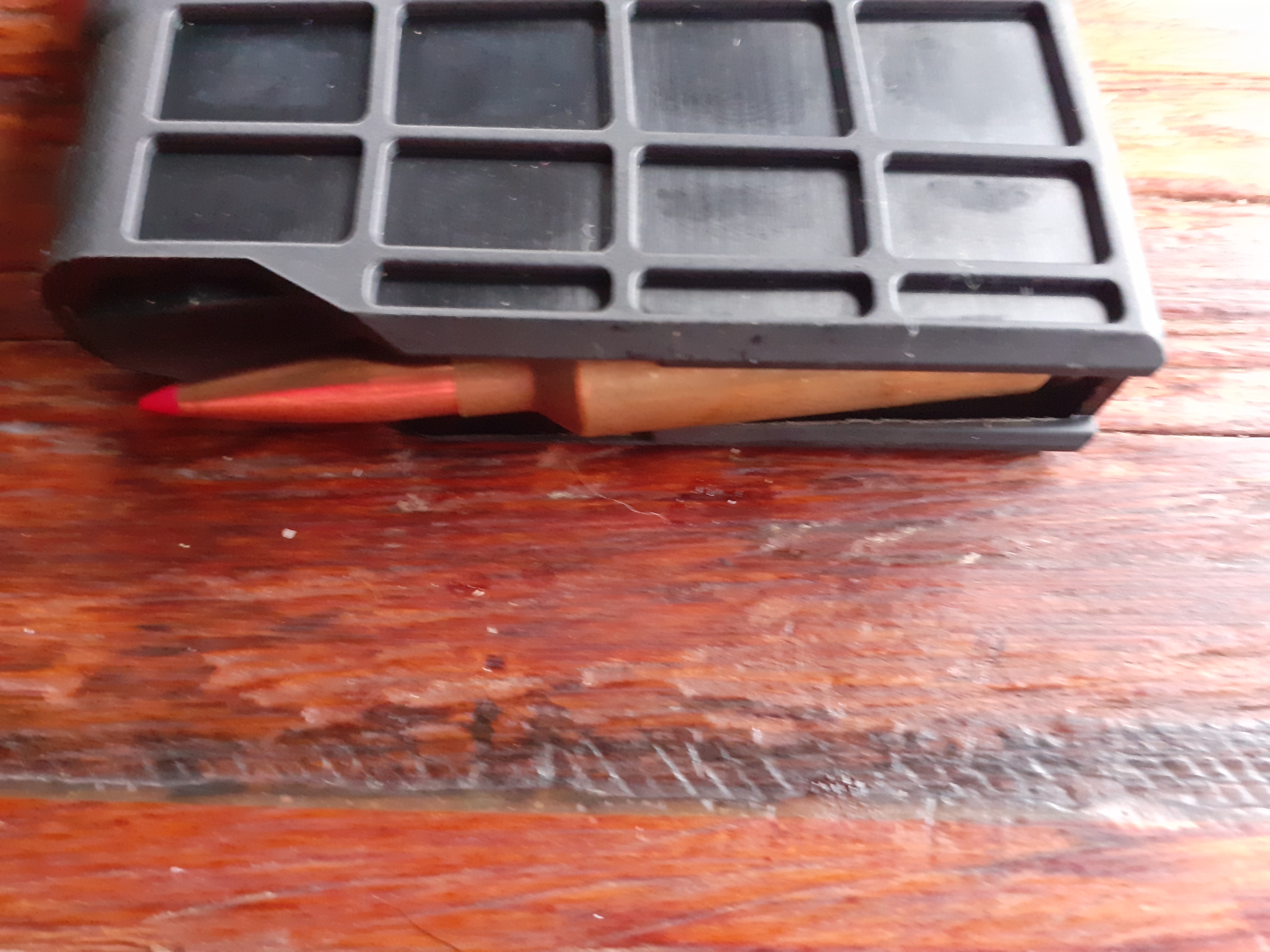

Size:  2.52 MBName:  20191101_195752.jpg
Views: 426
Size:  2.95 MB

    Feels like the mag spring is too far forward for the wsm brass

    Rifle came with a medium tikka mag same as my 308, hand loaded rounds are far too long to fit

  2. #2
    northdude
    Guest
    bend the case

  3. #3
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    A bit more playing around and I think the brass is a little to far for the magazine walls.... so do I have to try and fill the inside of the mag walls? Crc on the rounds as I load them?

  4. #4
    Gone but not forgotten
    Join Date
    Apr 2017
    Location
    Hamilton
    Posts
    4,129
    "Feels like the mag spring is too far forward "
    That was my first thought when I saw the first photo too.

  5. #5
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    6,678
    The Wsm mags are wider inside than the long mags
    Mathias and ChrisW like this.
    Contact me for reloading components, brass, projectiles, powder, primers, etc

    http://terminatorproducts.co.nz/

    http://www.youtube.com/user/Terminat...?feature=guide

  6. #6
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    Quote Originally Posted by Kiwi Greg View Post
    The Wsm mags are wider inside than the long mags
    So I ended up with the wrong mag? Tild the shop it was for a 7mm wsm and needed to be long enough to fit hand loads.... so is there a long action fat body mag available?Name:  20191101_201004.jpg
Views: 319
Size:  2.60 MB

    I realise 7mm wsm isn't on the label but the medium action was WAY to short

  7. #7
    Terminator Products Kiwi Greg's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    6,678
    Quote Originally Posted by 223nut View Post
    So is there a long action fat body mag available ?
    Nope, you need to modify a Wsm one
    Contact me for reloading components, brass, projectiles, powder, primers, etc

    http://terminatorproducts.co.nz/

    http://www.youtube.com/user/Terminat...?feature=guide

  8. #8
    Member
    Join Date
    Nov 2012
    Posts
    1,527
    If you want WSM seated long you have to modify a WSM mag as a long mag is a different mag and is too narrow.
    There is no WSM long mag if that makes sense.

    Sent from my CPH1903 using Tapatalk

  9. #9
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    Quote Originally Posted by Kiwi Greg View Post
    Nope, you need to modify a Wsm one
    Crap!!! I looked at that option and put it in the too hard basket, hence buying the new long action.

    On the bright side I guess I now have a follower that will be long enough!

  10. #10
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,471
    Modified one for my 338wsm, just cut the web out to allow the base to the rear of the mag.


    Sent from my iPhone using Tapatalk
    wsm junkie likes this.

  11. #11
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    12,739
    You can pull the long mag apart and get in there with a sanding dremel to ease the sides. @GWH did it I think.

  12. #12
    Member
    Join Date
    Mar 2019
    Location
    Wellington
    Posts
    253
    Also put some ceramic dry lube on the inside. Makes the it smoother and no stickiness

    Sent from my SM-G960F using Tapatalk

  13. #13
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    Quote Originally Posted by MSL View Post
    Modified one for my 338wsm, just cut the web out to allow the base to the rear of the mag.


    Sent from my iPhone using Tapatalk
    So how did you cut the 'web' out? Will have to do a bit of you tube research....

  14. #14
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,471
    Quote Originally Posted by 223nut View Post
    So how did you cut the 'web' out? Will have to do a bit of you tube research....
    Was about 8 years ago but I think I used hacksaw blade, then cleaned up with a sharp blade


    Sent from my iPhone using Tapatalk
    223nut likes this.

  15. #15
    Member
    Join Date
    Oct 2019
    Location
    manawatu
    Posts
    114
    actually its quite simple,,get an xbolt
    how do u get an xbolt
    simple,,sell the tickler
