Thread: Vx3 zero stop mod any tips or advice ?

  1. #1
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181

    Vx3 zero stop mod any tips or advice ?

    So I have a vx3 4.5-14x40 CDS and I'm looking at doing the zero stop mod that I've seen on here.
    Anyone who has done this got any tips or advice ?

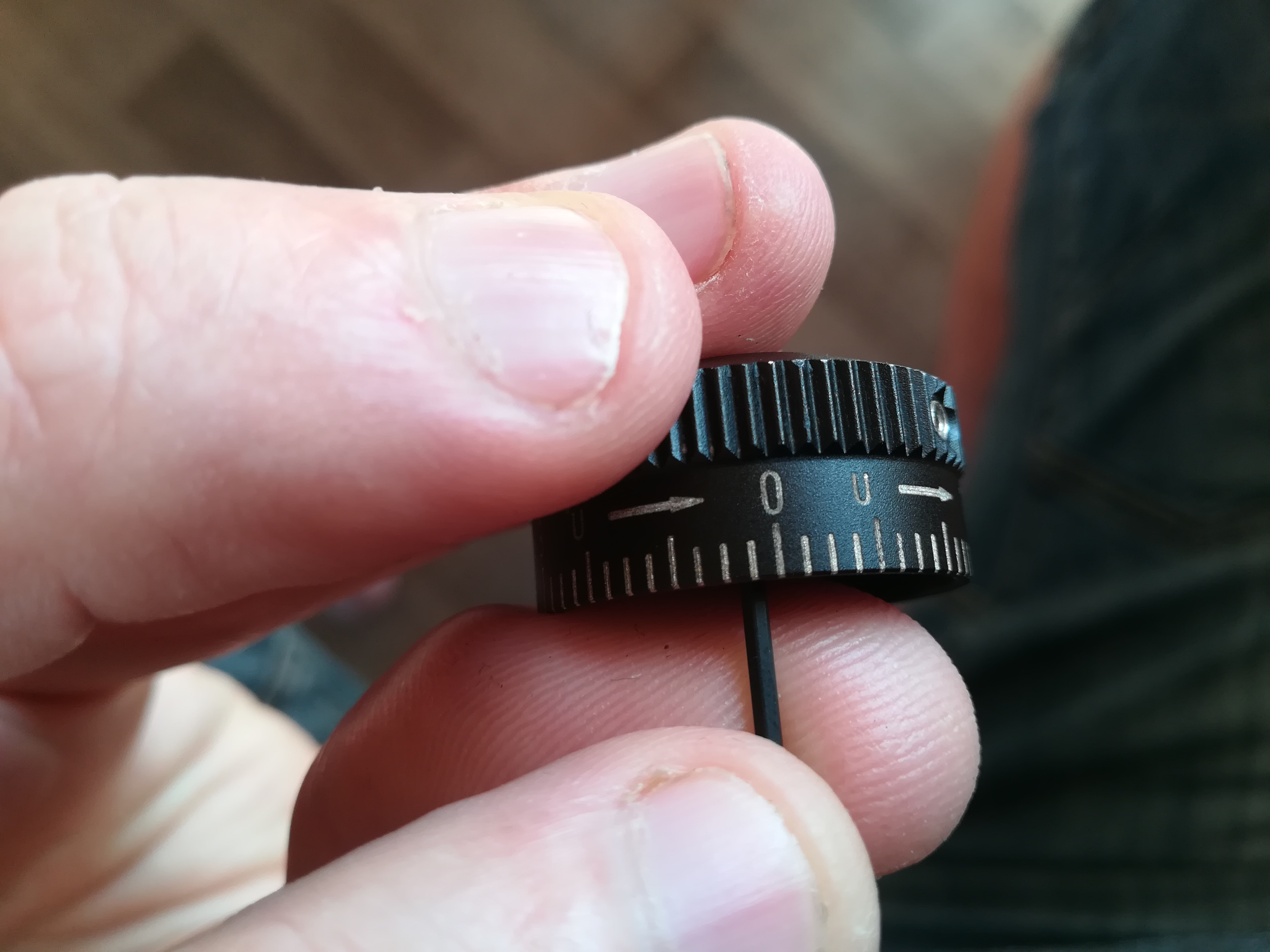

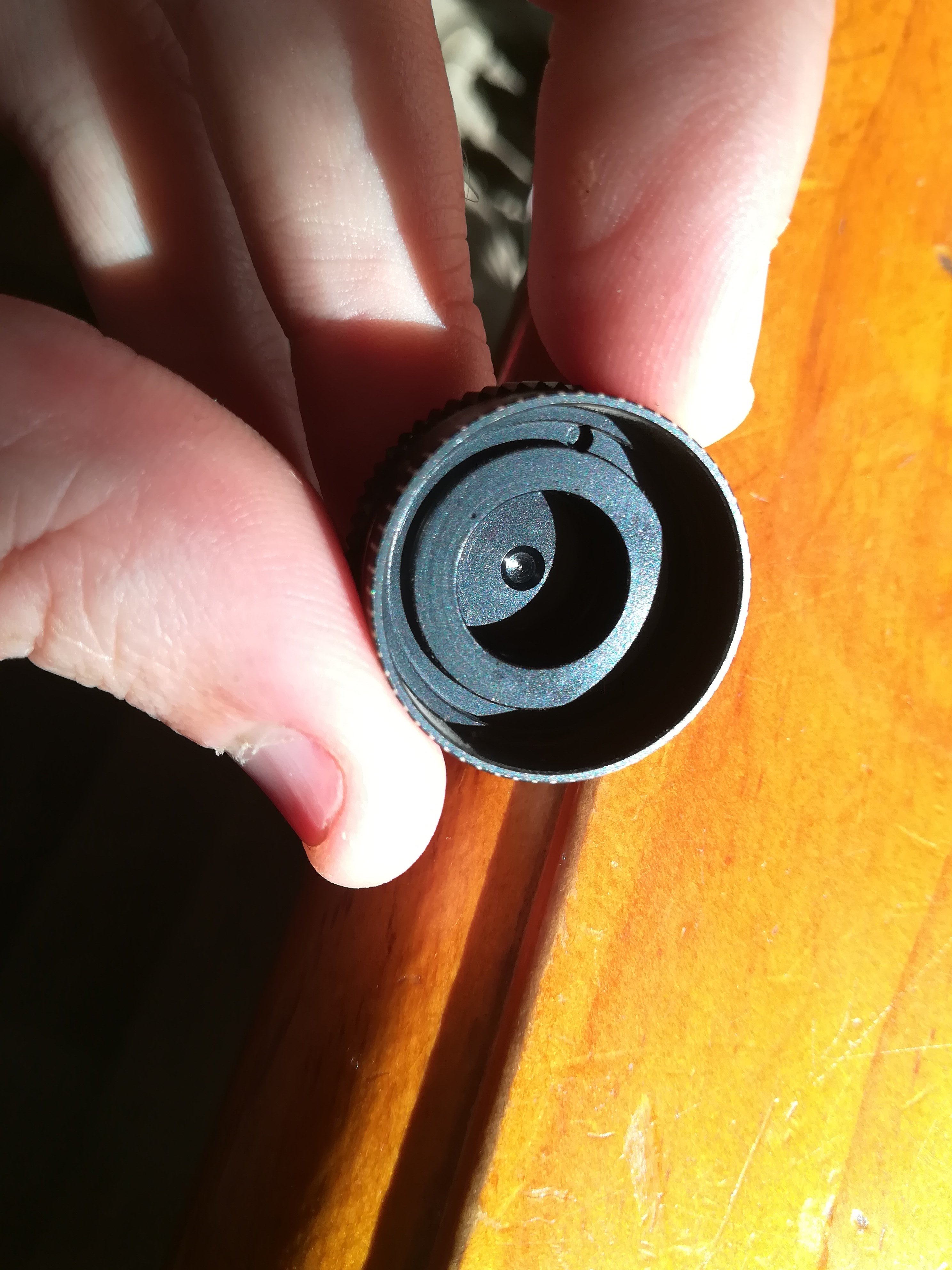

    Looking at my dial and scope if I install either a plastic post or ball bearing in the hole that is pre drilled in the cap it will mean my "zero" is effectively 3 clicks up so that it will allow 1 full rotation (60 clicks) before hitting the stop
    Name:  IMG_20190423_112717.jpg
Views: 328
Size:  2.23 MB
    Name:  IMG_20190423_112754.jpg
Views: 286
Size:  1.72 MB

    Name:  IMG_20190423_112613.jpg
Views: 313
Size:  1.73 MB

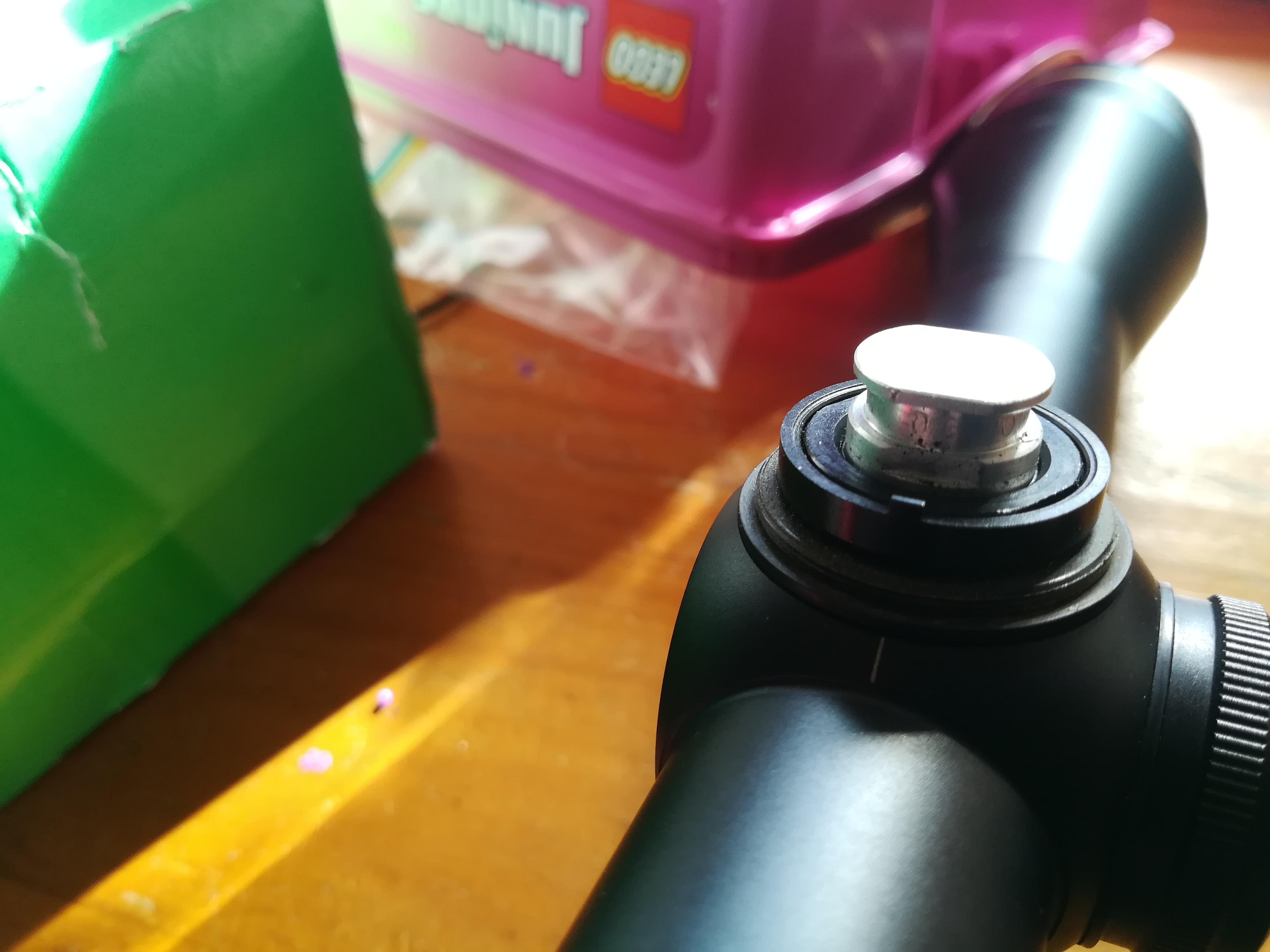

    So if you see the stopper on the scope it sits directly in line with the indicator mark on the scope body.
    I seem to remember reading somewhere the piece the stopper is on is press fit. So could I lever it off and move it around so the the ball bearing or post can be fitted to the cap and then allow the zero to sit on zero ? Hope that makes sense ?
    Also can anyone advise the best option for a ball bearing or plastic post to fit into the cap ?

  2. #2
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,488
    Ring NZ Asia in Nelson and see if they will send you the correct ball bearing. Install it into that hole firmly seated and then try it out. The zero stop ring installed on your scope can be moved if required. One edge of the stop on the ring should line up with the white line on the scope, sorry cant remember if its the left or right edge. The hole in the cap is in the correct place.
    dannyb likes this.

  3. #3
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Quote Originally Posted by Mathias View Post
    Ring NZ Asia in Nelson and see if they will send you the correct ball bearing. Install it into that hole firmly seated and then try it out. The zero stop ring installed on your scope can be moved if required. One edge of the stop on the ring should line up with the white line on the scope, sorry cant remember if its the left or right edge. The hole in the cap is in the correct place.
    Good to know it can be moved if required that would mess with my ocd if zero wasn't zero
    Thank you @Mathias I know this has been asked before just needed it simplified for my brain.

  4. #4
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    4,874
    Let me know how you get on I'm keen to do this as well
    dannyb likes this.

  5. #5
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Just need the ball bearing or a #9 or #10 sized shot from a shotgun shell apparently also ideal size

  6. #6
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,468
    You need to find my thread on it. Has exactly how to sort. Called Cds zero stop or something
    dannyb likes this.

  7. #7
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Just rang and spoke to Dave @ NZ Asia trading in Nelson and he was good enough to send me a couple of ball bearings straight away so should have before weeks end, happy to pass on the extra one if someone else needs 1, I should add David was very careful to point out that the hole in the cap may not correspond with the zero on the dial.
    Last edited by dannyb; 23-04-2019 at 04:10 PM.

  8. #8
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Quote Originally Posted by Gibo View Post
    You need to find my thread on it. Has exactly how to sort. Called Cds zero stop or something
    Yup seen your thread mate, gonna give it a go

  9. #9
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,468
    dannyb likes this.

  10. #10
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Quote Originally Posted by Gibo View Post
    Was it easy enough to pry off and re fit the ring with the post ?

  11. #11
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,468
    Yeah just jimmy a flat head under the ring carefully all the way around, like taking off a paint tin lid, but carefully like its made of glass
    dannyb likes this.

  12. #12
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Quote Originally Posted by Gibo View Post
    but carefully like its made of glass
    Now I'm nervous as shit about it
    Gibo and 223nut like this.

  13. #13
    #KnowsFuckAll Dorkus's Avatar
    Join Date
    Jul 2015
    Location
    Mangawhai
    Posts
    1,310
    Quote Originally Posted by dannyb View Post
    Just rang and spoke to Dave @ NZ Asia trading in Nelson and he was good enough to send me a couple of ball bearings straight away so should have before weeks end, happy to pass on the extra one if someone else needs 1, I should add David was very careful to point out that the hole in the cap may not correspond with the zero on the dial.
    I need to do it on my VX3. Would love the spare one if it's available.
    dannyb likes this.
    "I heard Jesus did cocaine on a night out. Eyes wide-open, dialated, but he's fine now. And if his father ever finds out, then he'd probably knock his lights out...
    Gets a little messy in heaven "
    - Venbee

  14. #14
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,468
    Quote Originally Posted by dannyb View Post
    Now I'm nervous as shit about it
    Ha ha nah its all good, just go easy, they are scope parts after all
    dannyb likes this.

  15. #15
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,181
    Quote Originally Posted by Dorkus View Post
    I need to do it on my VX3. Would love the spare one if it's available.
    I'll be in touch when it arrives
    Dorkus likes this.
