Thread: 3l needing new pistons?

  1. #1
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235

    3l needing new pistons?

    Brothers 3L hilux cambelt came loose, tensionor screw broke.. was running but had alot of rattle from top end. We pulled the head today and valves have just been touching pistons and has sightly marked them, should we replace pistons or should they still be good to go? Head is currently as a Head specialist getting checked over.

  2. #2
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235

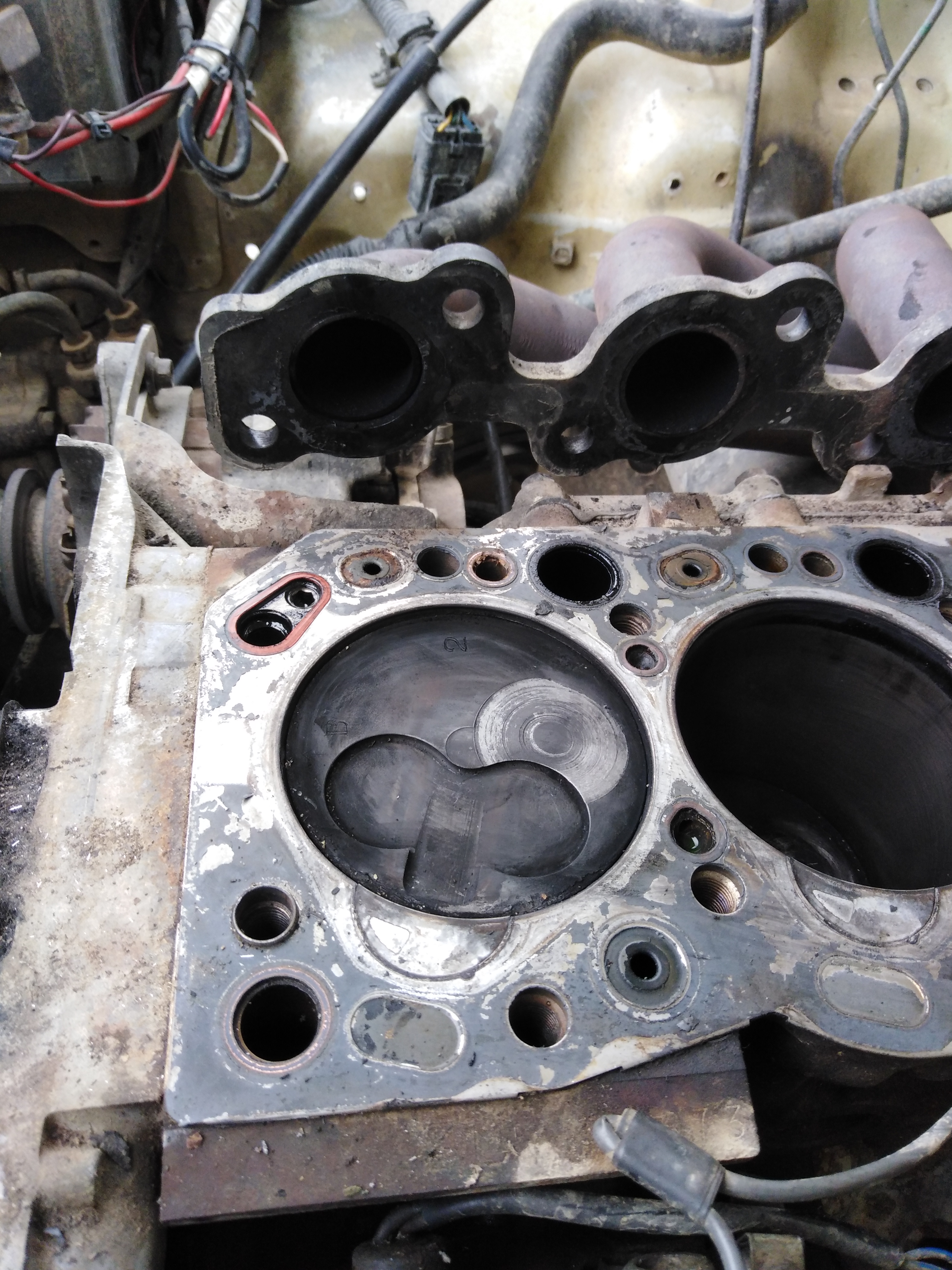

    Name:  IMG_20191119_143827.jpg
Views: 750
Size:  3.31 MBName:  IMG_20191119_143827.jpg
Views: 750
Size:  3.31 MBName:  IMG_20191119_143827.jpg
Views: 750
Size:  3.31 MB

  3. #3
    Member
    Join Date
    May 2018
    Location
    Porirua
    Posts
    1,335
    You may be lucky they don’t look too bad, can I assume the valves are bent? I would recommend taking the pistons out and measuring them and check they haven’t bulged out on the side of the piston or pushed the land down onto the top ring.
    If the pistons are good then do rings and bearings then you’re good for another 500,000.
    DLW and xtightg like this.
    Remember the 7 “P”s; Pryor Preparation Prevents Piss Poor Performance.

  4. #4
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,965
    Id go new pistons just to be safe for the turbo or supercharger you should put on the side of it.
    DLW likes this.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  5. #5
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235
    Thanks for the response, guys that he dropped head into said it looked really good but are going to check everything out, we couldn't see any visible bends or damage on the head. Was wondering if we could just take rough edges out of marks and put head back on due to financial costs but think we might try take pistons out and do what you said, as he has no intentions of selling the truck. Any tips on pulling the pistons?

  6. #6
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235
    Quote Originally Posted by 2post View Post
    You may be lucky they don’t look too bad, can I assume the valves are bent? I would recommend taking the pistons out and measuring them and check they haven’t bulged out on the side of the piston or pushed the land down onto the top ring.
    If the pistons are good then do rings and bearings then you’re good for another 500,000.
    Thanks for the response, he's a 80 year old stuck in a 22year old body haha so can't see any turbos or super chargers anytime soon, but he wants it too go for a really long time.
    veitnamcam likes this.

  7. #7
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,530
    My money would be on "sweet as"
    Identify your target beyond all doubt

  8. #8
    Member
    Join Date
    May 2018
    Location
    Porirua
    Posts
    1,335
    Sump off to remove the pistons.
    If money is tight go around the side of each piston with a feeler gauge to check the top ring is tight against the bore and not broken then put it back together.
    DLW likes this.
    Remember the 7 “P”s; Pryor Preparation Prevents Piss Poor Performance.

  9. #9
    I hate tacticool Konev's Avatar
    Join Date
    Apr 2012
    Location
    Queenstown
    Posts
    1,128
    if ya want cheaper original parts goto partsouq.
    7mmsaum and DLW like this.

  10. #10
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235
    Quote Originally Posted by Konev View Post
    if ya want cheaper original parts goto partsouq.
    Thank you, looked into it and prices look awesome

  11. #11
    Member
    Join Date
    Jun 2019
    Location
    Ararimu, Auckland
    Posts
    108
    I used to own and operate a machine shop - we used to have this issue many times on Toyota diesel engines.
    If it was not burning oil before this then it wont after this. The downward force from the valve onto the piston is straight - and not on an angle. The valves in these engines take the hammering. If the head checks out A OK then the piston assembly will be good. Diesel engines are built tuogher than petrol cause of such higher compression and it takes a massive amount of energy to break a diesel engine piston. I'm not saying its impossible but in this cause its only a valve touching - You should see them when a valve breaks and pummels itself senseless in the combustion chamber.
    I'd be happy to let it run however it all depends how good it was before the incident.
    The secret to long life in any diesel engine but especially toyota's is regular oil and filter changes. They used to start on new ones at 10,000kms but that was reduced to 7500kms to stop thinning of the oil - once the oi became diluted it reduced bearing clearance resulting in the con rod going up that little bit further thus allowing the valves touching the pistons and Vola - Same result as you have.
    Be care on aftermarket cheap parts - they are cheap for a reason - no one ever regretted paying for good quality parts. As me how I know LOL
    Parts like pistons etc are like rifle scopes. You pay for what you get.
    DLW likes this.

  12. #12
    DLW
    DLW is offline
    Member
    Join Date
    Feb 2016
    Location
    Christchurch
    Posts
    235
    Quote Originally Posted by 35desoto View Post
    I used to own and operate a machine shop - we used to have this issue many times on Toyota diesel engines.
    If it was not burning oil before this then it wont after this. The downward force from the valve onto the piston is straight - and not on an angle. The valves in these engines take the hammering. If the head checks out A OK then the piston assembly will be good. Diesel engines are built tuogher than petrol cause of such higher compression and it takes a massive amount of energy to break a diesel engine piston. I'm not saying its impossible but in this cause its only a valve touching - You should see them when a valve breaks and pummels itself senseless in the combustion chamber.
    I'd be happy to let it run however it all depends how good it was before the incident.
    The secret to long life in any diesel engine but especially toyota's is regular oil and filter changes. They used to start on new ones at 10,000kms but that was reduced to 7500kms to stop thinning of the oil - once the oi became diluted it reduced bearing clearance resulting in the con rod going up that little bit further thus allowing the valves touching the pistons and Vola - Same result as you have.
    Be care on aftermarket cheap parts - they are cheap for a reason - no one ever regretted paying for good quality parts. As me how I know LOL
    Parts like pistons etc are like rifle scopes. You pay for what you get.
    Thanks for your response, heard back about the head and valves aren't bent but the camshaft is. Gives me a bit more confidence to put it all back together once head is sorted, was a good runner before this happened
    Cheers

  13. #13
    I hate tacticool Konev's Avatar
    Join Date
    Apr 2012
    Location
    Queenstown
    Posts
    1,128
    Quote Originally Posted by DLW View Post
    Thank you, looked into it and prices look awesome
    I have used them. Legit.
    DLW likes this.
