Thread: Dive tank tyre inflator

  1. #1
    MB
    MB is online now
    Member MB's Avatar
    Join Date
    Jan 2016
    Location
    Deerless North
    Posts
    4,703

    Dive tank tyre inflator

    I want to inflate car tyres with a dive tank. You can get cheapo adapters which attach to a scuba low pressure hose, but they seem a bit hit and miss and I think there is a risk that something will go bang. Something with a gauge would be ideal. You would think that it would be easy to buy, or at least get compatible components, but it's not. Anyone doing this?

  2. #2
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    Wouldn't it need to incorporate some sort of regulator?
    With my tank it's appears all or nothing when I crack the valve.
    I did have a bang. For some reason I cracked open the valve on mine with nothing connected. Got so far and bang, it blew the plastic threaded plug out across the room, grazing my inner thigh and drawing blood.
    I learnt new respect for the pressure in a dive bottle.

  3. #3
    MB
    MB is online now
    Member MB's Avatar
    Join Date
    Jan 2016
    Location
    Deerless North
    Posts
    4,703
    Yes, there would need to be a step down in pressure even if it was run off a scuba low pressure hose. Maybe a 12v inflator would be less hassle.
    Shearer and 40mm like this.

  4. #4
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    Most folks use a 12v inflater with a seperate compression / storage tank...
    MB and 40mm like this.

  5. #5
    Member 40mm's Avatar
    Join Date
    May 2017
    Location
    North Auckland
    Posts
    5,921
    Yup, I have a super cheap auto 12v compressor and it has lasted years. Just dont let multiple vehicles use it without a cool off period for the compressor.
    was about $100, will cost more to get the bits for your scuba tank fittings etc and bottle fills too.
    and it is smaller and lighter.
    MB likes this.
    Use enough gun

  6. #6
    Member
    Join Date
    Jan 2020
    Location
    porirua
    Posts
    792
    Ok listen up with a dive tank you are playing with 3000 plus psi so safety first , you can usually pick up an old regulator with gauge for under 200 from a dive shop or s/h if a shop as them to remove second stage/ mouth piece hose and plug at reg . You should still have a low pressure compensator hose connected which will have a quick connect coupling attached , most shops sell a tyre inflator fitting which connects to low pressure hose and away you go . The air pressure will be 120-150 psi . My own set up has a aero fitting [female] fitted on hse so I can run nail guns etc , I get 1000 frame nail shots per tank and with the aero fitting you can add a adjustable reg to the air line , dont forget tank testing $60 yearly .

  7. #7
    Member
    Join Date
    Jul 2020
    Location
    Central North Island
    Posts
    4,941
    I purchased one that just plugs into my bcd inflator. So will be operating at 90psi above ambient (good ol USD reg from waaay back). Cant run into issues there. PLus I always have my pressure guage with me when I am pumping up tyres.

  8. #8
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    9,186
    Andrew St Pierre does a YouTube channel, 4xoverland. He has been 4wding all over the show for decades and when he did his landcruiser troppy build he had a good air compressor system set up to blow all the dust off the truck at the end of the day
    MB and 40mm like this.

  9. #9
    MB
    MB is online now
    Member MB's Avatar
    Join Date
    Jan 2016
    Location
    Deerless North
    Posts
    4,703
    Quote Originally Posted by m101a1 View Post
    Ok listen up with a dive tank you are playing with 3000 plus psi so safety first , you can usually pick up an old regulator with gauge for under 200 from a dive shop or s/h if a shop as them to remove second stage/ mouth piece hose and plug at reg . You should still have a low pressure compensator hose connected which will have a quick connect coupling attached , most shops sell a tyre inflator fitting which connects to low pressure hose and away you go . The air pressure will be 120-150 psi . My own set up has a aero fitting [female] fitted on hse so I can run nail guns etc , I get 1000 frame nail shots per tank and with the aero fitting you can add a adjustable reg to the air line , dont forget tank testing $60 yearly .
    Cheers, I have a ton of dive gear and pay for tank testing already, so not an issue.

  10. #10
    Member cambo's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,154

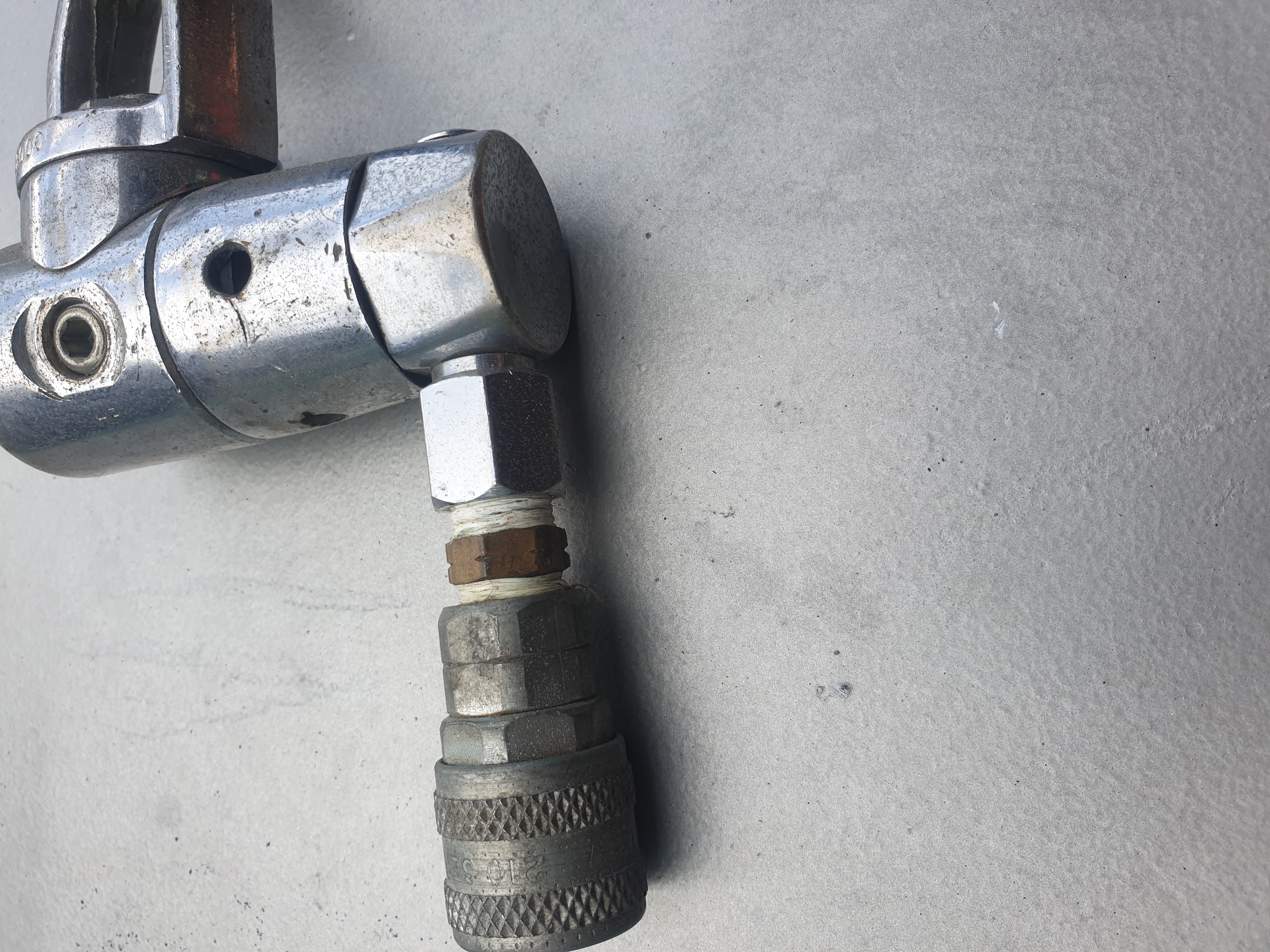

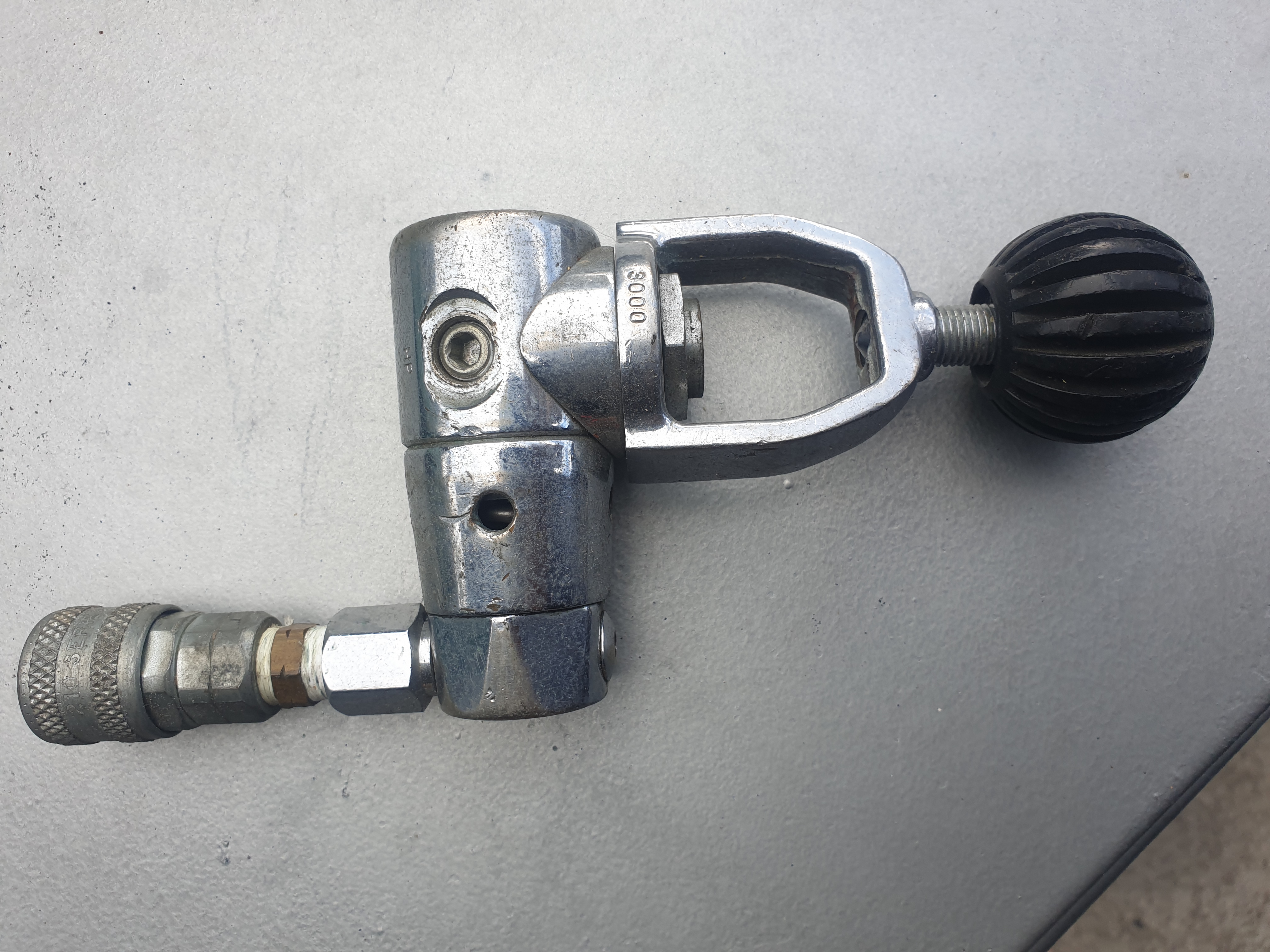

    Very easy. Get an old reg. Fit a pneumatic nipple into the low pressure side. Blank off any open ports. Fit an air line socket to the nipple and done.
    Made lots for the 4wd clubs. Too easy
    MB likes this.
    Life is natures way of keeping meat fresh

  11. #11
    Member cambo's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,154
    Name:  20220201_171806.jpg
Views: 291
Size:  3.10 MB

    Name:  20220201_171813.jpg
Views: 259
Size:  4.41 MB
    rugerman, MB and m101a1 like this.
    Life is natures way of keeping meat fresh

  12. #12
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    21,147
    Answer to a maidens prayer Name:  CC6B4C89-4075-40F3-B7B1-B7EF8AAEA221.jpeg
Views: 238
Size:  2.96 MBName:  0B52BA2B-7E61-470C-AAD9-91F98843276A.jpeg
Views: 251
Size:  2.47 MBName:  A500036E-CB35-46D1-8140-9EC65B2F555E.jpeg
Views: 229
Size:  2.84 MBName:  05E3A9CB-5966-499E-95C8-5A1FA8BA100E.jpeg
Views: 228
Size:  2.79 MBName:  CACEA6F4-AA21-4FAD-9F5E-A667D8BF13D9.jpeg
Views: 222
Size:  2.68 MB
    Max 120psi
    cambo, rugerman, 300CALMAN and 1 others like this.
    Boom, cough,cough,cough

  13. #13
    Member cambo's Avatar
    Join Date
    Dec 2011
    Location
    Christchurch
    Posts
    2,154
    The only problem with the battery inflator is they don't produce enough volume to reseat a bead if you ever pop 1 off.
    Need a lot of volume to reseat.... or a puff of lynx and a match 😆
    Maca49 and XR500 like this.
    Life is natures way of keeping meat fresh
