Thread: Fitting hydraulic steering to boat

Ok putting hydraulic steering in my Sea Nymph 566, prick of a job getting it to bits, working in cramped quarters and punching holes thru my thin skin!!!

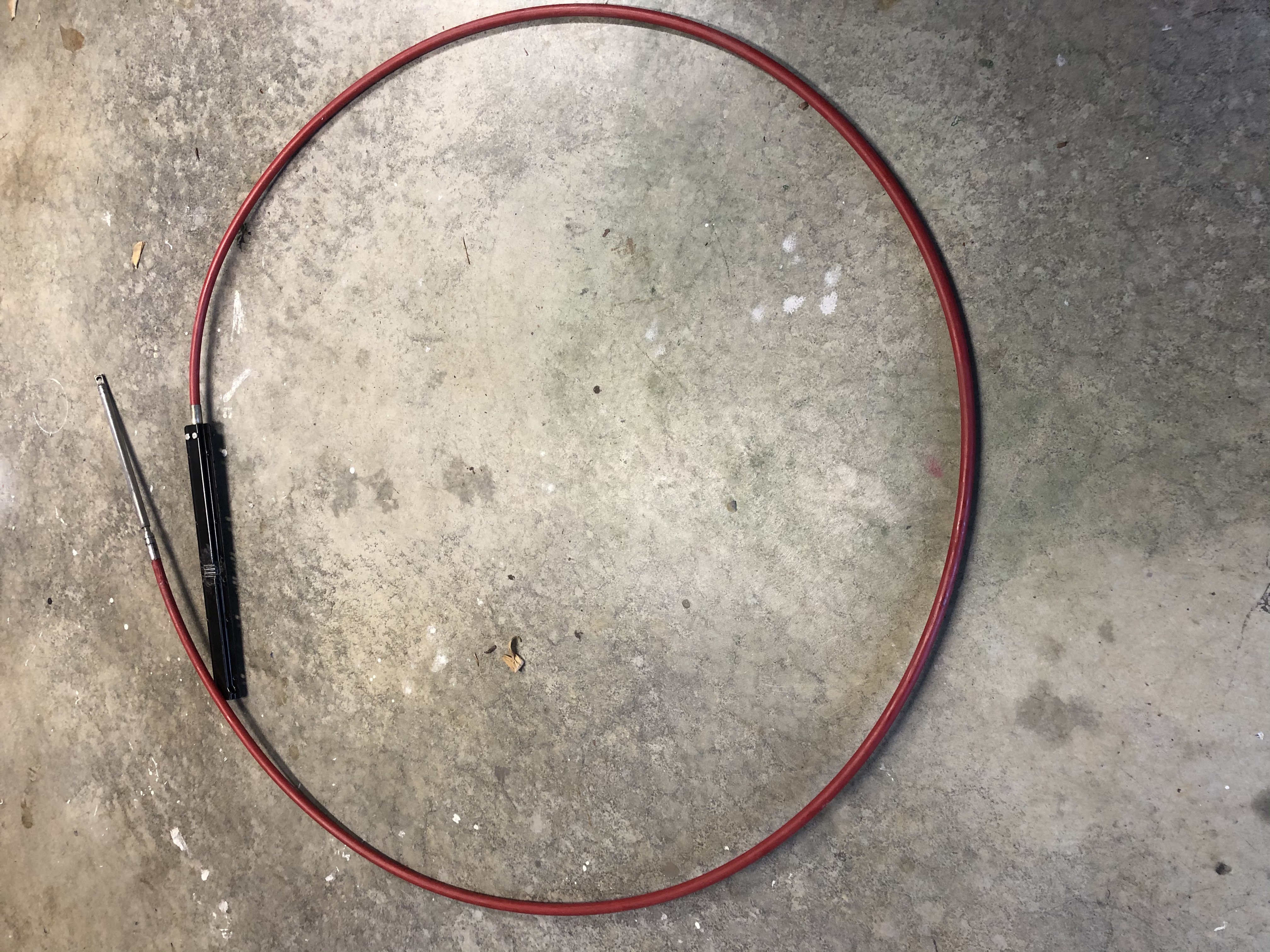

Now what’s the best way to remove the steering cable from the boat? Forwards or backwards or in bits? Would like to save for recycling!

In pieces using a sharp bolt cutter or cable cutter

Originally Posted by LBD

In pieces using a sharp bolt cutter or cable cutter

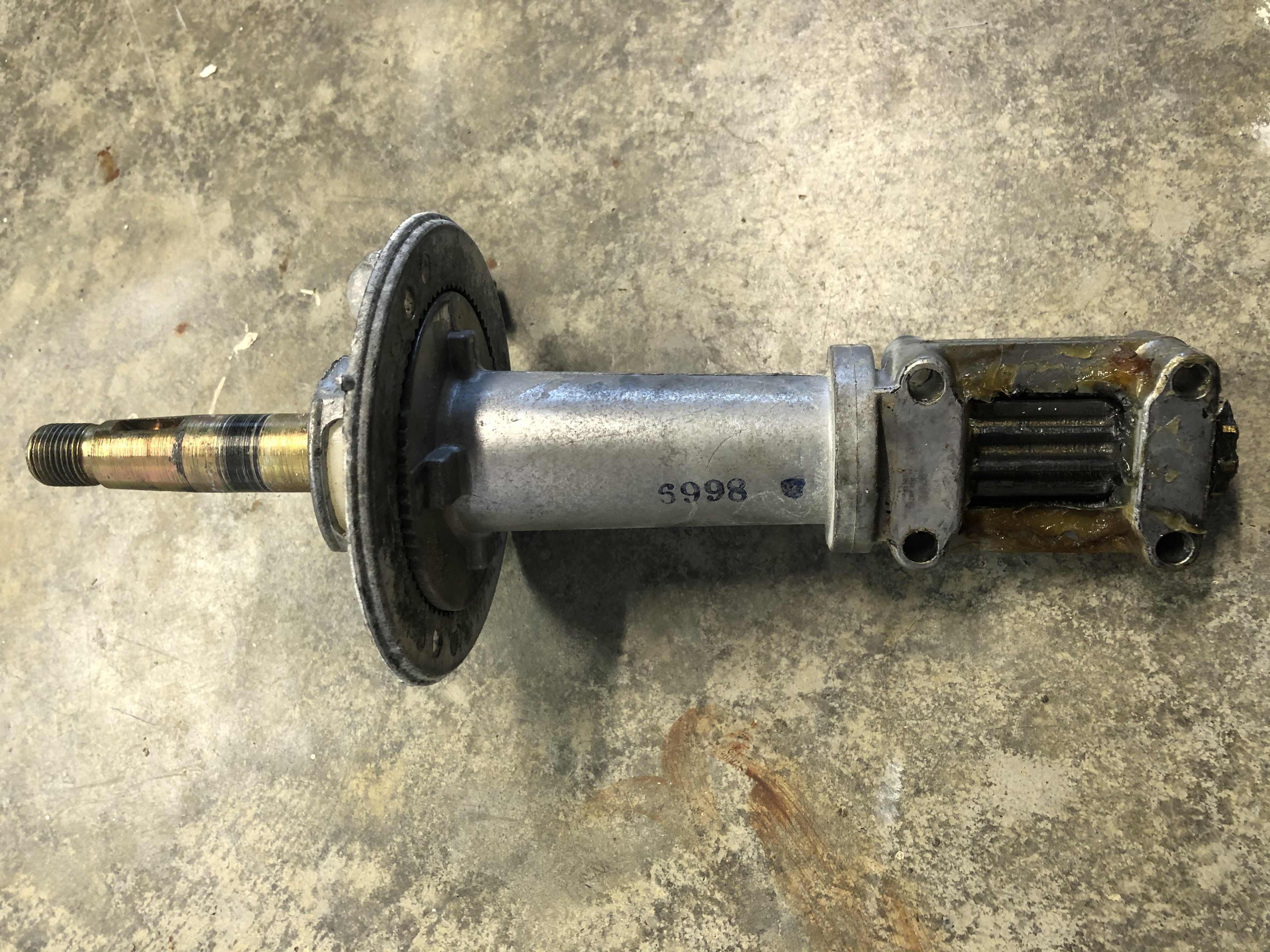

Its a very good unit, rack and pinion type, but if I have to I will!!!

Originally Posted by Mauser308

I'm serious when I say that it went in, in one piece. It will come out...

But make sure you tie something solid to it, not only to help mouse the replacement hydraulic pipes back but to also allow you to wiggle the cable back and forward if it jams in a squeeze area. It will come out... I'm not sure now from memory how those boats were put together but generally the fiberglass hulls were fairly open and easy to work on - not sure what the issue is that you're finding, maybe a mod or a hull package I haven't seen before?

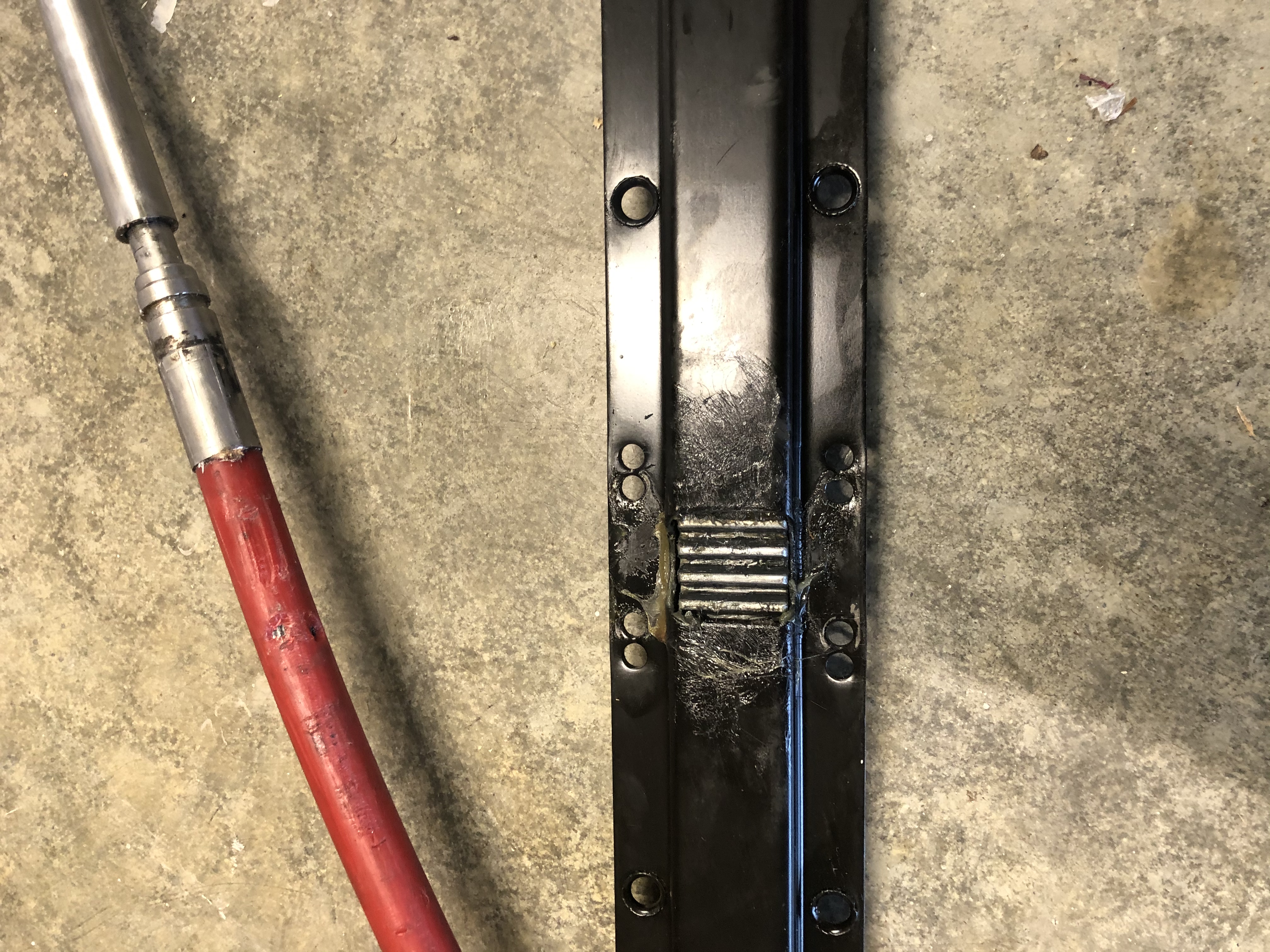

Ill free it up from where it attached, I think it needs to go forward, then around the door to the cabin an out the back of the boat in a 180 degree turn, have to get the motor control rod back through the hull, its mixed in with the engine cables, seems flexible enough. The rack behind the steering has to be threaded through the wiring behind the gauges, fish finder and radio etc.
Ill just swear and curse, it will follow my instructions

The argument has been won, I had a slight mod to enlarge the hole where the cable comes out of the motor and into the hull, well width wouldn’t let the rod in the hole, having to come straight out of the engine tube, the motor being a little higher I couldnt bend it down through the hole, but after that a piece of piss!!

nice, going with the thermoplastic hydraulic hose or the heavy wall nylon tubing.
(tubing tends to be cheaper and is really common on the smaller systems. The hose is far more flexible but can be more expensive )
Just make sure where the hose exits through or around any fiberglass edges that you protect it from chaff/vibration.
Z

@Maca49 put a autopilot in at the same time!

I've got one now, wish I'd had it put in when the boat was built - bloody neat bit of kit for trolling
