Thread: Quad speedo glass - repair how?

  1. #1
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,469

    Quad speedo glass - repair how?

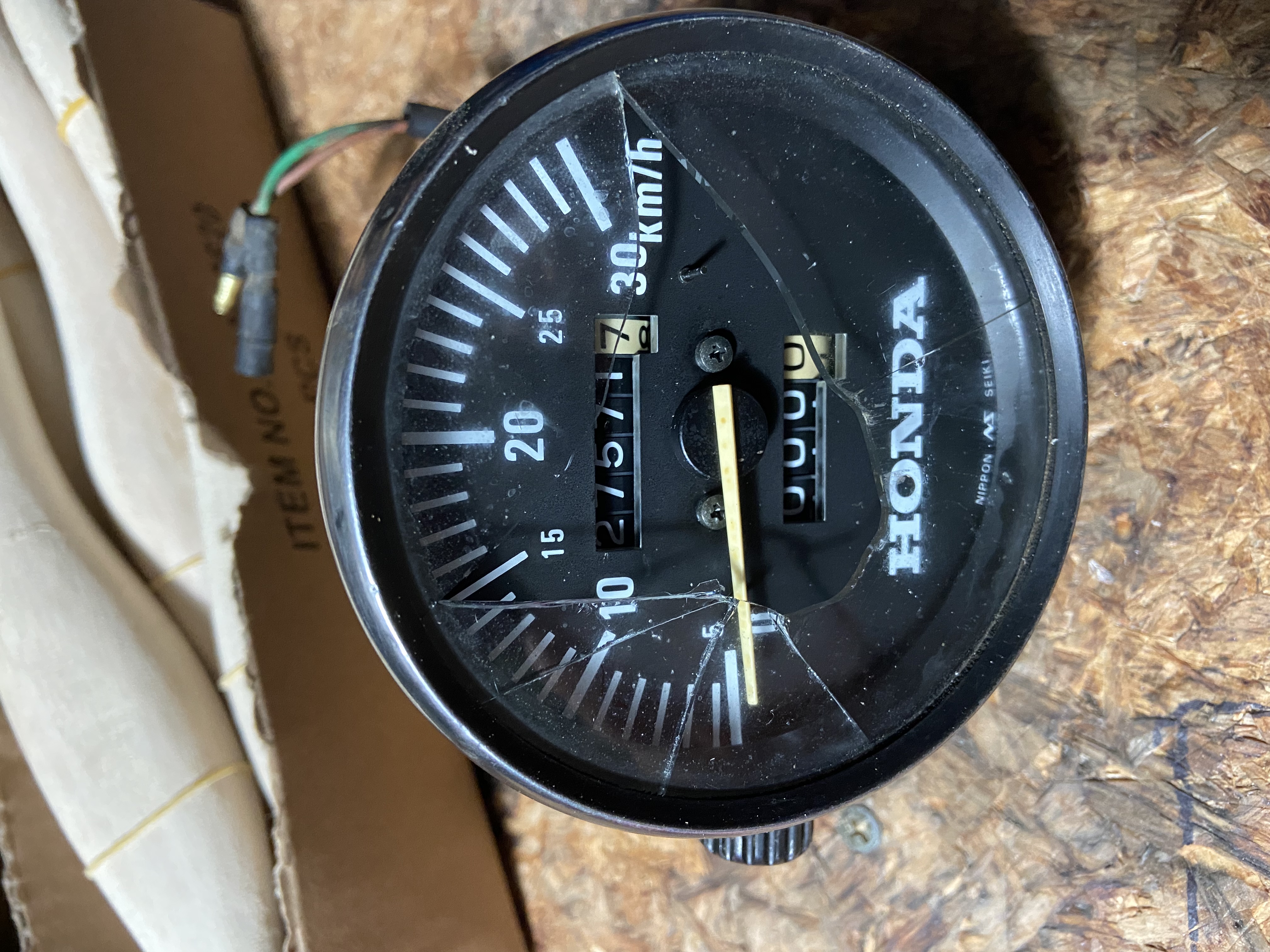

    Speedo off a 96 honda big red
    Anyone know how to replace glass? Looks pressed on by a ring or some shit
    Name:  84787FD0-5711-4DB2-86E2-F03D1185F518.jpeg
Views: 308
Size:  3.01 MB

  2. #2
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    4,488
    The ring is known as a bezel, really need the right tooling to do the job. Parrots in Chch are the experts https://www.eparrott.co.nz/
    Gibo likes this.

  3. #3
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    9,248
    It’s super easy to pull apart and change out the glass
    A big fast bullet beats a little fast bullet every time

  4. #4
    Tread carefully in the suck... ishoot10s's Avatar
    Join Date
    May 2012
    Location
    NW of the true capital...
    Posts
    1,903
    The bezel is usually light gauge aluminium and easy to displace. Pick away at the crimped skirt (underside) of the bezel with a fine bladed screwdriver or a kitchen knife and twist out from the speedo body to loosen it. You probably won't have to go all the way around, only half or so and then it can be lifted slightly and slid off. There will prolly be a thin o-ring between the glass and the body. When you've replaced the glass with something clear-ish, press the bezel back on and push the skirt back down against the body with a flat tool.
    10MRT shooters do it 60 times, in two directions and at two speeds.

  5. #5
    Member
    Join Date
    Jul 2020
    Location
    Waikato
    Posts
    499
    Quote Originally Posted by 7mmsaum View Post
    It’s super easy to pull apart and change out the glass
    With a hammer?
    berg243 and XR500 like this.

  6. #6
    Member
    Join Date
    May 2021
    Location
    .
    Posts
    165
    Try wish? Aliexpress. The bike wreckers for a 2nd hand one? Or get a gps boat speedo......

  7. #7
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    Glad Wrap

    #AlisonHolst
    veitnamcam, rugerman, Gibo and 1 others like this.
    "Sixty percent of the time,it works every time"

  8. #8
    Member
    Join Date
    Jul 2020
    Location
    Waikato
    Posts
    499
    Yeh I see what you meen @Gibo, I have the same unit in my workshop in good order but to get past that outer ring is going to be a bitch.

    If it was me I would just make a cut with the angle grinder fitted with the finest cutting wheel and just pop that outer ring off with screw driver easy as.
    Get the glass cutter to cut circle glass to size,, replace then refit outer ring and wrap up with insulation tape.
    Not perfect I know, but tidy enough and sealed from the elements, and better than throwing away.

  9. #9
    Member
    Join Date
    Aug 2017
    Location
    King Country
    Posts
    2,455
    Quote Originally Posted by berg243 View Post
    still makes me chuckle that a honda quad needs a speedo . mind you it is an optimistic one , top speed 30km/h .
    My old 300 Suzuki has one that tops 80KM/H, but then...it's not a Honda.

  10. #10
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,469
    I dont need the speedo, it does have an hour metre. I just thought why not keep it original.....will talk to my screwdriver later, it cant get any worserer

  11. #11
    Member gadgetman's Avatar
    Join Date
    Jan 2012
    Location
    Christchurch
    Posts
    17,981
    Quote Originally Posted by Mauser308 View Post
    Cut a piece of optical perspex or clear polycarb sheet. Get an offcut from a plastics place, cheap as chips and won't ever break like that again.
    Yeah, go polycarbonate as a preference. It's the stuff the use for boat windows when they don't want them to break.
    There are only three types of people in this world. Those that can count, and those that can't!

  12. #12
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    There's probably a zillion outfits up and down New Zealand but I have had excellent service from Cebelio in Christchurch.
    They cut replacement meter board windows to drawing for me.

    www.cebelio.co.nz

  13. #13
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,986
    There's probably a zillion outfits up and down New Zealand but I have had excellent service from Cebelio in Christchurch.
    They cut replacement meter board windows to drawing for me. All done via email.

    The small size of the order didn't seem to worry them.

    www.cebelio.co.nz
    Last edited by zimmer; 17-06-2021 at 01:55 PM.

  14. #14
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,469
    I have got my mitts on some 1mm polycarbonate and will install later today, all up cost of home repair = $0 thanks to a nice bloke at BOP Plastics
    gadgetman, zimmer and outlander like this.

  15. #15
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    23,469

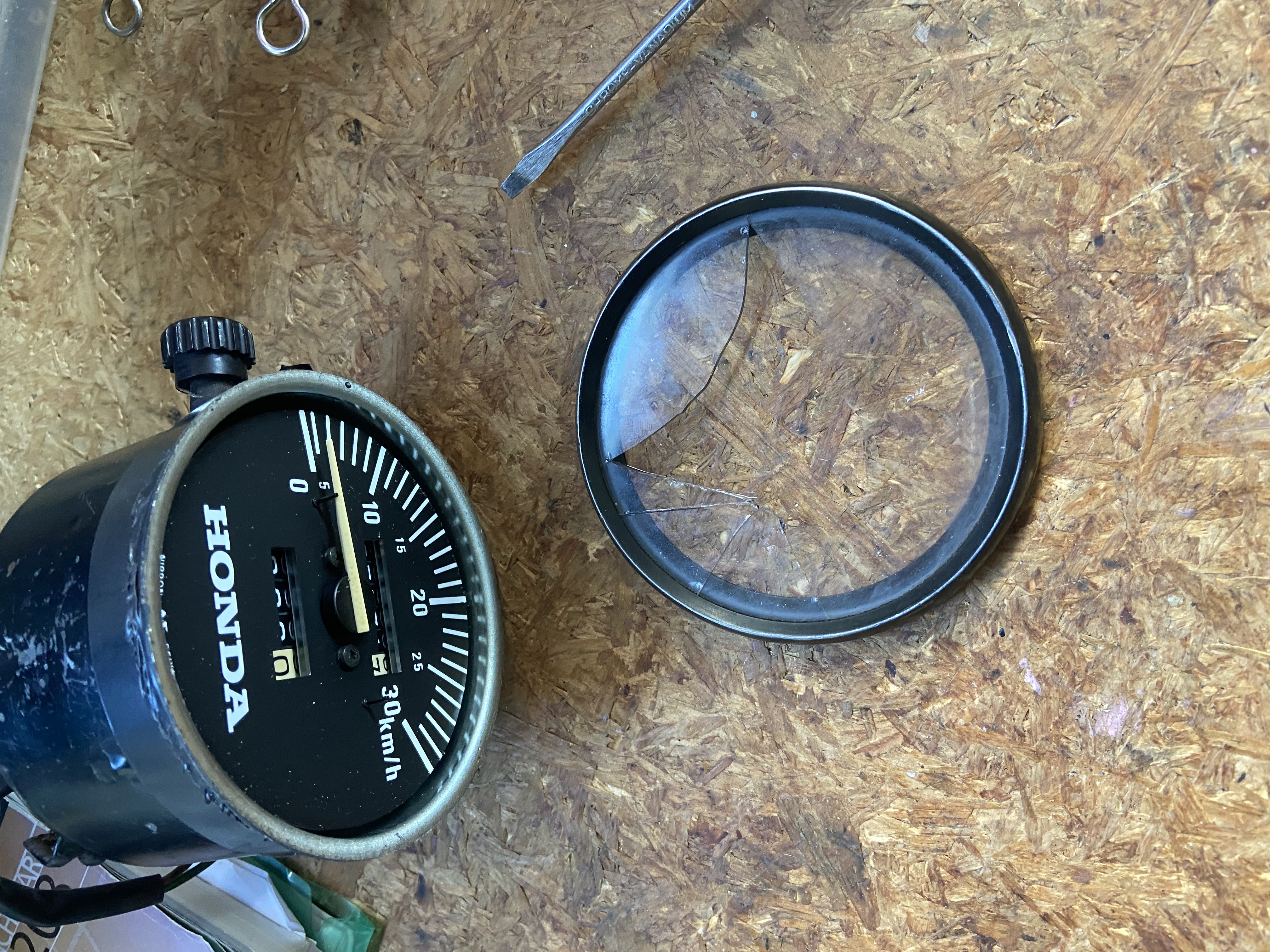

    Name:  6A8DE096-6DCA-4321-9E79-BAE7124CE685.jpeg
Views: 189
Size:  4.11 MB
    rugerman, zimmer and outlander like this.
