Thread: Wireing a spotlight?

  1. #1
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574

    Wireing a spotlight?

    Hey guys and gals,I have a million power spotlight that gave me know problems when it was plugged into the Honda 300 quad.
    Now we have a suzuki king quad and the spotlight connection is a cigarette lighter. It kept blowing the fuse in the switch that was plugged into socket.
    I have wired the spotlight directly too battery,will this cause any problems?
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  2. #2
    Member Natatale's Avatar
    Join Date
    Dec 2014
    Location
    Tauranga
    Posts
    323
    Would suggest that you wire in a External 20-25amp fuse between the battery and the Spotlight.
    If you pinch the spotlight lead and earth it, it will fry the wire and could cause a fire.
    Repco have external fuse and holders, better safe than sorry.
    Blaser and Dundee like this.

  3. #3
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574

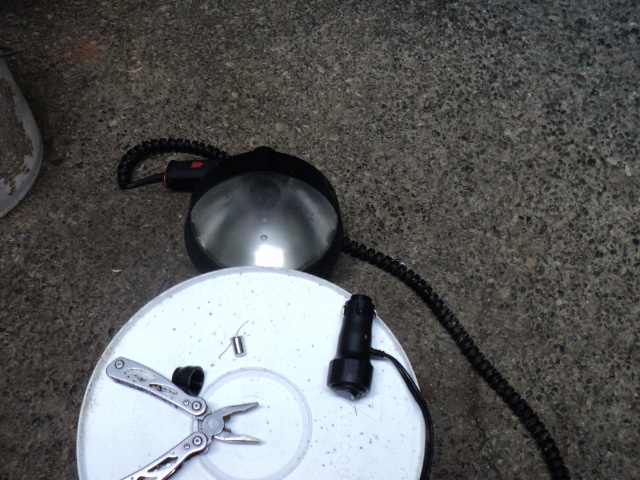

    Thanks Natatale this is the spotty I have.
    Name:  picture 6387.jpg
Views: 361
Size:  163.4 KB
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  4. #4
    Member Natatale's Avatar
    Join Date
    Dec 2014
    Location
    Tauranga
    Posts
    323
    If you want to be able to remove it, you could get a higher amped male and female fitting (Made by Hella) that is used for car fridges.
    Wire the female plug and fuse to the battery and either mount or cut a hole for the plug.
    Then replace the male plug on the spotlight with the car fridge plug. Cigarette lighter plugs are only rated to max 10amp.
    Last edited by Natatale; 21-07-2015 at 07:35 PM.

  5. #5
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,530
    Quote Originally Posted by Natatale View Post
    If you want to be able to remove it, you could get a higher amped male and female fitting (Made by Hella) that is used for car fridges.
    Wire the female plug and fuse to the battery and either mount or cut a hole for the plug.
    Then replace the male plug on the spotlight with the car fridge plug. Cigarette lighter plugs are only rated to max 10amp.
    Bang on.

  6. #6
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    9,536
    Quote Originally Posted by Dundee View Post
    Hey guys and gals,I have a million power spotlight that gave me know problems when it was plugged into the Honda 300 quad.
    Now we have a suzuki king quad and the spotlight connection is a cigarette lighter. It kept blowing the fuse in the switch that was plugged into socket.
    I have wired the spotlight directly too battery,will this cause any problems?
    Bro farmer solution...... Throw fuse away, replace with some no 8 or staples also work well and go spotlighting


    Sent from my iPad using Tapatalk
    Blaser and Toby like this.

  7. #7
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,530
    The brown bomber solution you mean

  8. #8
    Member sako75's Avatar
    Join Date
    Dec 2011
    Location
    Supercity
    Posts
    4,945
    Exactly as Brads said. Red on red and black on black. Don't fuck about just get out there

  9. #9
    Member Natatale's Avatar
    Join Date
    Dec 2014
    Location
    Tauranga
    Posts
    323
    Part number for the Hella plug is 4915 comes with a cover. You can still use your male cig plug but about $10 go to the higher rated male plug too.
    Dundee and Tommy like this.

  10. #10
    Member sako75's Avatar
    Join Date
    Dec 2011
    Location
    Supercity
    Posts
    4,945
    You show us photos of your old WW2 era pump and then go all mamby pamby on a spotlight connector FFS
    Pointer and Gibo like this.

  11. #11
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574
    Well the spotlight connector is fucked as the other night when the fuse blew I cut off a 4inch nail to size and had it going fine. Not long into the night spotlight went out 4inch nail fuse held but the mamby pamby connector melted into socket.
    sako75 and BRADS like this.
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  12. #12
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,530
    ..... And Natatale is vindicated lol

  13. #13
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574
    That is why I asked. I will get connections tomorrow
    Tommy likes this.
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  14. #14
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574
    I gotta get this sorted,went out tonight before getting a 25amp fuse.

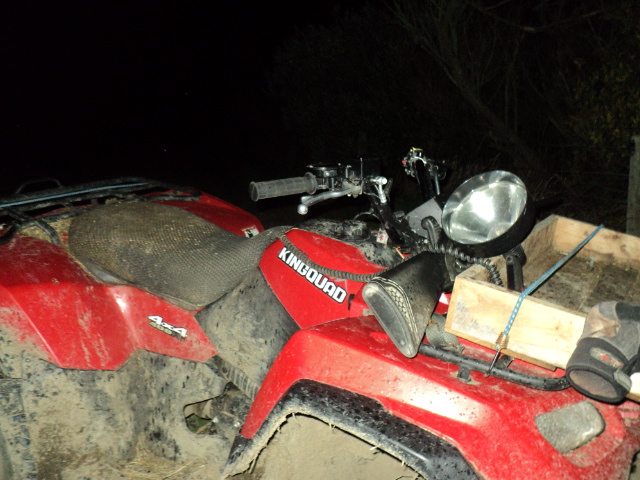

    Name:  picture 6408.jpg
Views: 310
Size:  163.0 KB

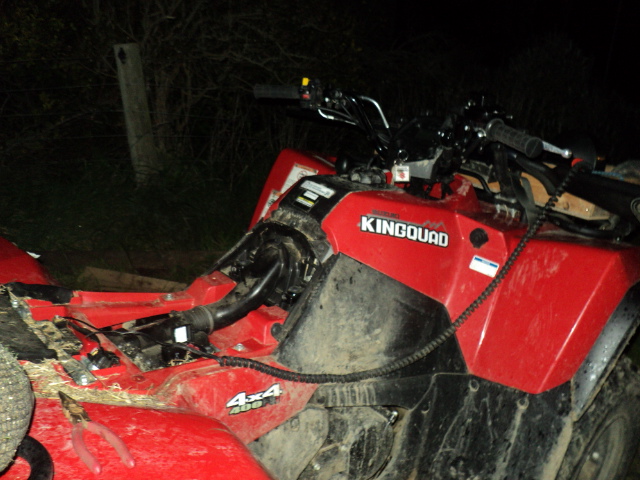

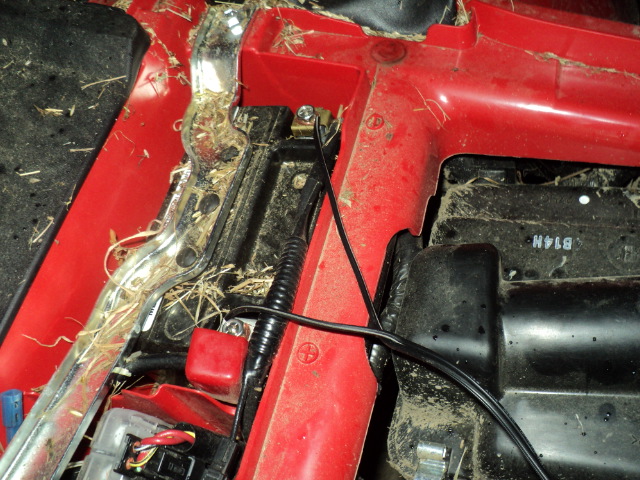

    Shit it self
    Name:  picture 6410.jpg
Views: 406
Size:  164.1 KBName:  picture 6409.jpg
Views: 309
Size:  165.1 KB

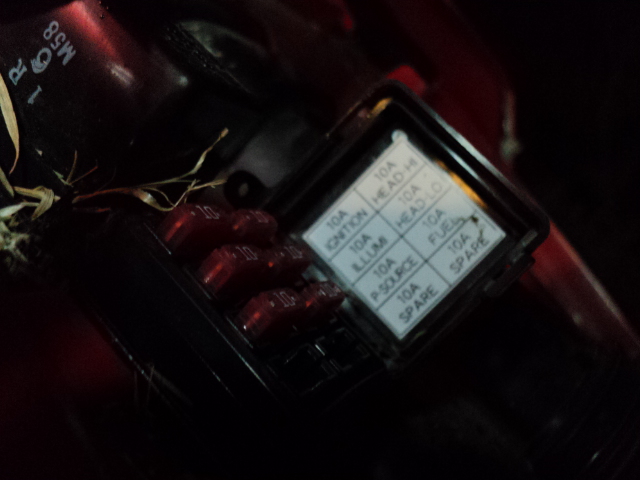

    So I changed the little 10 amp fuse
    Name:  picture 6411.jpg
Views: 337
Size:  163.1 KB

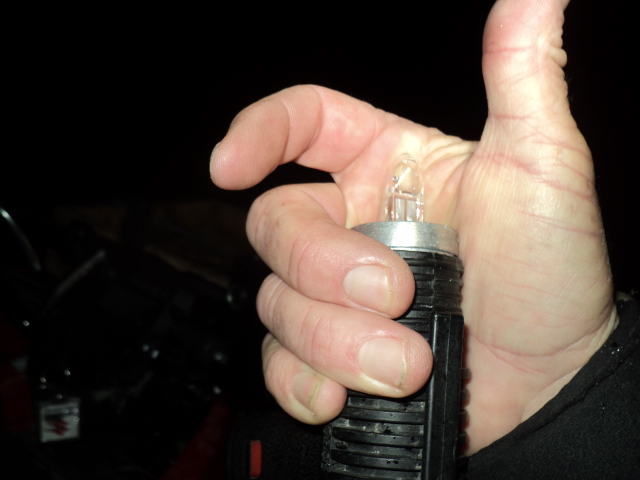

    Then the bloody bulb blew
    Name:  picture 6412.jpg
Views: 307
Size:  164.6 KBName:  picture 6413.jpg
Views: 281
Size:  164.4 KB

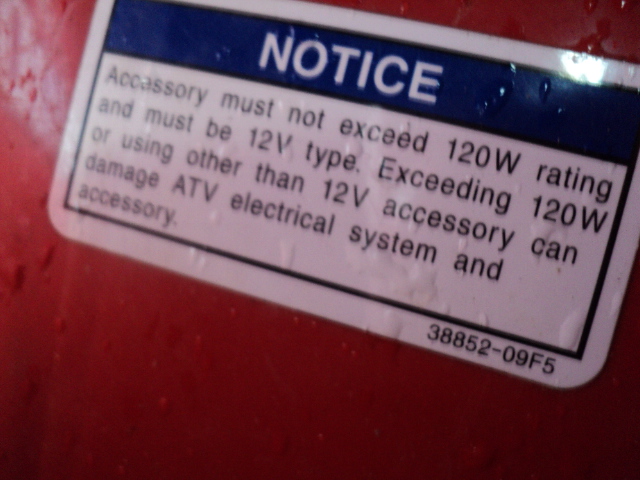

    So I am thinking maybe the bulb is too big? But like I said no probs on the honda.
    Name:  picture 6414.jpg
Views: 278
Size:  164.4 KB

    If I change the bulb get a 25amp fuse on the spotlight lead with clips to detach spotlight will it be good?

    Not going to change the ciggy connection as that is farked. Natatale and others what do you reckon?
    geezejonesy likes this.
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive

  15. #15
    Member Dundee's Avatar
    Join Date
    Dec 2011
    Location
    Way East of D'Vagas
    Posts
    17,574
    "Thats not a knife, this is a knife"
    Rule 2: Always point firearms in a safe direction
    CFD

    tps://www.timeanddate.com/countdown/generic?iso=20180505T00&p0=264&msg=Dundees+Countdo wn+to+Gamebird+Season+2018&font=cursive
