Thread: Barrel Vices

  1. #1
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244

    Barrel Vices

    People that have used these what are the best?

    Not stressed on price just want to know what's the best.

    What models have features you like and what features would you like if it had?

  2. #2
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,824
    As in removing your barrel?

  3. #3
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,441
    Four bolts to clamp on instead of two. The secret is to have soft aluminium jaws that closely match the profile of the barrel you want to clamp and as close as possible from the breech . Those aluminium jaws have to be machined on a lathe. What barrel do you intend to remove?
    Russian 22., takbok and tibo like this.

  4. #4
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244
    Quote Originally Posted by Friwi View Post
    Four bolts to clamp on instead of two. The secret is to have soft aluminium jaws that closely match the profile of the barrel you want to clamp and as close as possible from the breech . Those aluminium jaws have to be machined on a lathe. What barrel do you intend to remove?
    What do 4 bolts give you mechanically it just seems that you are more likely to unevenly load the tight fitting bushings and load then unevenly compared to a 2 bolt option. Alot of shanks i have seen would be lucky to have 30mm of area to engage with.

    And multiple types but likely for myself mostly small diameter actions such as Kimbers, howa minis etc. But will have it suit most options up to 1.3" shanks.

  5. #5
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244
    Yes with prefits nowadays it's becoming a more popular item for shooters to have rather than just gunsmiths

  6. #6
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,824
    Stocky likes this.

  7. #7
    Member
    Join Date
    Mar 2012
    Location
    Hastings
    Posts
    2,824

  8. #8
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244
    Quote Originally Posted by TeRei View Post
    I'm not sure I'm sold on the single bolt providing clamping pressure. But does look handy. My current one is pretty similar to their other option but I would like to improve a couple parts of the design. Interesting to see other opinions.

  9. #9
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244

  10. #10
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    832
    Quote Originally Posted by TeRei View Post
    wonder if theres a market in NZ for them?
    CNC Machining
    Hgprecision.net

  11. #11
    Member
    Join Date
    Mar 2012
    Location
    Naracoorte South Australia/From South Canterbury
    Posts
    408
    Tbone shipwrighting in Australia also make barrel vices and action wrenches.

    http://www.t-boneshipwrighting.com.au/?


    Sent from my iPhone using Tapatalk

  12. #12
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244
    Quote Originally Posted by robhughes-games View Post
    wonder if there's a market in NZ for them?
    Kind of what I was getting at. I've made some but would be nice to improve my design and make a few extras.

  13. #13
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,244

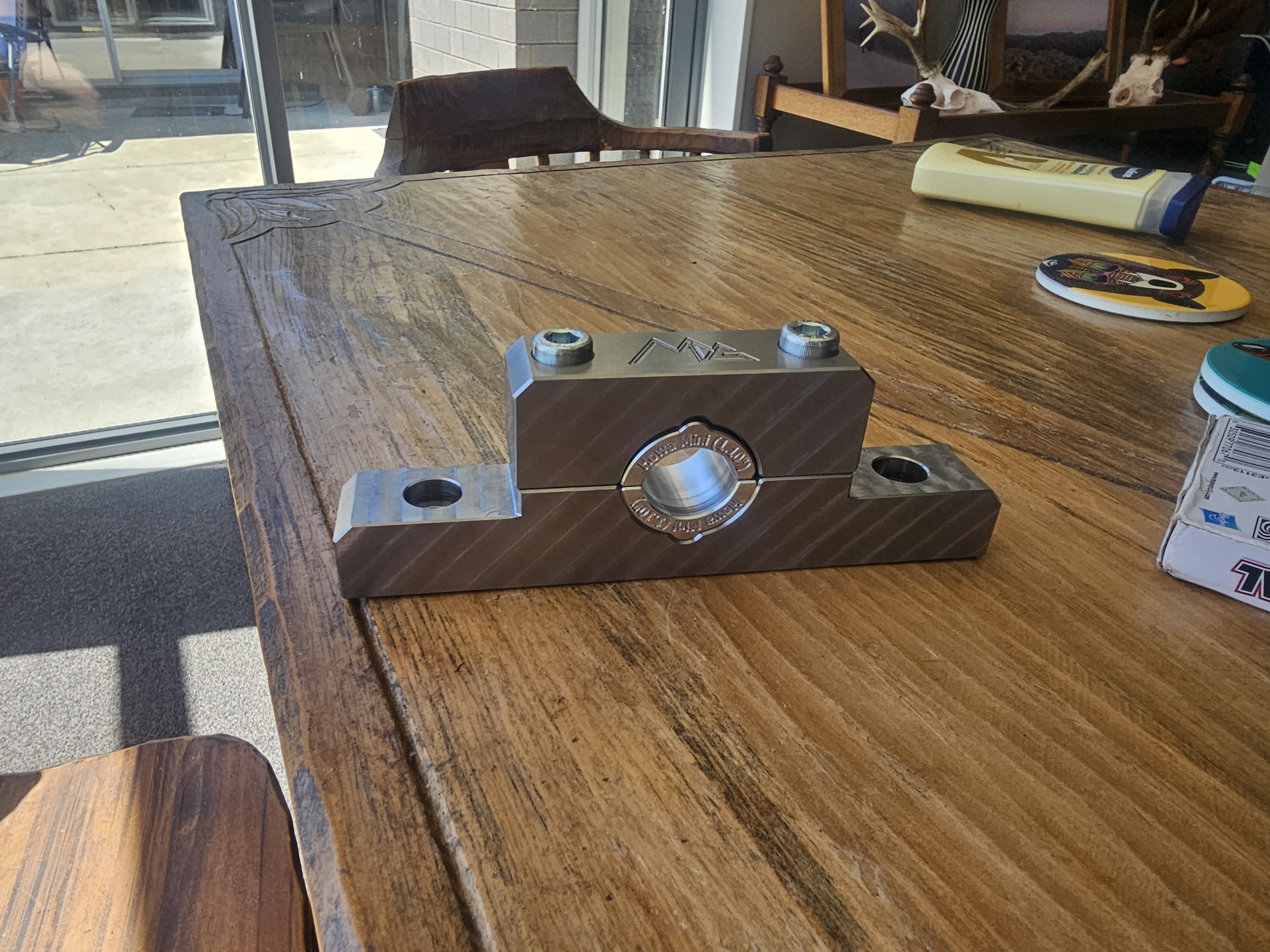

    Quote Originally Posted by Stocky View Post
    This is what the above post was supposed to be.

    Name:  20250222_125809.jpg
Views: 55
Size:  2.51 MB
    rupert and kristopher like this.

  14. #14
    Member
    Join Date
    Jan 2016
    Location
    Kapiti Coast
    Posts
    1,037
    Reach out to Craig at Ozark and get a SAC Modular barrel vice. I was impressed using one the other day.
