Hot tenting wood stove

Im keen on getting out Hot Tenting somewhere next winter in the central South Island.
Somewhere that has a good supply of firewood.
Trout fishing
Hares to feed the dog
and the odd deer and pig to look at and occasionally shoot.

Why Hot Tenting ? Away somewhere remote for a reasonable amount of time when most people stay away and able to keep gear dry!

So I have put together a prototype ultralight tent wood stove. Just out of some 0.6mm stainless steel sheet that was handy in the workshop.
Liked the idea of a triangle with a perforated air supply tube in the V of the triangle.
It ended up having a 300x220mm top surface because thats what I had and a 50mm alloy chimney.

Attachment 54603

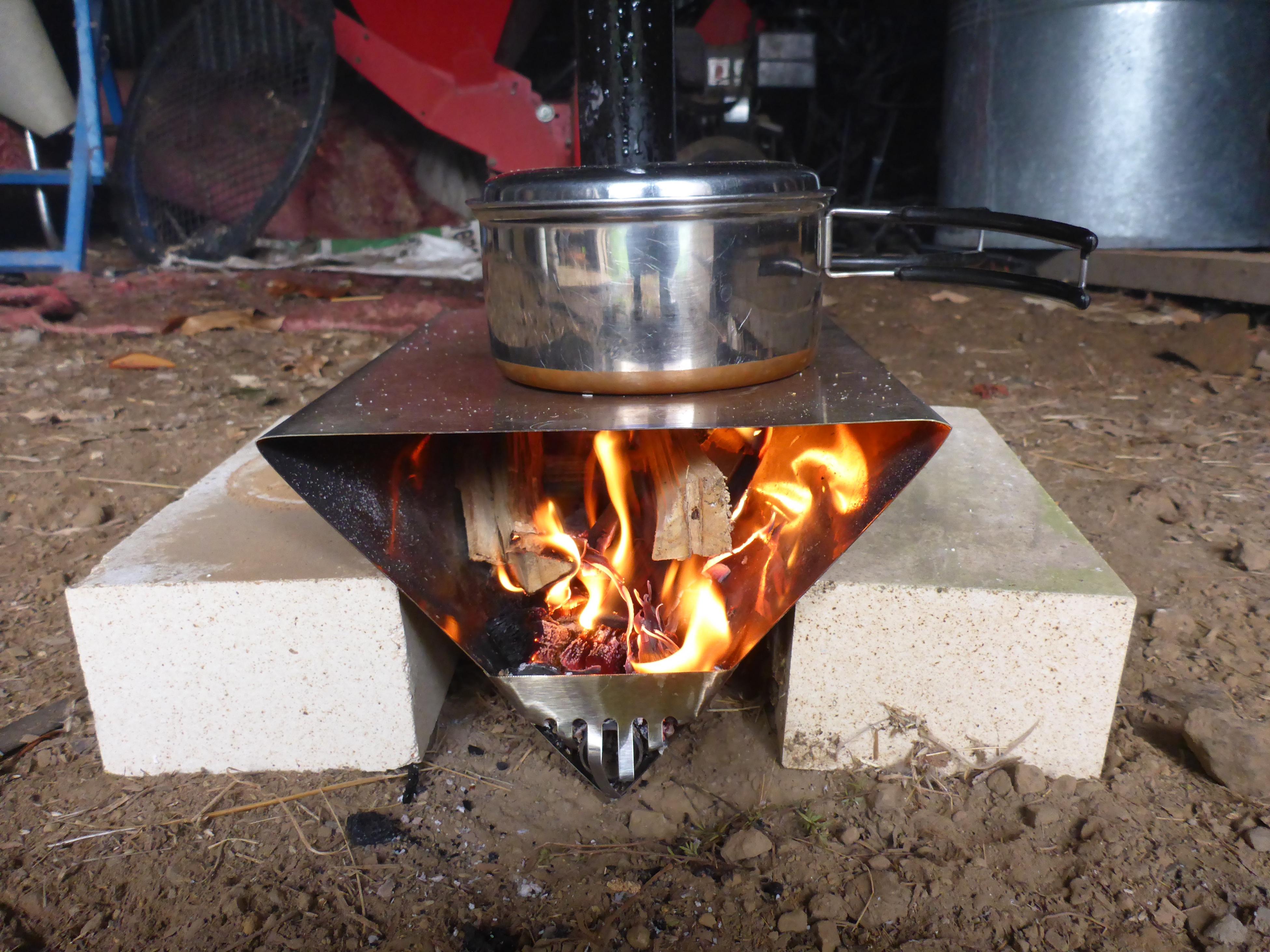

Its just propped up between a couple of bricks for the test.
This one worked pretty well but next version will be 350x250mm top and deeper sides so that the V is a little steeper and all embers fall into the bottom more easily.
But next version will have legs to get it up to a reasonable height to feed and use. Should also get good heat into tent.

Attachment 54604

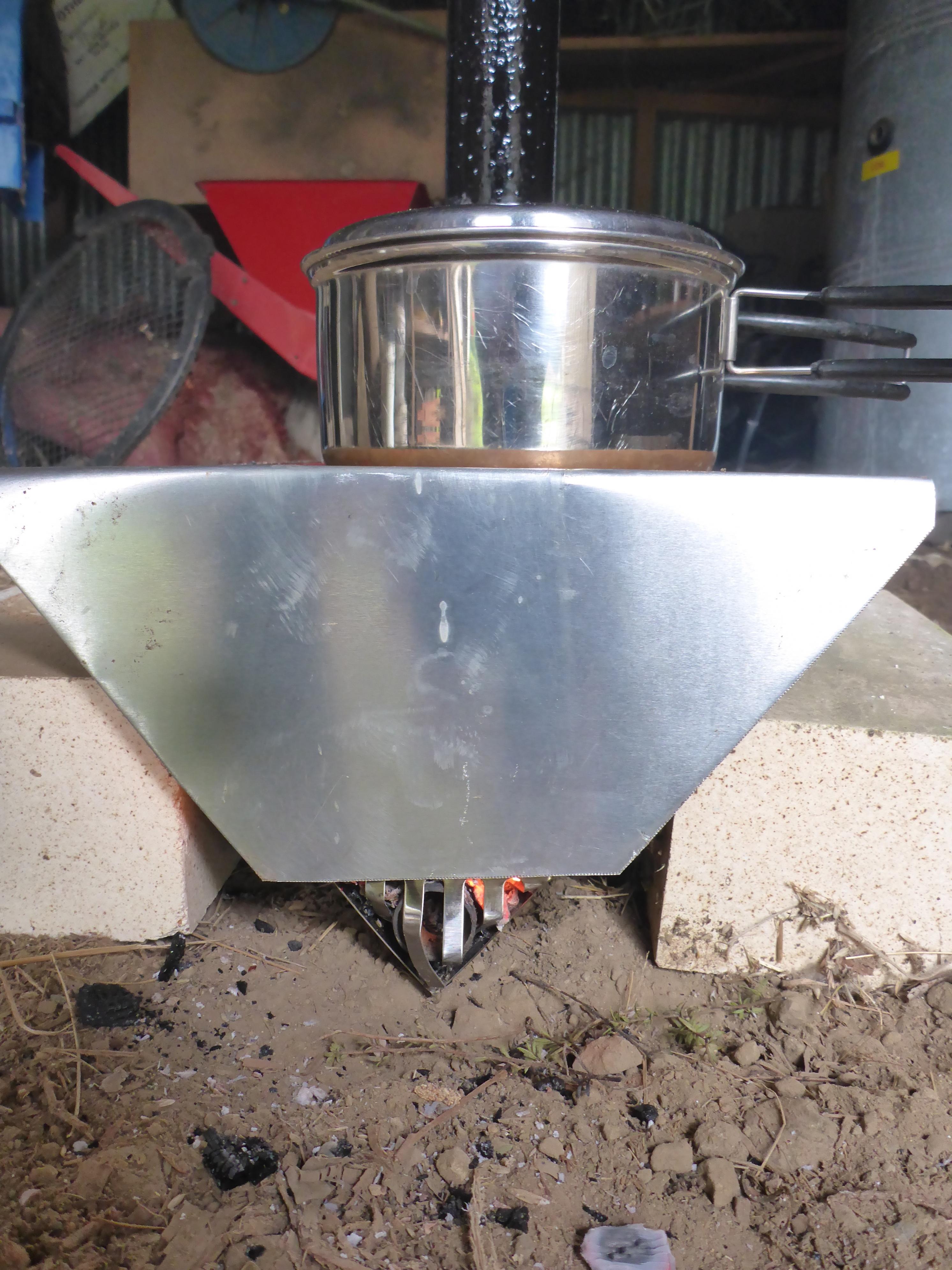

Door was pretty basic for this one and I had no control on the draft to the air vent pipe in base of V. But played around with blocking the hole and also shutting off the chimney partly and there was reasonable control over the heat and rate of burn.
Will hinge next ones door forward just above the air tube control and it will help to stop embers falling out the front.

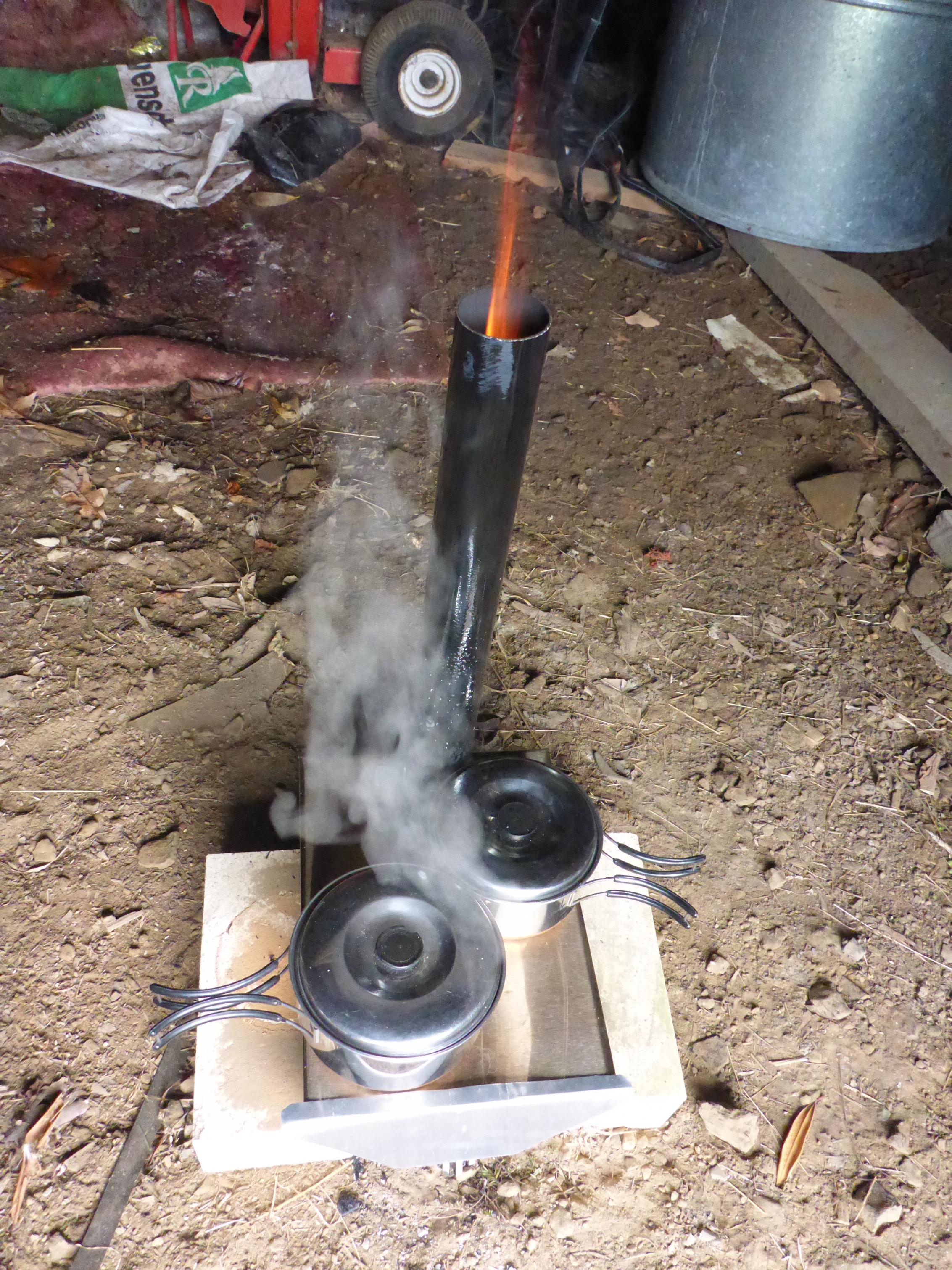

A couple of liters or water boiled pretty quickly.

Attachment 54605

Will look at using a silicon baking sheet to make a stove jack for through the side of a tent as a small cheap alternative to importing one.
Stainless steel thin wall tube chimney in sections short enough to fit inside body of stove for the next one also.

Looked at some of the wood stoves used in Alaska and Canada but even the small ones are probably too big and heavy for my intended application. They would be just too hot for a tent here even mid winter in the South Island high country

Any sheet metal workers in Canterbury on the forum who are interested in the concept and willing to advise or help with the next one?
I have every tool invented for wood but not set up for sheet metal !

http://uploads.tapatalk-cdn.com/2016...bcb75bc7da.jpg


http://uploads.tapatalk-cdn.com/2016...087154c5c3.jpg


http://uploads.tapatalk-cdn.com/2016...d9ee237dc0.jpg

Ive seen some made from 9kg gas bottles, chimney out back, door cut out and rehinged on front only drawback seemed to be lack of cooking area, the thing could be carried by the handle that had been left on. Yours looks lighter and has a good area.

Those are quite a bit flasher than the ones ive seen!

Im avoiding the gas bottle fires as I want to be well under 5kg for the stove and chimney combined.
The test one is feather light but needs more bits added to make it more functional so not sure about the final weight yet.

Quote:

---

Originally Posted by akaroa1

Im avoiding the gas bottle fires as I want to be well under 5kg for the stove and chimney combined.
The test one is feather light but needs more bits added to make it more functional so not sure about the final weight yet.

---

If you can Weld SS , I got SS flues from my Log burner days Up to 300 mm Dia . And 75 mm for chimney . You can have a try at . Only catch make two ;)

Quote:

---

Originally Posted by Munsey

If you can Weld SS , I got SS flues from my Log burner days Up to 300 mm Dia . And 75 mm for chimney . You can have a try at . Only catch make two ;)

---

3 please :thumbsup:

Check out Kifaru for lightweight woodburners. Should be able to make a copy without too much hassle.

Love the idea of running away from the world for a few weeks over winter

I like the idea of the ammo tin stoves like this https://m.youtube.com/watch?v=4LgArTl_BSU

Quote:

---

Originally Posted by Freezer

I like the idea of the ammo tin stoves like this https://m.youtube.com/watch?v=4LgArTl_BSU

---

Thats pretty choice too

I have just finally found the time to put together MK 2.

Attachment 71489

Still have some minor issues to work through.
The rolled 0.4mm stainless steel flue is my custom made. Works well and I now need to make up another 5 or 6 sections to be high enough for tent.
They are short enough to pack down and fit inside the stove body for transport.
There will be a flue damper with an allen key welded on as the handle.
The allen key will be used for assembling the legs which had a cap screw for attaching to the legs.
So the damper will also function as a multi tool and it will be a lot harder to loose the allen key.

Attachment 71490

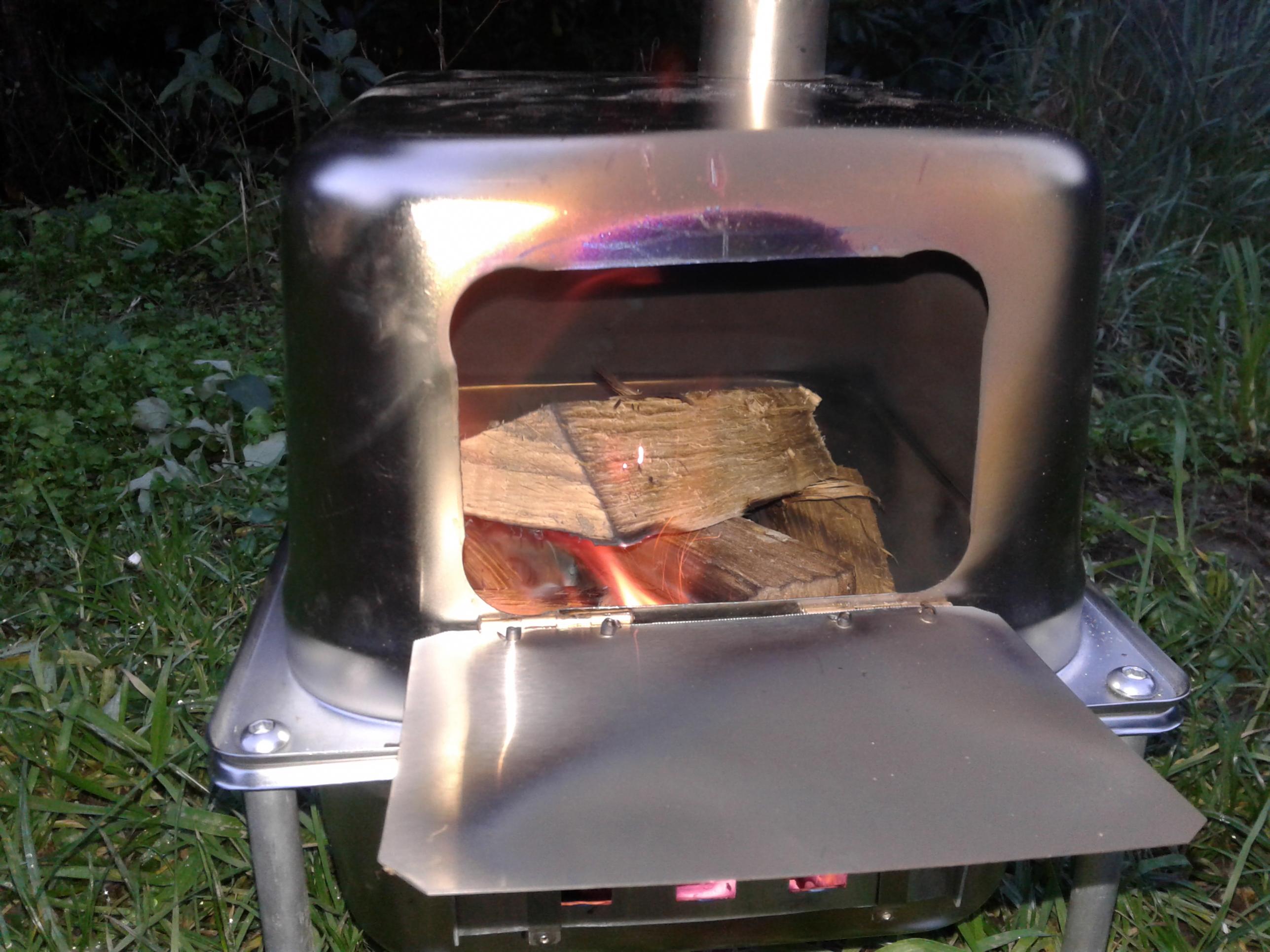

Door needs a catch and a bit of a tweak. But seems to work well and is big enough for decent sized wood and pine cones once the fire has a decent base of coals.

Attachment 71491

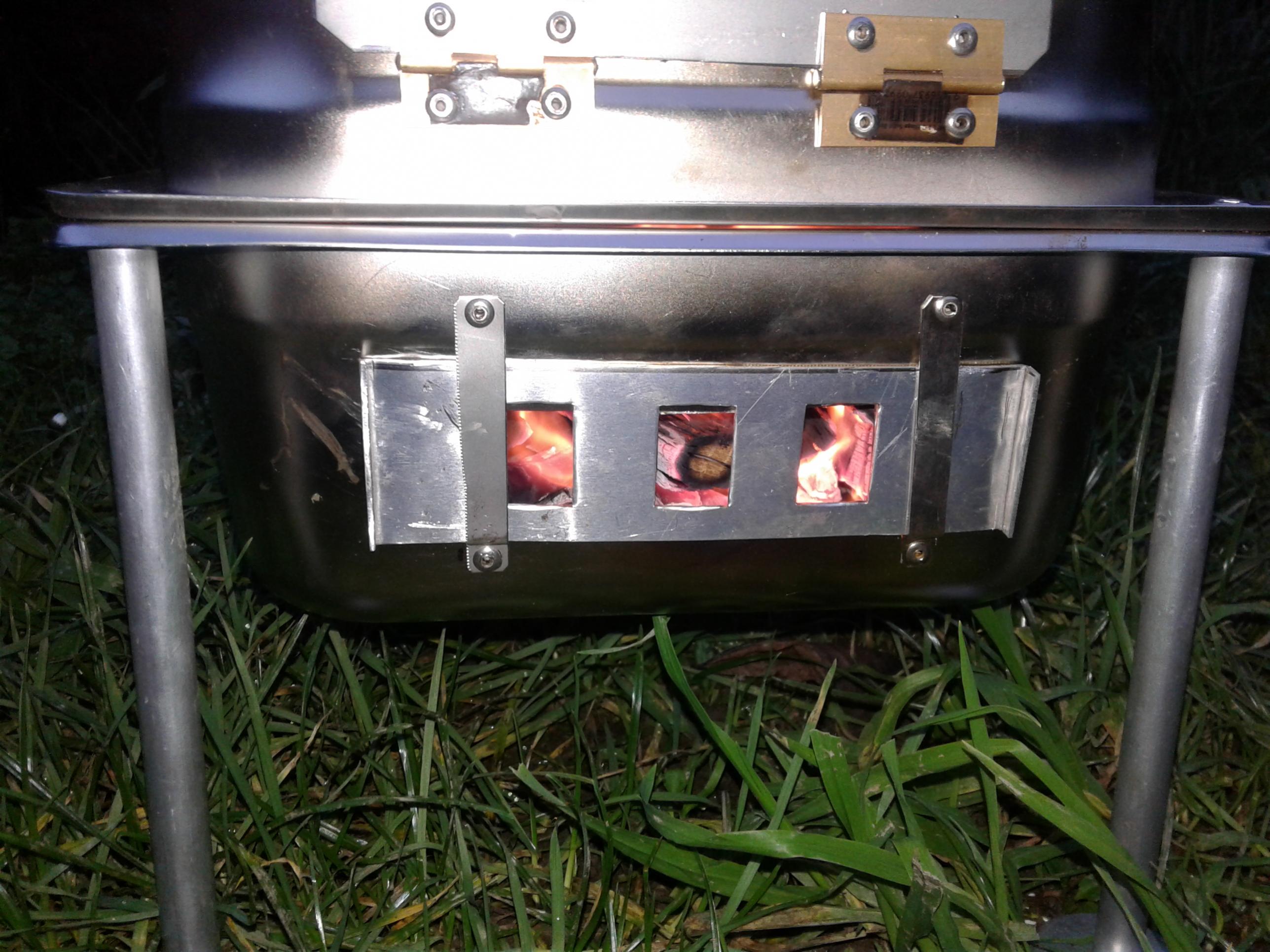

Bottom draft control was a mock up from aluminium and works well well so I will make a stainless one soon and it will have a stainless steel mesh screen attached for safety as will the top of the last flue section.

Whole kit with about 2m of flue sections and a pair of leather gloves ( to hold hot things ) will come in well under 5kg

Are they made from sinks?

If they're not I'm getting the same idea as you!!!! Might be a good project!

Quote:

---

Originally Posted by Shelley

Are they made from sinks?

---

I was thinking bain mare inserts.
