Thread: DIY Rifle Rest (AKA To Much Spare Time)

  1. #1
    Bos
    Bos is offline
    Member
    Join Date
    May 2017
    Location
    Blenheim
    Posts
    980

    DIY Rifle Rest (AKA To Much Spare Time)

    All started when I took the .222 out to have a look at some new reloads and see how they grouped. I set up on our shooting bench with the bipod on the front and the trusty daypack under the stock. Worked as well as it always does, but I got to thinking that there must be something in my shed just as good as those fancy Caldwell rifle rests. Turns out there was

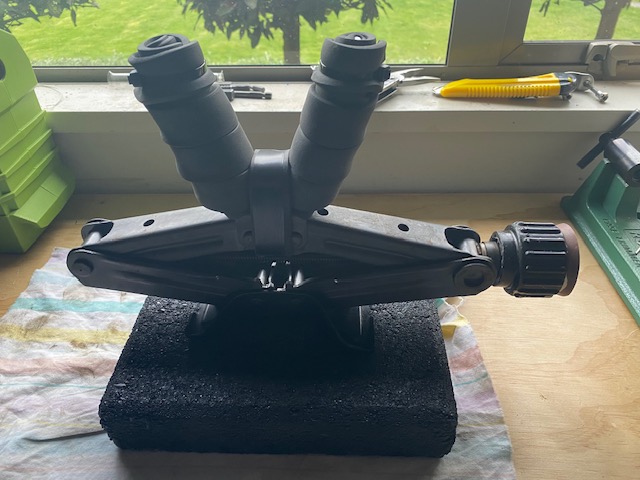

    So its the smallest scissor jack you'll find, bolted to a concrete paver. Put a plastic knob on the jack adjustment, and bent up a bit of flat steel welded to the lifting point., Bit of rubber wound round and round the flat steel where the fore-end will sit, and held with a cable tie.
    Works a bloody treat, and didn't cost $300 odd bucks


    Name:  Rifle Rest.jpg
Views: 1883
Size:  80.0 KB
    Tahr, Trout, Puffin and 22 others like this.

  2. #2
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,516
    Been using a very similar setup for years,being able to adjust the height is golden when sighting in off the tailgate of the Ute
    Bos and rewa like this.

  3. #3
    Member Happy Jack's Avatar
    Join Date
    Jan 2020
    Location
    Nelson/Tasman
    Posts
    3,899
    Nice, might give it a go one day when I have time.
    Happy Jack.

  4. #4
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,946
    Nice, have built the same but used a 6" nail instead of the turny knob thingy - I think your one looks better than my effort

    I welded a bit of frame out the back with a monopod height adjustable with pins, basically a copy of the sled design, to set the height of the stock

    Works ok

  5. #5
    Member
    Join Date
    Dec 2022
    Location
    Whanganui
    Posts
    1,173
    Quote Originally Posted by Bos View Post
    All started when I took the .222 out to have a look at some new reloads and see how they grouped. I set up on our shooting bench with the bipod on the front and the trusty daypack under the stock. Worked as well as it always does, but I got to thinking that there must be something in my shed just as good as those fancy Caldwell rifle rests. Turns out there was
    So its the smallest scissor jack you'll find, bolted to a concrete paver. Put a plastic knob on the jack adjustment, and bent up a bit of flat steel welded to the lifting point., Bit of rubber wound round and round the flat steel where the fore-end will sit, and held with a cable tie.
    Works a bloody treat, and didn't cost $300 odd bucks


    Attachment 233218
    Love lateral thinking, gold right there. I brought a rip off version of the fancy pants for something like 37 bucks.

  6. #6
    Member
    Join Date
    Jun 2021
    Location
    Hastings
    Posts
    228
    Bwaaahaha......

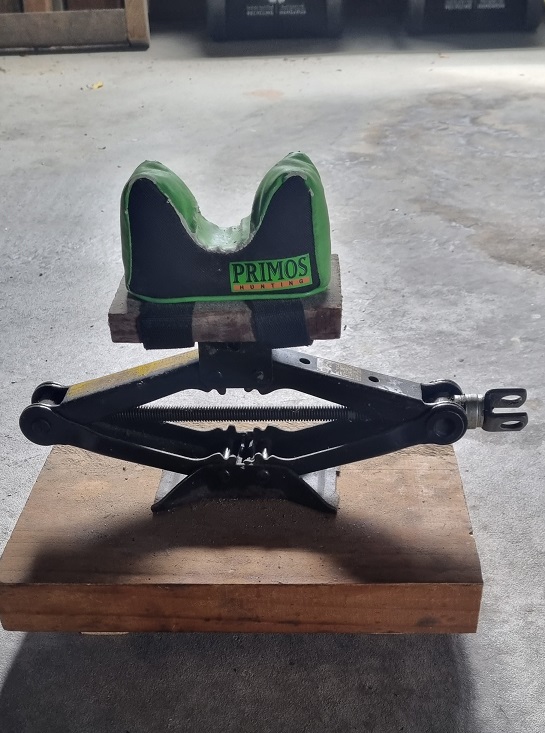

    Name:  Rifle rest 2.jpg
Views: 1498
Size:  145.8 KB
    308, rewa, RV1 and 1 others like this.

  7. #7
    Member
    Join Date
    Jun 2021
    Location
    huntly
    Posts
    753
    I made one as well but found it rocks side to side a little bit ruining groups

  8. #8
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by Three O'Three View Post
    I made one as well but found it rocks side to side a little bit ruining groups
    Mine has a horizontal bar welded to the base to give left/right stability and at each end,a large nut welded to the top with a bolt that goes right through from the bottom to make adjustable feet. It also has a sliding extension bar that goes to the rear to hold the butt stock which also has a bolt foot adjuster.... I will try add a photo tomorrow .
    Intelligence has its limits, but it appears that Stupidity knows no bounds......

  9. #9
    Member
    Join Date
    Feb 2013
    Location
    Mangakino
    Posts
    1,821
    What happens when Mums Corolla gets a flat tire.

    Sent from my SM-A226B using Tapatalk
    XR500 and RV1 like this.

  10. #10
    Member
    Join Date
    Mar 2012
    Location
    South Waikato
    Posts
    8,215
    Quote Originally Posted by erniec View Post
    What happens when Mums Corolla gets a flat tire.

    Sent from my SM-A226B using Tapatalk
    Front end loader is faster. And probably easier for mum to operate.
    Overkill is still dead.

  11. #11
    Member
    Join Date
    Jun 2021
    Location
    huntly
    Posts
    753
    Quote Originally Posted by timattalon View Post
    Mine has a horizontal bar welded to the base to give left/right stability and at each end,a large nut welded to the top with a bolt that goes right through from the bottom to make adjustable feet. It also has a sliding extension bar that goes to the rear to hold the butt stock which also has a bolt foot adjuster.... I will try add a photo tomorrow .
    @timattalon. Any chance of a photo?

  12. #12
    STC
    STC is offline
    Member
    Join Date
    May 2023
    Location
    South
    Posts
    681
    you people must have very heavy rifles...

  13. #13
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by Three O'Three View Post
    @timattalon. Any chance of a photo?
    Tomorrow? Sorry I got a little busy today....should be sorted soon.
    Intelligence has its limits, but it appears that Stupidity knows no bounds......

  14. #14
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by STC View Post
    you people must have very heavy rifles...
    Not heavy rifles...just wobbly muscles......and lightweight holders move around too much under recoil....These mean that I can sight the rifle so it takes everything I do OUT of the equation. hat way I know the impact point lines up with the cross hair.
    Intelligence has its limits, but it appears that Stupidity knows no bounds......

  15. #15
    Member
    Join Date
    Nov 2014
    Location
    Christchuch New Zealand
    Posts
    6,086
    Quote Originally Posted by Three O'Three View Post
    @timattalon. Any chance of a photo?
    @ThreeO'Three try this.

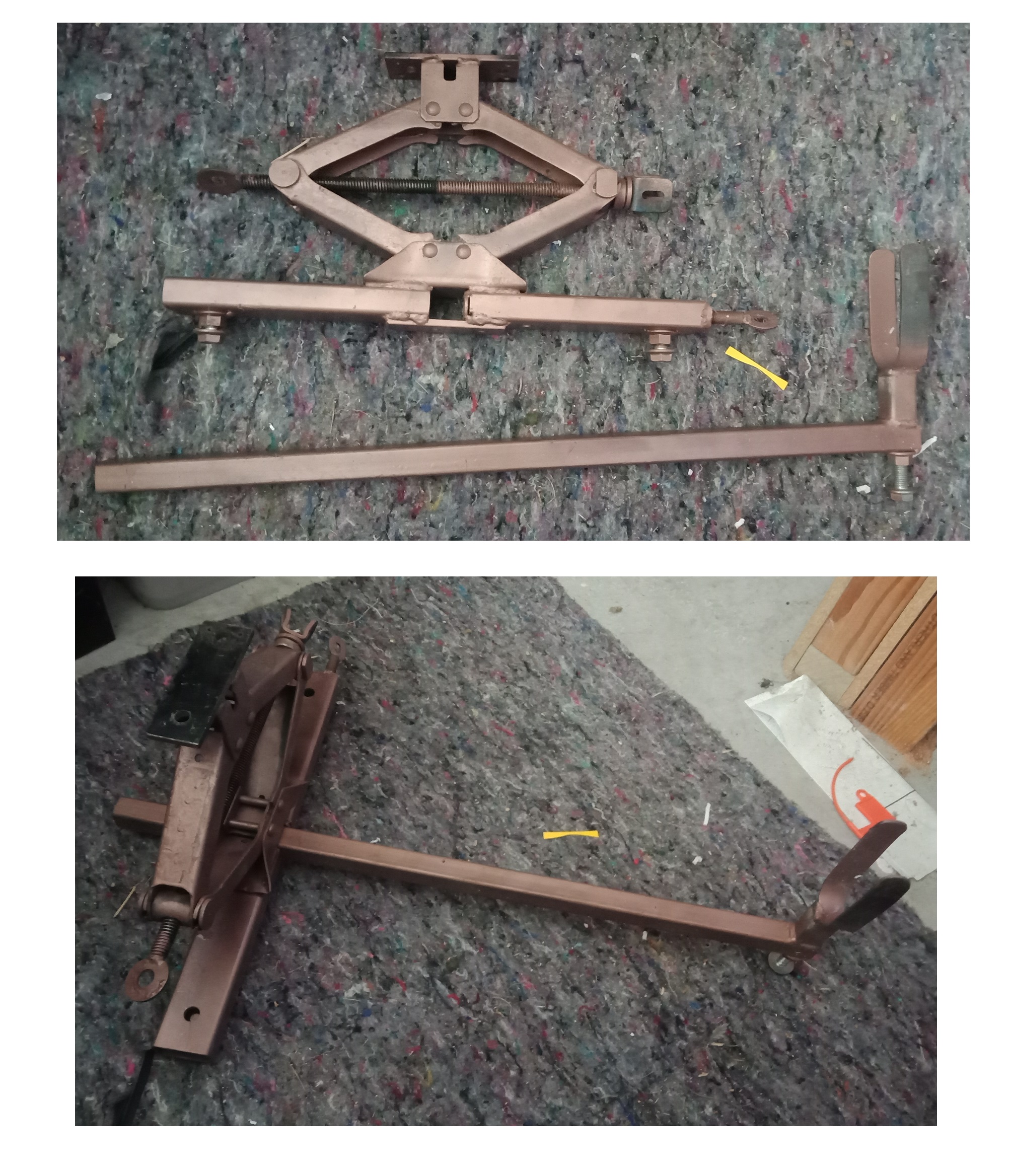

    The square hole you see in the centre of the bottm rail is where the "leg" goes through for the stock rest. The washer on the threaded rod on the right side of the bottom plate is clamp to lock the stock support in place.

    I made it so you can use either hand to adjust the height.

    It has a screw on pad for the forestock to rest on and a foam cover and recoil strap for the butt stock so that the metal does not contact or damage the stock.

    The three points of contact (feet) are all threaded so they can be adjusted if on a less than flat surface.

    Name:  Gun rest.jpg
Views: 1287
Size:  1.15 MB
    NIMROD likes this.
    Intelligence has its limits, but it appears that Stupidity knows no bounds......
