Fussy Winchester .06

I have recently acquired a Winchester 1906 repeater and have found it to be really fussy with ammo. I'm hoping someone can help me narrow down it's preference before buying heaps of different ammo at random.
The problem is all but one ammo I have tried jams up on the spring and won't close.
I have tried elly subs, cci subs, fiocchi rapid fire, and a random Winchester super x I think. The ammo it did like was aguila high velocity hollow points.
The only visual difference I can see is that the aguila is copper plated projectiles.
What I'm really wanting is to find a subsonic ammo that will load a full mag without jamming on closing!

Check it's for long rifle..not std. If it's std some of the target stuff may see you right is my only suggestion.

Yep it's printed on the barrel "22 short-long or long rifle"
This is considerably older than anything else I've owned...
I'm sure I'll figure it out

Are you referring to one of these?. Do you mean the spring in the magazine tube is jamming up?https://uploads.tapatalk-cdn.com/202...06ec0ea4a5.jpg

Sent from my SM-G525F using Tapatalk

I would recommend only using standard velocity ammo - the long rifle ammo of the day was pretty luke-warm compared to today so the mechanism wasnt designed to handle modern pressures.
Have you checked that the rifling is not leaded up? This can be a problem in older rifles but is readily overcome with some bore cleaner and elbow grease

Yep, same as pictured. The spring tube is getting caught and won't slide over the rounds. If you keep trying you can see scars on the lead from where it's getting caught up

Quote:

---

Originally Posted by Fee Knicks

I would recommend only using standard velocity ammo - the long rifle ammo of the day was pretty luke-warm compared to today so the mechanism wasnt designed to handle modern pressures.
Have you checked that the rifling is not leaded up? This can be a problem in older rifles but is readily overcome with some bore cleaner and elbow grease

---

First thing I did was clean it extremely well. Very clean and shiny bore!! Really good condition.
Good to know about standard velocity, but that's my issue here. Any lower or subsonic ammo is not loading right.
The high velocity went good.

Because its a mechanical action and not a blowback action it shouldnt matter what ammo you use for it to feed.

How has the mag inner tube been reduced to ten or less rounds ? If it has had a ring rolled in it that may well be binding the inner spring.

Have you tried dismantling the spring tube. Thats where I would start. There is a pin at the end with the knurling that you have to drift out. That will release the spring and follower. The guns bloody old and probably never had the tube cleaned. Clean all the wax an crap out and check for any damage to tube and follower.

Sent from my SM-G525F using Tapatalk

Cheers for the advice,
The spring tube goes in absolutely fine with the copper tipped aguila which made me think it would be ok... And with other ammo it goes down fine with 4 or so rounds but any more and it gets caught up on the rounds.

And Fee Knicks: it's not a feeding issue. Rifle feeds and cycles perfectly and never missed a beat... It's a loading the magazine issue.

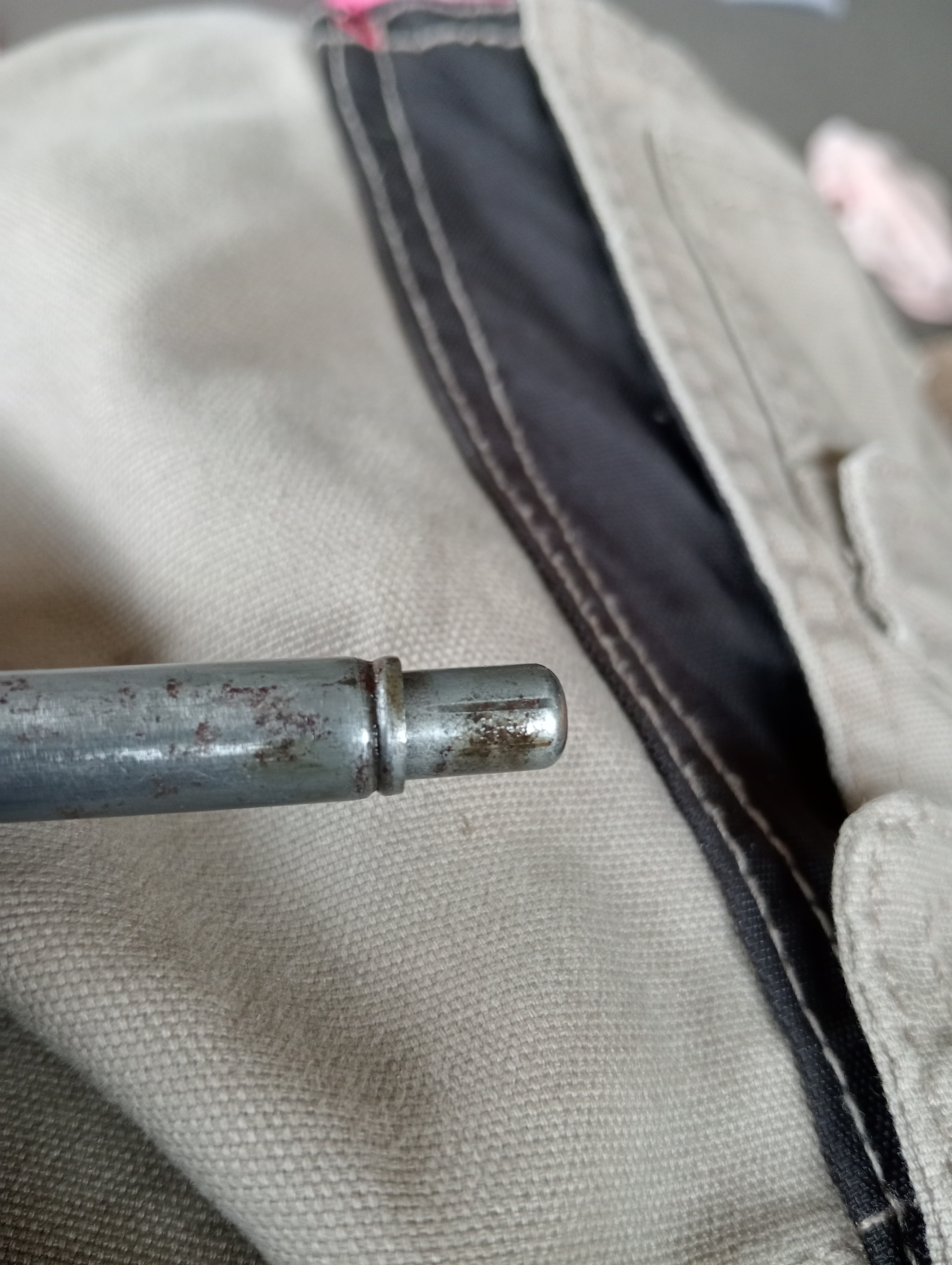

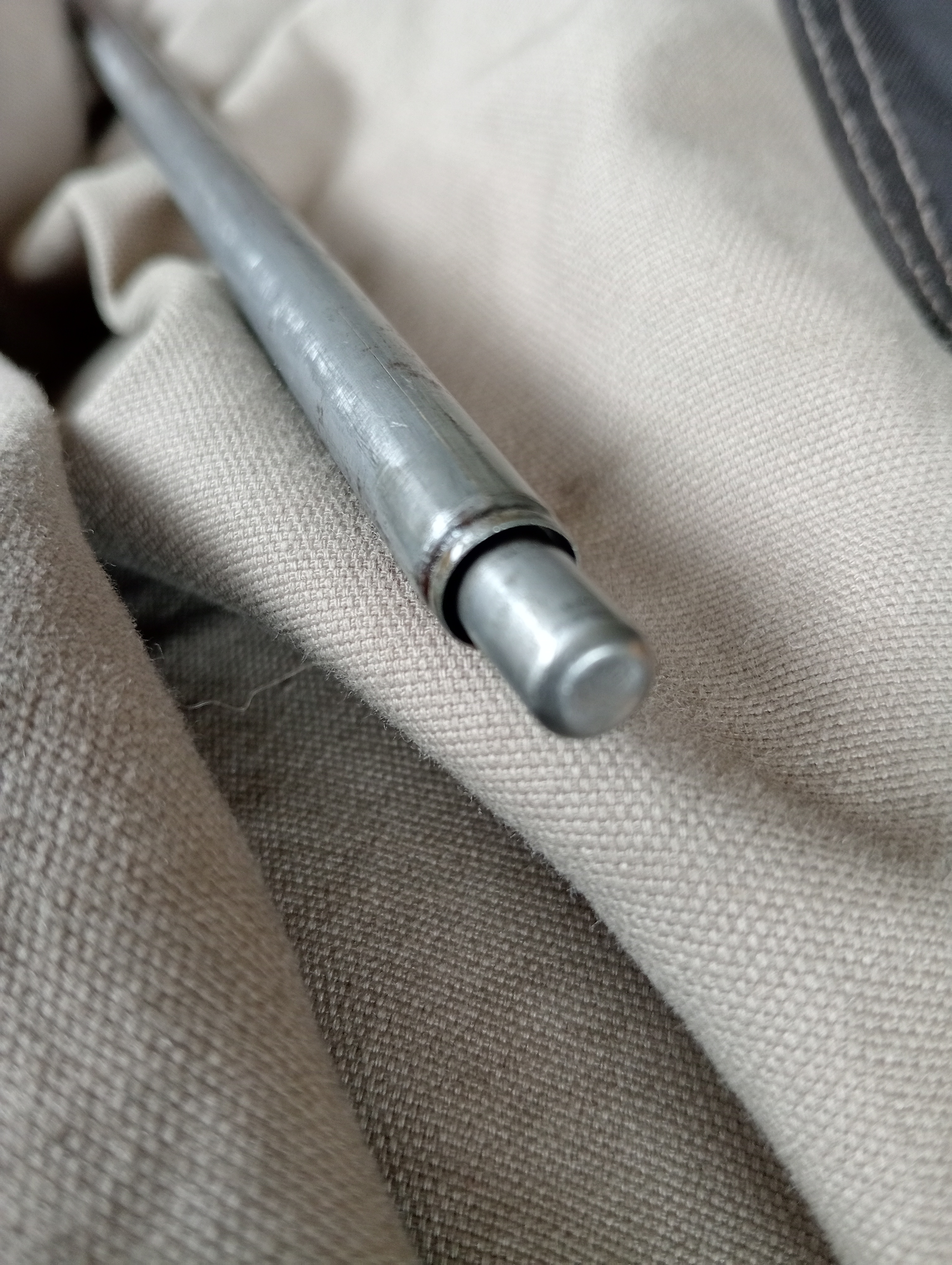

Check the end of the mag tube, where the follower protrudes. The ends can get a bit beat up over the years. Should have a slight chamfer there to help the tube slide over the rounds. Simply running an oiled patch up and down the tube against the follower will help too.

Attachment 261826
Attachment 261827

Possibly, someone has attempted to restrict the number of rounds the mag will take. If you gently tap this pin out you may find something inside that is obstructing the follower? https://uploads.tapatalk-cdn.com/202...6a0f901235.jpghttps://uploads.tapatalk-cdn.com/202...52655f3e26.jpg

Sent from my SM-G525F using Tapatalk

Quote:

---

Originally Posted by hunter Al.7mm08

Possibly, someone has attempted to restrict the number of rounds the mag will take. If you gently tap this pin out you may find something inside that is obstructing the follower? https://uploads.tapatalk-cdn.com/202...6a0f901235.jpghttps://uploads.tapatalk-cdn.com/202...52655f3e26.jpg

Sent from my SM-G525F using Tapatalk

---

Cheers, that's helpful. Will give it a go.
Can I pull the pin out with pliers ?

Quote:

---

Originally Posted by BushChook

Cheers, that's helpful. Will give it a go.
Can I pull the pin out with pliers ?

---

It is a tight fit. If you gently tap with a hammer in the direction of the red arrow, it will poke out the opposite side. You should then be able to grab it with pliers an pull all the way out. Be aware the spring will be under a little tension so watch things don't go flying and disappear under a bench top!

Sent from my SM-G525F using Tapatalk

File the end of a small nail flat and drift it out. Pliers mark shit up.

A drift punch is the better way to do it. An extra pair of hands to prevent the spring tension launching parts in to the future is always helpful

I got it apart without things going flying.
I was very surprised how clean it was in there.
Gave it another clean and oiled anyway and lightly sanded the inside of the opening of the tube.
Hopefully be able to take it out tomorrow for another shoot and see how it goes.

put the tube over a good straight edge and make sure its not bent they can get dropped during loading does not do them any good as far as feeding goes

Let us know how you get on. I there is nothing obstructing the tube then I'm afraid I have no idea what the issue might be.

Sent from my SM-G525F using Tapatalk

Got it sorted. Not sure what it was, but after oiling the spring and sanding the opening it's now closing on ten rounds of cci subs... The preferred round of my BRNO semi auto, so I'd be happy with one type ammo for all my 22's .

This thing is heaps of fun

Stick with subs or standard velocity ammo and it should last for ever

Quote:

---

Originally Posted by BushChook

This thing is heaps of fun

---

Yes ,they are.I have my Grandfather's one. Spent countless hours (and ammo) roaming around the farm as a kid chasing rabbits and possums....and the odd tin can!

Sent from my SM-G525F using Tapatalk

Quote:

---

Originally Posted by hunter Al.7mm08

Yes ,they are.I have my Grandfather's one. Spent countless hours (and ammo) roaming around the farm as a kid chasing rabbits and possums....and the odd tin can!

Sent from my SM-G525F using Tapatalk

---

Nice! I acquired this off an old boy, his family have had it since new in 1919.
I'll be chasing bunnies with it for sure!
