I think you and 308 are on it, Sumps and dig out when needed.
I would think that they would need to be dug out often for a start, but then would settle in after a few good rains etc..
Printable View
If you are worried about drainage material contamination ,all that is required is a decent blinding layer,of sand, on top of the Pea metal /GAP 6 (I forget what exactly).But remember drains do not last forever and it is possible to blast out/clean out pipe drainage.
Have you looked at a wet trap rather sumps? More expensive up front but pay for themselves over time. Your location sounds rural so, might not be viable.
So, ground drainage should now be sorted.....
Overhead baffles are not. So my thinking is i want to design to .50bmg. Reason being that, to span 30m and minimise how many, we need the baffles to be thick and high. Cost is a factor. Steel beams clad with wood (steel to hold it up and wood for penetration and splator) vers concrete (for penetration concrete, wood for splator), concrete seems to win. 300mm thick, 50mm air gap and 50-100mm pine (read 100x100 fence post) wood clad.
Any thoughts? Want the highest calbre / energy possible, but vers users etc....
Bit of a updated plan.
Couple of changes to add in another range (30m wide by 60 long), sorted some berm height issues, etc..
Still haven't got the baffles drawn in (basic outline done of where and how big though, and we should be certified up to 7000 joules - still need the detail design done to confirm the thickness which will determine final joule level) or the range buildings...... but should be soon.

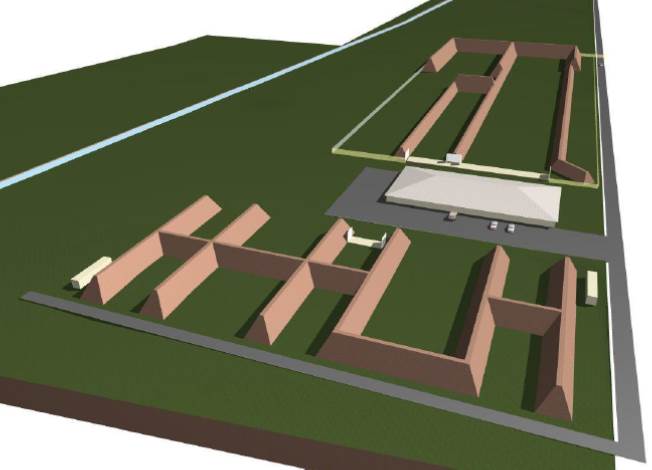

Attachment 38123
Dirt being moved now...
Drooling...Makes me wanna move south (Home)
So some small changes -

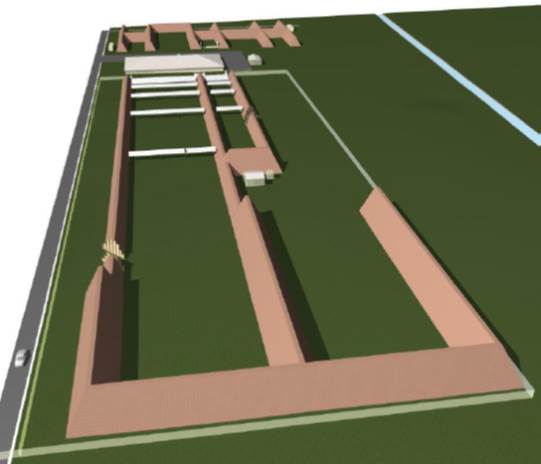

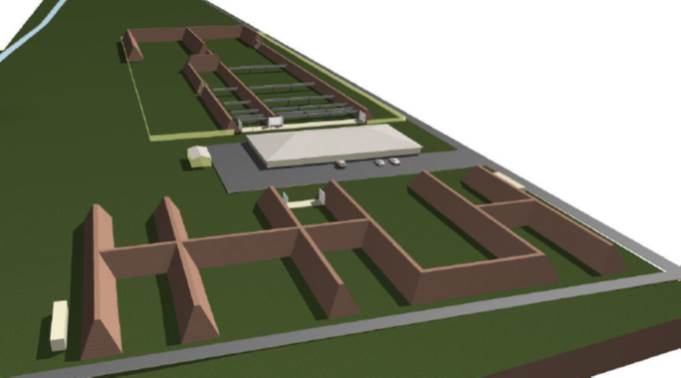

Attachment 38711Attachment 38712
Very impressed with the rapid progress on this.. the sooner we can transition from the old range the better. Thanks for all your work. :)
Still ALOT to do......
But site is looking really good:)
It'll still be a while away for the 100 and 200(maybe 300....) ranges though and the indoor range. Bloody money......
Latest, now the 200m range is going to be out to 300m......
Sorry I don't mean to hijack your thread, but I had a good laugh and it is a similar topic:
Planning dispute as gun club moves in next door to Wairarapa organic farm | Stuff.co.nz
Reminded me of this next link. I am glad we have good property rights and a few neighbors having a sook can't ruin it for the larger firearms community.
Pistol range in neighbours' sights | Stuff.co.nz
Bloody rain......
Bit of a delay now due to HV cant get into site, but still looking great.
Bit of a question, what type of floor of range is the preferred? Grass, astroturf, etc....
